Best Barns USA

Assembly Book

Revised September 19, 2017

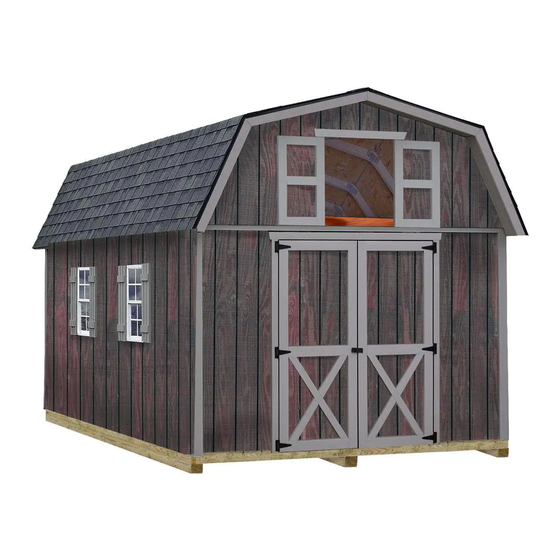

the Woodville

10' x 16'

Manufactured by Reynolds Building Systems, Inc.

205 Arlington Drive

Greenville, PA 16125

This manual is copyrighted. Under the copyright laws, this manual

may not be copied, in whole or in part, without consent from Reynolds

Building Systems, Inc.

Need help?

Do you have a question about the the Woodville and is the answer not in the manual?

Questions and answers

Summary of Contents for Best Barns the Woodville

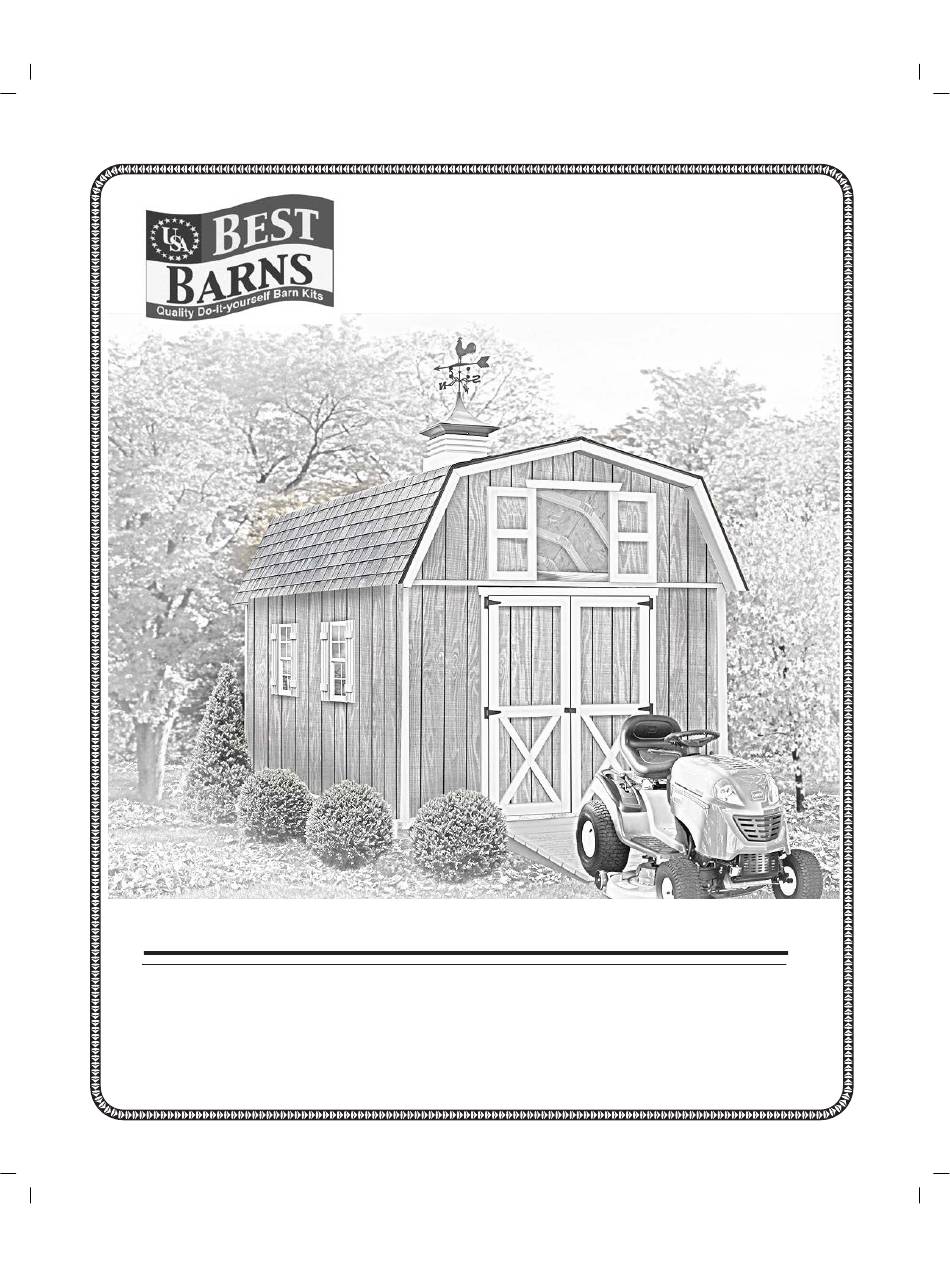

Page 1 Best Barns USA Assembly Book Revised September 19, 2017 the Woodville 10' x 16' Manufactured by Reynolds Building Systems, Inc. 205 Arlington Drive Greenville, PA 16125 This manual is copyrighted. Under the copyright laws, this manual may not be copied, in whole or in part, without consent from Reynolds Building Systems, Inc.
Page 2: Tool List
MPORTANT NFORMATION BOUT Download the most current instruction book at www.barnkits.com; use the "manuals" link on the menu bar and then select your building kit and size. The foundation size should measure 10'-0" wide by 15'-9" long. Do Not make the foundation larger than the building size.
Page 3 Constructing Details for Deluxe Floor System Deluxe floors include 4x4 runners, standard floors do not Foundation size is 10'-0" x 15'-9". Check local building codes in your area, the construction may have to change. For a concrete slab, install sill sealer as a moisture barrier between the concrete and the wall plates.
Page 4 Step 1 Assemble Trusses 1. Position (2) two truss halves together so that a 116-1/4" long 2x4 bottom cord may be placed between them. 2. Hold truss parts in place by temporarily screwing 2x4 blocks to the floor. There are short 2x4 blocks supplied in the kit for this purpose.
Page 5 Step 2 Assemble Rear Gable 1. Place (2) two 47" long and (2) two 38" long 2x4 gable rafters in the truss jig. Secure at knee with 1"x4" drive-on plates. Position ridge block at peak. Locate (1) one 35-3/4" 2x4 center stud and secure to ridge block with 1"x4"...
Page 6 Step 3 Assemble Front Gable 1. Repeat Step 2 to frame another gable. You will NOT use a 35-3/4" center stud. Place a 36" long 2x4 between the 34-1/4" studs. Measure 24-3/4" from bottom cord and secure with 1"x4" plates. 36"...
Page 7 Step 4 Install Front Gable Overhang and Front Loft Doors 1. Apply 47" long 2x3 boards to the front gable. These boards have a blue marking on one end. Install this end at the top. Install flush with the top of the gable frame. Use 10d sinkers 2.
Page 8 Step 6 Assemble Back Wall 1. Install 72" wall studs between the top and bottom plates. Nail studs to plate using (2) two 10d sinkers on each end of the stud. 2. Install (2) two 56-1/2" long 2x4 as tie plates over the top plate. The 2x4s will be 3-1/2" short of the end of the wall frame.
Page 9 Step 7 Assemble Front Wall Panels 1. Install (6) six 72" wall studs between 2x4 - 10' top and bottom plates. 2. Cut (2) two 2x4-6' boards to 69-1/2" in length. Install a pre-built 2x3 door header and the 2x4s as header support under the door header. 3.
Page 10 Step 7 Assemble Front Wall Continued 5. Locate a 16" x 77-1/4" siding panel that has a 'LAP' edge. Position the 'cut' edge flush with the left side of the door opening. Do not nail the LAP edge until the other siding is applied. 6.
Page 11 Step 8 Assemble Sidewalls Continued 3. Install 72" wall studs between the top and bottom plates. 4. Nail frames together with 10d sinkers. 5. Install a 48" and (2) two 70-1/2" long 2x6 boards as tie plates over the top plate. The 2x6s will extend 3-1/2"...
Page 12 Step 9 Set Lower Walls 1. Secure wall panels together at the corners. Use (4) four 10d coated nails per corner. Nail wall panels to the floor. Nail through the bottom plate. Space 10d sinkers 24" apart. Use 2x4s from the shopping pallet to brace the sidewalls. 2.
Page 13 Step 11 Install Rear Gable 1. Apply 1x4 white pine trim to gable. Install a 47-1/2" long 1x4 at the top of the gable. These boards have a blue marking on one end. Install this end at the peak. Install the 1x4 gable trim extending 1/2"...
Page 14 Step 12 Layout for Truss Spacing 1. Layout the truss spacing on the left sidewall, facing building. Start at the back of the building. Measure from the inside face of the wood gusset when marking the location of the first truss. 2.
Page 15 Step 13 Install Trusses 1. Install the trusses over the 'X' marks. Install hanger to the opposite side of the trusses. Secure truss to metal hangers using 1-1/2" hanger nails. Note: The center truss will not have a bottom cord. 2.
Page 16 Step 14 Install Loft Floor 1. Install a 4' x 4' OSB flooring panel between the siding on the rear gable and the center of the 2nd truss. Notch the panel around the studs on the gable and cut the width to fit on the center of the 2x4 truss bottom.
Page 17 Step 15 Install Roof Sheathing Install roof sheathing on the steep side of the roof. Use a straight edge to align the top of the sheathing with the top of the truss; see Detail 'B'. Make sure the trusses are plumb and the roof sheathing meets the center of the truss.
Page 18 Step 17 Install Gable Soffit and Trim 1. Install soffit panels to the 2x3s. Use 6d galv. nails 2. Install 1x4 trim over the 2x3 boards. Use 8d galv. nails. 8" Soffit Panels 1x4 Gable Trim 3. Cut and install a 2x3 block to close off the opening at the bottom of the overhang.
Page 19 Step 18 Install Doors & Hardware 1. Lay the left door with the trim facing up. The siding on the left door extends past the door trim. See detail below. 2. Install 5" hinges to the left side of the door frame. To position the hinge properly, hold the rectangular plate against the frame.
Page 20 Meadowbrook and Woodville 10'x 16' Barn kit Qty. Qty. 2x4 & 2x6 Framing Size Whie Pine Trim Size Wall Plates " 1x4 Gable Trim 1/2" Truss - Bottom Cords 116 1/4" 1x4 Gable Trim " 2x4 Boards Attached to Pallet "...
