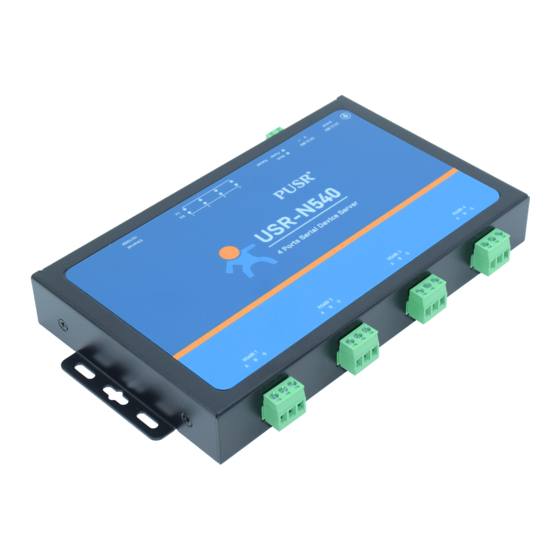

- Page 1 USR-DR404 AT 指令集 USR Cortex-M7 Series Serial to Ethernet Device Server AT Command manual V2.0.0 USR-N510,USR-N520,USR-N540,USR-N580 Build a Smarter IoT world, Your Trustworthy Partner...
-
Page 2: Table Of Contents
AT command set Content 1. Introduction ....................... 4 2. AT Command Setting Approach ..................4 2.1. Network AT command mode .................. 4 2.2. Serial AT command mode ..................6 2.3. AT command error code ..................7 2.4. AT command set .....................8 2.5. AT command details ..................11 2.5.1. - Page 3 AT command set 2.5.28. AT+SOCKTONN ..................21 2.5.29. AT+HEARTENN ..................21 2.5.30. AT+HEARTTMN ..................21 2.5.31. AT+HEARTTPN ..................22 2.5.32. AT+HEARTDTN ..................22 2.5.33. AT+HEARTUSERN ..................22 2.5.34. AT+REGENN ..................23 2.5.35. AT+REGTCPN ..................23 2.5.36. AT+REGUSRN ..................24 2.5.37. AT+REGUSERN ..................24 2.5.38.
- Page 4 AT command set 2.5.67. AT+AWSSER ..................36 2.5.68. AT+AWSHEARTTM ................... 36 2.5.69. AT+AWSRECTM ..................36 2.5.70. AT+AWSNDTRECTM ................. 37 2.5.71. AT+AWSCS ..................37 2.5.72. AT+AWSSSL ..................37 2.5.73. AT+AWSPUBCUSEN .................. 38 2.5.74. AT+AWSPUB ..................38 2.5.75. AT+AWSSUB ..................39 2.5.76. AT+USRCLDEN ..................40 2.5.77.
-
Page 5: Introduction
AT command set Introduction This document provides a detailed specification and a comprehensive listing for the whole set of AT commands for the ARM Cortex M7 Series serial to Ethernet converter. This document applies to USR-N510,USR-N520,USR-N540,USR-N580 models. 2. AT Command Setting Approach 2.1. - Page 6 AT command set Check Auto Append Bytes Figure 2 Send AT command Figure 3 Now you can send AT command to the module.If no command is sent within 30 seconds, the module will automatically exit the Network AT command mode. Your TrustWorthy Industrial IoT Partner www.pusr.com...
-
Page 7: Serial At Command Mode
AT command set 2.2. Serial AT command mode After the device is powered on and starts working, you can send commands through the serial port to set device parameters. The syntax and usage of the AT command are described in details later. The default parameters of the serial port are as follows: Baud rate 115200, None Parity bit, 8 Data bits, 1 Stop bit. -
Page 8: At Command Error Code
AT command set 3. After receiving ‘a’, the USR module sends ‘+ok’to the device or tool and enters the AT instruction mode 4. After receiving ‘+ok’, the device or tool knows that the USR module has entered AT instruction mode and can send AT commands to it. -
Page 9: At Command Set
AT command set Error code Description ERR1 Invalid command syntax ERR2 Invalid command code ERR3 Invalid operator ERR4 Wrong parameter or missing arguments ERR5 Operation not allowed ERR6 No operation permission 2.4. AT command set Table 4 AT command set Instruction Description General commands... - Page 10 AT command set exceeding maximum sockets NO. AT+SOCKPORTAN Query/set local port of SOCKA of PortN AT+UDPONN Do not filter remote IP or port in UDP mode of PortN Query/set whether to enable UDP multicast in socket A of AT+MULTIENN PortN AT+SOCKSLN Query/set whether to enable short-lived connection in TCP client mode of PortN...
- Page 11 AT command set AT+MQTTVER Query/set MQTT version AT+MQTTCID Query/set client ID AT+MQTTSER Query/set Host address and port AT+MQTTLPORT Query/set local port AT+MQTTHEART Query/set keep alive interval AT+MQTTRECTM Query/set MQTT connection timeout AT+MQTTNDTRE Query/set MQTT reconnect period when no data flow in socket AT+MQTTCS Query/set whether to clean session...
-
Page 12: At Command Details
AT command set AT+USRCLDTCO Query/set bonding serial ports AT+USRCLDGTO Query/set whether to enable edge computing of PUSR cloud Edge computing commands AT+EDGEEN Query/set whether to enable edge computing gateway System setting commands AT+MID Query/set the module name AT+WEBSOCKPO Query/set WebSocket port NO. AT+WEBPOINT Query/set websocket mapping direction AT+WEBPORT... -
Page 13: At+H
AT command set <CR><LF>+OK=<on/off><CR><LF> AT+E=<on/off><CR> <CR><LF>+OK<CR><LF> Parameter on:enable command echo,send back command header and command code,<CR> not included. off:the command header and command code are not echoing E.g.AT+E=ON 2.5.2. AT+H Function Help Format Query ... -
Page 14: At+Reld
AT command set Format AT+ CFGTF <CR> <CR><LF>+OK=<sta><CR><LF> Parameter saved: done E.g.AT+CFGTF 2.5.6. AT+RELD Function Restore the user default settings Format Execute AT+RELD<CR> <CR><LF>+OK<CR><LF> Parameter: none 2.5.7. AT+CLEAR Function Restore the factory default settings Format ... -
Page 15: At+Mac
AT command set AT+ENTM<CR> <CR><LF>+OK<CR><LF> Parameter:none 2.5.10. AT+MAC Function Query MAC address Format Query AT+MAC<CR> <CR><LF>+OK=<mac><CR><LF> Parameter mac: MAC address (e.g.9CA525C4F2F9) 2.5.11. AT+WANN Function Query/set WAN port parameters Format Query AT+WANN<CR> <CR><LF>+OK=<mode,address,mask,gateway><CR><LF>... -
Page 16: At+Dns
AT command set AT+DNSTYPE=<mode><CR> <CR><LF>+OK<CR><LF> Parameter mode: AUTO: default Manual E.g.AT+DNSTYPE=AUTO 2.5.13. AT+DNS Function Query/set preferred DNS Server Format Query AT+DNS<CR> <CR><LF>+OK=< address ><CR><LF> AT+DNS=< address ><CR> <CR><LF>+OK<CR><LF> Parameter address: DNS server address ... -
Page 17: At+Uarttln
AT command set Format Query AT+UARTN<CR> <CR><LF>+OK=<baudrate,data_bits,stop_bit,parity,flowctrl ><CR><LF> AT+UARTN=<baudrate,data_bits,stop_bit,parity,flowctrl ><CR><LF> <CR><LF>+OK<CR><LF> Parameters baudrate 600~921.6K(bps) data_bits:7,8 stop_bits:1,2 parity: NONE EVEN flowctrl NFC: none FCR: software control flow XON,XOFF ... -
Page 18: At+Uartmn
AT command set Format Query AT+RFCENN<CR> <CR><LF>+OK=<status><CR><LF> AT+ RFCENN =<status><CR> <CR><LF>+OK<CR><LF> Parameter ON: enable.default OFF: disable E.g.AT+RFCEN1=ON 2.5.18. AT+UARTMN Function Query/set serial port interface type of PortN（N520-H7-6） Format Query AT+UARTMN <CR> <CR><LF>+OK=<status><CR><LF>... -
Page 19: At+Socklkmn
AT command set UDPS UDP Server UDPC UDP Client HTPC Httpd Client IP: When the module is set to Client, the IP address is the server IP address Port: 0~65535,0 means random E.g.AT+SOCKA1=TCPC,192.168.0.201,8234 2.5.20. AT+SOCKLKMN Function ... -
Page 20: At+Sockportan
AT command set AT+ TCPSEN<CR> <CR><LF>+OK=<sta><CR><LF> AT+TCPSEN<CR> <CR><LF>+OK =<sta><CR><LF> Parameter KICK：receive new socket connection and kick out the first connection.default KEEP：do not receive new socket connection E.g.AT+TCPSE1=KICK 2.5.23. AT+SOCKPORTAN Function Query/set local port of SOCKA of PortN Format ... -
Page 21: At+Multienn
AT command set 2.5.25. AT+MULTIENN Function Query/set whether to enable UDP multicast in socket A of PortN Query AT+ MULTIENN<CR> <CR><LF>+OK=<sta><CR><LF> AT+MULTIENN<CR> <CR><LF>+OK =<sta><CR><LF> Parameter ON：enable. OFF：disable.default. E.g.AT+MULTIEN1=OFF 2.5.26. AT+SOCKSLN Function Query/set whether to enable short-lived connection in TCP client mode of PortN Format ... -
Page 22: At+Socktonn
AT command set <CR><LF>+OK<CR><LF> Parameter time: 3-255s.default 3s. E.g.AT+SHORTO1=3 2.5.28. AT+SOCKTONN Function Query/set time of no data traffic in socket to reconnect server of PortN Format Query AT+ SOCKTONN <CR> <CR><LF>+OK=<time><CR><LF> AT+ SOCKTONN =<time><CR> <CR><LF>+OK<CR><LF>... -
Page 23: At+Hearttpn
AT command set <CR><LF>+OK=< time><CR><LF> AT+ HEARTTMN=< time><CR> <CR><LF>+OK<CR><LF> Parameter time: default 30s,range 1～65535s E.g.AT+HEARTTM1=30 2.5.31. AT+HEARTTPN Function Query/set heartbeat packet direction of PortN Format Query AT+ HEARTTP <CR> <CR><LF>+OK=< type><CR><LF> AT+ HEARTTP =< type ><CR> <CR><LF>+OK<CR><LF>... -
Page 24: At+Regenn
AT command set Format Query AT+ HEARTUSERN <CR> <CR><LF>+OK=< data,type ><CR><LF> AT+ HEARTUSERN =< data,type ><CR> <CR><LF>+OK<CR><LF> Parameters data: user-defined heartbeat packets, up to 40 characters in ASCII,up to 40 characters in HEX type: format ,ASCII or HEX ... -
Page 25: At+Regusrn
AT command set status First:A registration package is sent only the first time you connect to the server Every:Add a registration packet before each packet sent to the server ALL: both are supported E.g.AT+REGTCP1=all 2.5.36. AT+REGUSRN Function ... -
Page 26: At+Htptpn
AT command set <CR><LF>+OK=<ID,CODE><CR><LF> AT+REGCLOUDN=<ID,CODE><CR> <CR><LF>+OK<CR><LF> Parameter ID: device ID, 20 characters CODE: password, 8 characters E.g.AT+REGCLOUD1=12345678901234567890，12345786 2.5.39. AT+HTPTPN Function Query/set HTTP request methods of PortN Format Query AT+HTPTPN<CR> <CR><LF>+OK=< status><CR><LF> AT+HTPTPN=< status><CR> <CR><LF>+OK<CR><LF>... -
Page 27: At+Htpchdn
AT command set Query/set HTTP Header information of PortN Format Query AT+HTPHEADN<CR> <CR><LF>+OK =<string><CR><LF> AT+HTPHEADN =<string><CR> <CR><LF>+OK<CR><LF> Parameter string:up to 180 characters Note: Carriage return newlines are represented by <<CRLF>> escape characters E.g.AT+HTPHEAD1=Accept:text<<CRLF>> 2.5.42. AT+HTPCHDN Function ... -
Page 28: At+Modtcpn
AT command set 2.5.44. AT+MODTCPN Function Query/set whether to enable modbus TCP of PortN Format Query AT+ MODTCPN<CR> <CR><LF>+OK=<sta><CR><LF> AT+ MODTCPN=<sta><CR> <CR><LF>+OK<CR><LF> Parameter ON: enable OFF: disable,default E.g.AT+MODTCP1=ON 2.5.45. AT+MODPOLLN Function Query/set whether to enable modbus poll of PortN Format ... -
Page 29: At+Mqtten
AT command set <CR><LF>+OK =<time><CR><LF> Parameter time: 10-9999ms,default 200ms E.g.AT+MODTO1=200 2.5.47. AT+MQTTEN Function Query/set whether to enable MQTT Format Query AT+MQTTEN<CR> <CR><LF>+OK=<sta><CR><LF> AT+MQTTEN=<sta><CR> <CR><LF>+OK<CR><LF> Parameter ON: enable OFF:disable.default. E.g.AT+MQTTEN=ON 2.5.48. AT+MQTTVER Function ... -
Page 30: At+Mqttser
AT command set Query AT+ MQTTCID<CR> <CR><LF>+OK=< clientid><CR><LF> AT+ MQTTCID=< clientid><CR> <CR><LF>+OK<CR><LF> Parameter clientid:up to 128 characters E.g.AT+MQTTCID=1c5b47ea8b6648d5adc2cb77365ede92 2.5.50. AT+MQTTSER Function Query/set Host address and port Format Query AT+MQTTSER<CR> <CR><LF>+OK=< address,port><CR><LF> AT+MQTTSER=< address,port><CR> <CR><LF>+OK<CR><LF>... -
Page 31: At+Mqttrectm
AT command set Query/set keep alive interval Format Query AT+ MQTTHEARTTM<CR> <CR><LF>+OK=< time><CR><LF> AT+ MQTTHEARTTM=< time><CR> <CR><LF>+OK<CR><LF> Parameter time: default 60s,range 0～65535s,0 means disable E.g.AT+MQTTHEARTTM=30 2.5.53. AT+MQTTRECTM Function Query/set MQTT connection timeout Format Query ... -
Page 32: At+Mqttcs
AT command set 2.5.55. AT+MQTTCS Function Query/set whether to clean session Format Query AT+MQTTCS<CR> <CR><LF>+OK=<sta><CR><LF> AT+MQTTCS=<sta><CR> <CR><LF>+OK<CR><LF> Parameter ON: enable OFF:disable.default. E.g.AT+MQTTCS=ON 2.5.56. AT+MQTTAUTH Function Query/set whether to enable user credential Format ... -
Page 33: At+Mqttpsw
AT command set AT+MQTTUSER<CR> <CR><LF>+OK =<user><CR><LF> Parameters user:up to 128 characters,can’t be NULL E.g.AT+MQTTUSER=admin 2.5.58. AT+MQTTPSW Function Query/set password Format Query AT+MQTTPSW<CR> <CR><LF>+OK=<password><CR><LF> AT+MQTTPSW<CR> <CR><LF>+OK =<password><CR><LF> Parameters password:up to 128 characters,can’t be NULL ... -
Page 34: At+Mqttssl
AT command set <CR><LF>+OK=<topic,Qos,retained,payload><CR><LF> AT+MQTTLWTCFG=<topic,Qos,retained,payload><CR> <CR><LF>+OK<CR><LF> Parameter topic:0~128 characters,default /will Qos: 0,1,2.default 0. retained ON: enable OFF:disable.default. payload:0~128 characters,default offline E.g.AT+MQTTLWTCFG=/will,0,ON,offline 2.5.61. AT+MQTTSSL Function Query/set whether to enable TLS/SSL Query AT+MQTTSSL<CR>... -
Page 35: At+Mqttpub
AT command set <CR><LF>+OK=<sta><CR><LF> AT+MQTTPUBCUSEN=<sta><CR> <CR><LF>+OK<CR><LF> Parameter ON: enable custom topic message transparent transform. Format: topic,Qos,retain,payload. OFF:using predefined topic.default. E.g.AT+MQTTPUBCUSEN=ON 2.5.63. AT+MQTTPUB Function Query/set predefined topic message to publish Query AT+MQTTPUB<CR> <CR><LF>+OK=<pubnum,puben,topic,mode,symbol,Qos,retained,comn><CR><LF> AT+MQTTPUB=<pubnum,puben,topic,mode,symbol,Qos,retained,comn><CR>... -
Page 36: At+Awsen
AT command set <CR><LF>+OK=<subnum,suben,topic,mode,Qos,cut,comn><CR><LF> AT+MQTTSUB=<subnum,suben,topic,mode,Qos,cut,comn><CR> <CR><LF>+OK<CR><LF> Parameter subnum:1~16, each serial port support maximum 16 topics. puben ON: enable.subscribe this topic message from server. OFF:disable.default. topic:maximum 128 characters mode 0: only send payload to serial port.default. ... -
Page 37: At+Awsser
AT command set AT+ AWSCID=< clientid><CR> <CR><LF>+OK<CR><LF> Parameter clientid:up to 128 characters E.g.AT+AWSCID=1c5b47ea8b6648d5adc2cb77365ede92 2.5.67. AT+AWSSER Function Query/set Host address and port Format Query AT+AWSSER<CR> <CR><LF>+OK=< address,port><CR><LF> AT+AWSSER=< address,port><CR> <CR><LF>+OK<CR><LF> Parameter address: broker address,up to 128 characters ... -
Page 38: At+Awsndtrectm
AT command set AT+ AWSRECTM<CR> <CR><LF>+OK=<time><CR><LF> AT+ AWSRECTM=<time><CR> <CR><LF>+OK<CR><LF> Parameter time:default 5s,range 1～65535s. E.g.AT+AWSRECTM=10 2.5.70. AT+AWSNDTRECTM Function Query/set MQTT reconnect period when no data flow in socket Format Query AT+ AWSNDTRECTM<CR> <CR><LF>+OK=<time><CR><LF> AT+ AWSNDTRECTM=<time><CR> <CR><LF>+OK<CR><LF>... -
Page 39: At+Awspubcusen
AT command set Query/set whether to enable TLS/SSL Query AT+AWSSSL<CR> <CR><LF>+OK=<sslen,sslver,sslmod><CR><LF> AT+AWSSSL=<sslen,sslver,sslmod><CR> <CR><LF>+OK<CR><LF> Parameter sslen ON: enable OFF:disable. sslver: protocol version 2:TLS1.2 sslmod 2: verify server and client certificate E.g.AT+AWSSSL=ON,2,2 2.5.73. -
Page 40: At+Awssub
AT command set <CR><LF>+OK<CR><LF> Parameter pubnum:1~16, each serial port support maximum 16 topics. puben ON: enable.this topic message can be published to server. OFF:disable.default. topic:0~128 characters,do not support wildcards mode 0: send to all topics.default. ... -
Page 41: At+Usrclden
AT command set 2.5.76. AT+USRCLDEN Function Query/set whether to enable PUSR cloud service Format Query AT+USRCLDEN<CR> <CR><LF>+OK=<sta><CR><LF> AT+USRCLDEN=<sta><CR> <CR><LF>+OK<CR><LF> Parameter ON: enable OFF:disable.default. E.g.AT+USRCLDEN=ON 2.5.77. AT+USRCLDTCOM Function Query/set bonding serial ports Format ... -
Page 42: At+Edgeen
AT command set Parameter ON: enable OFF:disable.default. E.g.AT+USRCLDGTOP=ON 2.5.79. AT+EDGEEN Function Query/set whether to enable edge computing gateway Format Query AT+EDGEEN<CR> <CR><LF>+OK=<sta><CR><LF> AT+EDGEEN=<sta><CR> <CR><LF>+OK<CR><LF> Parameter ON: enable OFF:disable.default. E.g.AT+EDGEEN=ON 2.5.80. -
Page 43: At+Webpoint
AT command set AT+ WEBSOCKPORT1<CR> <CR><LF>+OK=<port><CR><LF> AT+ WEBSOCKPORT1=<port> <CR> <CR><LF>+OK<CR><LF> Parameter port:listen port NO. Range 1-65535. E.g.AT+WEBSOCKPORT1=81 2.5.82. AT+WEBPOINT Function Query/set websocket mapping direction Format Query AT+WEBPOINT<CR> <CR><LF>+OK=<sta><CR><LF> AT+WEBPOINT=<sta><CR> <CR><LF>+OK<CR><LF> Parameter OFF: disable ... -
Page 44: At+Webu
AT command set 2.5.84. AT+WEBU Function Query/set web console username and password Format Query AT+WEBU<CR> <CR><LF>+OK=<username,password><CR><LF> AT+WEBU<CR> <CR><LF>+OK =<username,password><CR><LF> Parameters username:up to 16 characters,can’t be NULL password:up to 16 characters,can’t be NULL E.g.AT+WEBU=admin,admin 2.5.85. -
Page 45: At+Netprn
AT command set ON: enable OFF:disable E.g.AT+UARTCLBUF =ON 2.5.87. AT+NETPRN Function Query/set the network printing function of PortN Format Query AT+ NETPRN <CR> <CR><LF>+OK=<sta><CR><LF> AT+ NETPRN =<sta><CR> <CR><LF>+OK<CR><LF> Parameter ON: enable ... -
Page 46: At+Telnetport
AT command set Query AT+TELNETEN<CR> <CR><LF>+OK=<sta><CR><LF> AT+TELNETEN=<sta><CR> <CR><LF>+OK<CR><LF> Parameter ON: enable OFF:disable.default. E.g.AT+TELNETEN=ON 2.5.90. AT+TELNETPORT Function Query/set TELNET port NO. Format Query AT+TELNETPORT<CR> <CR><LF>+OK=<port><CR><LF> AT+TELNETPORT<CR> <CR><LF>+OK =<port><CR><LF> Parameter port:port NO. of TELNET,default 22 ... -
Page 47: At+Ntpser
AT command set 2.5.92. AT+NTPSER Function Query/set Host address and port Format Query AT+NTPSER<CR> <CR><LF>+OK=< address,timezone><CR><LF> AT+NTPSER=< address,timezone><CR> <CR><LF>+OK<CR><LF> Parameter address: server address,up to 128 characters timezone:-12~12,default 8 E.g.AT+NTPSER=cn.ntp.org.cn,8 2.5.93. AT+LOG Function Query/set the LOG level Format ... -
Page 48: At+Pdtime
AT command set <CR><LF>+OK<CR><LF> Parameter sta: ON: enable OFF:disable.default. time:idle time,0-2500ms E.g.AT+P485CLT=OFF 2.5.95. AT+PDTIME Function Query the production time Format Query AT+PDTIME<CR> <CR><LF>+OK=<time><CR><LF> Parameter time: production time e.g.2021-10-18 11:20:02 2.5.96. AT+SEARCH function ... -
Page 49: At+Btver
AT command set AT+PLANG =<language><CR> <CR><LF>+OK<CR><LF> Parameter language CN Chinese EN English E.g.AT+PLANG=CN 2.5.98. AT+BTVER Function Query Boot version Format Query AT+BTVER<CR> <CR><LF>+OK=<ver><CR><LF> Parameter ver: boot version 2.5.99. AT+PING Function Test network connection Format ... -
Page 50: Contact Us
USR IoT products. EXCEPT AS SET FORTH IN THE TERMS AND CONDITIONS AS SPECIFIED IN THE LICENSE...
