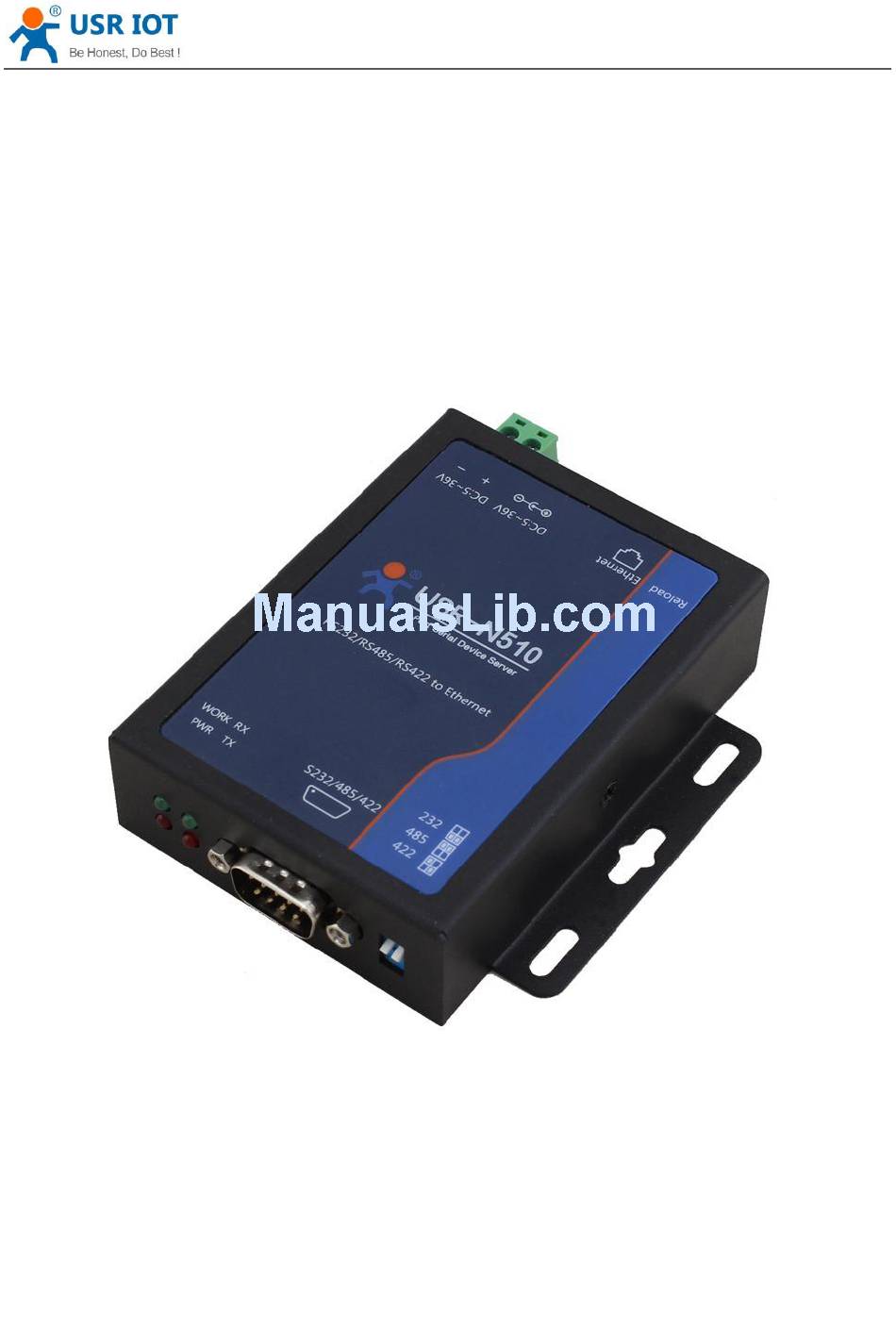

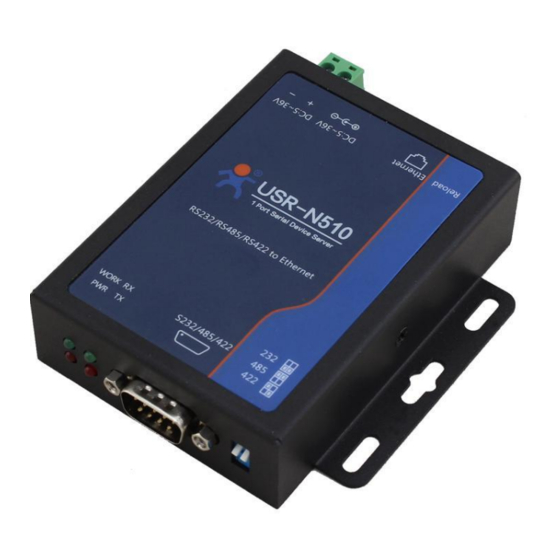

Page 1: Usr-N510 User Manual
USR-N510 User Manual Technical Support: h.usriot.com USR-N510 User Manual File Version: V1.0.8.01 Jinan USR IOT Technology Limited... -
Page 2: Table Of Contents
3.1. Setup software Configuration .......................24 3.2. Web Server Configuration ........................24 3.3. AT Command ............................25 3.3.1. Serial AT Command ........................25 3.3.2. Network AT Command .......................25 4. Contact Us ................................27 5. Disclaimer ................................27 6. Update History ..............................27 Jinan USR IOT Technology Limited... -
Page 3: Features
Support serial port baud rate 600bps~230.4K bps, support None, Odd, Even, Mark, Space parity way. Support Static IP or DHCP. Support web server configuration. Support Websocket function. Support hardware Reload. Support Keep-alive. Support RS232/RS485/RS422. Jinan USR IOT Technology Limited... -
Page 4: Get Start
1. Get Start Product link: http://www.usriot.com/p/rs232rs485rs422-serial-ethernet-converter/ Setup software: http://www.usriot.com/usr-tcp232-m4k3-setup-software Figure 1 Download Page If you have any question, please submit it back to customer center: http://h.usriot.com 1.1. Application Diagram Figure 2 Application diagram Jinan USR IOT Technology Limited www.usriot.com... -
Page 5: Hardware Design
USR-N510 User Manual Technical Support: h.usriot.com 1.2. Hardware Design 1.2.1. Hardware Dimensions Figure 3 Hardware dimensions Jinan USR IOT Technology Limited www.usriot.com... -
Page 6: Led Indicator
Off: No data receiving from serial Figure 4 Hardware Indicator 1.2.3. DB9 Pin definition Pin Number RS232 RS422 RS485 Figure 5 DB9 Pin definition 1.2.4. DB9 Pinboard We provide DB9 pinboard for user to use terminal connection. Jinan USR IOT Technology Limited www.usriot.com... - Page 7 USR-N510 User Manual Technical Support: h.usriot.com Type RS232 RS485 RS422 Figure 6 DB9 pinboard Jinan USR IOT Technology Limited www.usriot.com...
-
Page 8: Product Functions
USR-N510 User Manual Technical Support: h.usriot.com 2. Product Functions This chapter introduces the functions of USR-N510 as the following diagram shown, you can get an overall knowledge of it. Socket A TCPS/TCPC/UDPS/UDPC/HTTPD Client Serial Identity port Keep-Alive CLOUD Packet packaging... -
Page 9: Hardware Restore Default Settings
2.1.2. Hardware Restore default settings User can press Reload over 5 seconds then release to restore default settings. 2.1.3. Upgrade Firmware Version User can contact to salespersons for needed firmware version and upgrade by setup software as follow: Jinan USR IOT Technology Limited www.usriot.com... -
Page 10: Socket Functions
TCP Client won’t accept other connection request except target server and will access server with random local port. User can set N510 in TCP Client mode and related parameters by setup software or web server as follows: Jinan USR IOT Technology Limited www.usriot.com... -
Page 11: Tcp Server
N510 work in TCP Server support 8 client connections at most and will kick off oldest connection beyond maximum connections. User can set N510 in TCP Server mode and related parameters by setup software or web server as follows: Jinan USR IOT Technology Limited www.usriot.com... -
Page 12: Udp Client
2.2.3. UDP Client UDP transport protocol provides simple and unreliable communication services. No connection connected /disconnected. In UDP Client mode, N510 will only communicate with target IP/Port. If data not from target IP/Port, it won’t be Jinan USR IOT Technology Limited www.usriot.com... -
Page 13: Udp Server
User can set N510 in UDP Client mode and related parameters by setup software or web server as follows: Figure 12 UDP Client 2.2.4. UDP Server In UDP Server mode, N510 will change target IP every time after receiving UDP data from a new IP/Port and will Jinan USR IOT Technology Limited www.usriot.com... -
Page 14: Httpd Client
In HTTPD Client mode, N510 can achieve data transmission between serial port device and HTTP server. User just need set N510 in HTTPD Client and set the HTTPD header, URL and some other related parameters, then can Jinan USR IOT Technology Limited www.usriot.com... -
Page 15: Websocket
2.2.6. WebSocket WebSocket function can achieve real-time interaction between serial port and webpage and display user data on webpage. User can set N510 with WebSocket function by web server as follow: Figure 15 WebSocket Jinan USR IOT Technology Limited www.usriot.com... -
Page 16: Serial Port
N510 support hardware flow control way ( RTS/CTS, only take effect in RS232 mode ) and software flow control way Xon/Xoff. User can select Flow Control method by setup software or web server as follows: Figure 16 Flow Control Jinan USR IOT Technology Limited www.usriot.com... -
Page 17: Serial Package Methods
10ms or data length beyond 512, data will be sent to network. One of package time or package length is 0, N510 will adopt the method which is not 0. User can set package time and package length by setup software or web server as follows: Figure 17 Serial Package Jinan USR IOT Technology Limited www.usriot.com... -
Page 18: Baud Rate Synchronization
Customer can modify serial parameter by sending data conformed to specific protocol via network. It is temporary, when restart DTU, the parameters back to original parameters. User can adopt Baud Rate Synchronization function by setup software or web server as follows: Figure 18 Baud Rate Synchronization Jinan USR IOT Technology Limited www.usriot.com... -
Page 19: Features
Identity data will be sent when connection is established. Identity data will be add on the front of every data packet. User can set N510 with Identity Packet function by web server as follow: Figure 20 Identity Packet Jinan USR IOT Technology Limited www.usriot.com... -
Page 20: Heartbeat Packet Function
3s. User can set N510 with impersistent connection function by web server as follow: Figure 22 Impersistent Connection Jinan USR IOT Technology Limited www.usriot.com... -
Page 21: Modbus Gateway
Modbus RTU<=>Modbus TCP: Set N510 in TCP Server or TCP Client mode, then user can set N510 with Modbus RTU<=>Modbus TCP function by setup software or web server as follows: Figure 23 Modbus RTU<=>Modbus TCP Jinan USR IOT Technology Limited www.usriot.com... -
Page 22: Network Printing
The network printing function is similar to the printer server. Through the existing printing driver, it can be modified slightly and realize the network printing function by the original serial printer. User can set N510 with Network Printing function by web server as follow: Figure 25 Network Printing Jinan USR IOT Technology Limited www.usriot.com... -
Page 23: Editable Web Server
N510 support user modify the web server based on template according to needs, then use related tool to upgrade. If user have this demand can contact to our salespersons for web server source and tool. Jinan USR IOT Technology Limited www.usriot.com... -
Page 24: Parameter Setting
USR-N510 User Manual Technical Support: h.usriot.com 3. Parameter Setting There are three ways to configure USR-N510. They are setup software configuration, web server configuration and AT command configuration. 3.1. Setup software Configuration User can download setup software from http://www.usriot.com/usr-tcp232-m4k3-setup-software/. When... -
Page 25: At Command
Network AT command is to send a search keyword by broadcast, then set the parameters in a single broadcast way. Default keyword is WWW.USR.CN and default port number is 48899. User can enter Network AT command as follow: Jinan USR IOT Technology Limited www.usriot.com... - Page 26 USR-N510 User Manual Technical Support: h.usriot.com Figure 29 Network AT Command Jinan USR IOT Technology Limited www.usriot.com...
-
Page 27: Contact Us
Tel: 86-531-88826739/86-531-55507297 5. Disclaimer This document provide the information of USR-N510 products, it hasn’t been granted any intellectual property license by forbidding speak or other ways either explicitly or implicitly. Except the duty declared in sales terms and conditions, we don’t take any other responsibilities. We don’t warrant the products sales and use explicitly or implicitly, including particular purpose merchantability and marketability, the tort liability of any other patent right, copyright, intellectual property right.
