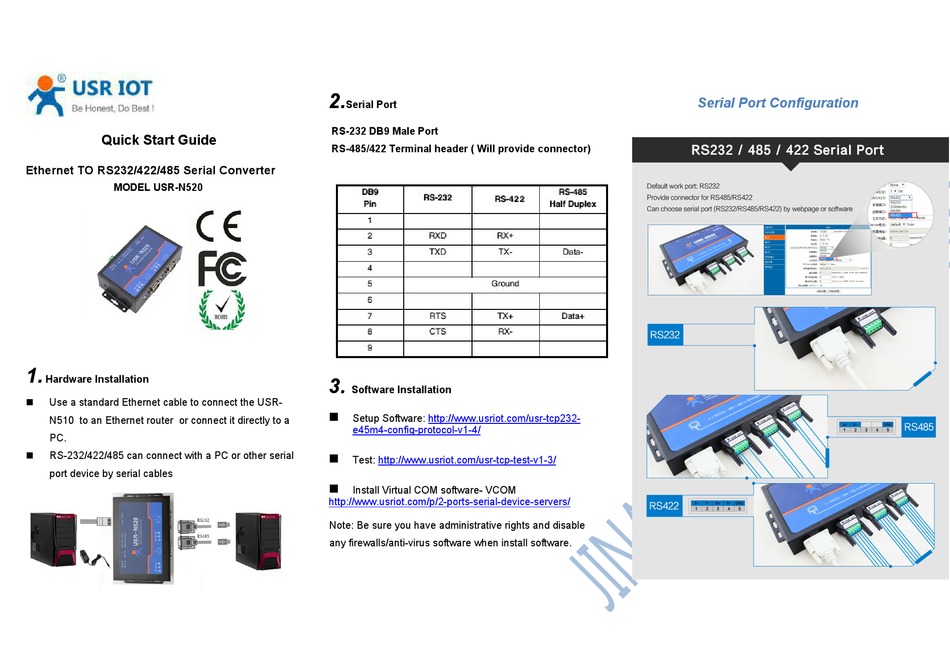

Quick Start Guide
Ethernet TO RS232/422/485 Serial Converter
MODEL USR-N520
1.
Hardware Installation
Use a standard Ethernet cable to connect the USR-
N510 to an Ethernet router or connect it directly to a
PC.
RS-232/422/485 can connect with a PC or other serial
port device by serial cables
2.
Serial Port
RS-232 DB9 Male Port
RS-485/422 Terminal header ( Will provide connector)
3.
Software Installation
Setup Software:
http://www.usriot.com/usr-tcp232-
e45m4-config-protocol-v1-4/
Test:
http://www.usriot.com/usr-tcp-test-v1-3/
Install Virtual COM software- VCOM
http://www.usriot.com/p/2-ports-serial-device-servers/
Note: Be sure you have administrative rights and disable
any firewalls/anti-virus software when install software.
Serial Port Configuration
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for USR IOT USR-N520
Summary of Contents for USR IOT USR-N520
- Page 1 Serial Port Configuration Serial Port RS-232 DB9 Male Port Quick Start Guide RS-485/422 Terminal header ( Will provide connector) Ethernet TO RS232/422/485 Serial Converter MODEL USR-N520 Hardware Installation Software Installation Use a standard Ethernet cable to connect the USR- ...
-
Page 2: Default Parameters
Configure USR-N540 Default Parameters ■ Assign a static IP address to your computer in the User Name admin 192.168.0.2 to 192.168.0.254 range. Mask 255.255.255.0. Password admin This is necessary to ensure that your computer can communicate with your USR-N540. IP address 192.168.0.7 ■...
