- Page 1 Face Recognition Time & Attendance Quick Start Guide V1.0.0...
-
Page 2: Foreword
Foreword General This manual introduces the installation and operations of the Face Recognition Time & Attendance (hereinafter referred to as the "Time & Attendance"). Read carefully before using the device, and keep the manual safe for future reference. Safety Instructions The following signal words might appear in the manual. - Page 3 might result in some differences appearing between the actual product and the manual. Please contact customer service for the latest program and supplementary documentation. ● There might be errors in the print or deviations in the description of the functions, operations and technical data.
-
Page 4: Important Safeguards And Warnings
Important Safeguards and Warnings This section introduces content covering the proper handling of the Time & Attendance, hazard prevention, and prevention of property damage. Read carefully before using the Time & Attendance, and comply with the guidelines when using it. Transportation Requirement Transport, use and store the Time &... - Page 5 ● Do not unplug the power cord on the side of the Time & Attendance while the adapter is powered on. ● Operate the Time & Attendance within the rated range of power input and output. ● Use the Time & Attendance under allowed humidity and temperature conditions. ●...
-
Page 6: Table Of Contents
Table of Contents Foreword ........................................I Important Safeguards and Warnings ............................III 1 Structure ........................................1 2 Connection and Installation ................................2 2.1 Installation Requirements ..............................2 2.2 Installation Process ................................... 3 2.2.1 Wall mount ..................................3 2.2.2 86 Box Mount ..................................4 2.2.3 Table Mount .................................. -
Page 7: Structure

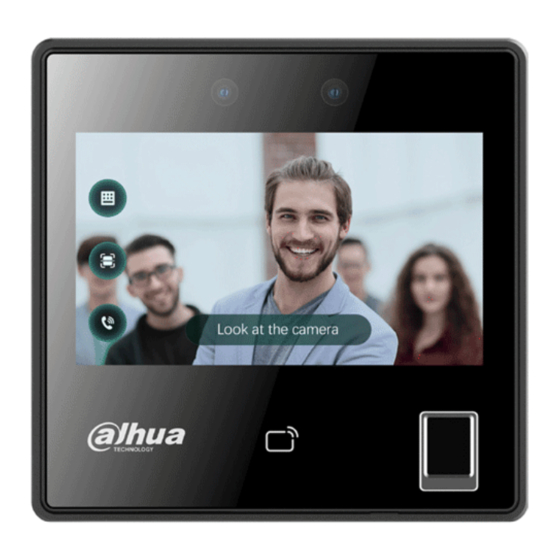

1 Structure The front appearance might differ depending on different models of the Time & Attendance. Here we take the fingerprint model as an example. Figure 1-1 Structure (Unit: mm [inch] ) -
Page 8: Connection And Installation
2 Connection and Installation 2.1 Installation Requirements ● The installation height is 1.4 m (from the lens to the ground). ● The light at the 0.5 meters away from the Time & Attendance should be no less than 100 lux. ●... -
Page 9: Installation Process
Recommended Installation Location Figure 2-3 Recommended installation location Installation Location Not Recommended Figure 2-4 Installation location not recommended 2.2 Installation Process All the Time & Attendance has the same installation method. This section takes fingerprint model of Time & Attendance as an example. 2.2.1 Wall mount Step 1 According the position of the holes in the installation bracket, drill 3 holes in the wall. -
Page 10: Box Mount
Figure 2-5 Wall mount 2.2.2 86 Box Mount Step 1 Put an 86 box in the wall at an appropriate height. Step 2 Fasten the installation bracket to the 86 box with 2 screws. Step 3 Wire the Time & Attendance. Step 4 Fix the Time &... - Page 11 2.2.3 Table Mount Step 1 Pass the wire through the opening of the bracket, and then connect the wire to the Time & Attendance. Step 2 Snap the Time & Attendance on the bracket and slide it down the bracket. Figure 2-7 Table mount...
-
Page 12: Local Configurations
3 Local Configurations Local operations might differ depending on different models. 3.1 Initialization For the first-time use or after you restored factory defaults, you need to select a language, and then set a password and email address for the admin account. After that, you can use the admin account to log in to the main menu screen of the Time &... - Page 13 Figure 3-2 New user（1） Figure 3-3 New user（2） Table 3-1 New user description Parameter Description Enter the user ID. The ID can be numbers, letters, and their User ID combinations, and the maximum length of the user ID is 32 characters.
- Page 14 Parameter Description Each user can register up to 3 fingerprints. Follow the on-screen prompts to register fingerprints. You can set the registered fingerprint as the duress fingerprint, and an alarm will be triggered if the door is unlocked by the duress fingerprint. ●...
-
Page 15: Logging In To The Webpage
4 Logging in to the Webpage On the webpage, you can also configure and update the Time & Attendance. Prerequisites Make sure that the computer used to log in to the webpage is on the same LAN as the Time & Attendance. -
Page 16: Appendix 1 Important Points Of Fingerprint Registration Instructions
Appendix 1 Important Points of Fingerprint Registration Instructions When you register the fingerprint, pay attention to the following points: ● Make sure that your fingers and the scanner surface are clean and dry. ● Press your finger on the center of the fingerprint scanner. ●... - Page 17 How to Press Your Fingerprint on the Scanner Appendix Figure 1-2 Correct placement Appendix Figure 1-3 Wrong placement...
-
Page 18: Appendix 2 Important Points Of Face Registration
Appendix 2 Important Points of Face Registration Before Registration ● Glasses, hats, and beards might influence face recognition performance. ● Do not cover your eyebrows when wearing hats. ● Do not change your beard style greatly if you use the Time & Attendance; otherwise face recognition might fail. - Page 19 Appendix Figure 2-2 Appropriate face position Requirements of Faces ● Make sure that the face is clean and forehead is not covered by hair. ● Do not wear glasses, hats, heavy beards, or other face ornaments that influence face image recording.
- Page 20 Appendix Figure 2-4 Face distance ● When importing face images through the management platform, make sure that image resolution is within the range 150 × 300 pixels–600 × 1200 pixels; image pixels are more than 500 × 500 pixels; image size is less than 100 KB, and image name and person ID are the same. ●...
-
Page 21: Appendix 3 Cybersecurity Recommendations
Appendix 3 Cybersecurity Recommendations Mandatory actions to be taken for basic equipment network security: 1. Use Strong Passwords Please refer to the following suggestions to set passwords: ● The length should not be less than 8 characters. ● Include at least two types of characters; character types include upper and lower case letters, numbers and symbols. - Page 22 reducing the risk of ARP spoofing. 8. Assign Accounts and Privileges Reasonably According to business and management requirements, reasonably add users and assign a minimum set of permissions to them. 9. Disable Unnecessary Services and Choose Secure Modes If not needed, it is recommended to turn off some services such as SNMP, SMTP, UPnP, etc., to reduce risks.
