- Page 1 Slim Water-proof RFID Reader User’s Manual V1.0.0...
-
Page 2: Table Of Contents
Table of Contents 1 Overview ..........................1 2 Device Structure ........................2 2.1 Appearance.......................... 2 2.2 Dimension ..........................4 3 Device Installation ....................... 7 4 System Framework ......................9... - Page 3 Important Safeguards and Warnings Note: Do not expose the device to lampblack, steam or dust. Otherwise it may cause fire or electric shock. Do not install the device at position exposed to sunlight or in high temperature. Temperature rise in device may cause fire. Do not expose the device to humid environment.
-
Page 4: Overview
1 Overview The Slim Water-proof RFID Reader is a reader and also a complement to video monitoring and visual talk. Its appearance is neat and fashionable, and its function is enhanced. It is designed for commercial building, corporation property and intelligent community. -
Page 5: Device Structure

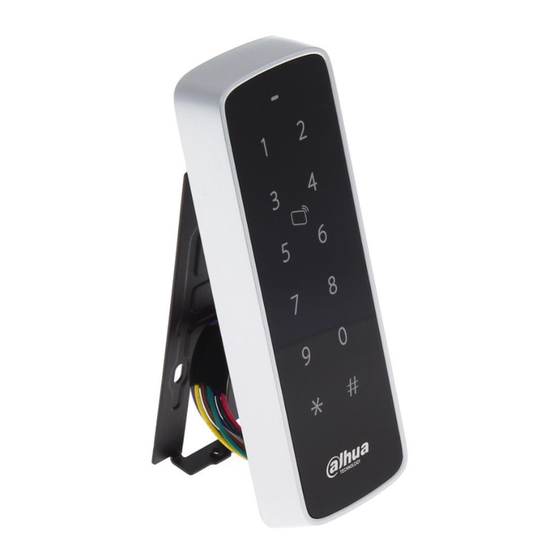

2 Device Structure 2.1 Appearance The device appearance is shown in Figure 2- 1 and Figure 2- 2. - Page 6 The corresponding ports of the external port are listed in Chart 2- 1. Color of Wire Wiring Port Note 12V power Reader power Black Tamper alarm Blue CASE White Green Wiegand output Brown Yellow RS485- RS485 reader Purple RS485+...
-
Page 7: Dimension
2.2 Dimensio Reader’s dimension is shown in Figure 2- 3, Figure 2- 4, and Figure 2- 5 and. Unit is mm. -
Page 10: Device Installation
3 Device Installation Reader installation illustration is shown in Figure 3- 1 and Figure 3-2. - Page 11 Installation steps: Step 1. Install magnet at the position you want to in fix installation bracket. Step 2. Fix installation bracket on wall with ST3*18 self tapping screw. Step 3. Pull 8-pin wire of the device through bracket as shown in figure above. Step 4.
-
Page 12: System Framework
4 System Framework Slim Water-proof RFID reader and access control host, alarm device, master PC and etc. are connected as in Figure 4- 1. Note: This manual is for reference only. Slight difference may be found in user interface. ...
