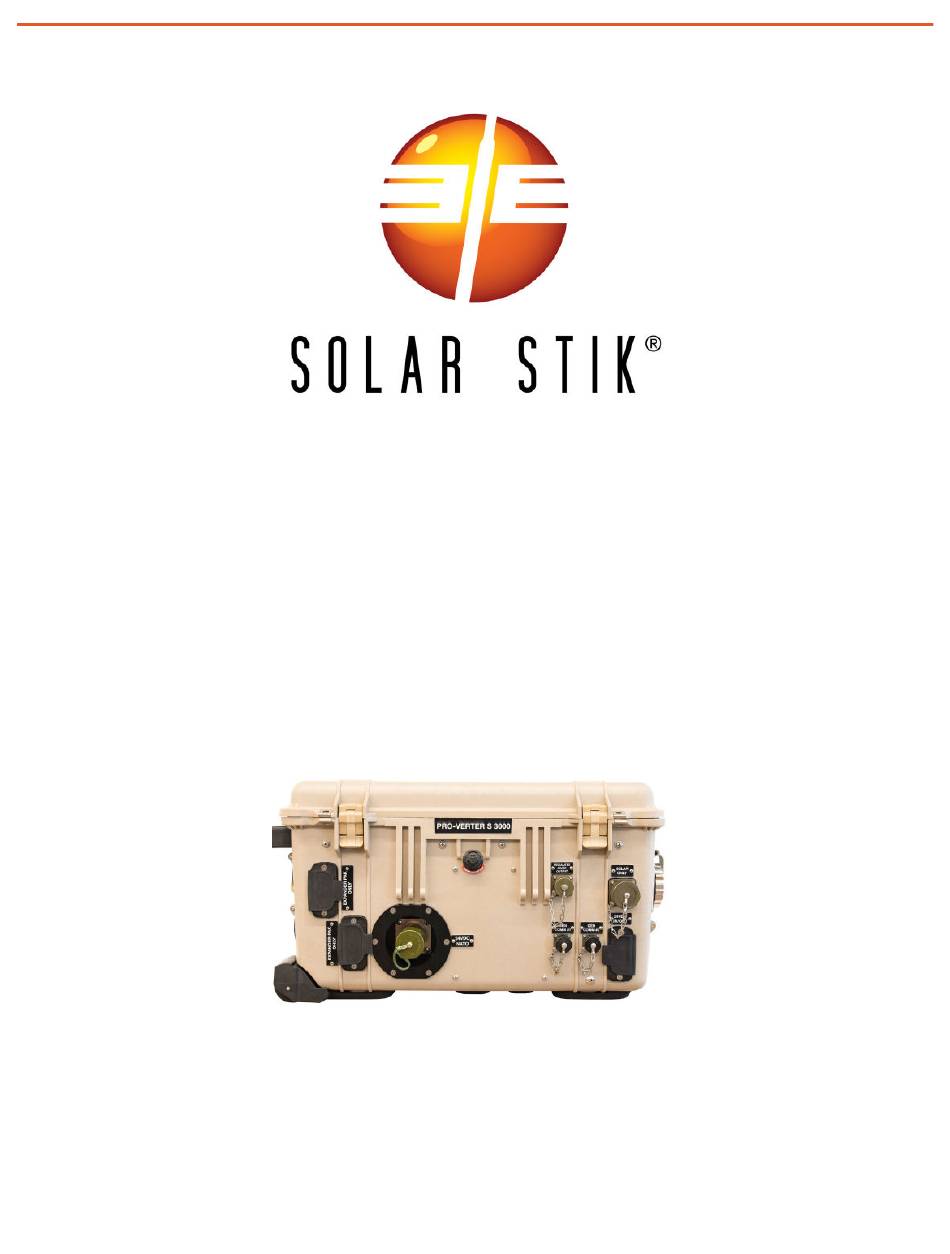

- Page 1 TROUBLESHOOTING GUIDE FOR THE PRO-VERTER 5000-220 AFF1 DARI GATE SYSTEMS Item # 20-XXXXXX DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited. Version 1.0 Updated:20221207 ® December 2022 Solar Stik , Inc.
- Page 2 PRO-Verter 5000-220 AFF1 Troubleshooting guide for the Dari Gate Systems TROUBLESHOOTING PROCEDURES Clearing PRO-Verter Faults If any fault occurs, the user interface will display the fault message and the red “Fault” LED will be lighted. Remove cause of the fault. The unit will remain in Fault mode until the fault is cleared.
- Page 3 PRO-Verter 5000-220 AFF1 Troubleshooting guide for the Dari Gate Systems PRO-Verter Fault Messages and Troubleshooting Guides Table 1. Fault Messages Symptoms and Troubleshooting Fault Messages and Troubleshooting Guide Fault Message Symptoms and Troubleshooting PRO-Verter is in Fault mode because the battery voltage has dropped to the set lower threshold of Batt Low Voltage.
- Page 4 PRO-Verter 5000-220 AFF1 Troubleshooting guide for the Dari Gate Systems Fault Messages and Troubleshooting Guide Fault Message Symptoms and Troubleshooting The PRO-Verter is in Fault mode because the battery voltage has risen to the programmed upper threshold of Batt Over Voltage.
- Page 5 PRO-Verter 5000-220 AFF1 Troubleshooting guide for the Dari Gate Systems Fault Messages and Troubleshooting Guide Fault Message Symptoms and Troubleshooting The PRO-Verter is in Fault mode because of overload to the inverter: • There will be no AC output because the inverter will be switched off. The blue Status LED will be switched off and the red Fault LED will be steady on.
- Page 6 PRO-Verter 5000-220 AFF1 Troubleshooting guide for the Dari Gate Systems Fault Messages and Troubleshooting Guide Fault Message Symptoms and Troubleshooting The PRO-Verter is in Fault mode because the internal heat sink for the MOSFETS in the PRO-Verter has overheated to >158 ºF (70 °C).
