Harper TURBO VAC 60R Operator's Manual

Turf sweeper
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

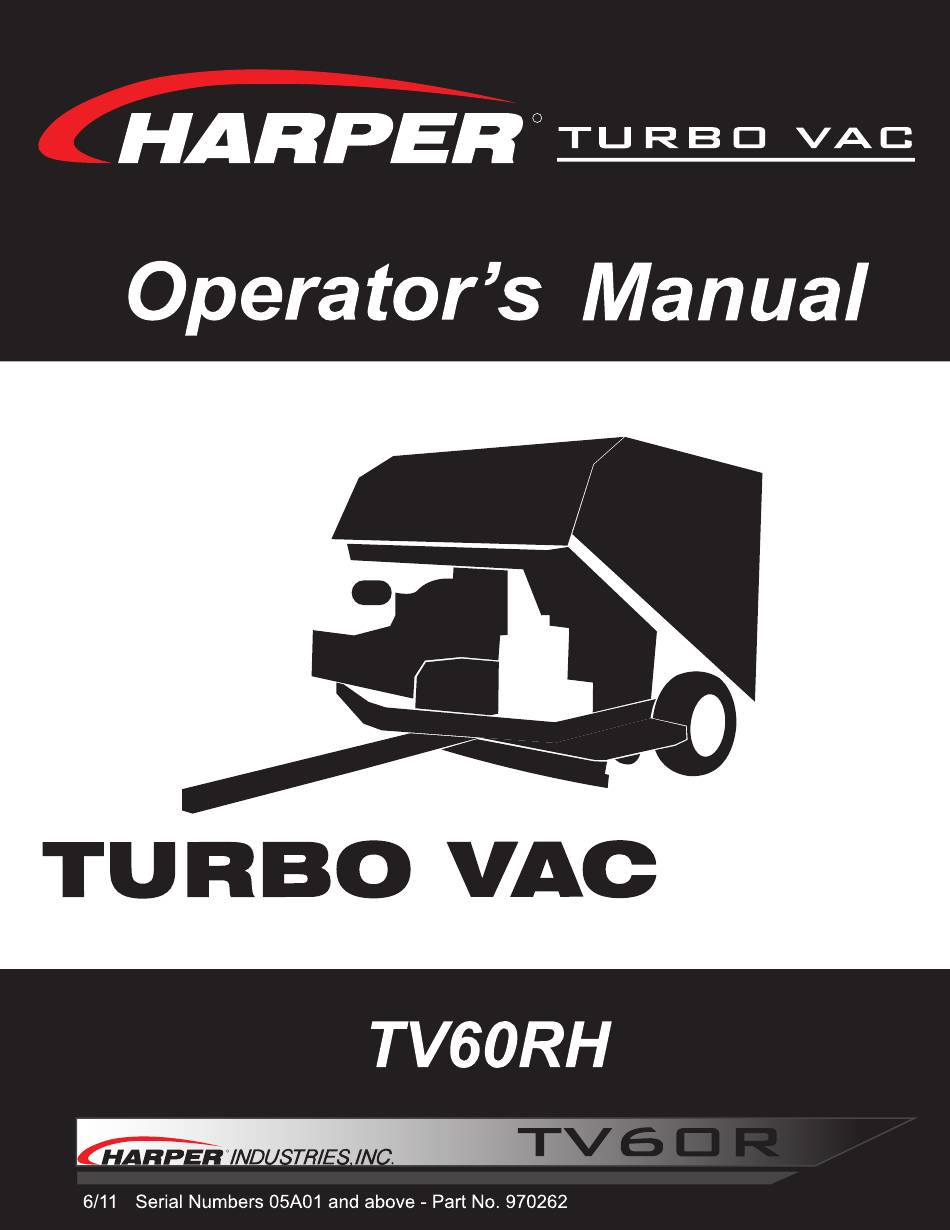

R
Turf Sweeper
60R
R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TURBO VAC 60R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Harper TURBO VAC 60R

Summary of Contents for Harper TURBO VAC 60R

  • Page 1 Turf Sweeper...
  • Page 3 © 2011 Harper Industries, Inc. The Harper and Goossen names are registered trademarks of Harper Industries, Inc. All other brand and productnames are trade- marks or registered trademarks of their respective companies. Turbo Vac TV60R...

  • Page 4: Limited Warranty

    (1) year from the original date of retail purchase to the original purchaser. Harper Industries will repair or replace, at its own option, any part that evalu- ation shows to be defective. Warranty is limited to parts, labor and ground freight delivery of replacement parts.
  • Page 5 Remote and Receiver........Table of Contents 2.2.1 Broom Broom Wheel............ OPERATOR SECTION Broom Lift............To the Owner or Operator..........Broom............... Warranty Statement............Air Return............Table of Contents............Air Return Screens........... Specifications..............Fan Housing............. Feature Introduction Structure TV60RE............Hopper and Door..........TV60RH............

  • Page 6: Specifications

    • Denotes common characteristics of both the TV60RE and TV60RH NOTE: Following publication of this manual certain changes in standard equipment and/or options may have occurred that would not be included in these pages. Your Harper/Goossen dealer is the best source for up-to-date informaion. Turbo Vac TV60R...

  • Page 7: Feature Identification

    Feature Identification Model TV60RE Hopper* – The hopper stores up to seven Ball Hitch* – The TV60R is towed with a ball yards of collected material. hitch. Unit is not approved highway towing. Hopper Door* – The hopper door opens Remote Controls* –...
  • Page 8 TV60RE - HP Kohler Engine TV60RE - Hydraulic System &Fill Locations Hydraulic Reservoir Assembly Components Under Hopper Turbo Vac TV60R...
  • Page 9 Feature Identification Model TV60RH Hydraulic Pump – The hydraulic pump on Hopper* – The hopper stores up to seven the TV60RH is directly attached to the tractor yards of collected material. PTO. Always connect torque chain to tractor. Manual Controls* – All of the functions on Torque Chain –...
  • Page 10 TV60RH - Hydraulic System Blower Motor & Flow Control Valve Hydraulic Reservoir Assembly PTO Gear Pump (unit parked) NOTE: The PTO gear pump should be stored as shown in the above photograph when the TV60RH is parked. PTO Gear Pump on Tractor PTO Turbo Vac TV60R...

  • Page 11: General Safety Guidelines

    During Operation General Safety Guidelines • While operating the equipment, make sure that no foreign objects such as Equipment & Controls rocks, bottles or other hard materials • Before operating this equipment, read are in the path of the Turbo Vac. and understand the Owner’s Manual.
  • Page 12 • New decals may be obtained from your local Harper/Goossen Dealer. Turbo Vac TV60R...
  • Page 13 Replacement Parts arrestor and pressure relief valve in pour spout). SAFETY WARNING! • Never store the equipment with gaso- Use genuine factory parts or parts with line in the tank inside a building where equivalent characteristics including: type, fumes may reach an open flame or strength and material.
  • Page 14 TV60RH Specific Safety Guidelines • Avoid wearing loose clothing to pre- vent it from getting caught in the PTO TV60RE drive. • Be sure to provide adequate ventila- • Keep clothing and all body parts away tion if the engine must be run indoors from rotating parts.

  • Page 15: Setup And Operation

    negative terminal and the red wire Set-Up and Operation (with fuse) to the positive terminal of the battery. When using more than one tractor, other power cords may be or- SAFETY WARNING! dered (p/n 935017). Wear approved eye protection and safety Attach the unit to a tractor with a PTO.
  • Page 16 Starting Operation Note: The BLOWER switch is not used on the TV60RH remote control. SAFETY WARNING! Move the throttle on the tractor to the Before operating the Turbo Vac, perform “SLOW” position and disengage the the daily inspection as described in the PTO lever to turn off the blower.
  • Page 17 Towing • The jack stand should be up, with the wheel in stow location whenever the SAFETY WARNING! Turbo Vac is connected to a tow vehi- The Turbo Vac does not meet highway cle. safety codes. Tail lights, turn signals and safety chains must be attached before towing on public roadways.
  • Page 18 Adjustments POSSIBLE HITCH TV60RH Hydraulic Controls MOUNTING • The hydraulic flow control and pressure LOCATIONS relief are set at the factory, and should not require adjustment. Broom Height • The broom height should be adjusted so that the broom barely touches the grass.
  • Page 19 TV60RE Blower Drive Belt • To adjust belt tension, loosen the ad- TV60RE Hydraulic Pump Belt justment bolt and the bolt where the tensioner pivots. Position the tensioner to allow for proper deflection. Re-tight- en both bolts. BLOWER ELECTRIC PULLEY 20 LBS.

  • Page 20: Service And Maintenance

    • Broom lift (2) Service & Maintenance SAFETY WARNING! Before servicing or inspecting the Turbo Vac, make sure the power source is shut off and all moving parts have stopped. SAFETY WARNING! Disconnect the spark plug wire or the negative battery cable to prevent the engine from being turned on.
  • Page 21 TV60RE Hydraulic Oil Reservoir To add hydraulic oil to a TV60RH reservoir: • Maintain the oil level in the reservoir of the TV60RE between the upper and • For small quantities, simply remove lower site bulbs at all times. cover and add oil. The oil will seep •...
  • Page 22 TV60RH Hydraulic Oil Cooler Blower Liner • Make sure that the oil cooler assembly • Regularly inspect the blower liner in is kept free of debris. Clean as neces- the blower housing for wear. sary. • If the blower liner wears excessively, damage may result to the blower housing.
  • Page 23 Return Air Screens • To set door prop, pull the door open and • The return air screens do not require insert prop into the pre-cut hole in door. cleaning on a regular basis. • Material that sticks to the screens dur- ing operation will fall off when the blower is stopped.
  • Page 24 TV60RE Service Schedule • Disclaimer – For the 25 HP engine, Kohler Engine Co. recommends the following: Daily or Before Starting Engine Check engine oil level............SAE 10W-30 Check hydraulic oil level............Terrasolve EL 3068 or equivalent Use only biodegradable oil. Fill fuel tank……………………………………………………..

  • Page 25: Standard Torque Chart

    TV60RH Service Schedule Daily Check hydraulic oil level…………........Terrasolve EL 3068 or equivalent Use only biodegradable oil; mixing oils will result in a loss of bio-degradability. Check hydraulic oil filter indicator…………………………… Change filter element when needle is in red portion of gauge.* Check hydraulic oil cooler……………………………………...

  • Page 26: Troubleshooting

    Troubleshooting TV60RE Engine: Problem: What to Check: Engine will not start. • Improper control settings. • Engine may be low on fuel. • Engine may be low or too full of oil. • Battery charge may be too low. • Possible internal problems. •...

  • Page 27: Optional Equipment

    Never allow the brush to rest com- Contact your Harper Dealer for more pletely on the ground during operation. information about optional equipment, or see the Harper Industries website at: SAFETY WARNING! www.harperindustries.com The Turbo Vac should never be trans- ported with the fence brush in operating position.
  • Page 28 Turbo Vac TV60R...
  • Page 29 Turf Sweeper Parts TV60RH Turf Sweeper Turbo Vac TV60R...
  • Page 30 Table of Contents PARTS SECTION Hydraulics TV60RH Hydraulic Schematic......Machine Hydraulics.......... Hydraulic Res., Valve, and Drive-TV60RH..1.3.1 Hydraulic Tank and Valve......... Hydraulic Valve..........Remote Wiring Schematic TV60RH....... 2.1.1 Remote and Receiver........2.2.1 Broom Broom Wheel............ Broom Lift............Broom............... Air Return............Air Return Screens...........
  • Page 31 Turbo Vac TV60R...
  • Page 32 Turbo Vac TV60R...
  • Page 33 Turbo Vac TV60R...
  • Page 34 Turbo Vac TV60R...
  • Page 35 HYDRAULIC RESERVOIR, VALVE AND DRIVE TV60RH UP TO SERIAL NO. 07A35 PART QUANTITY DESCRIPTION 100426 CHAIN CONNECTOR 5/16" THREADED 110069 WASHER, 5/16" FLAT SAE 110319 NUT, 5/16-18 U-TYPE .75L 110363 BOLT, U, SQUARE 3/8 X 4 X 4 3/4 110410 BOLT, 1/4-20 X 2.5 110423 BOLT, 5/16-18 X 1.0...
  • Page 36 HYDRAULIC RESERVOIR, VALVE AND DRIVE TV60RH UP TO SERIAL NO. 07A35 922067 COUPLING, 5/8" BORE 922068 HUB, COUPLING 1-1/2" BORE 922069 COUPLING, SPIDER 922087 HOSE, SUCTION, 1.25 X 94", 20FJX -20FJX90M 922088 HOSE, 3/4 X 43", 12FJX90M -12FJX90M 923004 MOTOR, 1.71 CI, FAN DRIVE 922078 SEAL KIT FOR 923004 923005...
  • Page 37 Turbo Vac TV60R 1.3.1...
  • Page 38 HYDRAULIC RESERVOIR, VALVE AND DRIVE TV60RH SERIAL NO. 07A36 AND AFTER PART QUANTITY DESCRIPTION 100426 CHAIN CONNECTOR 5/16" THREADED 110069 WASHER, 5/16" FLAT SAE 110319 NUT, 5/16-18 U-TYPE .75L 110363 BOLT, U, SQUARE 3/8 X 4 X 4 3/4 110410 BOLT, 1/4-20 X 2.5 110423 BOLT, 5/16-18 X 1.0...
  • Page 39 HYDRAULIC RESERVOIR, VALVE AND DRIVE TV60RH SERIAL NO. 07A36 AND AFTER 922067 COUPLING, 5/8" BORE 922068 HUB, COUPLING 1-1/2" BORE 922069 COUPLING, SPIDER 922087 HOSE, SUCTION, 1.25 X 94", 20FJX -20FJX90M 922088 HOSE, 3/4 X 43", 12FJX90M -12FJX90M 923004 MOTOR, 1.71 CI, FAN DRIVE 922078 SEAL KIT FOR 923004 923005...
  • Page 40 Turbo Vac TV60R...
  • Page 41 Turbo Vac TV60R...
  • Page 42 Turbo Vac TV60R...
  • Page 43 Turbo Vac TV60R...
  • Page 44 Turbo Vac TV60R 2.1.1...
  • Page 45 Turbo Vac TV60R ii 2.1.1...
  • Page 46 Turbo Vac TV60R...
  • Page 47 Turbo Vac TV60R 2.2.1...
  • Page 48 Turbo Vac TV60R...
  • Page 49 Turbo Vac TV60R...
  • Page 50 Turbo Vac TV60R...
  • Page 51 Turbo Vac TV60R...
  • Page 52 Turbo Vac TV60R...
  • Page 53 Turbo Vac TV60R...
  • Page 54 Turbo Vac TV60R...
  • Page 55 Turbo Vac TV60R...
  • Page 56 Turbo Vac TV60R ii 4.2...
  • Page 57 Turbo Vac TV60R...
  • Page 58 Turbo Vac TV60R...
  • Page 59 Turbo Vac TV60R...
  • Page 60 Turbo Vac TV60R...
  • Page 61 Turbo Vac TV60R ii 4.6...
  • Page 62 Turbo Vac TV60R iii 4.6...
  • Page 63 NOTES Harper Industries, Inc. Telephone: 620-896-7381 151 E. Highway 160 Toll-Free: 800-835-1042 Harper, KS 67058 Fax: 620-896-7129 Website: www.harperindustries.com E-mail: info@harperindustries.com Turbo Vac TV60R...
  • Page 64 © 2011 Harper Industries, Inc. All rights reserved. Printed in U.S.A. Turf Sweeper Turbo Vac TV60R...

This manual is also suitable for:

Tv60rhTv60re
