Harper Straw Blower 1300 Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Straw Blower 1300
OPERATOR'S
MANUAL
Straw Blower
2-2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Straw Blower 1300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Harper Straw Blower 1300

Summary of Contents for Harper Straw Blower 1300

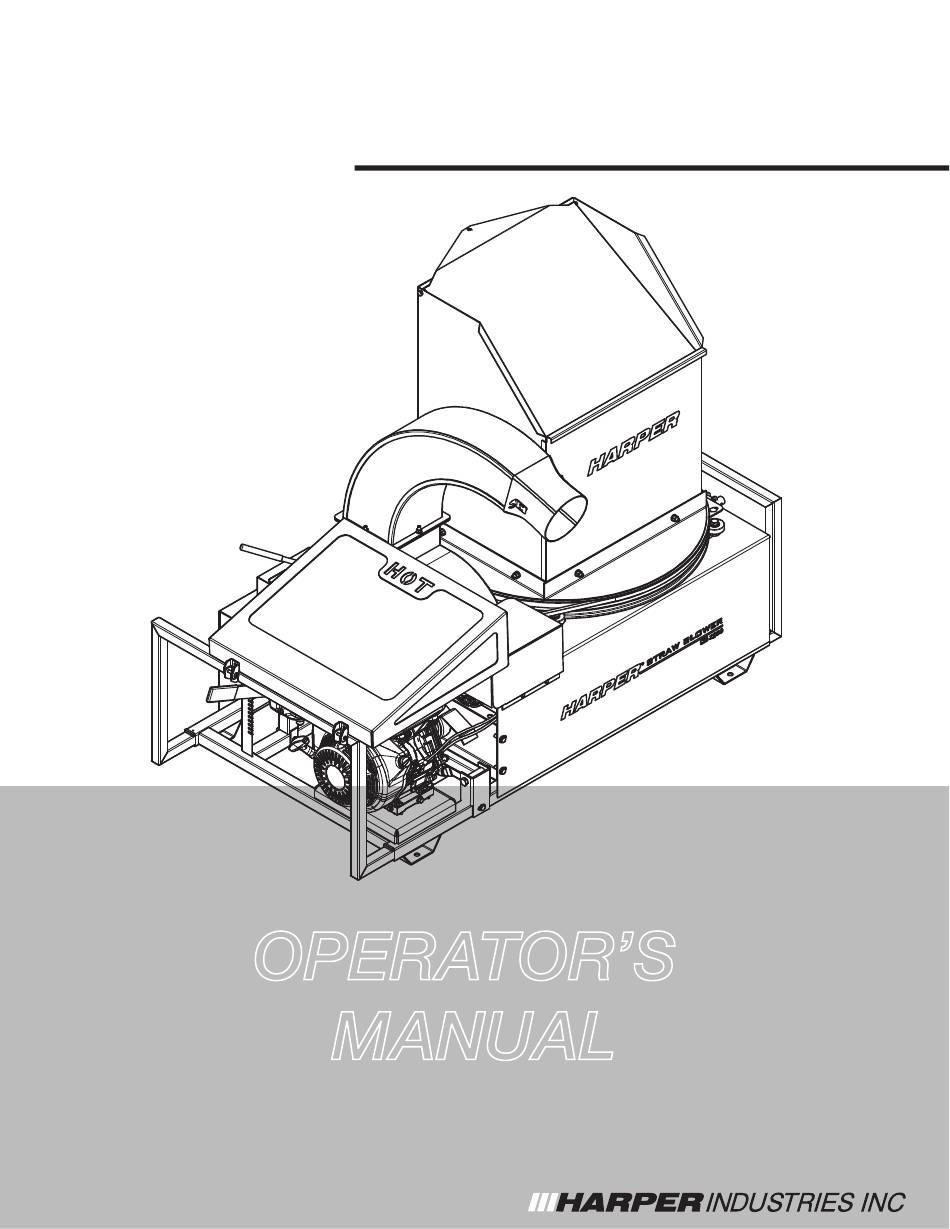

  • Page 1 Straw Blower 1300 OPERATOR’S MANUAL Straw Blower 2-2023...
  • Page 2 Straw Blower...

  • Page 3: Operator Section To The Owner Or Operator

    MEANING: Failure to understand and obey this warning may result in injury to you or others. Whenever this symbol is used, please pay very close attention to the information presented, and make sure you fully understand. If you do not, contact your dealer or Harper Industries, Inc. for clarification.

  • Page 4: Warranty Statement

    2. As the Straw Blower owner, you should be aware that Harper Industries may deny you warranty coverage if your Straw Blower or a part has failed due to abuse, neglect, or improper maintenance or unapproved modifications.

  • Page 5: Table Of Contents

    Parts Table of Contents Main Frame Assembly............. Base Assembly..............Blower Through Assembly..........OPERATOR SECTION Bale Tub Assembly............To the Owner or Operator..........Engine Assembly............. Warranty Statement............Engine Screen Assembly..........Table of Contents............Engaging Handle Assembly..........Specifications..............Engaging Handle Arm Assembly........Control Identification Tub Shift Assembly............

  • Page 6: Specifications

    6” x 30’ Super-flex hose or directional spout Harper Industries, Inc. is continually striving to improve the design and performance of its products. We reserve the right to make changes in specifications and design without thereby incurring any obligation relative to previously manufactured products.

  • Page 7: Control Identification

    Control Identification Hose Adapter (option) – feeds the straw into Tub – the tub secures the bale as it rotates the Super-flex hose. The direction and gravity pulls the bale down into spout may also be mounted in the the cutting knives. same location.
  • Page 8 Straw Blower...

  • Page 9: Safety Guidelines

    arrestor and pressure relief valve in Safety Guidelines pour spout). • Gasoline fumes are heavy and will sink to the lowest point, collecting and • Use genuine factory parts or parts becoming more and more hazardous. with equivalent characteristics, includ- 1 part gasoline in 20 parts air will ex- ing type, strength and material.

  • Page 10: Assembly

    SUPER-FLEX HOSE INSTALLATION Assembly Using the hardware supplied: 1. Mount the hose adapter to the Straw Blower. TUB COVER SAFETY SHIELD Using the Hardware supplied: 1. Install the eyebolt through the top hole in the rear tub wall with a flat washer, lock washer and nut on each side of the wall.

  • Page 11: Operation

    Operation To stop operation: 1. Stop the tub rotation. 2. Disengage the rotor mechanism. SAFETY WARNING! • Wear approved eye and ear protec- tion while operating the machine. • Keep all guards in place during operation. Never operate machine with the tub removed. •...

  • Page 12: Adjustments

    Adjustments BELT TENSION NOTE: Use only industrial V-belts. Do not use automotive belts. NOTE: Use a straightedge to check alignment across the faces of pulleys after adjusting belt tension, to ensure that the belts will run true. IMPORTANT: Do not over tighten belts. Excessive tension can cause premature bearing, gearbox and clutch failure.

  • Page 13: Cutting Depth

    CUTTING DEPTH places from which the worn knives were removed. • The cutting depth is adjusted by mov- • Mount additional knives only as oppos- ing a lever and putting it into the slot ing pairs on each plate, and in the pat- that gives the desired cutting depth.

  • Page 14: Service & Maintenance

    Straw Blower engine. More Information Your Harper dealer is the best source of up- to-date information concerning Harper prod- ucts. Additional information is also available from the Harper Industries Service Department at 800-835-1042.

  • Page 15: Troubleshooting

    Troubleshooting ENGINE Problem: What to Check: Engine shuts off during operation • Engine may be low on fuel • Engine may be low on oil (The Honda engine is equipped with an “Oil Alert” automatic shut off) • Air breather may be clogged or closed. BELTS Problem: What to Check:...

  • Page 16: Standard Torque Chart

    GEARBOX Problem: What to Check: Oil leaks • Housing bolts may be loose • Oil seals may need replaced Gearbox overheats • Oil level may be too low • Dirt or grease may have accumulated around the gearbox Gearbox vibrates, is very noisy •...
  • Page 17 Straw Blower...
  • Page 18 Straw Blower...

  • Page 19: Parts

    Table of Contents Parts Main Frame Assembly............. Base Assembly..............Blower Through Assembly..........Bale Tub Assembly............Engine Assembly............. Engine Screen Assembly..........Engaging Handle Assembly..........Engaging Handle Arm Assembly........Tub Shift Assembly............Gear Box Assembly............1.10 Electrical Assembly............1.11 Decal Installation............. 1.12 Straw Blower...
  • Page 20 Straw Blower...
  • Page 21 Straw Blower ii 1.1...
  • Page 22 Straw Blower...
  • Page 23 Straw Blower ii 1.2...
  • Page 24 Straw Blower...
  • Page 25 Straw Blower ii 1.3...
  • Page 26 Straw Blower...
  • Page 27 Straw Blower...
  • Page 28 Straw Blower...
  • Page 29 Straw Blower...
  • Page 30 Straw Blower...
  • Page 31 Straw Blower...
  • Page 32 Straw Blower 1.10...
  • Page 33 Straw Blower 1.11...
  • Page 34 Straw Blower 1.12...
  • Page 35 NOTES Straw Blower...
  • Page 36 Harper Industries, Inc. Telephone: 620-896-7381 151 E. Highway 160 Toll-Free: 800-835-1042 Harper, KS 67058 Fax: 620-896-7129 Website: www.harperindustries.com E-mail: info@harperindustries.com Straw Blower...
