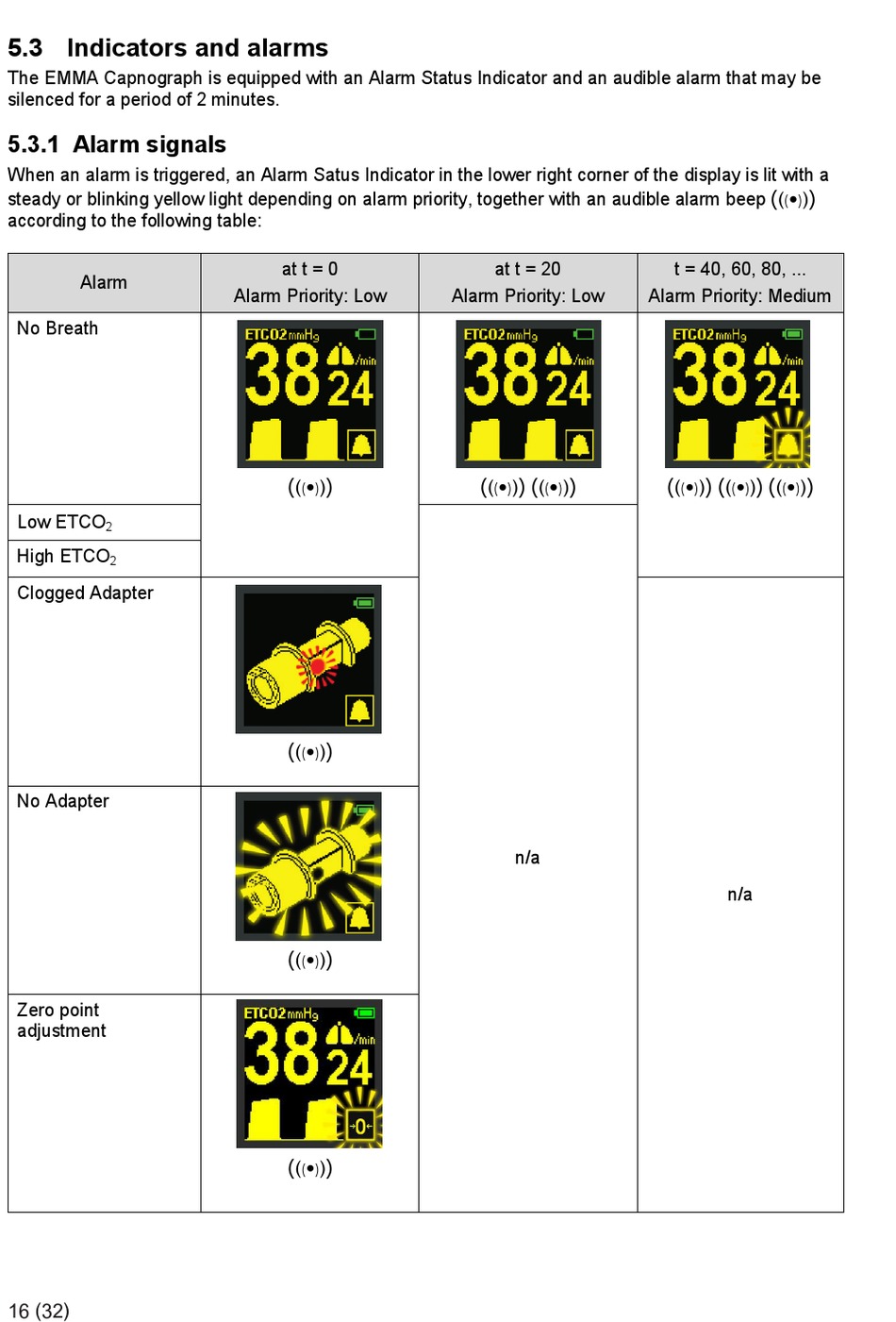

5.3 Indicators and alarms
The EMMA Capnograph is equipped with an Alarm Status Indicator and an audible alarm that may be
silenced for a period of 2 minutes.
5.3.1 Alarm signals
When an alarm is triggered, an Alarm Satus Indicator in the lower right corner of the display is lit with a
steady or blinking yellow light depending on alarm priority, together with an audible alarm beep
according to the following table:
Alarm
No Breath
Low ETCO
2
High ETCO
2
Clogged Adapter
No Adapter
Zero point
adjustment
16 (32)
at t = 0
Alarm Priority: Low
(
)
(
)
(
)
(
)
(
)
(
)
(
)
(
)
(
)
(
)
(
)
(
)
at t = 20
Alarm Priority: Low
(
) (
)
(
)
(
)
(
)
(
)
n/a
(
)
(
)
(
)
t = 40, 60, 80, ...
Alarm Priority: Medium
(
) (
) (
)
(
)
(
)
(
)
(
)
(
)
(
)
n/a
16 (31)
