Masimo EMMA User Manual

Emergency capnogragh
Hide thumbs Also See for EMMA:
Table of Contents

Advertisement

Quick Links

Download this manual
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EMMA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Masimo EMMA

Summary of Contents for Masimo EMMA

  • Page 1 USER’S MANUAL...
  • Page 2 Use of the equipment for other than its intended use, or if it has been repaired by anyone except Masimo Sweden AB or a Masimo Sweden AB authorized Revision history Edition Date Description EMMA Analyzer removed (EOL). Revised for EMMA Emergency Capnograph and company name April 2013 change. 2 (32)

  • Page 3: Table Of Contents

    YMBOL ESCRIPTION DEVICE DESCRIPTION ........................9 EMMA .......................... 9 OVERVIEW ......................10 RINCIPLE OF OPERATION 3.2.1 EMMA Airway Adapter ......................11 PREPARATIONS FOR USE ......................12 ..........................12 ETTING UP ..........................13 TARTING UP ..........................13 WITCHING OFF EMMA ..................14...

  • Page 4: Intended Use

    1 Intended use EMMA measures, displays and monitors carbon dioxide partial pressure and respiratory rate during anesthesia, recovery and respiratory care. It may be used in the operating suite, intensive care unit, patient room, clinic, emergency medicine and emergency transport settings for adult, pediatric and infant patients.

  • Page 5: Safety Information

    Adhere to the following warnings, cautions and notes for safe operation of EMMA. 2.1 Warnings WARNING! EMMA should only be used for the purpose and in the manner described in this manual. WARNING! EMMA is intended for use by authorized health care professionals only.

  • Page 6: Cautions

    CAUTION! Do not operate EMMA at ambient temperatures less than -5°C (23°F) or greater than 50°C (122°F). CAUTION! Remove batteries if EMMA is not likely to be used for a period of time longer than 90 days. 2.3 Notes NOTE! Throughout this User’s Manual: EMMA Airway Adapter refers to both Airway Adapter Adult/Pediatric and Airway Adapter Infant if not otherwise mentioned.

  • Page 7: Symbol Description

    (EMMA airway adapters). Temperature limitation Pressure limitation Humidity limitation Do not re-use Intended for single patient use (EMMA airway adapters). For EU only: For EU only: Waste Electrical and Electronic Electrical and electric equipment shall be collected...
  • Page 8 Symbol Title Explanation Rx only Caution: Federal (U.S.) law restricts this device to sale by or on the order of a licensed healthcare practitioner. Power on button Alarm silence button 8(32)

  • Page 9: Device Description

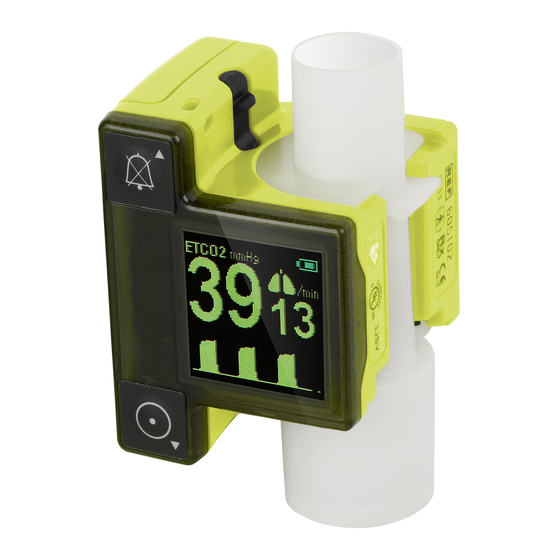

    3 Device Description 3.1 EMMA overview EMMA is a quantitative mainstream carbon dioxide monitor comprised of a sensor body that snaps in place on top of a disposable EMMA Airway Adapter. Battery Cover Alarm Silence button Carry strap Battery Cover...

  • Page 10: Principle Of Operation

    A beam of invisible infrared light is directed through the respiratory gas flow in the EMMA Airway Adapter. As the beam passes through the Airway Adapter, some of the light is absorbed by the gas mixture. The amount of absorbed light is measured by a miniaturized two channel spectrometer positioned to receive the infrared light beam.

  • Page 11: Emma Airway Adapter

    No hardware or software configuration changes result from the EMMA Airway Adapter model selected. EMMA snaps in place on top of the EMMA Airway Adapter. The Airway Adapter may, for example, be inserted between the endotracheal tube and the resuscitation bag or between the resuscitation bag and the patient mask.

  • Page 12: Preparations For Use

    4.1 Setting up Unpack and inspect EMMA for external damage. Please contact your local distributor in case of damage. 1. Press the battery cover release button into the EMMA sensor body until the battery cover pops off. Figure 4. Releasing the battery cover 2.

  • Page 13: Starting Up

    7.4 prior to using EMMA with a patient. 4.3 Switching off EMMA switches off automatically 15 Sec after that the EMMA Airway Adapter is removed or 2 min after a No Breath condition is detected and the Alarm Silence button is pressed.

  • Page 14: Connecting Emma To A Tube Or Mask

    4.4 Connecting EMMA to a tube or mask EMMA can be connected to a patient in different ways. The following pictures illustrate two methods of connection. Figure 7. EMMA connected to an endotracheal tube. Figure 8. EMMA connected to a mask...

  • Page 15: User Interface

    5 User Interface 5.1 Controls EMMA has one Power On and one Alarm Silence button. These buttons may also be used for adjusting the Low and High ETCO alarm limits up and down. 5.2 Monitoring EMMA is fitted with a graphic OLED-display that shows the ETCO value, the Respiratory Rate and a waveform (the capnogram).

  • Page 16: Default Limits For Indicator And Alarms

    To extend battery life time the EMMA display has an automatic brightness control which will be activated during stable conditions. Any change in displayed vital parameters, alarm or pressing any button will return the EMMA display to normal brightness.

  • Page 17: Alarm Status Indicator

    5.3.2 Alarm Status Indicator When an alarm is triggered, the indicator in the lower right corner of the display is lit with a steady or blinking yellow light depending on alarm priority. Active alarms are displayed according to the following table: RR value Alarm Screen...

  • Page 18: Alarm Silence

    If a No Breath alarm is turned off by pressing the Alarm Silence button, EMMA will automatically switch off after 2 minutes if no new breath takes are detected. If the alarm disappears during the silence period, the alarm icon will turn green.

  • Page 19: Adjusting The Etco 2 Alarm Limits

    (▼) to decrease the value. It is possible to switch off the high ETCO alarm by adjusting the limit above 99 mmHg (9.9 kPa). EMMA will indicate this setting by showing "- -" on the ETCO display during the adjustment routine.

  • Page 20: Emma And Accessories

    EMMA and Accessories Catalog number EMMA (kPa) 605100 EMMA (mmHg) 605102 EMMA Airway Adapter Adult/Pediatric, box of 25 100620 EMMA Airway Adapter Infant, box of 10 100660 EMMA Pouch, Box of 10 100680 EMMA Lanyard, Bag of 10...

  • Page 21: Maintenance And Service

    7 Maintenance and Service 7.1 Battery Replacement The Battery Status indicator in the upper right corner of the EMMA display starts blinking when the remaining lifetime of the batteries is approximately 30 min (Alkaline batteries). WARNING! Replace batteries immediately when the Battery Status indicator starts blinking.

  • Page 22: Zeroing Procedure

    Zeroing is recommended after 500 hours of operation. EMMA will return to normal screen when the Service value has reached "0" or if any of the buttons are released. Note: Special care should be taken to avoid breathing near the EMMA Airway Adapter before or during the Zeroing procedure.

  • Page 23: Troubleshooting

    Otherwise conduct a Zeroing procedure according to chapter 7.4 above before proceeding. 3. Insert the 15M connector into one end of the EMMA Airway Adapter, and connect a second EMMA Airway Adapter to the other end (see picture).

  • Page 24: Technical Specifications

    8 Technical Specifications 8.1 General Specifications Description Compact, battery powered, quantitative capnograph for mainstream monitoring of adult, pediatric and infant patients. Measurements Non-dispersive IR absorption Models displayed in kPa or mmHg Warm up In operation and full accuracy within 15 s. Calibration No routine calibration required Certifications...
  • Page 25 60 vol% of N O typically increases CO -readings by 10% 60 vol% of O typically decreases CO -readings by 4% (EMMA compensates CO -values for influence from 21% O as default) 5 vol% of ENF, ISO, SEV typically increases CO -readings by 8%.

  • Page 26: Electromagnetic Compatibility (Emc)

    Guidance and Masimo’s declaration – electromagnetic emissions – for EMMA EMMA is intended for use in the electromagnetic environment specified below. The customer or the user of EMMA should assure that it is used in such an environment. Emissions test Compliance Electromagnetic environment –...
  • Page 27 Guidance and Masimo’s declaration – electromagnetic immunity – for EMMA EMMA is intended for use in the electromagnetic environment specified below. The customer or the user of EMMA should assure that it is used in such an environment. Immunity test...
  • Page 28 Guidance and Masimo’s declaration – electromagnetic immunity – for EMMA EMMA is intended for use in the electromagnetic environment specified below. The customer or the user of EMMA should assure that it is used in such an environment. Immunity test...
  • Page 29 Recommended separation distances between portable and mobile RF communications equipment and the EMMA EMMA is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of EMMA can help prevent electromagnetic interference by...

  • Page 30: Compliance

    According to the degree of safety of application in the presence of a FLAMMABLE ANESTHETIC MIXTURE WITH AIR, OR WITH OXYGEN OR NITROUS OXIDE EQUIPMENT not suitable for use in the presence of FLAMMABLE ANESTHETIC MIXTURE WITH AIR; OR WITH OXYGEN OR NITROUS OXIDE According to sterility No part of EMMA is sterile. 30(32)
  • Page 31 31(32)
  • Page 32 Masimo Sweden AB Svärdvägen 15 182 33 Danderyd Sweden 36288/LAB-7750A www.masimo.com All Rights Reserved. © 2013 Masimo Sweden AB The information in this document is subject to change without notice. 32(32)
