Step 3: Connect Controller via RJ11 cable, as shown in Image 3.
Step 4: Connect Power Supply via port in LED Array and plug directly into
a mains socket. See Image 4.
PL-027 (Rev 7)

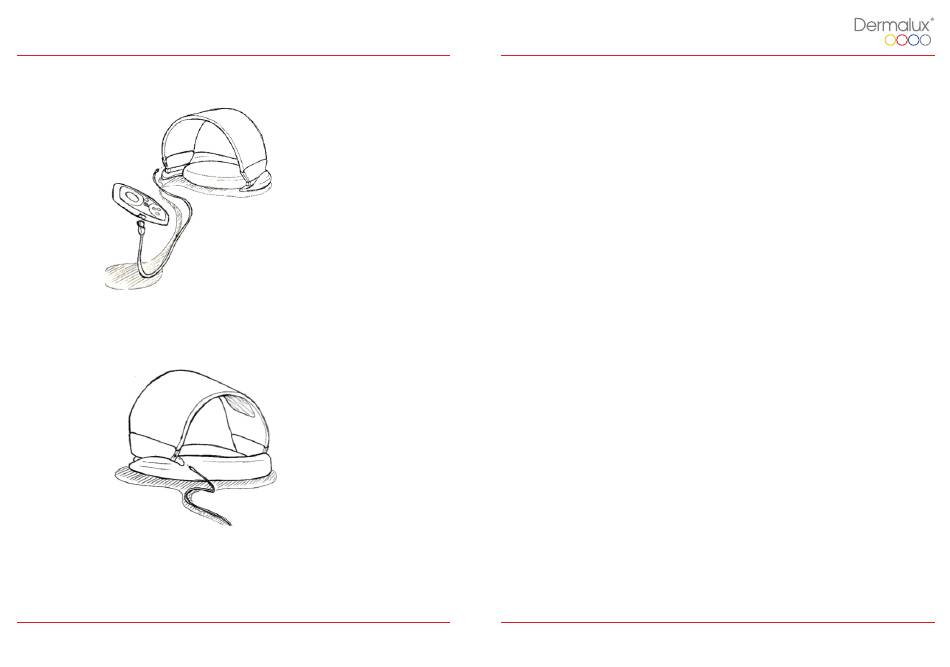

Figure 6: Connecting Controller.
Figure 7: Connecting to Power.
22

19.2 Setup and First use

The device does not require a warm up period. However, if stored above normal room
temperature conditions allow appropriate time to cool to normal operating conditions.
The maximum time to wait upon set up from a max storage temperature is 15 minutes.
There is no risk to the device, user or operator if using the device from the minimum
storage temperature of -25 Degree's Celsius.
• Mount Flex MD LED Array into Base unit
• Connect the RJ11 cable to the Controller
• Connect the opposite end of the RJ11 connector to the Flex MD LED Array
• Connect the Power Supply to the Flex MD LED Array using the 5mm barrell jack
• When plugging in to the mains wall socket, ensure the socket is off before plugging in
• Now switch the wall socket on
• Press the power button on the Controller to activate
• Display will illuminate with the following, in order:
- Dermalux logo
- Flex MD logo
- 30 (minutes)
• When the Controller is functional, Select required wavelengths. On selection, colours
will illuminate
• To start the treatment, press Play. To pause the treatment, press Pause
• The Play / Pause LED will switch when Play / Pause is pressed.
Green indicates Play, Red indicates Pause
- All wavelength outputs are constant
- Time runs from 30 minutes only on countdown
- When the treatment has finished a "00" will display
PL-027 (Rev 7)
23
