19. Using the Device

19.1 Assembly Guide

Background
The Flex MD is delivered in one box (the product box) wrapped in another box (the
transport box). If being shipped overseas multiple Flex MD will be loaded into a carrier
and palletised. Care should be taken when unloading from the pallet. Make sure each box
remains in the correct orientation, follow markings on the box as a guide.
Warning
• Do not connect or activate the device until instructed.
• Do not use sharp objects to cut open the packaging as this may cause damage to
the items inside.
Packaging
All packaging has been specifically designed for transportation, please dispose of all
waste appropriately and only remove from the transportation packaging when necessary.
Labelling
All labels are positioned as required under the document guidelines of (PL-001)
Disclaimer
Aesthetic Technology Ltd takes no responsibility for any damaged products from
repackaged devices upon receipt of the shipped product.
PL-027 (Rev 7)
20
19.1.1. Unpacking and Set Up of Flex MD
Assembled
LED Array
Pillow
Base

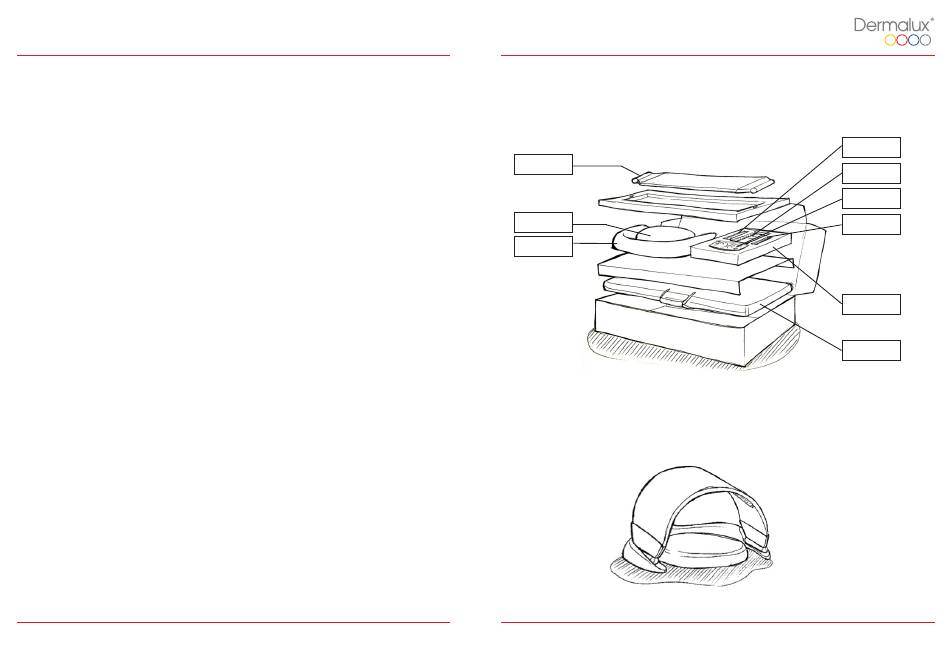

Figure 4: Flex In Packaging.
Step 1: Remove product from packaging, as shown in Image 1.
Step 2: Place Base onto a flat surface and secure the LED Array into place,
as shown in Image 2.
Figure 5: Assembled Flex MD.
PL-027 (Rev 7)
Goggles
User Guide
Controller
RJ11
Cable
Power Supply
Bag
