The PA152 is an extremely versatile, medium-throw,
two-way loudspeaker system offering wide bandwidth,
low profile, substantial power and value for a variety
of professional applications that include primary sound
reinforcement and supplementary fill for large speaker
systems.
The low-frequency transducer is a 15" woofer with an
efficient 4" voice coil that can provide excellent low-
frequency response along with high power handling.
The high-frequency section combines a modified constant
directivity horn with a 2" exit coupled to a titanium com-
pression driver with a 3" coil.
The system includes a high-level crossover network
that features markedly lower (than conventional) induc-
tion values in series with the woofer. We call this inno-
vation LICC (Low Impedance Compensated Crossover).
The benefit is delay reduction, reduced phase shift and
superior transient response. Dynamic high-frequency
driver protection is accomplished with a fast-response
filament resistor, chosen to complement the power curve
of the driver. The PA152's crossover is easily bypassed for
bi-amp or tri-amp (with the PA180SW) operation via an
installer-accessible changeover block. Back panel indica-
tors display the current system setting.
The Mackie Industrial PA152 is a part of the VISION
family of loudspeaker products including full-range,
cost-effective, two-way loudspeakers and complemen-
tary subwoofer cabinets. The two-way enclosures have
a trapezoidal footprint for easy array configuration. All
enclosures are constructed using 19 mm void-free, birch
plywood and finished with a scratch resistant black
coating. Transducer components are protected from the
environment by a heavy gauge metal grille. The VISION
products are eminently suited for fixed installation, ready
for suspension, via built-in M10 inserts with metal rein-
forcement and forged shoulder eyebolt hardware.
This Mackie Industrial product is covered by an exclu-
sive, one-time, NO FAULT repair policy in addition to a five
year limited warranty.

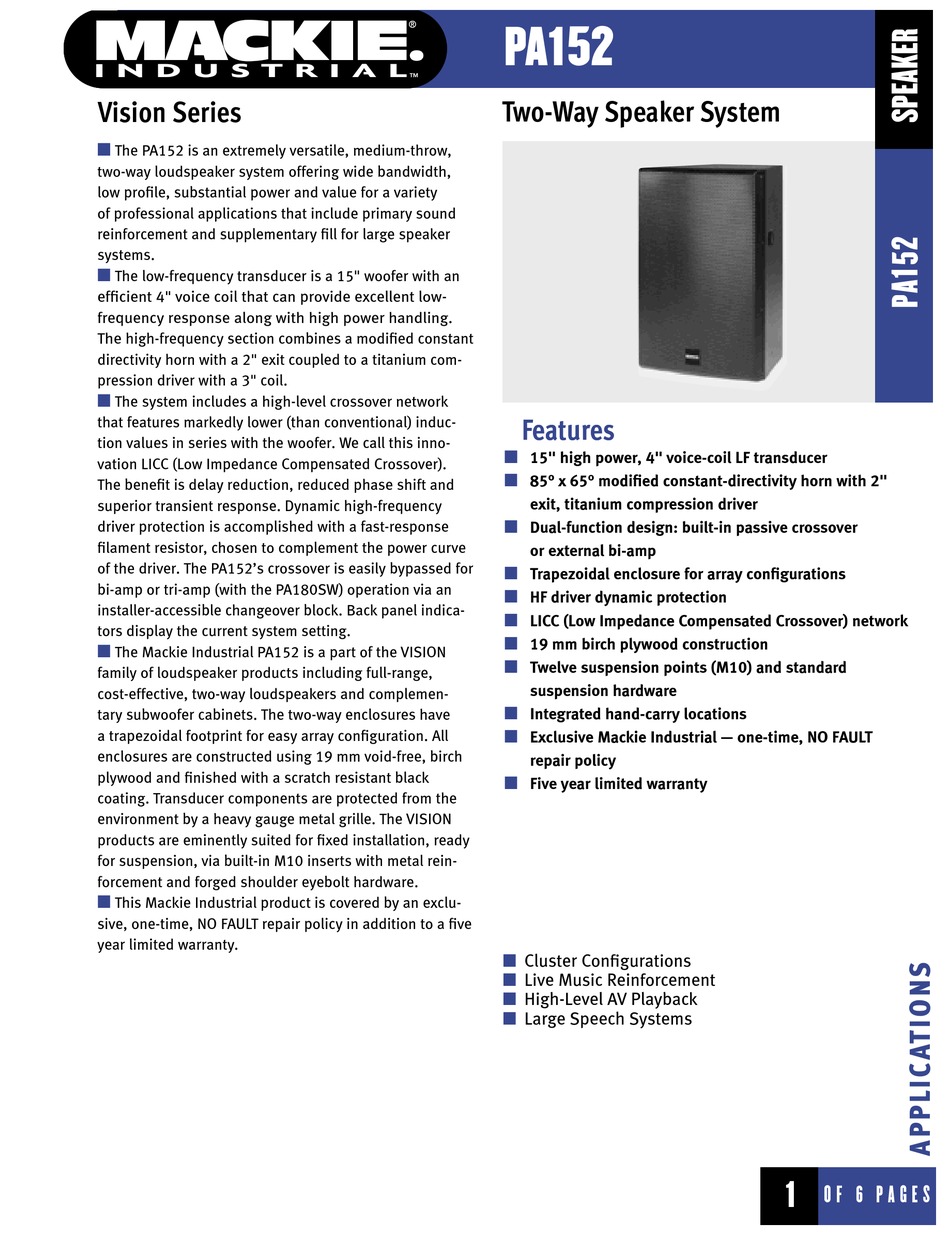

PA152
PA152
Two-Way Speaker System
Features
Features
15" high power, 4" voice-coil LF transducer
85° x 65° modified constant-directivity horn with 2"
exit, titanium compression driver
Dual-function design: built-in passive crossover
or external bi-amp
Trapezoidal enclosure for array configurations
HF driver dynamic protection
LICC (Low Impedance Compensated Crossover) network
19 mm birch plywood construction
Twelve suspension points (M10) and standard
suspension hardware
Integrated hand-carry locations
Exclusive Mackie Industrial — one-time, NO FAULT
repair policy
Five year limited warranty
Cluster Configurations
Live Music Reinforcement
High-Level AV Playback
Large Speech Systems
1
1
O F 6 P A G E S
O F 6 P A G E S
o F 6 PA G E S
o F 6 PA G E S

Advertisement

   Related Manuals for Mackie PA152

   Summary of Contents for Mackie PA152

  • Page 1

    The PA152’s crossover is easily bypassed for bi-amp or tri-amp (with the PA180SW) operation via an installer-accessible changeover block. Back panel indica- tors display the current system setting.

  • Page 2: Specifications

    PA152 Two-Way Speaker System Specifications System Freq. Range (–10 dB): Freq. Response (–3 dB): Horz. Coverage Angle (–6 dB): Vert. Coverage Angle (–6 dB): Directivity Factor; Q (DI): System Sensitivity Rated Maximum SPL: System Nominal Impedance: System Input Power Rating 500 W RMS;...

  • Page 3

    PA152 Two-Way Speaker System PA152 Vertical Polars O F 6 P A G E S O F 6 P A G E S o F 6 PA G E S o F 6 PA G E S 200Hz 250Hz 0˚...

  • Page 4

    PA152 Two-Way Speaker System PA152 Horizontal Polars 0˚ 0˚ 0˚ O F 6 P A G E S O F 6 P A G E S o F 6 PA G E S o F 6 PA G E S...

  • Page 5

    SERIES IN - OUT IN - OUT CONCEIVED, DESIGNED, AND MANUFACTURED BY MACKIE INDUSTRIAL • MADE IN ITALY • COPYRIGHT ©1999 THE FOLLOWING ARE TRADEMARKS/REGISTERED TRADEMARKS OF MACKIE DESIGN INC.: "MACKIE" , "MACKIE INDUSTRIAL" , & THE "RUNNING MAN" FIGURE...

  • Page 6

    For this reason, any current Mackie Industrial product may differ in some respect from its published description, but will always equal or exceed the original design specifications unless otherwise stated.
