Connect the cables

Connect the power cables between inverter and battery or the Busbars as mentioned.

As for the cable gauge that connects the busbar to the inverter, 4/0 gauge power

cable is commended for Sol-Ark 15K model and 3/0 gauge power cable is commended

for 8K/12K model.

A standard ethernet cable can be used for the communication since Sol-Ark inverter

pin assignment is the same as Pytes E-BOX battery.

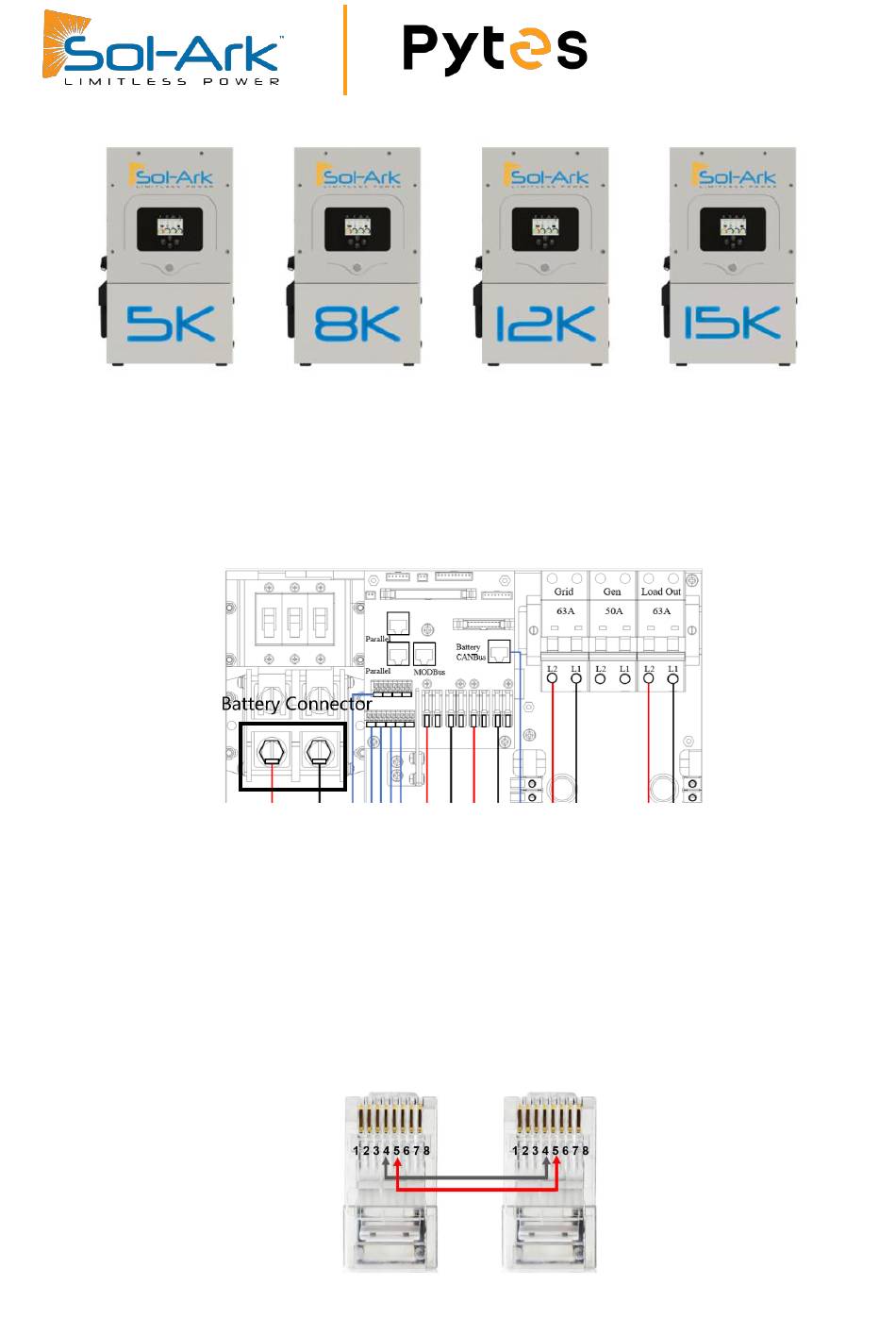

Figure 2.1 Sol-Ark Battery Connector

Figure 2.2 Sol-Ark Standard ethernet cable

Table of Contents

Do you have a question about the Pytes 5K and is the answer not in the manual?

Page 1 Figure 2.1 Sol-Ark Battery Connector As for the cable gauge that connects the busbar to the inverter, 4/0 gauge power cable is commended for Sol-Ark 15K model and 3/0 gauge power cable is commended for 8K/12K model. A standard ethernet cable can be used for the communication since Sol-Ark inverter pin assignment is the same as Pytes E-BOX battery.
Page 2 Figure 2.3 Sol-Ark inverter DIP Switch Setting Plug in the battery end into the CAN port of the Pytes E-BOX battery and plug in the inverter end into Sol-Ark Battery CANBus Port as shown in the Figure 2.4. Figure 2.4 Sol-Ark inverter comm cable connection Program the inverter Press the gear icon on the top right of the screen and then press battery set up menu.
Page 3 (For example, there are three Pytes E-BOX batteries and one 12K Sol-Ark inverter in a system. The max amps of 12K is 185A and three batteries can support 150A(50*3). So the number should fill in is 150A.) ➢...
Page 4 ➢ Batt Empty: 47.5V Figure 2.7 Batt Discharge Setup Please refer to the Sol-Ark inverter manual for more setting such as Grid Setup, PV Setting, Time-of-Use, etc. Confirm Inverter-Battery Communication Figure 2.8 communication confirm...
