sol-ark 15K Integration Manual

Low voltage 48v – residential
Hide thumbs Also See for 15K:
Table of Contents

Advertisement

Quick Links

Download this manual

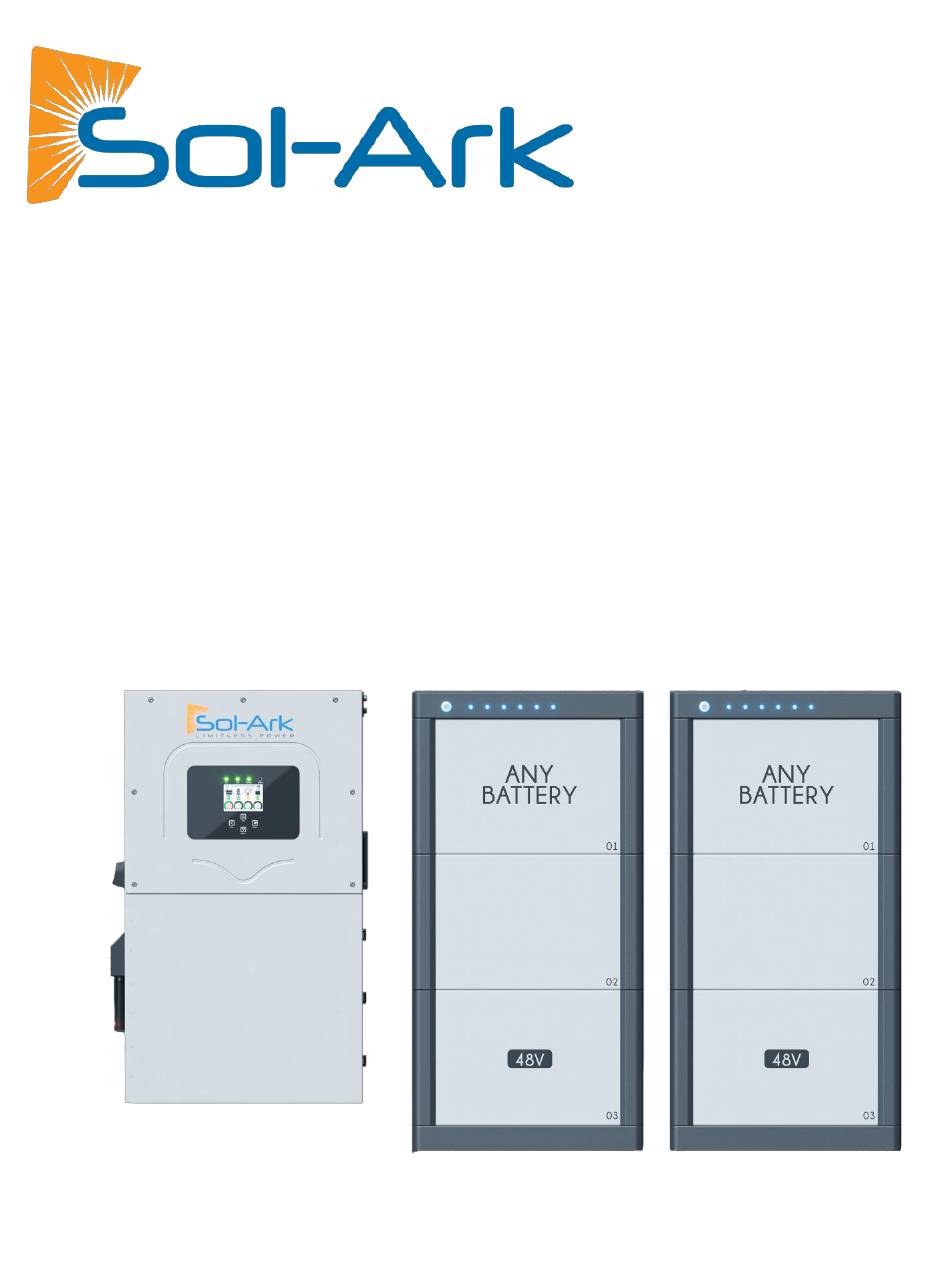

BATTERY INTEGRATION GUIDE
LOW VOLTAGE 48V – RESIDENTIAL
SK140-0026-005
Effective Date: March 12, 2025

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 15K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for sol-ark 15K

Summary of Contents for sol-ark 15K

  • Page 1 BATTERY INTEGRATION GUIDE LOW VOLTAGE 48V – RESIDENTIAL SK140-0026-005 Effective Date: March 12, 2025...
  • Page 2 This Battery Integration Guide assumes the accuracy and completeness of information made available to Sol-Ark as of the effective date on the first page of this guide, and Sol-Ark assumes no responsibility if that information was inaccurate or incomplete in any respect or if that information changes in any way after the effective date (including through software updates).
  • Page 3 Any information regarding battery performance, installation or other matters regarding integration and documentation used in this Guide has been provided to Sol-Ark by the manufacturer, and Sol-Ark has relied on the accuracy and completeness of that information and documentation.

  • Page 4: Table Of Contents

    Contents Sol-Ark Inverters in this Guide ................1 Sol-Ark Battery Partners ..................2 General Hardware Configuration ................4 Connecting Batteries ....................12 Certified Storage Partners ..................13 Briggs & Stratton AmpliPHI 3.8 and SimpliPHI™ 6.6 ESS ........14 Deka Duration – DD5300 (Low Voltage configuration) ......... 16 Discover Energy Systems AES RACKMOUNT 48-48-5120-H ......

  • Page 5: Sol-Ark Inverters In This Guide

    Sol-Ark Inverters in this Guide This document covers battery integration with the following Sol-Ark low-voltage hybrid inverters: • Sol-Ark 15K (Indoor/Outdoor) • Sol-Ark 12K (Outdoor) • Sol-Ark 12K (Indoor) • Sol-Ark 8K (Outdoor) • Sol-Ark 5K (Outdoor) Latest Firmware For Modbus RS-485 communication reliability, update to the latest firmware version, with C 1.4.3.F or greater.

  • Page 6: Sol-Ark Battery Partners

    This Guide is intended to specifically list batteries that have been certified to work with Sol-Ark hybrid inverters as the Effective Date. If not listed, the battery has not been certified to work with Sol-Ark hybrid inverters, or tested by Sol-Ark, but Sol-Ark inverters are designed to be battery agnostic and are generally intended to function with most 48V batteries.
  • Page 7 Liniotech • Powersync While this Guide lists only those battery companies that have worked with Sol-Ark and with which Sol-Ark has collaborated as described above, Sol-Ark inverters have been designed and are intended to work with many other batteries. Sol-Ark Battery Integration Guide | SK140-0026-005...

  • Page 8: General Hardware Configuration

    Both “Modbus RS485” and “Battery CANBus” ports can do Modbus communication. The diagram shows the communication board inside the wiring area of the 15K inverter. Note that only the “Battery CANBus” port is used for battery communications. The pin configurations for Modbus and CANBus communication of this RJ45 are listed in the table below.
  • Page 9 TX B- TX A+ (either orange or brown) (either orange or brown) TX A+ TX B- GND (either 3 or 6) GND (either 3 or 6) TX A+ TX B- TX B- TX A+ Sol-Ark Battery Integration Guide | SK140-0026-005...
  • Page 10 Modbus and CANBus pin configurations shown below. Both “Modbus RS485” and “Battery CANBus” ports can do Modbus communication. The diagram shows the communication board inside the wiring area of Sol-Ark 12K / 8K / 5K inverters. Note that only the “Battery CANBus” port is used for battery communications.
  • Page 11 Sol-Ark 12K (Indoor) The Sol-Ark 12K Indoor can communicate through two RJ-45 ports labeled “CAN” and “RS-485.” Battery communication is established through CANBus or Modbus communication protocols using the “CAN” and “RS-458” ports respectively. The diagram shows the communication board inside the 12K Indoor inverter wiring area.
  • Page 12 CAN Lo RS485 A+ RS485 B- Sol-Ark 8K (Indoor) The Sol-Ark 8K Indoor can communicate through two RJ-45 ports labeled “RJ45_485” and “RJ45_CAN.” Battery communication is established through CANBus or Modbus communication protocols through the “RJ45_485” and “RJ45_CAN” ports respectively.
  • Page 13 Table IV: Pin Configurations of “RJ45” and “RJ45_CAN” ports for ModBus and CANBus protocols RJ45_485 (Modbus) RJ45_CAN (CANBus) RS-485 B- RS-485 A+ CAN Hi CAN Lo RS485 A+ RS485 B- Sol-Ark Battery Integration Guide | SK140-0026-005...
  • Page 14 Command sent by the BMS telling the inverter to charge the battery from any available power source regardless of inverter settings. This is not shown in the image, but it’s located below the “Alarms” field. Copyright © 2025 Sol-Ark LLC...
  • Page 15 Modbus/RS-485 Battery Screen 2.11. Sol-Ark recommends that if establishing communication via Modbus RS485, be sure to have the inverter firmware upgraded to the latest available version, with Comm v143F or higher, and the latest primary and follower MCU versions. The image shows the “Li Batt Info” screen when communicating via Modbus/RS-485 (all other “BMS Lithium Batt”...

  • Page 16: Connecting Batteries

    Most custom cables are NOT reversible; therefore, keep track of which end of the custom cable connects to the battery and the Sol-Ark. If you’re crimping new connectors to create a cable, be careful not to over-tighten the crimping tool, as this can recess the connectors and lead to a poor or intermittent connection.

  • Page 17: Certified Storage Partners

    Certified Storage Partners This section includes the battery manufacturers that Sol-Ark has certified to work with our inverters as of the Effective Date and the compatible battery model. Modifications, updates, or other changes made by the battery manufacturer to a battery product, including...

  • Page 18: Briggs & Stratton Ampliphi 3.8 And Simpliphi™ 6.6 Ess

    Briggs & Stratton AmpliPHI 3.8 and SimpliPHI™ 6.6 Energy Storage System (ESS) Follow these instructions for setting up Briggs&Stratton batteries and Sol-Ark inverters. Be sure to consult the comprehensive technical documentation provided by Briggs&Stratton for specifications and settings to ensure optimal performance and safety. Visit the manufacturer’s website and consult the relevant documentation below.
  • Page 19 2. Program the inverter with this battery's appropriate charge/discharge settings. 3. Enable “BMS Lithium Batt” and set its value to “00.” 4. (Optional) Turn on “BMS_Err_Stop” if you if you want the system to fault on battery communications loss. Sol-Ark Battery Integration Guide | SK140-0026-005...

  • Page 20: Deka Duration - Dd5300 (Low Voltage Configuration)

    Deka Duration – DD5300 (Low Voltage configuration) Follow these instructions for setting up Deka batteries and Sol-Ark inverters. Be sure to consult the comprehensive technical documentation provided by Deka for specifications and settings to ensure optimal performance and safety. Visit the manufacturer’s website and consult the relevant documentation below.
  • Page 21 Inverter programming and connections 1. Connect the cable to the “CAN-A” port on the Deka-DD5300 and the “Battery CANBus” port (outdoor- rated models) or the “CAN” port (indoor-rated models) on the Sol-Ark. 2. Program the inverter with this battery's appropriate charge/discharge settings.

  • Page 22: Discover Energy Systems Aes Rackmount 48-48-5120-H

    Discover- LYNK documentation You need the Discover Lynk device to adapt the battery’s AEBus to CANBus for use with the Sol-Ark. The Lynk requires the proper adapter for the Sol-Ark’s pin configuration (Part number 950-0016-SLRK). Communications with this battery requires a custom cable (outdoor-rated models only).
  • Page 23 No custom cable is needed. Battery IDs and connections 1. Configure the proper pin assignments of the LYNK II header board for Sol-Ark per the manufacturer's manual. 2. Daisy-chain all modules (if in parallel) together using CAT5e or higher cables between LYNK ports.

  • Page 24: Dyness - B4850 And Powerbox Pro

    Dyness – B4850 and Powerbox Pro Follow these instructions for setting up Dyness batteries and Sol-Ark inverters. Be sure to consult the comprehensive technical documentation provided by Dyness for specifications and settings to ensure optimal performance and safety. Visit the manufacturer’s website and consult the relevant documentation below.
  • Page 25 2. Program the inverter with this battery's appropriate charge/discharge settings. 3. Enable “BMS Lithium Batt” and set its value to “00.” 4. (Optional) Turn on “BMS_Err_Stop” if you if you want the system to fault on battery communications loss. Sol-Ark Battery Integration Guide | SK140-0026-005...
  • Page 26 2. Program the inverter with this battery's appropriate charge/discharge settings. 3. Enable “BMS Lithium Batt” and set its value to 00. 4. (Optional) Turn on “BMS_Err_Stop” if you if you want the system to fault on battery communications loss. Copyright © 2025 Sol-Ark LLC...
  • Page 27 Sol-Ark Battery Integration Guide | SK140-0026-005...

  • Page 28: Endurenergy - Esp-5100

    1. Connect a standard CAT5/6 cable to the “Inverter” port on the ESP-5100 Master battery, and the “Battery CANBus” port (or the “CAN” port for indoor-only models) on the Sol-Ark. 2. Program the inverter with the appropriate charge/discharge settings according to the specific battery manual and cable arrangement.
  • Page 29 Sol-Ark Battery Integration Guide | SK140-0026-005...

  • Page 30: Homegrid - Stack'd

    Homegrid – Stack’d Follow these instructions for setting up Homegrid batteries and Sol-Ark inverters. Be sure to consult the comprehensive technical documentation provided by Homegrid for specifications and settings to ensure optimal performance and safety. Visit the manufacturer’s website and consult the relevant documentation below.
  • Page 31 4. (Optional) Turn on “BMS_Err_Stop” if you want the system to fault on battery communications loss. 5. If communication still needs to be established, contact HomeGrid to ensure that the unit is on the latest firmware and configured for communication with Sol-Ark inverters. Sol-Ark Battery Integration Guide | SK140-0026-005...

  • Page 32: Pylontech - Us3000C

    Pylontech – US3000C Follow these instructions for setting up Pylontech batteries and Sol-Ark inverters. Be sure to consult the comprehensive technical documentation provided by Pylontech for specifications and settings to ensure optimal performance and safety. Visit the manufacturer’s website and consult the relevant documentation below.
  • Page 33 1. Connect the cable to the “A/CAN” port on the Pylontech master battery and the “Battery CANBus” port (outdoor-rated models) or the “CAN” port (indoor-rated models) on the Sol-Ark. 2. Program the inverter with the appropriate charge/discharge settings according to the specific battery manual.

  • Page 34: Pytes - V5

    Pytes – V5 Follow these instructions for setting up Pytes batteries and Sol-Ark inverters. Be sure to consult the comprehensive technical documentation provided by Pytes for specifications and settings to ensure optimal performance and safety. Visit the manufacturer’s website and consult the relevant documentation below.

  • Page 35: Renon - Xtreme Lv Series

    RENON – Xtreme LV Series Follow these instructions for setting up RENON batteries and Sol-Ark inverters. Be sure to consult the comprehensive technical documentation provided by RENON POWER for specifications and settings to ensure optimal performance and safety. Visit the manufacturer’s website and consult the relevant documentation below.
  • Page 36 4. (Optional) Turn on “BMS_Err_Stop” if you if you want the system to fault in case of battery communications lost. 5. If communication still needs to be established, contact Renon to verify the unit has the latest firmware and is configured for communication with Sol-Ark inverters. BATTERY PORT INVERTER PORT...

  • Page 37: Storz Power - Lfp48100-5Kwh

    STORZ POWER – LFP48100-5KWH Follow these instructions for setting up Storz Power batteries and Sol-Ark inverters. Be sure to consult the comprehensive technical documentation provided by Storz Power for specifications and settings to ensure optimal performance and safety. Visit the manufacturer’s website and consult the relevant documentation below.
  • Page 38 ID:01 xxx should we also say this below on 3b ?? xxx 2. Program the inverter with this battery's appropriate charge/discharge settings. 3. Enable “BMS Lithium Batt” and set its value to: a. (CAN mode): “00” b. (RS485 mode): “01” Copyright © 2025 Sol-Ark LLC...
  • Page 39 4. (Optional) Turn on “BMS_Err_Stop” if you want the system to fault on the loss of battery communications. This may happen more frequently since the Storz Power batteries do not feature ground connections. BATTERY PORT INVERTER PORT Sol-Ark Battery Integration Guide | SK140-0026-005...

  • Page 40: Volthium Energy - 51.2-100-R-H

    Volthium Energy – 51.2-100-R-H Follow these instructions for setting up Volthium Energy batteries and Sol-Ark inverters. Be sure to consult the comprehensive technical documentation provided by Volthium Energy for specifications and settings to ensure optimal performance and safety. Visit the manufacturer’s website and consult the relevant documentation below.
  • Page 41 Inverter programming and connections 1. Connect a standard CAT5/6 cable between the “CAN” port on the Master battery and the “Battery CANBus” port (outdoor-rated models) or the “CAN” port (indoor-rated models) on the Sol-Ark. 2. Turn on the power buttons of the batteries.

  • Page 42: Proven Storage Partners

    Proven Storage Partners These battery manufacturers have been proven to work with Sol-Ark inverters, but they have not yet been certified by Sol-Ark. Custom cable Manufacturer Compatible Battery Model BMS Lith Batt required? Liniotech LTN051280A-B-GBP2 Powersync LFP3250-LV512100 Copyright © 2025 Sol-Ark LLC...

  • Page 43: Liniotech - Ltn051280A-B-Gbp2

    Liniotech – LTN051280A-B-GBP2 Follow these instructions for setting up Liniotech batteries and Sol-Ark inverters. Be sure to consult the comprehensive technical documentation provided by Liniotech for specifications and settings to ensure optimal performance and safety. Liniotech website Communications Installation and Setup Instructions Custom RJ45 cable No custom cable is needed.

  • Page 44: Powersync - Lfp3250-Lv480100Sp

    POWERSYNC – LFP3250-LV480100SP Follow these instructions for setting up PowerSync batteries and Sol-Ark inverters. Be sure to consult the comprehensive technical documentation provided by PowerSync for specifications and settings to ensure optimal performance and safety. Visit the manufacturer’s website and consult the relevant documentation below.
