Summary of Contents for Signature SFM3600XAQUA

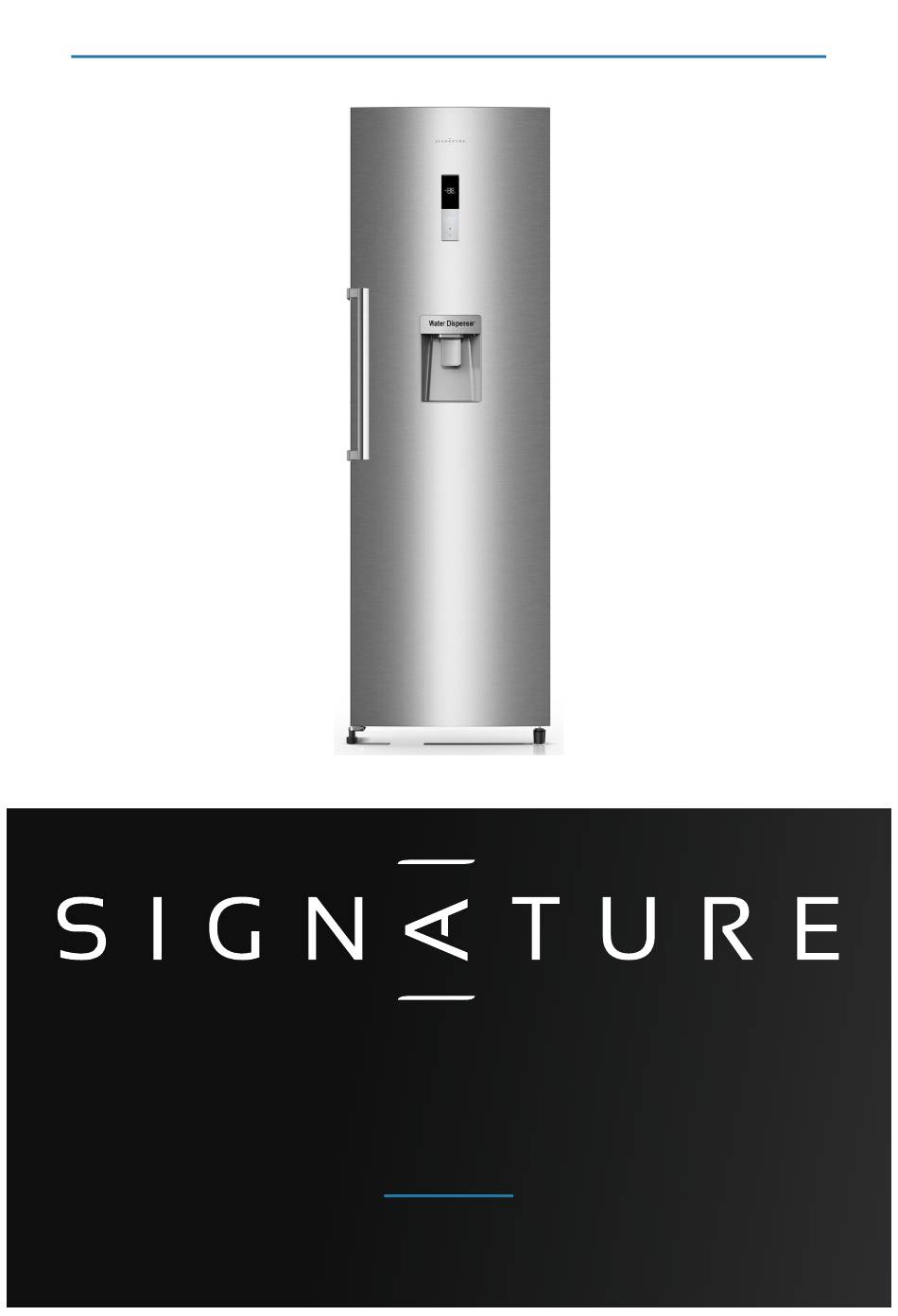

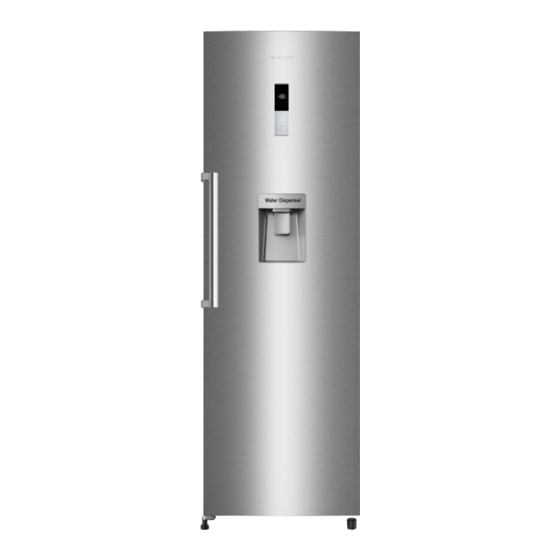

- Page 1 U S E R ’ S M A N U A L - E N 1 D O O R FRIDGE S F M 3 6 0 0 X A Q U A...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Important safety instructions - 40 - Structure illustration - 47 - Transport and handing - 48 - Installation - 48 - First use - 49 - Display controls - 50 - Storage of food - 52 - Helpful hints and tips - 55 - Cleaning and care... -
Page 3: Important Safety Instructions
This product is for household use only! Please read these instructions carefully before the first use of this product and save this manual for your future reference. IMPORTANT SAFETY INSTRUCTIONS This warning is only for EUROPEAN market only! When using an electrical appliance, basic precautions should always be followed, including the following: 1. - Page 4 clear of obstruction. 5. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. 6. WARNING: Do not damage the refrigerant circuit. 7. WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- Page 5 respect the following instructions: – Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. – Clean regularly surfaces that can come in contact with food and accessible drainage systems. –...
- Page 6 parts at an authorized service dealers. 19. The motor is permanently lubricated and will require no oil. 20. The appliance must be positioned so that the plug is accessible. 21. Please according to local regulations regarding disposal of the appliance for its flammable blowing gas.
- Page 7 30. To avoid injury or death from electrical shock do not operate the appliance with wet hands, while standing on a wet surface or while standing in water. 31. Do not use outdoors or in wet conditions. 32. Never pull the cord to disconnect it from the outlet.
- Page 8 and the appliance should not be used if the cable is damaged. 43. Regarding the information for replacing of the lamps of the appliance, thanks to refer to the paragraph “CLEANING AND CARE” of the manual. 44. Regarding the information pertaining to the installation, handing, maintenance, servicing and disposal of the appliance, thanks to refer to the p a r a g r a p h “...
- Page 9 CORRECT DISPOSAL OF THIS PRODUCT This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the s u s t a i n a b l e r e u s e o f m a t e r i a l resources.
-
Page 10: Structure Illustration
STRUCTURE ILLUSTRATION 1. Light switch 2. Glass shelves 3. Fruits and vegetables crisper 4. Adjustable feet 5. Water tank 6. Balcony 7. Bottle rack Note: The glass shelves and the crisper can be removed and inserted for cleaning and storing of food according to the appliance. -
Page 11: Transport And Handing
TRANSPORT AND HANDING When transportation, hold the base and lift the refrigerator carefully with an angle inferior at 45 degree. Never hold the door handle as support. Never place it upside down nor horizontally. Push refrigerator on its basis and place it thanks to its roller feet. -
Page 12: First Use
30cm 30cm 50-75mm FIRST USE Before the use of the refrigerator, remove all the packages, including bottom cushion and foam pads and rubber belts in the refrigerator. Adjust the feet and clear the outside and inside of the refrigerator with warm cloth. Do not start the refrigerator immediately after vertical placement. -
Page 13: Display Controls
DISPLAY CONTROLS Use your appliance according to the following control regulations, your appliance has the corresponding functions and modes as the control panels showed in the pictures below. When the appliance is powered on for the first time, the backlight of the icons on display panel starts working. If no buttons have been pressed and the doors are closed, the backlighting will turn off. - Page 14 Caution! When you set a temperature, you set an average temperature for the whole freezer cabinet. Temperatures inside each compartment may vary from the temperature values displayed on the panel, depending on how much food you store and where you place them. Ambient temperature may also affect the actual temperature inside the appliance.
-
Page 15: Storage Of Food
minute and will automatically stop alarming 10 minutes later. To save energy, please avoid keeping the door open for a long time when using the appliance. The door alarm can be cleared by closing the door. STORAGE OF FOOD Your appliance has the accessories as the “Structure illustration”... - Page 16 or covered and stored away from foods such as butter, milk and cream which can be tainted by strong odours. · Cool hot foods down before placing them in the fridge compartment. Dairy foods and eggs · M o s t p r e - p a c k e d d a i r y f o o d s h a v e a recommended 'use by /best before/best by/ date stamped on them.
- Page 17 Fish and seafood · Whole fish and fillets should be used on the day of purchase. Until required, refrigerate on a plate loosely covered with plastic wrap, waxed paper or foil. · If storing overnight or longer, take particular care to select very fresh fish.
-
Page 18: Helpful Hints And Tips
HELPFUL HINTS AND TIPS We recommend that you follow the tips below to save energy. Try to avoid keeping the door open for long · periods in order to conserve energy. Ensure the appliance is away from any sources of ·... - Page 19 Hints for refrigerator · Meat (All Types) Wrap in polythene food: wrap and place on the glass shelf above the vegetable drawer. Always follow food storage times and use by dates suggested by manufacturers. · Cooked food, cold dishes, etc.: They should be covered and may be placed on any shelf.
-
Page 20: Cleaning And Care
CLEANING AND CARE For hygienic reasons the appliance (including exterior and interior accessories) should be cleaned regularly at least every two months. WARNING: The appliance must not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains socket. - Page 21 will be easier to clean when food stocks are low. Wipe the inside of the fridge freezer with a weak solution of bicarbonate of soda, and then rinse with warm water using a wrung-out sponge or cloth. Wipe completely dry before replacing the shelves and baskets.
-
Page 22: Door Reverse
DOOR REVERSE The side at which the door opens can be changed, from the left side (as supplied) to the right side, if the installation site requires. Warning! When reversing the door, the appliance must not be connected to the mains. Ensure that the plug is removed from the mains socket. - Page 23 7. Lift the door upwards to disengage it from the bottom hinge, put the door to one side and lay it down gently on a padded surface. 8. Screw off the bottom hinge part and foot. 9. Disassemble the hinge to four parts: (3)foot;...
- Page 24 14. Open the cover on door left(7) and take out the wire. C o n n e c t t h e e l e c t r i c a l connector. 15. Install the light switch(1) to left hinge cover(supplied with the appliance) and connect the wire.
- Page 25 Installing the handles This appliance has been built with external handle, which is in poly bag. Please follow instruction below to install them: 1. Remove two screws(8) by a cross screwdriver. 2. Take out the handles(9) and fix it with the two screws(8).
-
Page 26: Water Dispenser
WATER DISPENSER The refrigerator is built with water dispenser. The water dispenser allows access to chilled water without having to open the refrigerator door. The number of door openings is thus reduced, less cold air is lost from the refrigerator and you save on electricity costs. - Page 27 Using the dispenser • Push in the lever of the water dispenser with your glass. • Releasing the lever, stops further dispensing of water. • Flow rate is dependent on how far the lever is pushed back: Fully back = full flow Gently back = trickle •...
-
Page 28: Coldest Zone In The Refrigerator
COLDEST ZONE IN THE REFRIGERATOR This part is not dedicated to the product but for your reference only. This symbol indicates the location of the coldest zone of the refrigerator, The area is bounded below by the glass crisper, and above by the symbol or the rack positioned at the same height. - Page 29 correct. Indeed, the internal temperature of the refrigerator depends on several factors such as the ambient temperature of the room, the amount of food stored and the frequency of door opening. Take these factors into consideration when setting the device. When the indicator shows «...
-
Page 30: Troubleshooting
TROUBLESHOOTING If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks before calling for service, please see below. You can carry out some easy checks according to this section before calling for service. - Page 31 Problem Possible cause & Solution The sounds below are quite normal: · Compressor running noises. · Air movement noise from the small fan motor in the freezer compartment or other compartments. · Gurgling sound similar to water boiling. · Popping noise during automatic defrosting.
- Page 32 Problem Possible cause & Solution You may have left the doors open too Temperature long or too frequently; or the doors are inside is too kept open by some obstacle; or the warm appliance is located with insufficient clearance at the sides, back and top. Temperature Increase the temperature by following the inside is too...
-
Page 33: Technical Specifications
TECHNICAL SPECIFICATIONS REF1P SFM3600XAQUA Commercial reference : 4894223220248 Refrigerator with one or more fresh-food storage Household refrigerating appliance model category compartments Energy efficiency class A+++ (the highest energy efficiency) to D (the lowest efficiency) Annual energy consumption (AEc) 144 kWh/an Energy consumption of 144 kWh per year, calculated based on the result obtained for 24 hours under standardized test conditions. - Page 34 ENERG SFM3600XAQUA + + + + + + + + + + kWh/annum 2010/1060 Notes: 144 kWh per year, based on the results of standard tests tested over a 24-hour period. The actual energy consumption will depend on the mode of use and location of the device.
- Page 35 Tous les papiers se trient et se recyclent. BUT INTERNATIONAL 1 Avenue Spinoza 77184 Emerainville, France...
