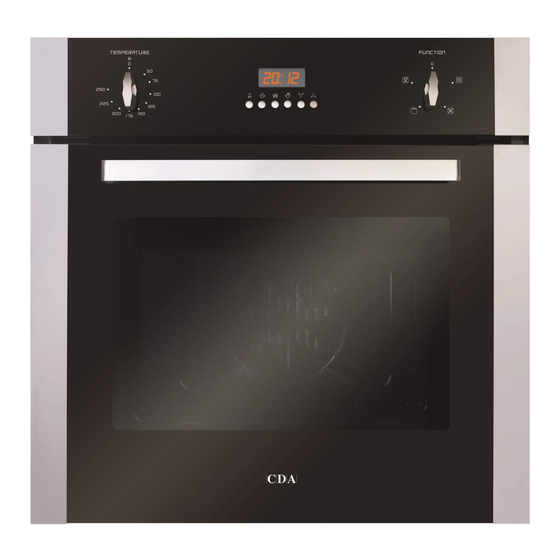

- Page 1 Single Oven Manual for Installation, Use and Maintenance Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : customer.care@cda.eu W : www.cda.eu...
- Page 2 Keep the oven door closed whilst grilling. Appliance information: Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes.
- Page 3 Appliance Model Serial Number CE Declarations of Conformity: This oven has been designed, constructed and marketed in compliance with safety requirements of EEC Directive 2006/95/EEC (Low voltage) and requirements of EMC Directive 2004/108/EEC. This appliance has been manufactured to the strictest standards and complies with all applicable legislation, including Electrical safety (LVD) and Electromagnetic interference compatibility (EMC).
- Page 4 Important • R ead the user instructions carefully before using the oven for the first time. • Follow the instructions for first use of the oven. • Clean the oven regularly. • Remove spills as soon as they occur. • Always use oven gloves when removing shelves and trays from the ovens.
-
Page 5: First Use Of The Oven
15 minutes grill. (all models) 60 minutes fan oven. 60 minutes conventional oven (SA117 only) Please note: • This oven has been fitted with a cooling fan to achieve maximum... -
Page 6: Oven Controls And Use
fan will switch on automatically when the oven switches on. It is normal for the cooling fan to run for an hour or more after use, depending on the duration, temperature and type of cooking programme used. • The oven light remains on for every cooking function. •... - Page 7 Fan Oven Using the circular element and the fan with a temperature between 50°C and 250°C, this cooking function blows the air into and around the oven cavity. Temperatures are achieved quicker, reducing or even removing the need for preheating. Both cooking temperatures and cooking times can be reduced for a more energy efficient cooking programme.
- Page 8 Temperature knob • To set the temperature, turn the temperature knob clockwise to the required temperature. • Once the oven has reached the required temperature, the temperature indicator lamp on the control panel will switch off. • The temperature indicator lamp will light up when the oven elements are in operation.
- Page 9 This function uses the upper and lower heating elements with a temperature between 50˚C and 240˚C. Natural convection creates a perfect cooking zone in the centre of the oven, ideal for dark fruit cakes and pastries. Oven functions SA117 SA127 SA227 √ √...
- Page 10 Programming the Oven (SA227 Only) IMPORTANT: THE CLOCK MUST BE SET TO ENABLE THE OVEN TO WORK. functions display field buttons fig. 1 The alert beep will cut off after seven minutes if it is not switched off manually. Setting the clock The clock is preset to 00:00, and will revert to this after a power failure.
- Page 11 The minute minder The minute minder can be used when the oven is switched on or off. It can be set for up to 23 hours and 59 minutes. To set the minute minder: • Press . • Then press to select the required duration for the minute minder.
- Page 12 Programming the Oven (SA227 Only) The oven can be set for semi-automatic cooking, where the oven is programmed to switch off at a specific time, and for automatic cooking, where the oven is set to switch on and off at specific times. To use the oven, first press To set a semi-automatic programme 1.
-
Page 13: Care And Maintenance
Proprietary stainless steel cleaners are available. We recommend the CDA E-Cloth available from the CDA Sales Team for cleaning stainless steel surfaces as this has been designed to prolong the finish of your... - Page 14 Inside of Oven The oven should always be cleaned after use when it has cooled down. The cavity should be cleaned using a mild detergent solution and warm water. Suitable proprietary chemical cleaners may be used after first consulting with the manufacturers recommendations and testing a sample on a small area of the oven cavity.
-
Page 15: Changing The Oven Lamp
Changing the Oven Lamp Before any maintenance is started involving electrical parts, the appliance must be disconnected from the power supply. If the oven has been in use, let the oven cavity and the heating elements cool down before attempting any maintenance. -
Page 16: Installation
IMPORTANT Never use screwdrivers or other utensils to remove the light cover. This could damage the enamel of the oven or the lamp holder. Remove only by hand. Never replace the bulb with bare hands as contamination from your fingers can cause premature failure. Always use a clean cloth or gloves. - Page 17 The walls of the kitchen units must be fig. 3 able to withstand temperatures of 75˚C above ambient (typically this is between 90˚C and 100˚C). When correctly installed ensure that there is a gap of 4mm minimum between the sides of the oven and adjacent furniture doors.
- Page 18 Oven Door Removing the Oven Door The oven door can easily be removed as follows: • Open the door to the full extent (fig. fig. 4 • Open the lever A completely on the left and right hinges (fig. 5). •...
-
Page 19: Electricity Supply To Your Oven
Electricity Supply to DOUBLE POLE SWITCHED Your Oven FUSE SPUR OUTLET Warning! this appliance must be earthed. This appliance must be connected by a competent person, using fixed wiring via a double pole switched fused spur outlet, protected by a 13A fuse. We recommend that the appliance is connected by a qualified electrician, who is a member of the N.I.C.E.I.C. - Page 20 Please contact our Customer Care Department for Service on the details below Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : service@cda.eu W : www.cda.eu...
