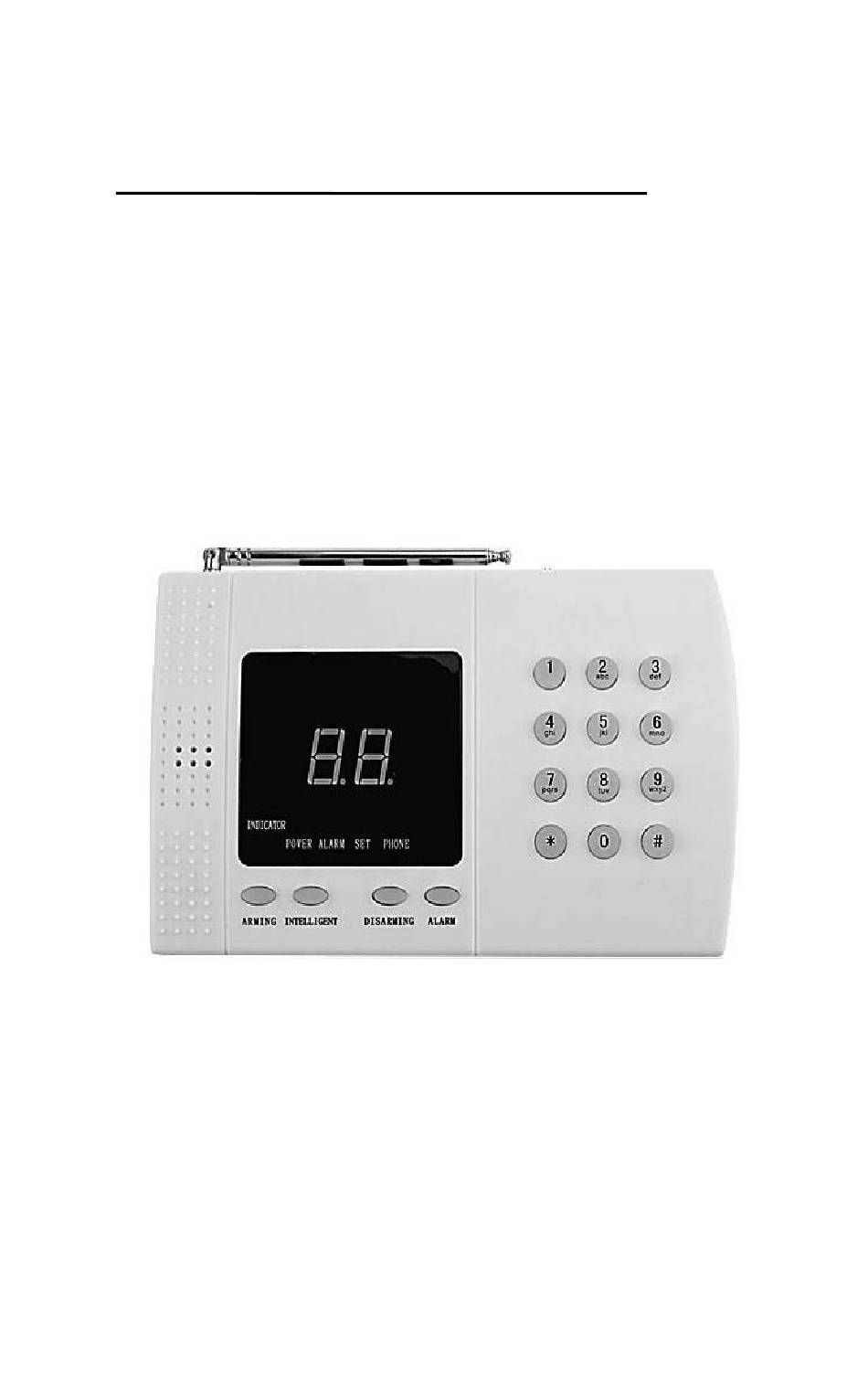

- Page 1 PSTN Home Alarm System User Manual Please read this user guide carefully before operation and installation.
-
Page 2: Table Of Contents
File Name: User Manual File Version: V1308002-001 TEL Home Alarm System Contents 1. Product Introduction.........................- 3 - 2. Main Function & Features.......................- 3 - 3. For Your Safety.........................- 4 - 4. Characteristics.......................... - 4 - 5. Getting Started..........................- 5 - 5.1 Standard Package List.................... -
Page 3: Product Introduction
TEL Home Alarm System 1. Product Introduction The alarm system is a PSTN intelligent home alarm system. This LED display alarm system is equipped with PSTN technologies and suitable for both home and commercial use. It uses the PSTN landline networks with intelligent alarm system. It is a choice of stability, reliability, security, and user friendliness. -
Page 4: For Your Safety
File Name: User Manual File Version: V1308002-001 TEL Home Alarm System 3. For Your Safety Read these simple guidelines. Not following them may be dangerous or illegal. Proper Connection When connecting with other device, read carefully its manual so as to carry out correct installation. Do not connect it to other incompatible devices. -
Page 5: Getting Started
File Name: User Manual File Version: V1308002-001 TEL Home Alarm System 5. Getting Started This section will describe how to set up your ALARM SYSTEM. 5.1 Standard Package List ALARM SYSTEM is supplied in a box which includes: 5.2 View Front View Side View Back View... -
Page 6: Functional Parts

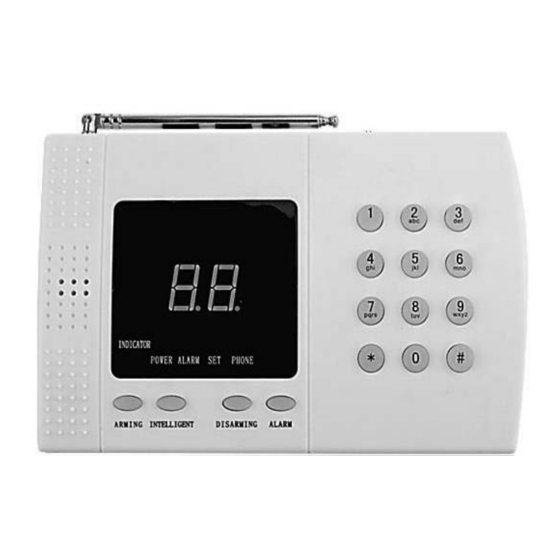

File Name: User Manual File Version: V1308002-001 TEL Home Alarm System 5.3 Functional Parts LED screen display INTELLIGENT ARM Disarm Emergency alarm Telephone line disconnect No add sensor 1-98 Alarm zone display LED indicator POWER Power LED light, power supply working normal ALARM Alarm LED light, alarm system alarm SET LED light, the alarm system into setting... - Page 7 File Name: User Manual File Version: V1308002-001 TEL Home Alarm System ALARM ALARM LED light, the alarm system system into alarm status Digital Keyboard Setting alarm system system function Antenna Wireless antenna Connect LINE1 to telephone uses telephone wire LINE1 of standard package list LINE2 Connect LINE2 to telephone out line...
- Page 8 File Name: User Manual File Version: V1308002-001 TEL Home Alarm System In some circumstances the wired & wireless Infrared Fence detector is more appropriate than magnetic sensors. i.e. veranda, picture window balcony, boundary wall. wireless glass break detector can also be used for window (see below) The sensitivity is adjustable Wireless scroll steel door magnetic sensor for scrolling steel door, Installation: Please see below picture...
- Page 9 File Name: User Manual File Version: V1308002-001 TEL Home Alarm System Install PIR motion sensor PIR refers to passive Infra-red. A Passive Infra-red Sensor is an electronic device that detects the motion or movement of some person or animal by sensing the heat emitted from the body. Installation: The installation of wireless ceiling PIR sensor Install smoke/gas detectors...
-
Page 10: Operation Steps By Keyboard Setting
File Name: User Manual File Version: V1308002-001 TEL Home Alarm System b) Wireless gas detector The product is ceiling mounted gas detector with high stability. It is used for detecting leaking gas and suitable for the safety of residential house, villas, hotels, boarding house etc. Detecting the gas heavier than air: installation height from floor: 0.3m ~ 1.0m, semi-diameter to gas sources: ＜... -
Page 11: Set Up Alarming Telephone Numbers
File Name: User Manual File Version: V1308002-001 TEL Home Alarm System 6.3 Set up alarming telephone numbers Command: #1xxxxxxxxxxxxx(telephone number)# Description: “1” means set the first group telephone number, you can receive call when system alarm. Command: #2xxxxxxxxxxxxx(telephone number)# Description: “2” means set the second group telephone number, you can receive call when system alarm. -
Page 12: Set Siren Sound When Using The Remote Control
File Name: User Manual File Version: V1308002-001 TEL Home Alarm System *60*, means no ringing times. 6.9 Set siren sound when using the remote control Command: *21* Description: The siren have reminder sound when you press remote control Command: *20* Description: The siren off sound when you press remote control, only have buzzer sound. -
Page 13: Inquiry Alarm Defense Area
File Name: User Manual File Version: V1308002-001 TEL Home Alarm System 6. Repeat triggered mode, when the detector is triggered once, the system will not alarm immediately, only when it is triggered again within 30s after the first trigger, the system will alarm. 7. -
Page 14: Handing Incoming Alarm Phone Calls
File Name: User Manual File Version: V1308002-001 TEL Home Alarm System and if it is correct, you can have remote control of the system, press # after accomplish all operations, then you can implement other operations and hang up telephone. Press “1”... -
Page 15: Operation Command List
File Name: User Manual File Version: V1308002-001 TEL Home Alarm System 12. Operation Command List Learning remote controller Delete all of the remote controller *02* Add or Delete Learning detector *01* sensor Learning detector to appoint zone *8XX* 00-99 zones Delete all of the detector #8996# #1XXXXXXXXXX#...
