ChinaPST PST-OFS04 User Manual

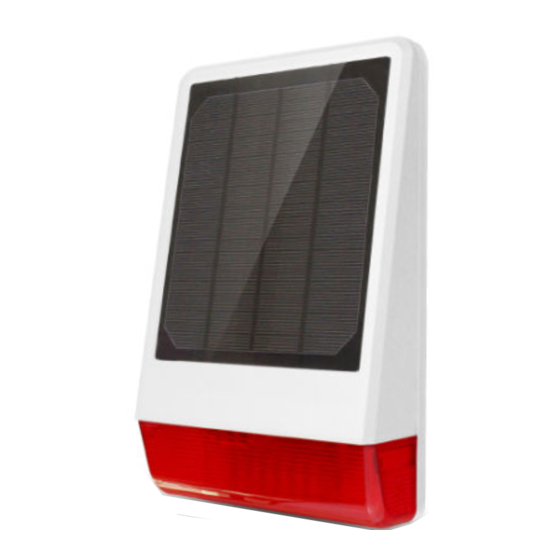

Wireless Solar Power Siren with Flash
I . Brief Introduction
1. Fashionable and waterproof design
With double-deck waterproof coil design, it
can work in normal state in any weather
outdoor.
2. Alarm with flash light and sound
Integrate both high-bright flash light and high-
decibel sound. When alarm occurs, bright light
and sharp alarm will effectively shock and
deter the criminals.
3. Wireless detection
It can work as a high power flash siren as well as
a spot alarm panel. As an alarm panel, it
can work with at most 100 wireless detectors.
4. Solar power supply, energy -saving and
environment friendly
Solar panel can change solar power into
electric power supply for the whole system.
With a large area of solar panel and large
capacity of built-in battery as well as its lower
power consumption, it can work normally even in
cloudy and rainy days for a month.
User Manual
User's Manual
①

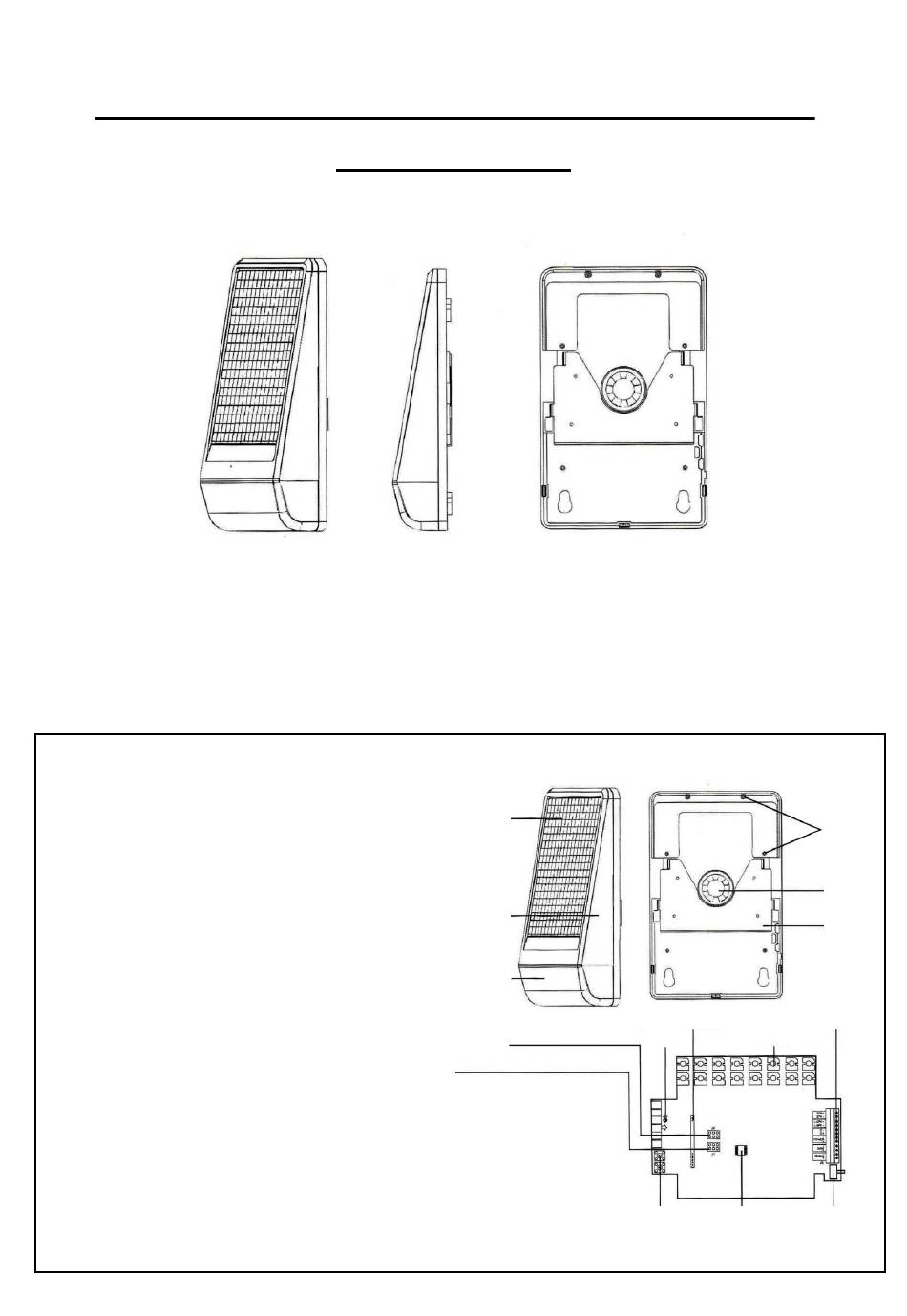

ll . Diagram
Solar power
board
Outside Shell
Indicator lens
J2 is invalid
J1
1)Short-circuit L1 with jumper: siren
will not make sound for arm/ disarm
operation. Arm: LED18 and 19 will
be on for a second. Disarm: LED18
and 19 will flash three times.
2) Short-circuit H1 with jumper:
siren will make sound for arm/
disarm operation. LED18 and 19
will keep flashing under arm status.
3)Short-circuit L2: flashing
method 1
4)Short-circuit H2: flashing
method 2
②
Wireless receiving module Wire teminals
Antenna Flashing LED
Code button IC Power switch
Screws
Siren
Bracket
