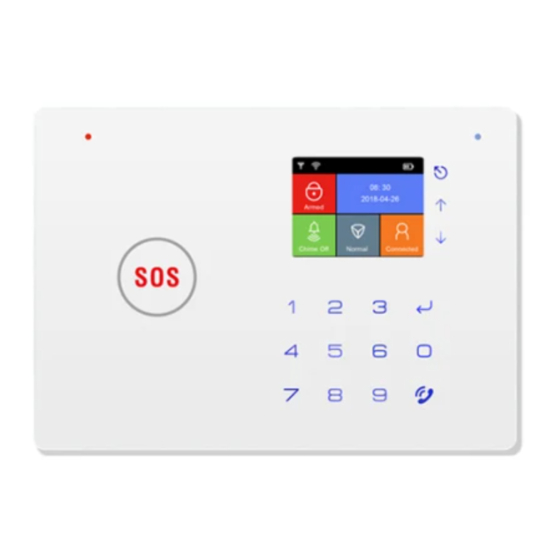

- Page 1 PST-G66W Wireless GSM & WIFI Alarm System GSM & WIFI Alarm System User Manual...
- Page 2 PST-G66W Wireless GSM & WIFI Alarm System Preface: Dear Clients, Thank you for using our GSM Alarm System. This Smart Home Burglar Alarm System Will Guard the security of your family and home property within 24 hours in whole 365 days.
-
Page 3: Table Of Contents
PST-G66W Wireless GSM & WIFI Alarm System Catalogue: Product Features..........3 Automatic Network........23 Alarm Host Diagram........4~5 Manual Network........25 Daily Operation..........6 User Permission Sharing......27 Alarm Phone Call..........8 Remote Controller.........29 Control the host through Phone Call.......9 Detector..........30 Phone Number........31 Make Phone Calls Through Host......10 System Setting...........11... -
Page 4: Product Features
PST-G66W Wireless GSM & WIFI Alarm System Product Feature: ● 2.4 inch TFT Screen Display. ● Simple and Fashionable design,Pure White Case Matching to adverse decorations. ● WIFI&GSM Network,Easy for installing in minutes. ● APP/Remote Controller/Panel Keypad for Easy Control. -
Page 5: Alarm Host Diagram
PST-G66W Wireless GSM & WIFI Alarm System Alarm Host Diagram Front Side Signal transmitting indicator GSM Siganl indicator Return Key Menu Display Up Key Down Key SOS Key Enter Key Digit Key Phone-Dail key... - Page 6 PST-G66W Wireless GSM & WIFI Alarm System Back Side Anti-tampering Button SIM Slot Bracket Backup Battery Power ON/OFF Wired Siren Plug Speaker USB Charger...
-
Page 7: Daily Operation
PST-G66W Wireless GSM & WIFI Alarm System Daily Operation 1. System Arm In the status of arm, the ARM indicate light will keep being on. The voice will prompt “ system arm” when you arm the system. If their is intruder, it will start to alarm. There are four methods to arm：... - Page 8 PST-G66W Wireless GSM & WIFI Alarm System 3. Stay Mode In the status of stay mode， the host screen will show the “stay mode” icon. the voice will prompt “ stay mode” . If their is intruder, it will start to alarm.
-
Page 9: Alarm Phone Call
PST-G66W Wireless GSM & WIFI Alarm System Alarm Phone Call The host will call the preset phone numbers in sequence if alarm occurs. The record of the alarm information will be played automatically when the users receive the alarm phone call. At the same time, the user can control the alarm host remotely by operating on the keypad of the mobile phone: Press【1】: to stop the alarming, and arm the system again;... -
Page 10: Control The Host Through Phone Call
PST-G66W Wireless GSM & WIFI Alarm System Control the host through Phone Call Call the phone numbers of the alarm host, the voice will prompt “please input password” after the host receives the phone call. The voice prompts “ please input instruction” after the users input the right password. (The default password is 1234. Please use the new password user has changed it.) -
Page 11: Make Phone Calls Through Host
PST-G66W Wireless GSM & WIFI Alarm System Make Phone Call Through Host Operation: Input *phone number+ on the key board, the host will dial out immediately. For example, if you want to call the number 13811111111, enter “*13811111111# ”directly on the keyboard. And Press... -
Page 12: System Setting
PST-G66W Wireless GSM & WIFI Alarm System System Setting ● All the setting should be operated in the status of DISARM.。 ● All the settings could be operated after inputting the correct password . The factory default password is 1234. if User changed the password, please use the new password. -
Page 13: Detector
PST-G66W Wireless GSM & WIFI Alarm System ● Delay Arm Delay Arm means the host will have delaying time after being set into Arm Status. After you turn on “Delay Arm”, and exit the programming status, press “Arm” key on the remote control, the host will beeps for seconds(Default delaying time 60 seconds), and then it will make a voice prompt”System Armed”... - Page 14 PST-G66W Wireless GSM & WIFI Alarm System 2.2 Edit Detector After pairing the wireless detector, Choose ”Edit”, and press “ ” , you will see the four edit setting. “Type”, “Place”, “Delay Alarm”and “Siren Switch”, each setting can be switched into different feature.
-
Page 15: Alarm Phone
PST-G66W Wireless GSM & WIFI Alarm System ● Siren Switch Siren switch is the ON/OFF setting of mini wired siren. The factory default siren setting is closed, when you open the siren switch, the siren will not alarm even if the sensor is triggered. -
Page 16: Address Voice Record
PST-G66W Wireless GSM & WIFI Alarm System 3.3 Add SMS Alarm Number. When you enter into the “Phone”. there are 3 SMS number options, you can choose any option like 07 SMS, and press “ ”, you will see “Add”, “Delete”, Select ”Add”, and press “... -
Page 17: Time
PST-G66W Wireless GSM & WIFI Alarm System 5 Time 5.1 System Setting ● Automatic The time is automatically set when the host connects the local wifi network. It will acquire the local time zone where the system is used. (Attention: time is set only when connecting wifi network, if it fails, please set the time manually.) ●... - Page 18 PST-G66W Wireless GSM & WIFI Alarm System 5.3 Schedule Disarm Schedule Disarm means user can set the alarm host in Disarm status at a scheduled time.It supports to set 2 groups of schedule Disarm, input the Hour+Minute and press “...
- Page 19 PST-G66W Wireless GSM & WIFI Alarm System 5.6 Arm Delay Arm Delay means the delay time of host getting into arm status. The delaying time can be 1-180 seconds(Default delaying time is 180 second). For example: if you set the arm delaying time at 5 seconds, input 05 and press “...
-
Page 20: System Setting
PST-G66W Wireless GSM & WIFI Alarm System 6.System Setting 6.1 WiFi Setting ● Automatic Network Choose”Automatic Network” and press “ ” to make wifi setting, then open the Mobile phone app, click “+” on the upper right corner, input the wifi password, instructing as the prompts. Network will be made automatically in 60 seconds. - Page 21 PST-G66W Wireless GSM & WIFI Alarm System ● Low Battery SMS Low Battery SMS is the ON/OFF setting of SMS notification when the sensors becomes in low power (Default Setting is OFF). when you turn on the Low Battery SMS setting, if the sensor is in low power, it will transmit the alarm signal to host(also Alarm Host must be in Arm Status), host will send notifying message to the user’s phone.
-
Page 22: App Setting
PST-G66W Wireless GSM & WIFI Alarm System Password If you need to change a new password, input four digit number to revise a new one. press “ ” to save it successfully. 6.5 Volume it is the Volume setting from 0-100db, 6.5 Language... -
Page 23: User Registration
PST-G66W Wireless GSM & WIFI Alarm System 7.1 User Registration Download the AP G66W” from the app store. Register an account by email address and user-defined “ password. -
Page 24: Automatic Network
PST-G66W Wireless GSM & WIFI Alarm System 7.2 Automatic Network In the interface of “My Device”, click“+”on the upper right corner, then you will enter into the device adding. 1. Mobile phone needs to connect the wifi, wifi name will be obtained automatically, you just input the right wifi password. - Page 25 PST-G66W Wireless GSM & WIFI Alarm System...
-
Page 26: Manual Network
PST-G66W Wireless GSM & WIFI Alarm System 7.3 Manual Network In the interface of “My Device”, click“+”on the upper right corner, then choose to click “Manual Set”. 1, do as the text instructs, click” go to connect host wifi”, select”XPG-GAgent-644B” (The last four numbers is host ID), Input the factory default password 123456789(unchangeable) 3. - Page 27 PST-G66W Wireless GSM & WIFI Alarm System...
-
Page 28: User Permission Sharing
PST-G66W Wireless GSM & WIFI Alarm System 7.4 Share Using Permission In the interface of “My Device”, click “Personal Center” to select “Host Sharing”, then you will see your using host ID, enter it and click the “Add Sharing”. you will see two options” Host QR Code Sharing” and “User Account Sharing”. - Page 29 PST-G66W Wireless GSM & WIFI Alarm System ※ User Account Sharing When you select ” User Account Sharing”,input your friend or family’s registered account number(the Account may be email address or phone number by registering our “G66W”APP) and confirm it, your friend or family open the app and enter into the “Personal Center”, and select the “Host Sharing”, check the “Invitation”...
-
Page 30: Remote Controller
PST-G66W Wireless GSM & WIFI Alarm System shared, then starting accept the host permission invitation( the auto generated QR code is valid within 15 minutes). 7.5 Remote controller ※ Add, Delete and Edit Remote controller In the interface of “My Device”, click the “Alarm_Host” into the function list,slide right to the third interface, Select the “Remote Controller”icon, it supports to add max 8 pcs, choose one to add or delete, name editing,etc. -
Page 31: Detector
PST-G66W Wireless GSM & WIFI Alarm System 7.6 Detector ※ Add, Delete and Edit Detector In the interface of “My Device”, click the “Alarm_Host” into the function list,slide right to the third interface, Select the “Detector”icon, it supports to add max 45 pcs, choose one to add or delete, name editing,etc. When you add the detector successfully, the icon... -
Page 32: Phone Number
PST-G66W Wireless GSM & WIFI Alarm System “Detector”which is added will become blue(the not added ones are gray). ※Zone Type Inside the setting of adding detector, the adding detector can be set in different zone types. ※ Zone Location Inside the setting of adding detector, the adding detector can be set in different zone location.. -
Page 33: Date/Time
PST-G66W Wireless GSM & WIFI Alarm System When you add the phone number successfully, the icon “Telephone”which is added will become blue(the not added ones are gray). 7.8 Date/Time In the interface of “My Device”, click the “Alarm_Host” into the function list,slide right to the third interface, Select the “Time/Date”icon and... -
Page 34: Gsm Alarm
PST-G66W Wireless GSM & WIFI Alarm System ※ System Time Two Handling Options“Automatic/Manual”, you can choose to set the time by automatic network obtaining, or manual time setting(Default Setting is Automatic Time Obtaining). Then you can also change the date format, “Year/Month/Day” or” Day/Month/Year”. - Page 35 PST-G66W Wireless GSM & WIFI Alarm System Cautions: ① The gap between the magnet and the sensor should be less than 10mm. ② After the installation, if the indicate light of the detector is on when the door is opened, it proves it is installed successfully ③...
-
Page 36: Maintenance
PST-G66W Wireless GSM & WIFI Alarm System To avoid the false alarm, please pay attention to the following points in stalling the PIR motion detector: ① Do not face the glass door/window. ② Do not face the big object which is easy to swing. -
Page 37: Technical Parameters
PST-G66W Wireless GSM & WIFI Alarm System System Inspection The system need the periodic inspection to ensure the stable and safe work. We suggest the users inspect the system per three months and inspect the detectors per month. Alarm Host Inspection：... -
Page 38: Factory Default Zone Type
PST-G66W Wireless GSM & WIFI Alarm System Power Input: DC 5V / 2A; ≤150mA; Standby current: ≤350mA; Alarming current : WIFI Standard: 802.11 b/g/n Backup Battery: 4.2V 300mAH rechargeable Lithium battery. Full charged time: 10 hours. Standby time: 6 hours;... -
Page 39: Common Faults
PST-G66W Wireless GSM & WIFI Alarm System Defense Zone HOME STYPE ALARM Siren Zone 1 Valid Invalid Immediate SOS Alarm Zone 2 Valid Invalid Immediate Hall Alarm Zone 3 Valid Invalid Immediate Window Alarm Zone 4 Valid Invalid Immediate Balcony Alarm... - Page 40 PST-G66W Wireless GSM & WIFI Alarm System Faults Analysis Do not make Host far from Router The host can’t connect wifi network Router Should be 2.4G RF Band Whether Local ISP Limits the number of internet terminals? The host doesn’t react when making app setting.
- Page 41 PST-G66W Wireless GSM & WIFI Alarm System APP domnload via QR Code scaming...
