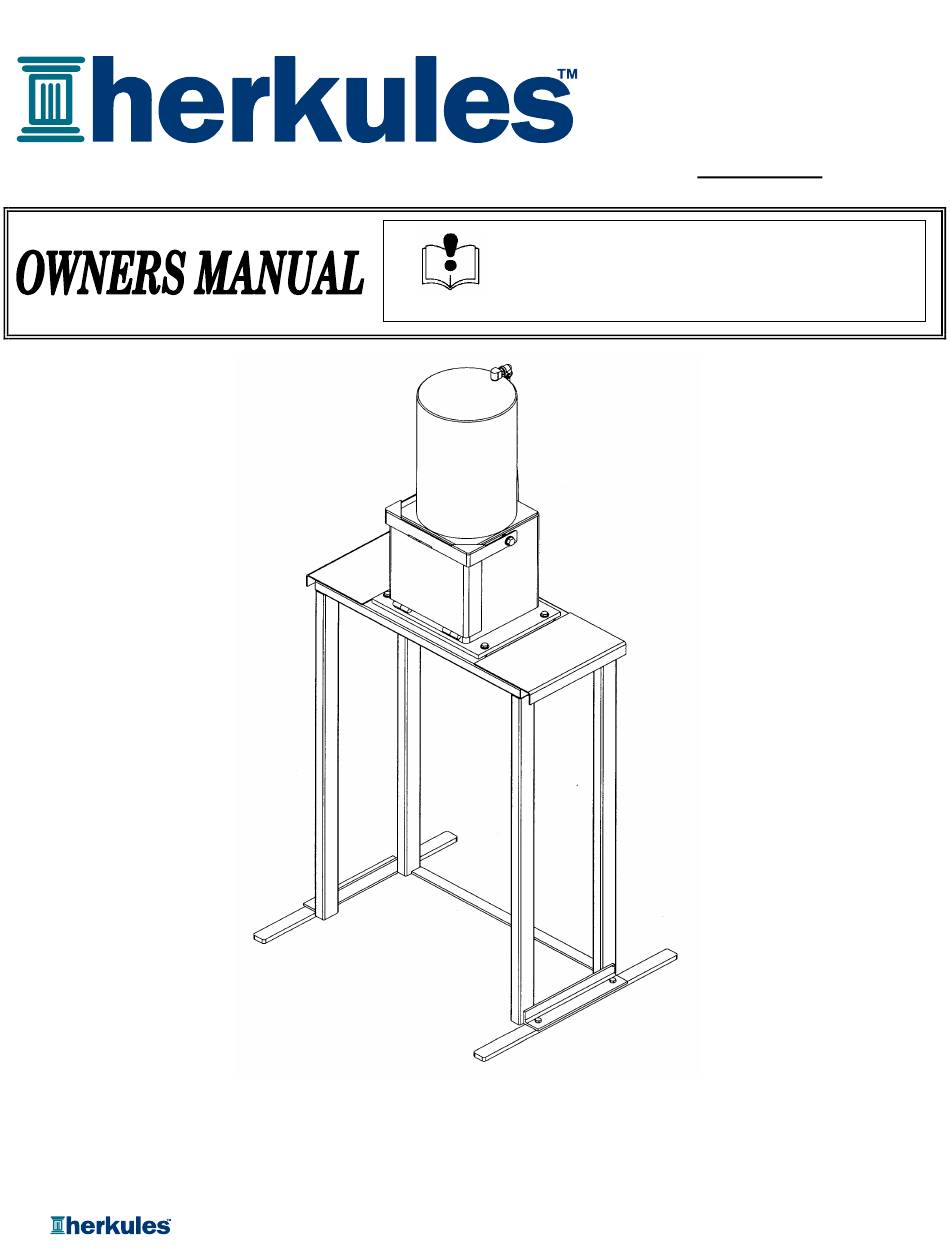

- Page 1 Part# 1002482-02 11/17/06 Model: OFC1 This manual contains important information concerning the installation and operation of the crusher listed above. Read manual thoroughly and keep for future reference INSTRUCTIONS Page 1 of 8...
- Page 2 Table of Contents Warnings …………………………………………………………………………………………………………………. 3 Model Information (List of models with descriptions and data) ……………………………………………… 4 Installation ……………………………………………………………………………………………………………….. 5 Inspection ………………………………………………………………………………………………………………… 6 Operation ………………………………………………………………………………………………………………… 6 Safety Information ………………………………………………………………………………………………… 7 Maintenance ………………………………………………………………………………………………………… 7 Drawings with part lists: ……………………………………………………………………………………………. 8 Warning Symbol Caution Symbol WARNING CAUTION...
- Page 3 FAILURE TO HEED THE FOLLOWING WARNINGS MAY RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE. Herkules will not be held responsible for any personal injury and/or property damaged caused due to owner/operator failure to follow the warnings and cautions listed in this manual.

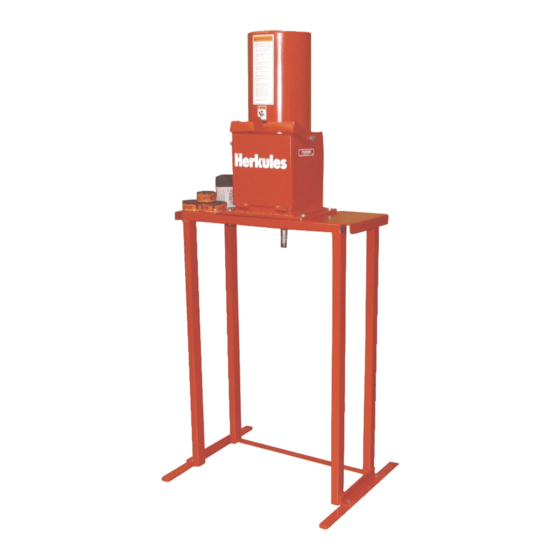

- Page 4 250 Ibs. DESCRIPTION Model OFC1 is a production crusher capable of crushing one filter at one time. The crusher is designed for automotive and light truck shops to crush and dispose of used oil filters in an environmentally correct manner. The crusher provides the following features: •...
- Page 5 OWNER/OPERATOR RESPONSIBILITY It is the responsibility of the owner/operator to properly use and maintain this equipment. The instructions and warnings contained in this manual shall be read and understood by the owner/operator prior to operating this equipment. If an owner/operator does not understand English, the contents of this manual shall be explained in the owner/ operator native language to assure the owner/operator comprehends.
- Page 6 INSPECTION Prior to operation a visual Inspection shall be made. Check crusher for leaks, worn or missing parts. Periodically check oil level in oiler. DO NOT RUN WITHOUT OIL. Any crusher that appears to be damaged in any way, is badly worn or operates abnormally shall be removed from use until repairs are made.
- Page 7 SAFETY INFORMATION Read and understand all warnings, cautions and instructions before operating this equipment. Caution should be used when operating this equipment as personal injury and/or property damage can result from equipment misuse. Adequate personal protection is recommended to prevent splashing of oil on the skin or in the eyes. •...
- Page 8 SERVICE PARTS Air Cylinder Street Elbow #008-240 #M6A Hex Bolt #83M Ram Plate Silencer #12142 #009-142 Bolt Handle Switch #10342 Screw BHSC #008-246 Limit Valve #M1C Tube Fitting #T30 Tube Fitting Pilot Valve #1001357 Limit Valve Tube Fitting #002-129 Handle Weldment #12143 Hex Bolt #83E...
