Angled fixing bracket mounting with orientable and anti-vibration
supports

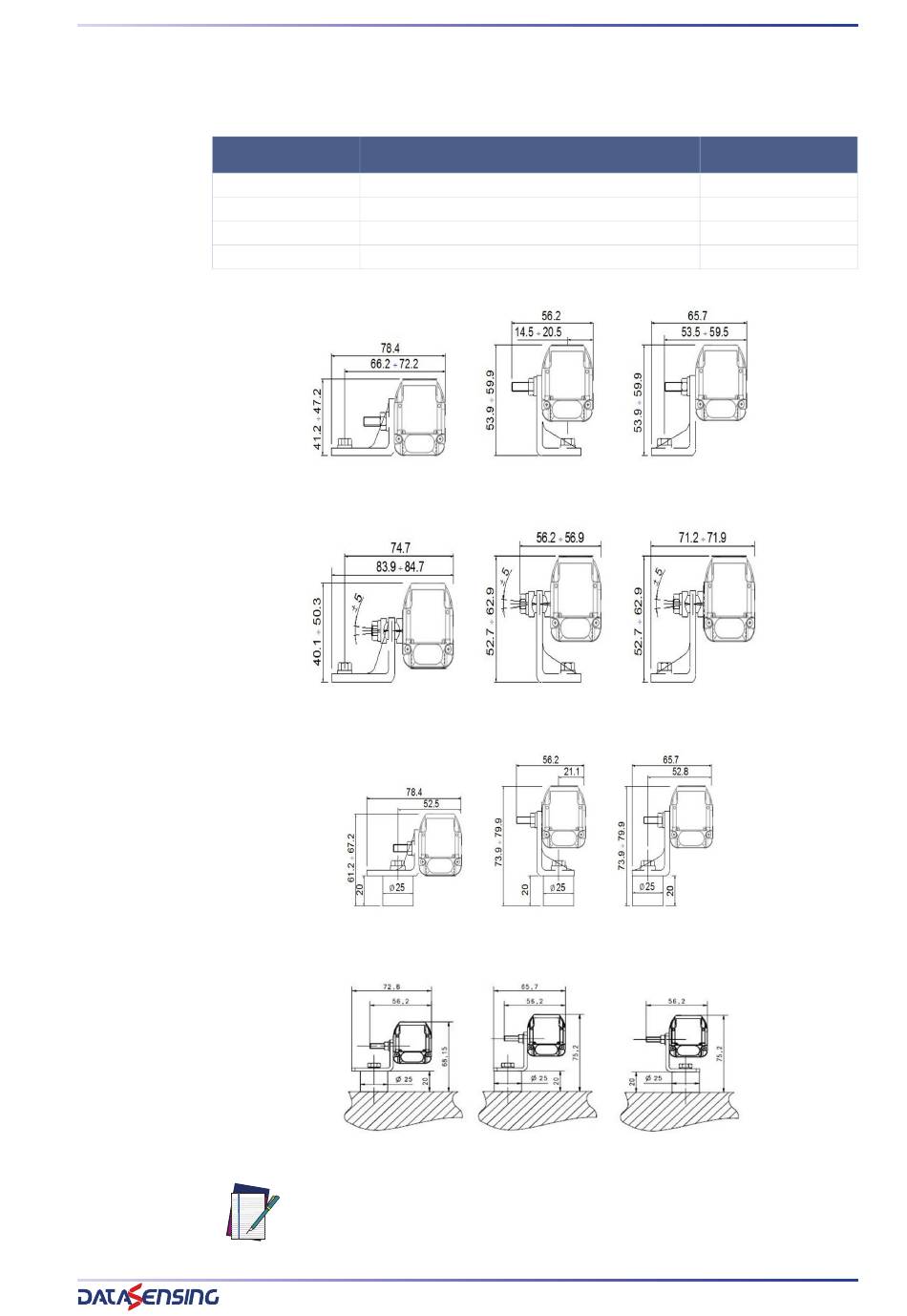

Figure 10 - Angled fixing bracket + Orientable support + Anti-vibration support
MODEL
ST-K4OR
ST-K6OR
ST-K4AV Anti-vibration supports (4 pcs kit)
ST-K6AV Anti-vibration supports (6 pcs kit)
Figure 7 - Angled fixing bracket
Figure 8 - Angled fixing bracket + Orientable support
Figure 9 - Angled fixing bracket + Anti-vibration support
NOTE: Dimensions are in mm.
DESCRIPTION
Orientable supports (4 pcs kit)
Orientable supports (6 pcs kit)
BRACKETS
CODE
95ACC1680
95ACC1690
95ACC1700
95ACC1710
PRODUCT REFERENCE GUIDE
69
