Datasensing S3N Series Quick Start Manual page 2

TEACH MODE
Depending on the model, one or more Teach modes, tailored to
allow different applications, are available on the sensor (see Set-
tings paragraph).
The selection of the desired teach mode and adjustment of the sen-
sor is performed by pressing the TEACH (T) button and observing the
green LED behavior; each time the LED toggles a new teach mode
is selected.
Once a teach mode is selected, it may be confirmed by releasing the
TEACH button within 3s from selection. Otherwise, if the TEACH
button is held for more than 3s after teach mode selection, the teach
mode is discarded and next one (if available) is selected.
Holding the TEACH button until last available teach mode is discar-
ded will result in factory reset.
In case of error during the teach procedure (e.g. trying to perform
teach outside the operating range), the yellow LED will flash an error
status. The error can be canceled by pushing and releasing the teach
button. The sensor is reverted to the previous status before the error.
TEACH CONTROLS
Teach Button (Not available for G03 model)
Teach Button can be used to change the L/D function of the sensor,
or to execute different teach modes.
U.I Interaction
The green LED toggles to indicate advancement of the procedure to
next step.
Error Indicator
The yellow LED may flash in the event of a teach error.

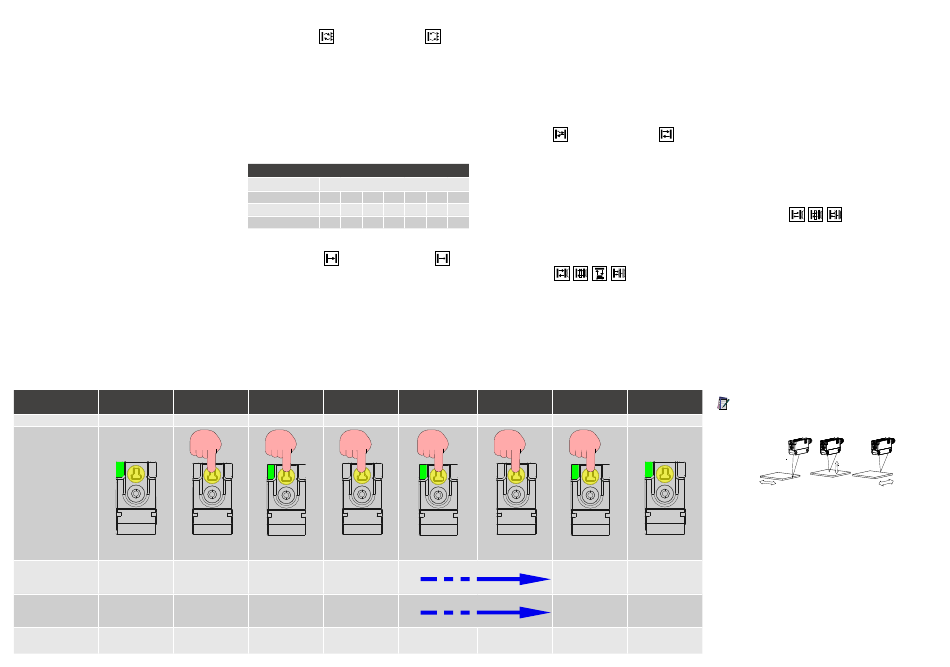

TEACH MODE FUNCTIONS
Push and hold
for...
Function Idle
Visual Feedback
Green LED on Green LED off
S3N-xx-5-C03/C13/
Standard Teach
Idle
B03/FG03
Standard Teach
S3N-PH-5-M03 Idle
Standard Teach
S3N-PR-5-M03 Idle
SETTINGS
S3N-PR-5-B03-OZ and S3N-PH-5-B03-OZ
Position the sensor and reflector on opposite sides of the desired
sensing range, and execute the desired Teach Procedure.
Teach1 (Standard Teach): the sensor is set up in order to use the
maximum allowable signal reserve.
Teach 2 (Maximum Sensitivity): the sensor is configured at maxi-
mum sensitivity. Use this when performing sensor alignment.
Teach 3 (Toggle L/D behavior): sensor behavior toggles between
Light ON and Dark ON modes.
Settings through IO-Link: the above teach procedures may also be
initiated through IO-Link. Furthermore, fine regulation of sensitivity
can be performed by changing sensitivity parameters.
Tab.1: S3N...B03 operating distance table (m)
Available Reflectors
REFLECTORS
R1 R2 R3
S3N-PR-5-B03-OZ 2.5 6.0 3.0
S3N-PH-5-B03-OZ 10 12 8.0
S3N-PR-5-FG03-OZ and S3N-PH-5-FG03-OZ
Position the emitter and receiver on opposite sides of the desired
sensing range. Once the position of the receiver is defined (F03),
adjust the direction of the transmitter (G03) in the middle of the
angular sensing range. To perform this procedure: find the angles
where the yellow LED (OUT) is switched ON and OFF in both vertical
and horizontal directions, then fix the emitter in the center between
these angles. Execute the desired Teach Procedure among those
1s 3s 6s
Teach1 Teach2 Teach3
Green LED on Green LED off
Set max. sensitivity L/D Select (Toggle)
(object)
Transparent/shiny
(teach on back- L/D Select (Toggle)
(object)
ground)
Transparent/shiny
(teach on back- Conveyor
(object)
ground)
available (see Teach Mode Functions table):
Teach1 (Standard Teach): The sensor is set up to exploit the maxi-
mum allowable signal reserve.
Teach 2 (Maximum Sensitivity): the sensor is configured at maxi-
mum sensitivity. Use this when performing sensor alignment.
Teach 3 (Toggle L/D behavior): sensor behavior toggles between
Light ON and Dark ON modes.
Settings through IO-Link: The above teach procedures may also
be initiated through IO-Link. Furthermore fine regulation of sensiti-
vity can be performed by changing sensitivity parameters.
To enhance ambient light immunity, is also possible to select emis-
sion frequency by mean of IO-Link parameters.
S3N-PR-5-C03-OZ
Position the sensor in front of the target within the allowable sen-
sing range, and execute the desired Teach Procedure among those
available (see Teach Mode Functions table):
Teach1 (Standard Teach): The sensor is set up to have standard
sensitivity and robust noise immunity.
Teach 2 (Maximum Sensitivity): the sensor is configured at maxi-
R4 R5 R6 R7
mum sensitivity. Use this when performing sensor alignment.
3.5 7.0 4.5 6.0
Teach 3 (Toggle L/D behavior): sensor behavior toggles between
Light ON and Dark ON modes.
10 14 12 12
Settings through IO-Link: The above teach procedures may also
be initiated through IO-Link. Furthermore, fine regulation of sensiti-
vity can be performed by changing the sensitivity parameters.
S3N-PR-5-M03-OZ
Position the sensor in front of the target within the sensing range,
and perform the desired Teach Procedure among those available
(see Teach Mode Functions table):
Teach1 (Standard BGS teach on target): Position the sensor in
front of the target to be detected within the sensing range and per-
9s 12s
Teach4 Teach5
Green LED on Green LED off Green LED on
Skipped - No LED TOGGLE
Restore factory
Hold until turns ON
Skipped - No LED TOGGLE
Restore factory
Hold until turns ON
Restore factory
Advanced Conveyor L/D Select (Toggle)
form Teach 1. The sensor is set up to detect the target in the taught
position.
Teach 2 (Transparent/Shiny): Position the sensor in front of a
stable background within the sensing range and execute Teach 2.
The sensor is set up to detect transparent or shiny objects between
the sensor and the background.
Teach 3 (Conveyor): Position the sensor in front of a running
conveyor belt and perform Teach 3. The sensor is set up to reliably
detect objects running on the conveyor. A special bracket is available
to ease the mechanical setup of this application.
Teach 4 (Advanced Conveyor): Position the sensor in front of a
running conveyor belt and perform Teach 4. The sensor is set up to
reliably detect objects running on the conveyor. A special bracket is
available to ease mechanical setup of this application.
Teach 5 (Toggle L/D behavior): Sensor behavior toggles between
and S3N-PR-5-C13-OZ
Ligh ON and Dark ON modes.
Settings through IO-Link: The above teach procedur
es may also be initiated through IO-Link. Furthermore, fine regu-
lation of sensitivity can be performed by changing the sensitivity
parameters.
Using IO-Link also window mode can be enabled: the sensor will
detect objects within an adjustable range (that must be contained in
the sensor operating range).
S3N-PH-5-M03-OZ
Position the sensor in front of the target within the sensing range,
and perform the desired Teach Procedure among those available
(see Teach Mode Functions table):
Teach1 (Standard BGS teach on target): Position the sensor in
front of the target to be detected within the sensing range and per-
form Teach 1. The sensor is set up to detect the target in the taught
position.
Teach 2 (Transparent/Shiny): Position the sensor in front of a
stable background within the sensing range and perform Teach 2.
The sensor is set up to detect transparent or shiny objects between
the sensor and the background.
Teach 3 (Toggle L/D behavior): Sensor behavior toggles between
Light ON and Dark ON modes.
Settings through IO-Link: The above teach procedures may also
be initiated through IO-Link. Furthermore, fine regulation of sensiti-
vity can be performed by changing the sensitivity parameters.
Using IO-Link also window mode can be enabled: the sensor will
detect objects within an adjustable range (that must be contained in
the sensor operating range).
NOTE: S3N-PR/PH-M03 sensors can detect objects correctly when
20s Button release
the sensor head is installed perpendicular to the moving object. Install
the sensor head as shown below to minimize sensing errors.
Teach6 Idle
Green LED on
Idle
settings
Idle
settings
Idle
settings
Correct Correct Incorrect
