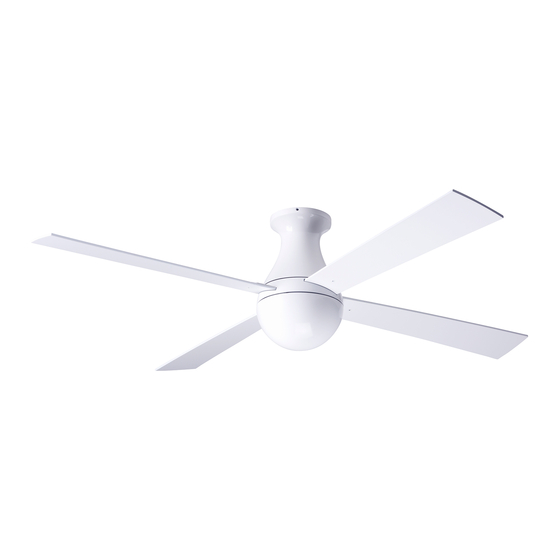

Ball Flush Fan
- Installation instructions
Should you have any questions or difficulty installing your new fan,
please contact Modern Fan Co. customer service immediately.
Note: Power supply must be turned off prior to any contact with electrical wires. It is
recommended that a licensed electrician be hired to install your ceiling fan.

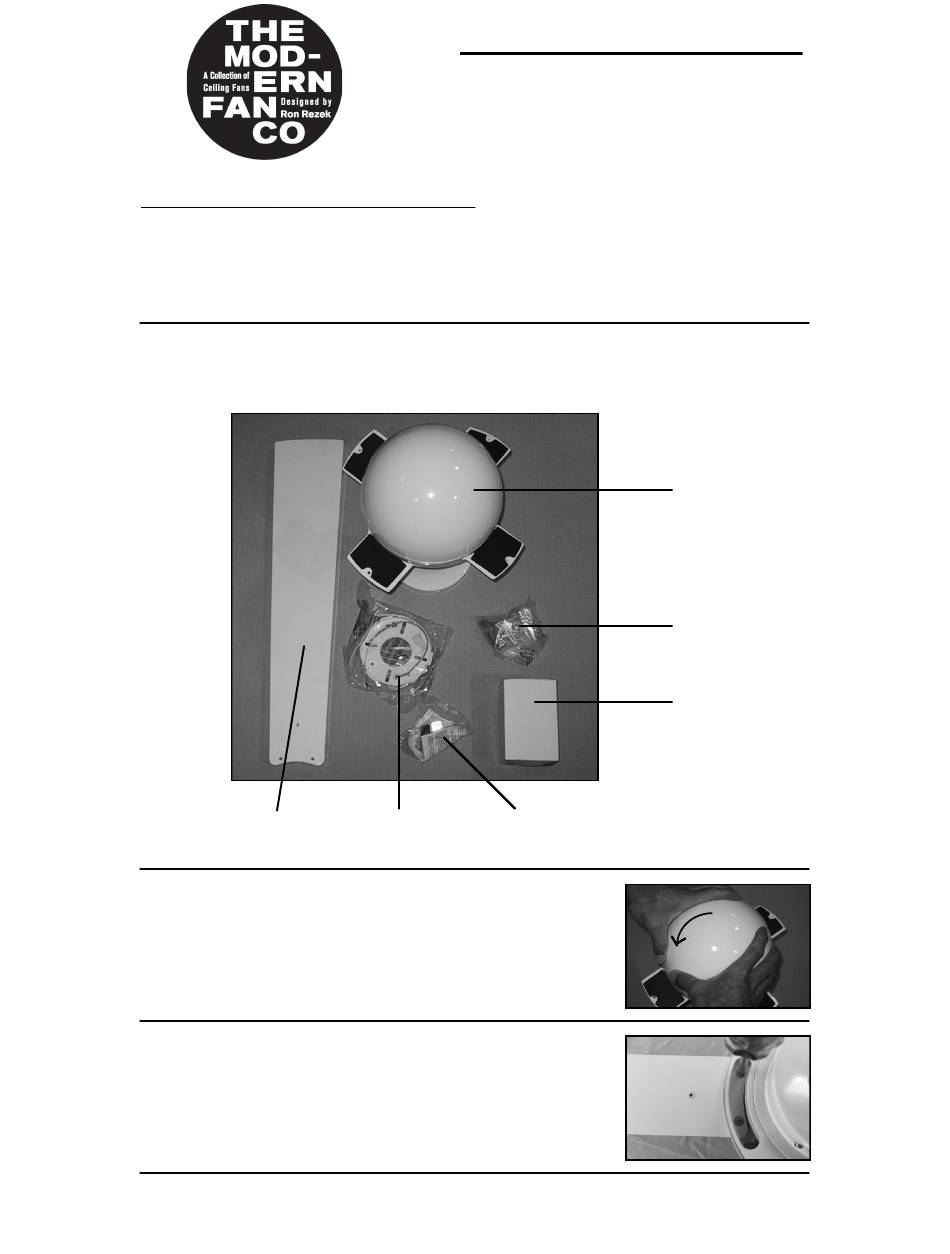

(1) Remove and identify contents of carton.
blades
(2) Place fan on work area, bottom side up.
Remove bottom dome by rotating counterclockwise.
You may need to hold the upper portion of the fan
body with one hand as you are removing
(unthreading) the bottom dome with the opposite
hand.
(3) Carefully insert blades into rotor slots, and using screws
from hardware package, secure blades to rotor. The
counter sink screws ("blade center screws") are for the single
blade hole outside the rotor and the pan head screws
("blade holder screws") are for the two holes inside the rotor
area for each blade.
Ball Flush
ceiling plate
balancing kit
THE MODERN FAN COMPANY
Customer Service
M-F 8am - 4pm (PST)
(ph) 888.588.3267
www.modernfan.com
fan body
hardware
package
optional
control
Advertisement
Table of Contents
Related Manuals for The Modern Fan Company Ball Flush
Summary of Contents for The Modern Fan Company Ball Flush
- Page 1 Ball Flush THE MODERN FAN COMPANY Customer Service M-F 8am - 4pm (PST) (ph) 888.588.3267 www.modernfan.com Ball Flush Fan - Installation instructions Should you have any questions or difficulty installing your new fan, please contact Modern Fan Co. customer service immediately.
- Page 2 (4) If your fan was ordered/configured with a light, identify all parts as shown here and follow steps (a) through (g). Otherwise, proceed to step (5). Light kit hardware Trim ring Bridge connector Adapter plate Glass diffuser LED Board LED Cover (a) Remove switch housing screws to access light kit leads.
- Page 3 (5) Using the existing screws from your junction box, or the machine screws from the hardware package, secure the ceiling plate to ceiling junction box. The electrical wires must be accessible through the hole in the center of the ceiling plate. suspension cable and loop (6) Secure suspension cable loop around the hook...
- Page 4 (10) Reinstall bottom dome or glass diffuser if your fan has a light kit. Rotate in the clockwise direction until dome or diffuser comes to a stop. (11) Install wall control as described in the control installation instructions (unless you are using a handheld remote control only).
