Ring Smoke/CO Listener - For Ring Alarm Quick Start Guide

Smoke and CO notifications for Ring Alarm

Ring Smoke/CO Listener is a smart sound sensor for Ring Alarm. It does not sense smoke or CO directly. Instead, it adds smart features to your UL listed smoke, CO, or smoke & CO alarm.
When your smoke or CO alarm begins to sound, the Listener activates and Ring Alarm notifies you of the issue. If your system is professionally monitored, our monitoring center is also notified.

Is your smoke or CO alarm ready?

Your new Listener depends on the proper functioning of your smoke or CO alarm. Smoke and CO alarms have finite lifespans and some require regular battery changes. Be sure to follow the manufacturer's maintenance guidelines.

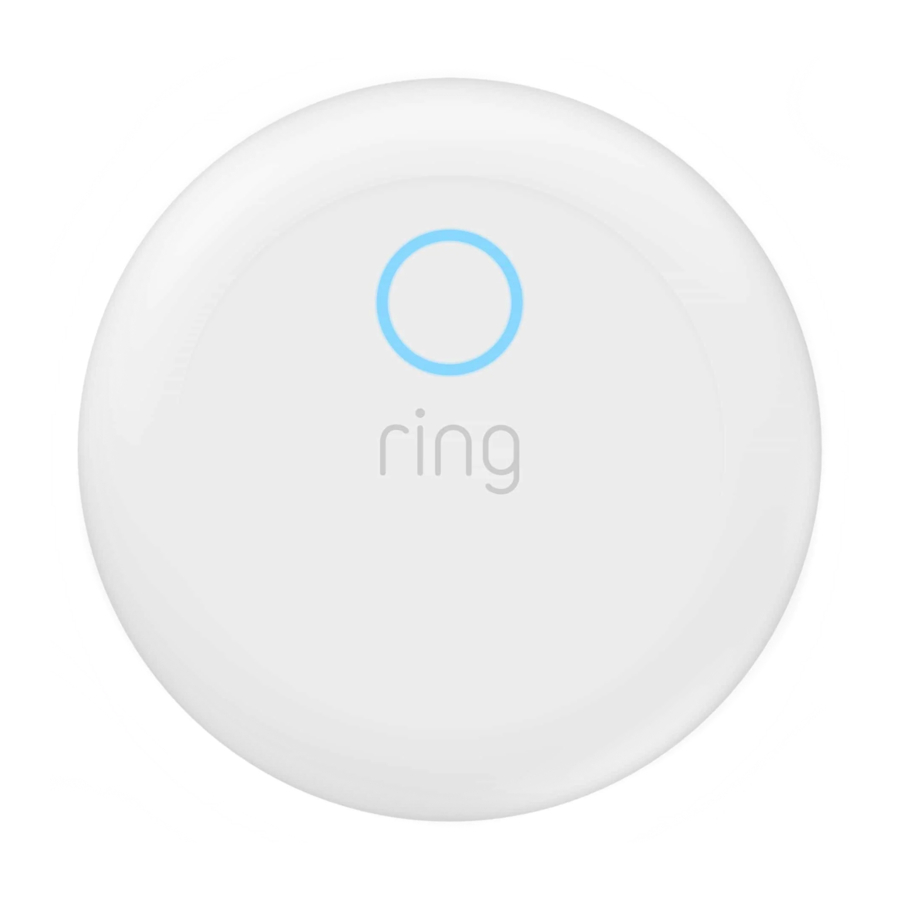

Say hello to your Ring Smoke/CO Listener

Diagram

Set up your Ring Smoke/ CO Listener in the Ring app

Begin the setup process near your Ring Alarm Base Station
To add devices to your Ring Alarm, it must be disarmed. If your Ring Alarm is armed, please disarm it now.
In the Ring app, tap Set Up a Device and find Ring Smoke & CO Listener in the Security Devices menu.
To complete the setup process, follow the in-app instructions.

When prompted, scan the QR Code or enter the PIN
This begins the pairing process. The QR Code and PIN are on the back of your Listener and in the product packaging.

When prompted, pull out the clear tab
This turns the Listener on. Your Alarm Base Station then finds it automatically.
As the Listener pairs to your Alarm Base Station, its LED ring blinks slowly, then quickly. Once it pairs, the LED glows blue for three seconds.
If the Listener does not pair successfully, the LED ring glows red. To try the pairing process again, remove and reinstall the battery inside the Listener.

Install and test your Ring Smoke/CO Listener.

Install your Listener first. Then, test it.
During the setup process, the Ring app will prompt you to test your new Smoke/ CO Listener.
This test depends on the Listener being installed next to your smoke or CO alarm, so it can reliably hear its alarm signals.
So, be sure to install your Listener before you proceed with the testing step.

Line up the mounting bracket.
Find a place for the bracket within six inches (15.25 cm) of your smoke or CO alarm. You can use the ruler below to make sure.
Position the mounting bracket so that the arrow marked Smoke/CO Alarm This Side points directly at your smoke or CO alarm.

Secure the mounting bracket and mount the Listener.
Once you've decided on a location, secure the bracket to your ceiling or wall with the included screws.
Place the Listener on the bracket posts, then slide to lock it in place.
When mounting on drywall, pre-drill the holes and insert the included anchors.
During the setup process, the Ring app prompts you to press the "Test" button on your smoke or CO alarm. Mount the Listener on its bracket before testing your alarm.

Test your Listener.
Now, it's time to head back to the Ring app and go through the testing process.
When prompted, press the test button on your smoke or CO alarm. If you're not sure where it is, check the instructions.
The Ring app will tell you when your Listener has detected the smoke or CO signal from your alarm. If your alarm is a smoke/CO combo, both smoke and CO signals should be detected.
If your Listener is unable to detect the signal, your Ring Alarm cannot monitor your smoke or CO alarm.
This may mean your alarm is too old and must be replaced.

Additional information

How to replace the battery:
Twist the lid on your Listener counterclockwise and lift to remove. Replace the battery with a fresh CR123A cell. The Listener then reconnects to your Alarm Base Station automatically.
Place the lid back on the Listener, taking care to line up the semi-circle on the rim of the lid with the "open" semi-circle on the base. Twist the lid clockwise to lock it in.

How to remove Ring Smoke/CO Listener from your system:
Open the side menu in the Ring app and tap Devices, then Base Station. Next, select your Listener and tap the gearshaped icon. Then tap Remove Device.
When prompted, open the Listener and remove and reinstall the battery to complete the removal.

Having trouble with your Listener?
If your Listener stops working or will not connect (even with a good battery), try a factory reset.
To do this, press and hold the Setup button for 10 seconds. When the LED ring stops blinking, your Listener has reset.

This process disconnects the Listener from Ring Alarm. To begin using the Listener again, repeat the setup process in the Ring app.

LED status patterns:

Smoke or CO alert sound detected		1 Blue Blink
Sensor tampered		3 Red Blinks

For info on other LED patterns, visit ring.com/help.

Do not paint this device!
Painting your Listener can prevent it from functioning correctly.
Painting smoke or CO alarms can degrade their performance as well, and is strongly discouraged.
