Pioneer DEH-S210UI Quick Start Guide

Connections

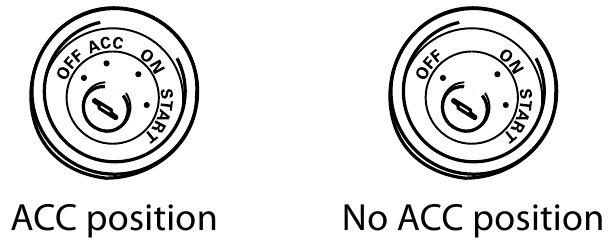

  • When installing this unit in a vehicle without an ACC (accessory) position on the ignition switch, failure to connect the red cable to the terminal that detects operation of the ignition key may result in battery drain.

  • Use of this unit in conditions other than the following could result in fire or malfunction.
    • Vehicles with a 12-volt battery and negative grounding.
    • When speaker output is used by 4 channels, use speakers over 50 W (maximum input power) and between 4 Ω to 8 Ω (impedance value). Do not use 1 Ω to 3 Ω speakers for this unit.
    • When rear speaker output is used by 2 Ω of subwoofer, use speakers over 70 W (maximum input power).
      * Please refer to connections for a connection method.
  • To prevent a short-circuit, overheating or malfunction, be sure to follow the directions below.
    • Disconnect the negative terminal of the battery before installation.
    • Secure the wiring with cable clamps or adhesive tape. Wrap adhesive tape around wiring that comes into contact with metal parts to protect the wiring.
    • Place all cables away from moving parts, such as the shift lever and seat rails.
    • Place all cables away from hot places, such as near the heater outlet.
    • Do not connect the yellow cable to the battery by passing it through the hole to the engine compartment.
    • Cover any disconnected cable connectors with insulating tape.
    • Do not shorten any cables.
    • Never cut the insulation of the power cable of this unit in order to share the power with other devices. The current capacity of the cable is limited.
    • Use a fuse of the rating prescribed.
    • Never wire the negative speaker cable directly to ground.
    • Never band together negative cables of multiple speakers.
  • When this unit is on, control signals are sent through the blue/white cable. Connect this cable to the system remote control of an external power amp or the vehicle's auto-antenna relay control terminal (max. 300mA 12 V DC). If the vehicle is equipped with a glass antenna, connect it to the antenna booster power supply terminal.
  • Never connect the blue/white cable to the power terminal of an external power amp. Also, never connect it to the power terminal of the auto antenna. Doing so may result in battery drain or a malfunction.
  • The black cable is ground. Ground cables for this unit and other equipment (especially, highcurrent products such as power amps) must be wired separately. If they are not, an accidental detachment may result in a fire or malfunction.
  • The graphical symbol placed on the product means direct current.
  • The function and audio settings other than the setting of RCA pre-outs are stored in memory if the unit is disconnected from power supply.

This unit

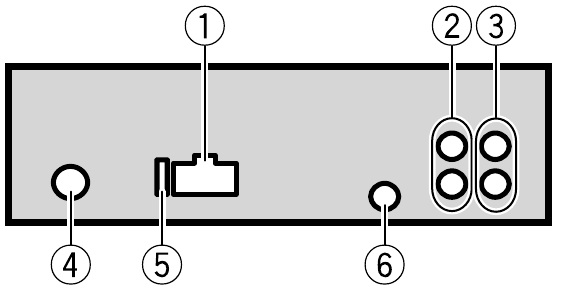

Overview

  1. Power cord input
  2. Rear output or subwoofer output
  3. Front output
  4. Antenna input
  5. Fuse (10 A)
  6. Wired remote input
    Hard-wired remote control adapter can be connected (sold separately).

Power cord

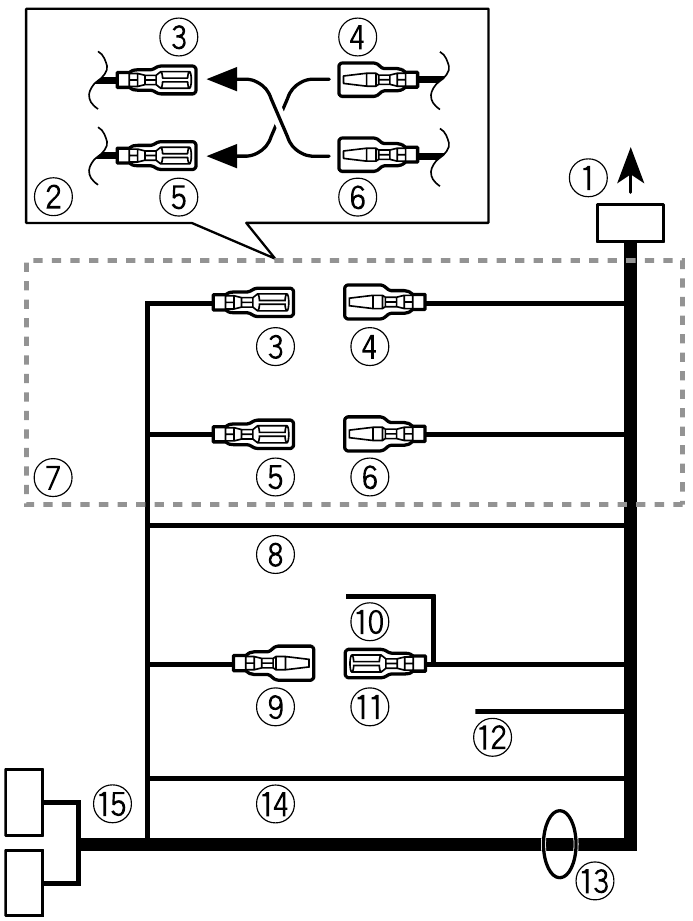

Power cord

  1. To power cord input
  2. Depending on the kind of vehicle, the function of and may be different. In this case, be sure to connect to and to .
  3. Yellow
    Back-up (or accessory)
  4. Yellow
    Connect to the constant 12 V supply terminal.
  5. Red
    Accessory (or back-up)
  6. Red
    Connect to terminal controlled by the ignition switch (12 V DC).
  7. Connect leads of the same colour to each other.
  8. Black (chassis ground)
  9. Blue/white
    The pin position of the ISO connector will differ depending on the type of vehicle. Connect and when Pin 5 is an antenna control type. In another type of vehicle, never connect and .
  10. Blue/white
    Connect to the system control terminal of the power amp (max. 300 mA 12 V DC).
  11. Blue/white
    Connect to the auto-antenna relay control terminal (max. 300 mA 12 V DC).
  12. Yellow/black
    If you use equipment with a Mute function, wire this lead to the Audio Mute lead on that equipment. If not, keep the Audio Mute lead free of any connections.
  13. Speaker leads
    White: Front left
    White/black: Front left
    Gray: Front right
    Gray/black: Front right
    Green: Rear left or subwoofer
    Green/black: Rear left or subwoofer
    Violet: Rear right or subwoofer
    Violet/black: Rear right or subwoofer
  14. Orange/white
    Connect to a car's illumination signal.
  15. ISO connector
    In some vehicles, the ISO connector may be divided into two. In this case, be sure to connect to both connectors.

NOTES

  • Change the initial menu of this unit. Refer to [SP-P/O MODE]. The subwoofer output of this unit is monaural.
  • When using a subwoofer of 2 Ω, be sure to connect the subwoofer to the violet and violet/ black leads of this unit. Do not connect anything to the green and green/black leads.

Power amp

(sold separately)

Perform these connections when using the optional amplifier.

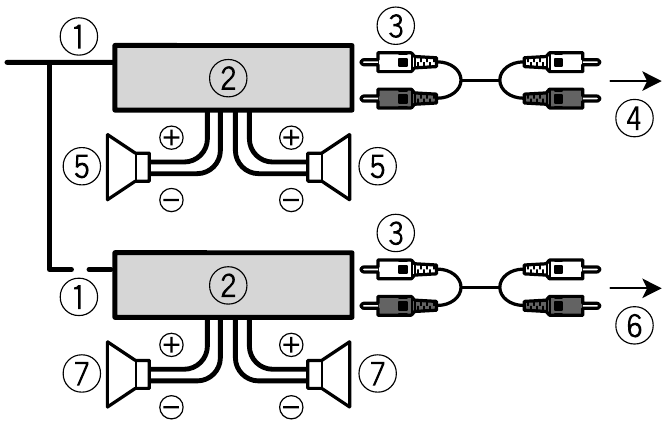

Power amp

  1. System remote control
    Connect to blue/white cable.
  2. Power amp (sold separately)
  3. Connect with RCA cables (sold separately)
  4. To front output
  5. Front speaker
  6. To rear output or subwoofer output
  7. Rear speaker or subwoofer

Installation

  • Check all connections and systems before final installation.
  • Do not use unauthorized parts as this may cause malfunctions.
  • Consult your dealer if installation requires drilling of holes or other modifications to the vehicle.
  • Do not install this unit where:
    • it may interfere with operation of the vehicle.
    • it may cause injury to a passenger as a result of a sudden stop.
  • Install this unit away from hot places such as near the heater outlet.
  • Optimum performance is obtained when the unit is installed at an angle of less than 60°.

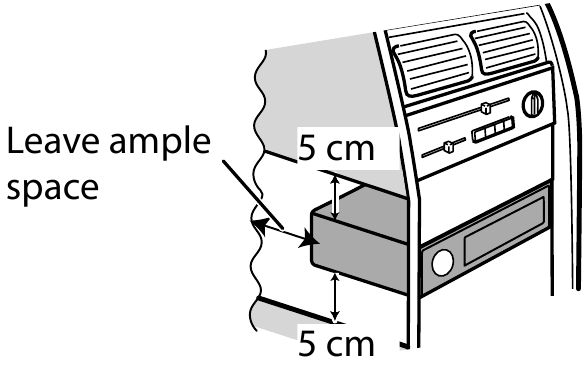

  • When installing, to ensure proper heat dispersal when using this unit, make sure you leave ample space behind the rear panel and wrap any loose cables so they are not blocking the vents.
    Installation

DIN mount installation

  1. Insert the supplied mounting sleeve into the dashboard.
  2. Secure the mounting sleeve by using a screwdriver to bend the metal tabs (90°) into place.

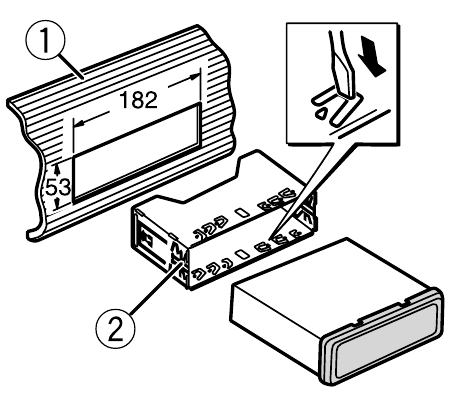

DIN mount installation - Step 1

  1. Dashboard
  2. Mounting sleeve
  • Make sure that the unit is installed securely in place. An unstable installation may cause skipping or other malfunctions.

When not using the supplied mounting sleeve

  1. Determine the appropriate position where the holes on the bracket and the side of the unit match.

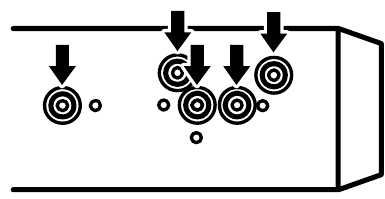

    DIN mount installation - Step 2
  2. Tighten two screws on each side.

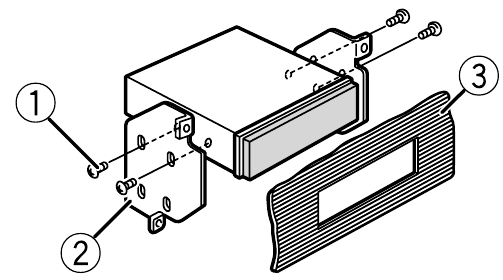

    DIN mount installation - Step 3
    1. Tapping screw (5 mm × 9 mm, not supplied with product)
    2. Mounting bracket
    3. Dashboard or console

Removing the unit (installed with the supplied mounting sleeve)

  1. Remove the trim ring.

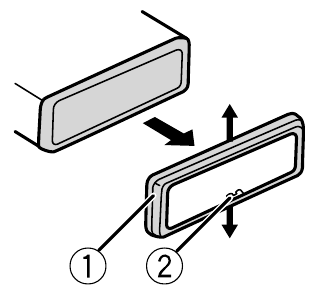

    Removing the unit - Step 1
    1. Trim ring
    2. Notched tab
      • Releasing the front panel allows easier access to the trim ring.
      • When reattaching the trim ring, point the side with the notched tab down.
  2. Insert the supplied extraction keys into both sides of the unit until they click into place.
  3. Pull the unit out of the dashboard.

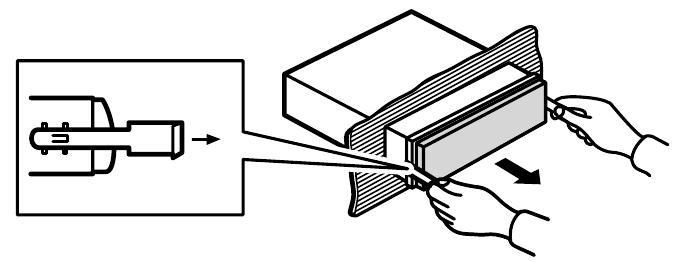

    Removing the unit - Step 2

Basic operation

DEH-S210UI

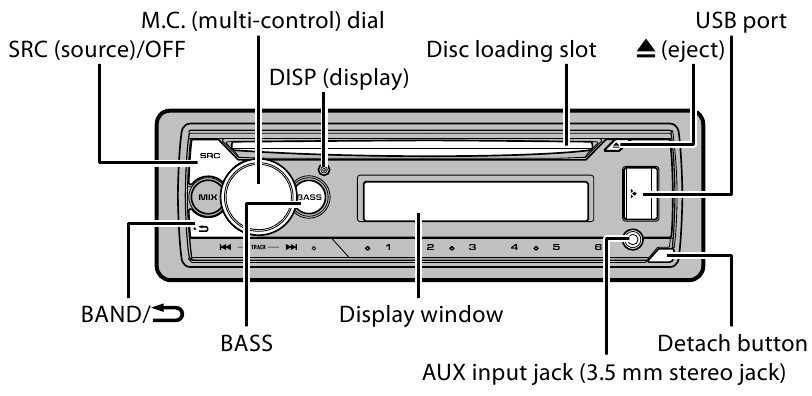

Basic operation

About the main menu
You can adjust various settings in the main menu.

  1. Press the M.C. dial to display the main menu.
  2. Turn the M.C. dial to select one of the categories below, then press to confirm.
  • FUNCTION settings
  • AUDIO settings
  • SYSTEM settings
  • ILLUMINATION settings
  • MIXTRAX settings
  1. Turn the M.C. dial to select the options, then press to confirm.

Frequently used operations

Purpose Operation
Turn on the power Press SRC/OFF to turn on the power.
Press and hold SRC/OFF to turn off the power.
Adjust the volume Turn the M.C. dial.
Select a source Press SRC/OFF repeatedly.
Change the display information Press DISP repeatedly.
Return to the previous display/list Press BAND/ .
Return to the normal display from the menu Press and hold BAND/ .
Change the display brightness Press and hold BAND/ .
Boost the bass level Press BASS.
  • You can select the bass level in [BASS BOOST].

Setup operation

When you turn the ignition switch to ON after installation, [SET UP:YES] appears in the display.

  1. Press the M.C. dial.
  2. Turn the M.C. dial to select the options, then press to confirm.
    To proceed to the next menu option, you need to confirm your selection.
Menu Item Description
LANGUAGE
[ENG](English),
[РУС](Russian), [TUR](Turkish)
Select the language to display the text information from a compressed audio file.
CLOCK SET Set the clock.
  1. Turn the M.C. dial to adjust the hour, then press to confirm. The indicator moves to the minute setting automatically.
  2. Turn the M.C. dial to adjust the minute, then press to confirm.
FM STEP
[100], [50]
Select the FM tuning step from 100 kHz or 50 kHz.
  1. [QUIT:YES] appears when all the settings have been made.
    To return to the first item of the setup menu, turn the M.C. dial to select [QUIT:NO], then press to confirm.
  2. Press the M.C. dial to confirm the settings.

Tuner operation

Receiving preset stations

  1. Press SRC/OFF to select [RADIO].
  2. Press BAND/ to select the band.
    [FM1][FM2][FM3][MW]/[LW]
  3. Press a number button (1/ to 6/ ).

Best stations memory (BSM)

  1. After selecting the band, press the M.C. dial to display the main menu.
  2. Turn the M.C. dial to select [FUNCTION], then press to confirm.
  3. Turn the M.C. dial to select [BSM], then press to confirm.

To store stations manually

  1. While receiving the station you want to store, press and hold one of the number buttons (1/ to 6/ ) until it stops flashing.

CD/USB/iPod®/AUX operation

CD

  1. Insert a disc into the disc loading slot with the label side up.
    To eject a disc, stop playback first then press .

USB/iPod

  1. Open the USB port cover.
  2. Plug in the USB device/iPod using an appropriate cable.

MTP connection
A device installed with Android OS 4.0 or most of later versions can be connected to the unit via MTP, using the cable supplied with the Android device. However, depending on the connected device, OS version or the numbers of the files in the device, audio files/songs may not be able to be played back via MTP.
NOTE
If you use an MTP connection, [ANDROID WIRED] needs to be set to [MEMORY] in the SYSTEM settings.

AUX

  1. Insert the stereo mini plug into the AUX input jack.
  2. Press SRC/OFF to select [AUX] as the source.

Making a connection with Pioneer ARC APP

information Pioneer's Advanced app converts your compatible smartphone into a powerful touchscreen remote control.


Do not attempt to operate the application while driving. Make sure to pull off the road and park your vehicle in a safe location before attempting to use the controls on the application.

When making a connection with an Android device

  1. Enter the SYSTEM menu (refer to "About the main menu").
  2. Turn the M.C. dial to select [ANDROID WIRED], then press to confirm.
  3. Turn the M.C. dial to select [APP CONTROL], then press to confirm.
  4. Turn the M.C. dial to select [P.APP AUTO ON], then press to confirm.
  5. Turn the M.C. dial to select [ON], then press to confirm.
  6. Connect this unit with the device via USB.
    Pioneer ARC APP on the Android device starts automatically.

When making a connection with an iPhone

  1. Connect this unit with the iPhone via USB.
  2. Press SRC/OFF to select any source
  3. Press and hold the M.C. dial. Pioneer ARC APP on the iPhone starts.
    NOTE
    If the connection fails, launch Pioneer ARC APP on the iPhone.

Listening to Spotify®

(Only compatible with Spotify installed on iPhone)
Update the firmware of the Spotify application to the latest version before use.
Before you start, connect this unit with the mobile device via USB (iPhone only).

  1. Press SRC/OFF to select [SPOTIFY].
  2. Launch the Spotify application on the mobile device and start playback.
