About this manual
For MODEL NO.:
DEH-X6800BT
DEH-X6810BT
DEH-X4800BT
DEH-X4810BT
DEH-X3800S
- In the following instructions, a USB memory or USB audio player are referred to as "USB device".
- In this manual, iPod and iPhone are referred to as "iPod".
Before You Start
To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe WARNINGs and CAUTIONs in this manual. Please keep the manual in a safe and accessible place for future reference.
Getting Started
Basic operation

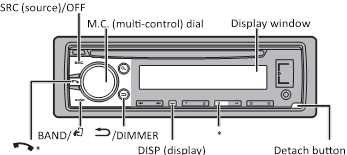

DEH-X6800BT/X6810BT/X3800S
![Pioneer - DEH-X6800BT - DEH-X6800BT/X6810BT/X3800S DEH-X6800BT/X6810BT/X3800S]()
* DEH-X3800S has different indications for these buttons.

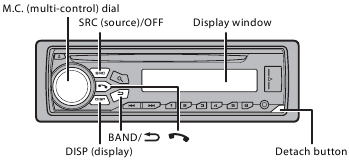

DEH-X4800BT/X4810BT
![Pioneer - DEH-X6800BT - DEH-X4800BT/X4810BT DEH-X4800BT/X4810BT]()
Remote Control
![]()
* DEH-X3800S has different indications for these buttons.
Frequently used operations
The available buttons vary depending on the unit.
Purpose | Operation |
Head Unit | Remote Control |
Turn on the power* | Press SRC/OFF to turn on the power. Press and hold SRC/OFF to turn off the power. | Press SRC to turn on the power. Press and hold SRC to turn off the power. |
Adjust the volume | Turn the M.C. dial. | Press VOLUME + or –. Press MUTE to mute the unit. Press again to unmute. |
Select a source | Press SRC/OFF repeatedly. | Press SRC repeatedly. |
Change the display information | Press DISP repeatedly. | Press DISP repeatedly. |
Return to the previous display/list | Press /DIMMER or BAND/ . | Press to select the next/previous folder. |
Return to the normal display from the menu | Press BAND/ , or press and hold BAND/ . | – |
Answering a call | Press . | Press . |
Ending a call | Press . | Press . |
* When this unit's blue/white lead is connected to the vehicle's auto-antenna relay control terminal, the vehicle's antenna extends when this unit's source is turned on. To retract the antenna, turn the source off.

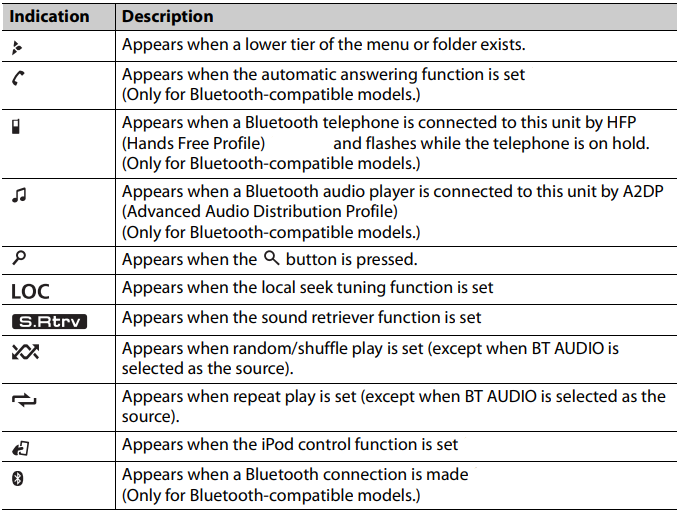

Display indication
The following indication may vary depending on the unit.
![Pioneer - DEH-X6800BT - Display indication Display indication]()

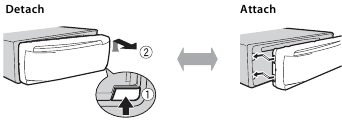

Detaching the front panel
Detach the front panel to prevent theft. Remove any cables and devices attached to the front panel and turn off the unit before detaching it.
![Pioneer - DEH-X6800BT - Detaching the front panel Detaching the front panel]()
![]()
- Avoid subjecting the front panel to excessive shock.
- Keep the front panel out of direct sunlight and high temperatures.
- Always store the detached front panel in a protective case or bag.
Preparing the remote control
Remove the insulation sheet before use.
![]()
How to replace the battery
![]()
Insert the CR2025 (3 V) battery with the plus (+) and minus (–) poles orientated properly.
![]()
- Keep the battery out of the reach of children. Should the battery be swallowed, consult a doctor immediately.
- Do not expose the battery or remote control to excessive heat such as direct sunlight or fire.
![]()
- There is a potential danger of explosion if the battery is incorrectly replaced. When replacing the battery, replace it with the same type.
- Do not handle or store the battery with metallic tools or objects.
- If the battery leaks, remove the battery and wipe the remote control completely clean. Then install a new battery.
- When disposing of used batteries, please comply with governmental regulations or environmental public institutions' rules that apply in your country/area.
- "Perchlorate Material - special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate. (Applicable to California, U.S.A.)"
![]()
- Do not store the remote control in high temperatures or direct sunlight.
- Do not let the remote control fall onto the floor, where it may become jammed under the brake or accelerator pedal.
Setting the clock (CLOCK SET)
When you turn the ignition switch to ON after installation, [SET UP:YES] appears in the display.
- Press the M.C. dial. The setup menu disappears after 30 seconds of no operation. If you prefer not to set at this time, turn the M.C. dial to select [NO], then press to confirm.
- Turn the M.C. dial to adjust the hour, then press to confirm. The indicator moves to the minute setting automatically.
- Turn the M.C. dial to adjust the minute, then press to confirm. [QUIT] appears.
- Turn the M.C. dial to select [YES], then press to confirm.
NOTES
- You can cancel the menu setting by pressingSRC/OFF.
- This setting can be made at any time. See more details.
Canceling the demonstration display (DEMO OFF)
- Press the M.C. dial to display the main menu.
- Turn the M.C. dial to select [SYSTEM], then press to confirm.
- Turn the M.C. dial to select [DEMO OFF], then press to confirm.
- Turn the M.C. dial to select [YES], then press to confirm.
INITIAL settings
- Press and hold SRC/OFF until the unit turns off.
- Press the M.C. dial to display the main menu.
- Turn the M.C. dial to select [INITIAL], then press to confirm.
- Turn the M.C. dial to select an option, then press to confirm.
NOTE
The options vary depending on the unit.
Menu Item | Description |
SP-P/O MODE [REAR/SUB.W] | Select when there is a full-range speaker connected to the rear speaker output leads and there is a subwoofer connected to the RCA output. |
[SUB.W/SUB.W] | Select when there is a passive subwoofer connected directly to the rear speaker output leads and there is a subwoofer connected to the RCA output. |
[REAR/REAR] | Select when there are full-range speakers connected to the rear speaker output leads and RCA output. If there is a full-range speaker connected to the rear speaker output leads, and the RCA output is not used, you may select either [REAR/SUB.W] or [REAR/REAR]. |
S/W UPDATE | Select to update the unit to the latest Bluetooth software. For details on Bluetooth software and updating, visit our website. |
SXM RESET [YES], [CANCEL] | Select to initialize the SiriusXM settings. |
SYSTEM RESET [YES], [CANCEL] | Select [YES] to initialize the unit settings. The unit will be restarted automatically. (Some of the settings will be retained even after resetting the unit, such as Bluetooth pairing information, etc.) |
Radio
The tuner frequencies on this unit are allocated for use in North America. Use in other areas may result in poor reception.
Receiving preset stations
- Press SRC/OFF to select [RADIO].
- Press BAND/
or BAND/
to select the band from [FM1], [FM2], [FM3] or [AM]. - Press a number button (1/
to 6/
).
TIP
The
buttons can be also used to select a preset station when [SEEK] is set to [PCH] in the FUNCTION settings.
Best stations memory (BSM)
The six strongest stations are stored on the number buttons (1/
to 6/
).
- After selecting the band, press the M.C. dial to display the main menu.
- Turn the M.C. dial to select [FUNCTION], then press to confirm.
- Turn the M.C. dial to select [BSM], then press to confirm.
To seek a station manually
- After selecting the band, press
to select a station.
Press and hold
then release to seek an available station. Scanning stops when the unit receives a station. To cancel seek tuning, press
.
NOTE
[SEEK] needs to be set to [MAN] in the FUNCTION settings.
To store stations manually
- While receiving the station you want to store, press and hold one of the number buttons (1/
to 6/
) until it stops flashing.
CD/USB/iPod/AUX
Playing back
Disconnect headphones from the device before connecting it to the unit.

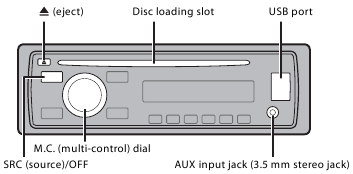

![Pioneer - DEH-X6800BT - CD/USB/iPod/AUX - Playing back CD/USB/iPod/AUX - Playing back]()
NOTE
The arrangement of the buttons varies depending on the unit.
CD
- Insert a disc into the disc loading slot with the label side up.
To eject a disc, stop playback first then press
.
USB devices (including Android)/iPod
- Open the USB port cover.
- Plug in the USB device/iPod using an appropriate cable.
NOTE
To automatically switch to [USB] source when a USB device/iPod is connected to the unit, set [USB AUTO] to [ON] in the SYSTEM settings.
![]()
Use an optional Pioneer USB cable (CD-U50E) to connect the USB device as any device connected directly to the unit will protrude out from the unit, which could be dangerous.
Before removing the device, stop playback.
AOA connections
For details on AOA connection, see "Car Remote Mode" Section.
MTP connection
A device installed with Android OS 4.0 or later can be connected to the unit via MTP, using the cable supplied with the device. However, depending on the connected device and the numbers of the files in the device, audio files/songs may not be able to be played back via MTP. Note that MTP connection is not compatible with WAV file formats, and cannot be used with the MIXTRAX function.
NOTE
If you use an MTP connection, [ANDROID WIRED] needs to be set to [MEMORY] in the SYSTEM settings.
AUX
- Insert the stereo mini plug into the AUX input jack.
- Press SRC/OFF to select [AUX] as the source.
NOTE
If [AUX] is set to [OFF] in the SYSTEM settings, [AUX] cannot be selected as a source.
Operations

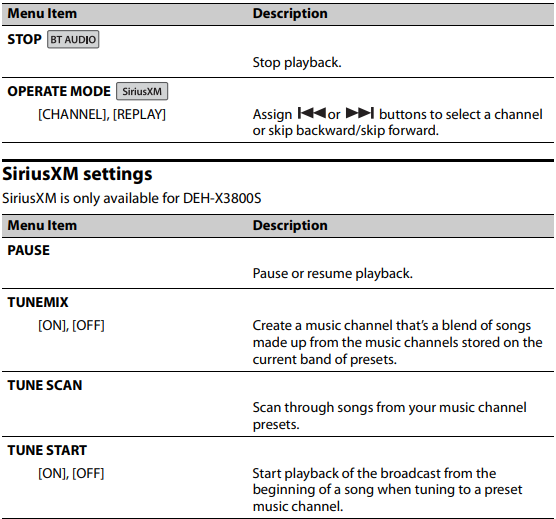

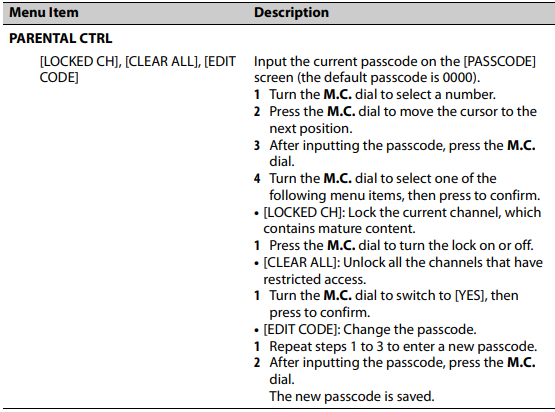

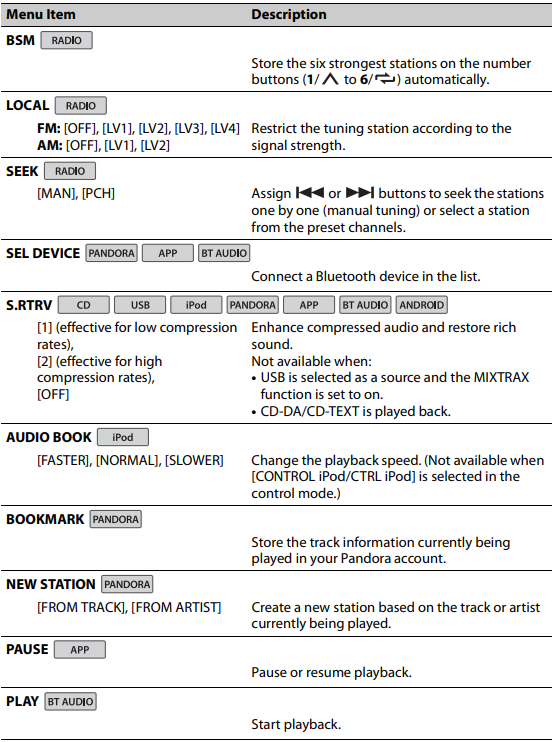

You can make various adjustments in the FUNCTION settings. Note that the following operations do not work for an AUX device. To operate an AUX device, use the device itself.

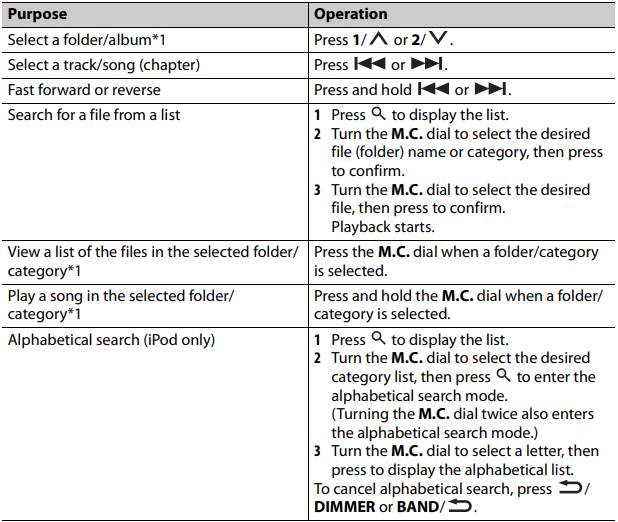

![Pioneer - DEH-X6800BT - Operations - Part 1 Operations - Part 1]()

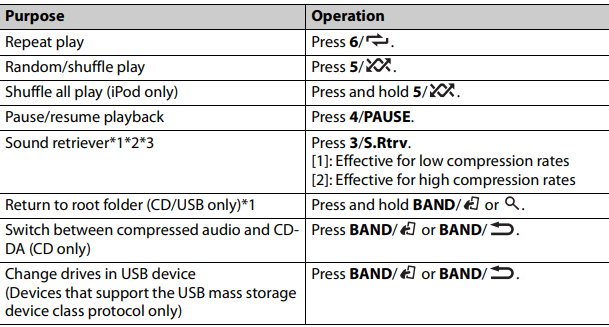

![Pioneer - DEH-X6800BT - Operations - Part 2 Operations - Part 2]()
*1 Compressed audio files only
*2 This function is disabled when USB is selected as a source and the MIXTRAX function is on.
*3 When there is no 3/S.Rtrv. button on the unit, the sound retriever function can be set by the FUNCTION settings.
Useful functions for iPod
Link play mode
You can access songs based on the artist, album, or genre currently playing.
- While listening to a song, press and hold to enter the link play mode.
- Turn the M.C. dial to select the mode ([ARTIST], [ALBUM], [GENRE]), then press to confirm.
The selected song/album will be played after the currently playing song.
NOTE
The selected song/album may be canceled if you use functions other than those from the link play mode (e.g. fast forward and reverse).
iPod control
You can control the unit via a connected iPod.
The following iPod models are not compatible with this function.
- iPod nano 1st generation, iPod with video
- Press BAND/
or BAND/
during playback, then select the control mode. [CONTROL iPod/CTRL iPod]: The unit's iPod function can be operated from the connected iPod.
[CONTROL AUDIO/CTRL AUDIO]: The unit's iPod function can only be operated by the buttons on the unit or supplied remote control. In this mode, the connected iPod cannot be turned on or off.
NOTES
- Switching the control mode to [CONTROL iPod/CTRL iPod] pauses song playback. Use the connected iPod to resume playback.
- The following operations are still accessible from the unit, even if the control mode is set to [CONTROL iPod/CTRL iPod].
- Pause, fast forward/reverse, song/chapter selection
- The volume can only be adjusted from the unit.
About MIXTRAX (USB/iPod only)
The MIXTRAX function creates a non-stop mix of your music library, accompanied by illumination effects. For details on MIXTRAX settings, see "ILLUMINATION settings" Section.
NOTES
- This function is not compatible with an Android device connected via MTP.
- When USB is selected as a source and the MIXTRAX function is in use, the sound retriever function is disabled.
- Depending on the file/song, sound effects may not be available.
- Turn the MIXTRAX function off if the illumination effects it produces interfere with driving.
- Press 3/MIX or MIX to turn MIXTRAX on/off.
The button varies depending on the unit.
Bluetooth
(Only for DEH-X6800BT/X6810BT/X4800BT/X4810BT)
Bluetooth connection
![]()
If three or more Bluetooth devices (e.g. a phone and separate audio player) are connected, they may not work properly.
- Turn on the Bluetooth function of the device.
- Press
to display the phone menu. - Turn the M.C. dial to select [BT SETTING], then press to confirm.
- Turn the M.C. dial to select [ADD DEVICE], then press to confirm.
The unit starts to search for available devices, then displays them in the device list. - To cancel searching, press the M.C. dial.
- If the desired device is not in the list, select [RE-SEARCH].
- If there is no device available, [NOT FOUND] appears in the display.
- Turn the M.C. dial to select a device from the device list, then press to confirm. Press and hold the M.C. dial to switch the displayed device information between the Bluetooth device address and device name.
- Select [Pioneer BT Unit] shown in the device display.
- Make sure the same 6-digit number appears on this unit and the device, then select "Yes" on the device.
NOTES
- [DEVICE FULL] appears if the unit has already been paired with three other devices. In this case, delete one of the paired devices. See [DEL DEVICE] or [GUEST MODE] in the Bluetooth settings.
- Depending on the device, the PIN code is required in step 7. In this case, input [0000].
TIP
The Bluetooth connection can be also made by detecting the unit from the Bluetooth device. To do so, [VISIBLE] in the Bluetooth settings needs to be set to [ON]. For details on a Bluetooth device operations, refer to the operating instructions supplied with the Bluetooth device.
Bluetooth settings
Menu Item | Description |
DEVICE LIST | Display the list of paired Bluetooth devices. "*" appears on the device name when the Bluetooth connection is established. |
DEL DEVICE [DELETE YES], [DELETE NO] | Delete the device information. |
ADD DEVICE | Register a new device. |
A.CONN [ON], [OFF] | Select [ON] to connect to a Bluetooth device automatically. |
VISIBLE [ON], [OFF] | Select [ON] so that a Bluetooth device can detect the unit when the unit is connected via Bluetooth to another device. |
PIN CODE | Change the PIN code. - Press the M.C. dial to display the setting mode.
- Turn the M.C. dial to select a number.
- Press the M.C. dial to move the cursor to the next position.
- After inputting the PIN code, press and hold the M.C. dial. After inputting the PIN code, pressing the M.C. dial returns you to the PIN code input display, and you can change the PIN code.
|
DEV. INFO | Switch the device information on the display between the device name and Bluetooth device address. |
GUEST MODE [ON], [OFF] | Select [ON] to move to the [DEL DEVICE] screen automatically when the unit has already been paired with three devices. |
A.PAIRING [ON], [OFF] | Select [ON] to pair the unit and iPhone automatically when an iPhone is connected to the unit via USB. (This function may not be available depending on the version of iOS you are using.) |
Bluetooth telephone
First, make a Bluetooth connection with the Bluetooth telephone). Up to two Bluetooth telephones can be connected simultaneously.
![]()
- Leaving the unit on standby to connect to your phone via Bluetooth while the engine is not running can drain the vehicle's battery.
- Be sure to park your vehicle in a safe place and apply the parking brake before operation.
To make a phone call
- Press
to display the phone menu.
When two phones are connected, a phone name appears first then a phone menu will display. To switch to another phone, press
again. - Turn the M.C. dial to select [RECENTS] or [PHONE BOOK], then press to confirm.
If you select [PHONE BOOK], proceed to step 4. - Turn the M.C. dial to select [MISSED], [DIALED] or [RECEIVED], then press to confirm.
- Turn the M.C. dial to select a name or phone number, then press to confirm.
The phone call starts.
To answer an incoming call
- Press
when a call is received.
TIP
When two phones are connected to the unit via Bluetooth and there is an incoming call while one phone is being used for a call, a message will appear in the display. To answer that incoming call, you need to end the existing call.
Basic operations
Purpose | Operation |
End a call | Press . |
Reject an incoming call | Press and hold when a call is received. |
Switch between the current caller and a caller on hold | Press the M.C. dial. |
Cancel a caller on hold | Press and hold . |
Adjust the volume of the caller's voice (When private mode is on, this function is not available.) | Turn the M.C. dial during the call. |
Turn the privacy mode on or off | Press BAND/ or BAND/ during the call. |
To preset phone numbers
- Select a phone number from a phone book or call history.
- Press and hold one of the number buttons (1/
to 6/
).
The contact is stored in the selected preset number.
To make a call using a preset number, press one of the number buttons (1/
to 6/
), then press the M.C. dial.
Voice recognition (Only for iPhone)
This function is only available when an iPhone equipped with voice recognition is connected to the unit via Bluetooth.
- Press and hold
to activate the voice recognition mode. - Press the M.C. dial and then talk into the microphone to input voice commands.
To exit the voice recognition mode, press BAND/
or BAND/
.
NOTE
For details on the voice recognition features, refer to the manual supplied with your iPhone.
Menu Item | Description |
RECENTS [MISSED] | Display the missed call history. |
[DIALED][RECEIVED] | Display the dialed call history. Display the received call history. |
PHONE BOOK*1 | Display the contacts which have been transferred from your phone. Set [VISIBLE] in the Bluetooth settings to [ON] to browse the contacts via this unit. |
PRESET 1-6 | Recall the preset phone numbers. You can also recall the preset phone numbers by pressing one of the number buttons (1/ to 6/ ). |
A.ANSR*2 [ON], [OFF] | Select [ON] to answer an incoming call automatically. |
R.TONE [ON], [OFF] | Select [ON] if the ring tone does not come out from the car speakers. Depending on the connected phone, this function may not work. |
PB INVT | Invert the order of names in the phone book (name view). |
PB A.SYNC [ON], [OFF] | Select whether or not to transfer the contacts from your phone automatically when your phone is connected to the unit. - When connected for the first time, the contacts from your phone are transferred automatically, regardless of the [PB A.SYNC] setting.
- If you switch from [ON] to [OFF], the auto synchronization will be performed on the next connection.
- During the auto synchronization, you cannot cancel the synchronization, even if you select [OFF].
|
BT SETTING | You can adjust various settings for Bluetooth connections. For details see "Bluetooth settings" Section. |
*1 The contacts on your phone will normally be transferred automatically when the phone is connected. If they are not, use your phone to transfer the contacts.
*2 If two phones are connected, this function does not work on incoming calls that are received while one of the phones is being used for a call.
Bluetooth audio
![]()
- Depending on the Bluetooth audio player connected to this unit, the available operations will be limited to the following two levels:
- A2DP (Advanced Audio Distribution Profile) can only play back songs on your audio player.
- AVRCP (Audio/Video Remote Control Profile) can perform functions such as playback, pause, selectsong, etc.
- The sound of the Bluetooth audio player will be muted when the phone is in use.
- When the Bluetooth audio player is in use, you cannot connect to a Bluetooth telephone automatically.
- Depending on the type of Bluetooth audio player you have connected to this unit, operation and information displayed may vary based on availability and functionality.
- Make a Bluetooth connection with the Bluetooth audio player.
- Press SRC/OFF to select [BT AUDIO] as the source.
- Press BAND/
or BAND/
to start playback.
Basic operations
You can make various adjustments in the FUNCTION settings.
Purpose | Operation |
Fast forward or reverse | Press and hold or . |
Select a track | Press or . |
Repeat play* | Press 6/ . |
Random play* | Press 5/ . |
Pause/resume playback | Press 4/PAUSE. |
Search for a file from a list | - Press
to display a list. - Turn the M.C. dial to select the desired folder name, then press to confirm.
- Turn the M.C. dial to select the desired file, then press to confirm.
Playback starts. |
* Depending on the connected device, these operations may not be available.
App Mode
You can enjoy listening to an application on an iPhone/Android device via the unit. In some cases, you can control an application by using the unit. For details on compatible devices, visit our website.
![]()
Use of third party apps may involve or require the provision of personally identifiable information, whether through the creation of a user account or otherwise, and for certain applications, the provision of geolocation data.
ALL THIRD PARTY APPS ARE THE SOLE RESPONSIBILITY OF THE PROVIDERS, INCLUDING WITHOUT LIMITATION COLLECTION AND SECURITY OF USER DATA AND PRIVACY PRACTICES. BY ACCESSING THIRD PARTY APPS, YOU AGREE TO REVIEW THE TERMS OF SERVICE AND PRIVACY POLICIES OF THE PROVIDERS. IF YOU DO NOT AGREE WITH THE TERMS OR POLICIES OF ANY PROVIDER OR DO NOT CONSENT TO THE USE OF GEOLOCATION DATA WHERE APPLICABLE, DO NOT USE THAT THIRD PARTY APP.
For iPhone users
This function is compatible with iPhones and iPod touches installed with iOS 5.0 or later.
For Android device users
This function is compatible with devices that have Android OS 2.3 or later installed and also support Bluetooth SPP (Serial Port Profile) and A2DP (Advance Audio Distribution Profile).
NOTE
PIONEER IS NOT LIABLE FOR ANY THIRD PARTY APPS OR CONTENT, INCLUDING WITHOUT LIMITATION THEIR ACCURACY OR COMPLETENESS. THE CONTENT AND FUNCTIONALITY OF SUCH APPS ARE THE SOLE RESPONSIBILITY OF THE APP PROVIDER.
Playback of an application via the unit
The Bluetooth connection is available for all units except DEH-X3800S.
- Connect this unit with the mobile device.
- iPhone via USB.
- Android device via Bluetooth.
- Press the M.C. dial to display the main menu.
- Turn the M.C. dial to select [SYSTEM], then press to confirm.
- Turn the M.C. dial to select [APP CONN.SET], then press to confirm.
- Turn the M.C. dial to select one of the below.
- Select [WIRED] for iPhone.
- Select [BLUETOOTH] for an Android device.
- Press SRC/OFF to select [APP].
- Operate the mobile device to start up the application.
Basic operations
You can make various adjustments in the FUNCTION settings.
Purpose | Operation |
Select a track | Press or |
Fast forward or reverse | Press and hold or |
Pause/resume playback | Press BAND/ or BAND/ |
Pandora
Listening to Pandora
Update the firmware of the Pandora application to the latest version before use. The Bluetooth connection is available for all units except DEH-X3800S.
- Connect this unit with the mobile device.
- iPhone via USB
- Android device via Bluetooth If you choose a USB connection, proceed to step 5.
- Press SRC/OFF to select [PANDORA].
- Press and hold
to display [APP CONN.SET]. - Turn the M.C. dial to select [BLUETOOTH].
- Press SRC/OFF to select [PANDORA].
- Launch the Pandora application on the mobile device and start playback.
Basic operations
You can make various adjustments in the FUNCTION settings.

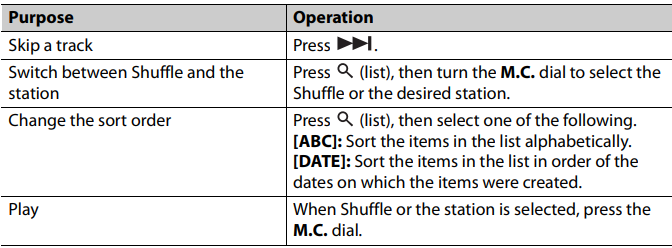

![Pioneer - DEH-X6800BT - Listening to Pandora - Basic operations - Part 1 Listening to Pandora - Basic operations - Part 1]()

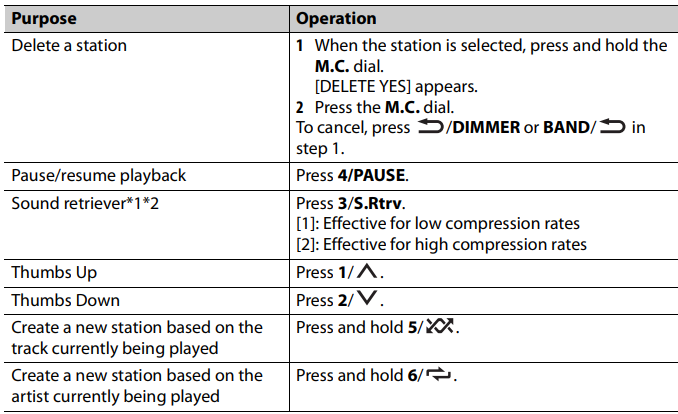

![Pioneer - DEH-X6800BT - Listening to Pandora - Basic operations - Part 2 Listening to Pandora - Basic operations - Part 2]()
*1 This function is disabled when the MIXTRAX function is on.
*2 When there is no 3/S.Rtrv button on the unit, the sound retriever function can be set by the FUNCTION settings.
NOTE
Some functions of Pandora may not be operated from the unit.
SiriusXM Satellite Radio
(Only for DEH-X3800S)
Replay™
You can pause, rewind or replay live satellite radio as well as the channel you are currently listening to.
TuneStart™
Automatically start songs from the beginning when you tune to one of your preset music channels stored on the current band of presets. For details, refer to TUNE START.
NOTE
TuneStart is compatible with SXV200 or later tuner models. Not compatible with SXV100.
TuneScan™
Scan through short previews of songs you may have missed on music channels stored on the current band of presets.
Each song in the current channel plays for six seconds at a time.
For details, refer to TUNE SCAN (scanning the songs).
NOTE
TuneScan is compatible with SXV200 or later tuner models. Not compatible with SXV100.
TuneMix™
Create a music channel that's a blend of songs made up from the music channels stored on the current band of presets. For details, refer to TUNEMIX.
NOTE
TuneMix™ is compatible with the SXV300 or later tuner models. Not compatible with the SXV200 or SXV100.
Preparing for the SiriusXM Satellite Radio service
- Press SRC/OFF to select [SIRIUSXM].
- Press
to select Channel 0.
The Radio ID appears on the display.
In addition, the Radio ID is located on the bottom of the SiriusXM Connect Vehicle Tuner.
NOTE
The Radio ID does not include the letters I, O, S or F.
Listening to a channel
- Press
/DIMMER, then select [CHANNEL]. You can also select the operation mode by the SiriusXM settings. - Press SRC/OFF to select [SIRIUSXM].
- Press BAND/
to select a band from [SXM1], [SXM2] or [SXM3]. - Press
to select a channel.
Pressing and holding either button will rapidly browse through the channels.
Press and hold either button then release to tune automatically. Scanning stops when the unit receives a channel. To cancel seek tuning, press
.
Basic operations
- Press
/DIMMER to select the operation mode [CHANNEL] or [REPLAY].
NOTE
You can exit the replay mode by pressing and holding BAND/
.
Purpose | Operation |
Select a channel | - Set the operation mode to [CHANNEL].
- Press
or . Pressing and holding either button will rapidly browse through the channels. |
Skip backward/forward | - Set the operation mode to [REPLAY].
- Press
or . |
Fast forward or reverse | - Set the operation mode to [REPLAY].
- Press and hold
or . |
NOTE
You can also make various adjustments in the SiriusXM settings.
Category scan
The live broadcast for each channel in the current category plays for six seconds at a time. Follow the instructions below. To search for a channel from a list
- Press
during playback. - Turn the M.C. dial to select a category.
- Select one of the operations below.
Category scan: Press and hold the M.C. dial to switch to category scan.
Channel search: Press the M.C. dial to stop a scan.
NOTE
Press DISP to change the display information between "Channel Name", "Artist Name", "Song Title", "Content Info" and "Channel Number".
Scan options
Purpose | Operation |
Stopping a scan (selecting the channel or song playing) | Press the M.C. dial. |
Switching to the next/previous song during TuneScan | Press or . |
Switching to the next/previous channel during the category scan | Press or . |
Aborting a scan (The last channel or song will continue to play when scan ends.) | Press BAND/ . |
To preset a channel
- While receiving a channel you want to store, press and hold one of the number buttons (1/
to 6/
) until it stops flashing.
To play the stored channels, select the band and then press a number button (1/
to 6/
).
Parental Control
Some SiriusXM channels contain mature content. You can lock these channels. For details, see [PARENTAL CTRL] in SiriusXM settings.
Car Remote Mode
You can operate the unit from a car remote application installed on an iPhone/Android device. In some cases, you can control aspects of the application, such as source selection, pause, etc., by using the unit.
For details on what operations are available on the application, see the application's help section.
![]()
Do not attempt to operate the application while driving. Make sure to pull off the road and park your vehicle in a safe location before attempting to use the controls on the application.
For iPhone users
This function is compatible with iPhones and iPod touches installed with iOS 8.0 or later.
For Android device users
This function is compatible with devices that have Android OS 4.1 or later installed and also support Bluetooth SPP (Serial Port Profile) and AOA (Android Open Accessory) 2.0.
Making the car remote connection
The Bluetooth connection is available for all units except DEH-X3800S.
- Connect this unit with the mobile device.
- iPhone/Android device via USB
- Android device via Bluetooth
- Press the M.C. dial to display the main menu.
- Turn the M.C. dial to select [SYSTEM], then press to confirm.
- Turn the M.C. dial to select [APP CONN.SET], then press to confirm.
- Turn the M.C. dial to select one of the below.
- Select [WIRED] for a device connected via USB.
- Select [BLUETOOTH] for an Android device connected via Bluetooth. Proceed to step 9 if you select the USB connection for iPhone or the Bluetooth connection.
- Press BAND/
to display the previous menu list. - Turn the M.C. dial to select [ANDROID WIRED], then press to confirm.
- Turn the M.C. dial to select [APP CONTROL] for an Android device connected via USB. If [ON] is selected in [P.APP AUTO ON], the car remote application on the Android device starts automatically, and all the steps are finished.
NOTE If the car remote application has not been installed on your Android device yet, a message that prompts you to install the application will appear on your Android device. Select [OFF] in [P.APP AUTO ON] to clear the message. - Press SRC/OFF to select any source.
- Press and hold the M.C. dial.
The car remote application on the mobile device starts.
Listening to music on Android
- Press SRC/OFF to select [ANDROID].
Basic operations
Purpose | Operation |
Select a track | Press or . |
Fast forward or reverse | Press and hold or . |
Pause/resume playback | Press 4/PAUSE. |
Sound retriever* | Press 3/S.Rtrv. - Effective for low compression rates
- Effective for high compression rates
|
* When there is no 3/S.Rtrv button on the unit, the sound retriever function can be set by the FUNCTION settings.
Settings
You can adjust various settings in the main menu.
- Press the M.C. dial to display the main menu.
- Turn the M.C. dial to select one of the categories below, then press to confirm.
- FUNCTION settings
- AUDIO settings
- SYSTEM settings
- ILLUMINATION settings
- MIXTRAX settings
- Turn the M.C. dial to select the options, then press to confirm.
NOTE
The Bluetooth-related menu items in the following tables are not available for DEH-X3800S.
FUNCTION settings
The menu items vary according to the source.
![Pioneer - DEH-X6800BT - FUNCTION settings - Part 1 FUNCTION settings - Part 1]()
![Pioneer - DEH-X6800BT - FUNCTION settings - Part 2 FUNCTION settings - Part 2]()
![Pioneer - DEH-X6800BT - FUNCTION settings - Part 3 FUNCTION settings - Part 3]()
AUDIO settings
Menu Item | Description |
FADER*1 | Adjust the front and rear speaker balance. |
BALANCE | Adjust the left and right speaker balance. |
EQ SETTING [SUPER BASS], [POWERFUL], [NATURAL], [VOCAL], [CUSTOM1], [CUSTOM2], [FLAT] Select an equalizer band and level for further customizing. Equalizer band: [80HZ], [250HZ], [800HZ], [2.5KHZ], [8KHZ] Equalizer level: [+6] to [–6] | Select or customize the equalizer curve. [CUSTOM1] can be set separately for each source. However, each of the below combinations are set to the same setting automatically. - USB, iPod, PANDORA (iPhone), ANDROID, and APP (iPhone)
- BT AUDIO, PANDORA (Android), ANDROID, and APP (Android) [CUSTOM2] is a shared setting used for all sources.
|
LOUDNESS [OFF], [LOW], [MID], [HI] | Compensate for clear sound at low volume. |
SUB.W*2 [NOR], [REV], [OFF] | Select the subwoofer phase. |
SUB.W CTRL*2*3 Cut-off frequency: [50HZ], [63HZ], [80HZ], [100HZ], [125HZ], [160HZ], [200HZ] Output level: [–24] to [+6] Slope level: [–12], [–24] | Only frequencies lower than those in the selected range are output from the subwoofer. |
BASS BOOST [0] to [+6] | Select the bass boost level. |
HPF SETTING Cut-off frequency: [OFF], [50HZ], [63HZ], [80HZ], [100HZ], [125HZ], [160HZ], [200HZ] Slope level: [–12], [–24] | Only frequencies higher than the high-pass filter (HPF) cutoff are output from the speakers. |
SLA [+4] to [–4] | Adjust the volume level for each source except FM. Each of the below combinations are set to the same setting automatically. - USB, iPod, PANDORA (iPhone), ANDROID, and APP (iPhone)
- BT AUDIO, PANDORA (Android), ANDROID, and APP (Android)
|
*1 Not available when [SUB.W/SUB.W] is selected in [SP-P/O MODE] in the INITIAL settings.
*2 Not available when [REAR/REAR] is selected in [SP-P/O MODE] in the INITIAL settings.
*3 Not available when [OFF] is selected in [SUB.W]. SYSTEM settings You can also access to these menus when the unit is turned off.
SYSTEM settings
You can also access to these menus when the unit is turned off.
Menu Item | Description |
CLOCK SET | Set the clock |
12H/24H [12H], [24H] | Select the time notation. |
INFO DISPLAY (Not available for DEH-X 4800BT/X4810BT) |
| Display the item on the sub information display. Select from "SPEANA", "LEVEL METER", "SOURCE", "CLOCK", and "OFF". |
AUX [ON], [OFF] | Set to [ON] when using an auxiliary device connected to the unit. |
USB AUTO [ON], [OFF] | Select [ON] to automatically switch to [USB] source when a USB device/iPod is connected to the unit. Select [OFF] when a USB device/iPod is being connected to the unit just for charging. |
BT AUDIO [ON], [OFF] | Set the Bluetooth signal on/off. |
BT MEM CLEAR [YES], [CANCEL] | Clear the Bluetooth device data (device list, PIN code, call history, phone book, preset phone numbers) stored in the unit. [CLEARED] appears when data is successfully deleted. |
BT VERSION | Displays the system version of the unit and the Bluetooth module. |
APP CONN.SET [WIRED], [BLUETOOTH] | Select the appropriate connection method according to your device. |
ANDROID WIRED [MEMORY], [APP CONTROL] | Select the appropriate connection method for an Android device. |
P.APP AUTO ON [ON], [OFF] | Select [ON] to automatically launch the car remote application when an Android device is connected to the unit via AOA. (Not available when [MEMORY] is selected in [ANDROID WIRED].) |
ILLUMINATION settings
Menu Item | Description |
COLOR (Not available for DEH-X4800BT/X4810BT) |
[KEY COLOR], [DISP COLOR], [BOTH COLOR] | Select color for the keys/display of the unit from 12 preset colors, [SCAN] or [CUSTOM]*. - [SCAN]: Cycle through a variety of colors automatically.
- [CUSTOM]*:
- Press and hold the M.C. dial until the color setting display appears.
- Set the primary color (R (red) /G (green) /B (blue)) and brightness level ([0] to [60]). You cannot select a level below 10 for all three of R (red), G (green), B (blue) at the same time.
You can also customize the preset colors. Select one of the preset colors, then press and hold the M.C. dial until the color setting display appears. * The CUSTOM setting is only available for [KEY COLOR] and [DISP COLOR]. |
DIM SETTING |
[SYNC ILLUMI]*, [SYNC CLOCK], [MANUAL] * Not available for DEH-X4800BT/ X4810BT | Change the display brightness. |
BRIGHTNESS |
[1] to [10] | Change the display brightness. The available setting ranges differ depending on [DIM SETTING]. |
PHONE COLOR (Not available for DEH-X4800BT/X4810BT/X3800S) |
[FLASHING] | Select the key color when a call is received. Applies the color set by [KEY COLOR]. |
[FLASH FX1] to [FLASH FX6] | Cycle through a variety of colors automatically. |
[OFF] | No change in key color made. |
ILLUMI FX (Not available for DEH-X4800BT/X4810BT) |
[ON], [OFF] | The illumination effect can be seen when: - there is an incoming call
- you are on a phone call
- a CD is inserted/ejected
The illumination effect will activate when the ACC power is turned on/off regardless of this setting. |
MIXTRAX settings
Menu Item | Description |
SHORT PLAYBCK/SHORT MODE |
[1.0 MIN], [1.5 MIN], [2.0 MIN], [2.5 MIN], [3.0 MIN], [OFF] | Select the length of the playback time. |
FLASH AREA (Not available for DEH-X4800BT/X4810BT) |
[KEY/DISPLAY], [KEY], [OFF] | Select the area for the illumination effect. When [OFF] is selected, the color set under the ILLUMINATION settings is used as the display color. |
FLASH PATTERN (Not available for DEH-X4800BT/X4810BT) |
[SOUND LEVEL 1] to [SOUND LEVEL 6] | Change the illumination effect according to the sound and bass level. The flash pattern changes according to the sound level. |
[LOW PASS 1] to [LOW PASS 6] | The flash pattern changes according to the bass level. |
[RANDOM1] | The flash pattern changes randomly according to the sound level mode and low pass mode. |
[RANDOM2] | The flash pattern changes randomly according to the sound level mode. |
[RANDOM3] | The flash pattern changes randomly according to the low pass mode. |
MIX PATTERN (Only for DEH-X4800BT/X4810BT) |
[SOUND LEVEL] | Change the MIXTRAX special effects according to the audio level. The mix pattern changes according to the sound level. |
[LOW PASS] | The mix pattern changes according to the bass level. |
[RANDOM] | The mix pattern changes randomly according to the sound level mode and low pass mode. |
DISPLAY FX/DISP FX |
[ON], [OFF] | Set the MIXTRAX special effects on/off. |
CUT IN FX |
[ON], [OFF] | Turn the MIXTRAX sound effects on/off while manually changing the tracks. |
Connections/Installation
Connections
![]()
- Use speakers over 50 W (output value) and between 4 Ω to 8 Ω (impedance value). Do not use 1 Ω to 3 Ω speakers for this unit.
- The black cable is ground. When installing this unit or power amp (sold separately), make sure to connect the ground wire first. Ensure that the ground wire is properly connected to metal parts of the car's body. The ground wire of the power amp and the one of this unit or any other device must be connected to the car separately with different screws. If the screw for the ground wire loosens or falls out, it could result in fire, generation of smoke or malfunction.
*1 Not supplied for this unit
![]()
- When installing this unit in a vehicle without an ACC (accessory) position on the ignition switch, failure to connect the red cable to the terminal that detects operation of the ignition key may result in battery drain.
![]()
- Use this unit with a 12-volt battery and negative grounding only. Failure to do so may result in a fire or malfunction.
- To prevent a short-circuit, overheating or malfunction, be sure to follow the directions below.
- Disconnect the negative terminal of the battery before installation.
- Secure the wiring with cable clamps or adhesive tape. Wrap adhesive tape around wiring that comes into contact with metal parts to protect the wiring.
- Place all cables away from moving parts, such as the shift lever and seat rails.
- Place all cables away from hot places, such as near the heater outlet.
- Do not connect the yellow cable to the battery by passing it through the hole to the engine compartment.
- Cover any disconnected cable connectors with insulating tape.
- Do not shorten any cables.
- Never cut the insulation of the power cable of this unit in order to share the power with other devices. The current capacity of the cable is limited.
- Use a fuse of the rating prescribed.
- Never wire the negative speaker cable directly to ground.
- Never band together negative cables of multiple speakers.
- When this unit is on, control signals are sent through the blue/white cable. Connect this cable to the system remote control of an external power amp or the vehicle's auto-antenna relay control terminal (max. 300mA 12 V DC). If the vehicle is equipped with a glass antenna, connect it to the antenna booster power supply terminal.
- Never connect the blue/white cable to the power terminal of an external power amp. Also, never connect it to the power terminal of the auto antenna. Doing so may result in battery drain or a malfunction.
This unit
![]()
- Microphone (Only for DEH-X6800BT/ X6810BT/X4800BT/X4810BT) 4 m (13 ft. 1 in.)
- SiriusXM Connect Vehicle Tuner input (Only for DEH-X3800S)
- Power cord input
- Microphone input (Only for DEH- X6800BT/X6810BT/X4800BT/X4810BT)
- Rear output or subwoofer output
- Front output
- Antenna input
- Fuse (10 A)
- Wired remote input
Hard-wired remote control adapter can be connected (sold separately). - SiriusXM Connect Vehicle Tuner (sold separately)
Power cord
Perform these connections when not connecting a rear speaker lead to a subwoofer.
![]()
Perform these connections when using a subwoofer without the optional amplifier.
![]()
![]()
In the case of
above, two 4 Ω subwoofers wired in parallel will represent a 2 Ω load.
- To power cord input
- Left
- Right
- Front speaker
- Rear speaker
- White
- White/black
- Gray
- Gray/black
- Green
- Green/black
- Violet
- Violet/black
- Black (chassis ground)
Connect to a clean, paint-free metal location. - Yellow
Connect to the constant 12 V supply terminal. - Red
Connect to terminal controlled by the ignition switch (12 V DC). - Blue/white
Connect to the system control terminal of the power amp or auto-antenna relay control terminal (max. 300 mA 12 V DC). - Subwoofer (4 Ω)
- When using a subwoofer of 70 W (2 Ω), be sure to connect the subwoofer to the violet and violet/black leads of this unit.
Do not connect anything to the green and green/black leads. - Not used.
- Subwoofer (4 Ω) × 2
- Orange/white (Not available for DEH- X4800BT/X4810BT)
Connect to a car's illumination signal.
Power amp (sold separately)
Perform these connections when using the optional amplifier.
![]()
- System remote control
Connect to blue/white cable. - Power amp (sold separately)
- Connect with RCA cables (sold separately)
- To front output
- Front speaker
- To rear output or subwoofer output
- Rear speaker or subwoofer
Installation
![]()
- Check all connections and systems before final installation.
- Do not use unauthorized parts as this may cause malfunctions.
- Consult your dealer if installation requires drilling of holes or other modifications to the vehicle.
- Do not install this unit where:
- it may interfere with operation of the vehicle.
- it may cause injury to a passenger as a result of a sudden stop.
- The semiconductor laser will be damaged if it overheats. Install this unit away from hot places such as near the heater outlet.
- Optimum performance is obtained when the unit is installed at an angle of less than 60°.
- When installing, to ensure proper heat dispersal when using this unit, make sure you leave ample space behind the rear panel and wrap any loose cables so they are not blocking the vents.
DIN mount installation
- Insert the supplied mounting sleeve into the dashboard.
- Secure the mounting sleeve by using a screwdriver to bend the metal tabs (90°) into place.
- Dashboard
- Mounting sleeve
* Make sure that the unit is installed securely in place. An unstable installation may cause skipping or other malfunctions.
When not using the supplied mounting sleeve
- Determine the appropriate position where the holes on the bracket and the side of the unit match.
![]()
- Tighten two screws on each side.
![]()
- Screw
- Mounting bracket
- Dashboard or console
- Use either truss (5 mm × 9 mm) or flush surface (5 mm × 9 mm) screws, depending on the bracket screw holes.
Removing the unit (installed with the supplied mounting sleeve)
- Remove the trim ring.
- Trim ring
- Notched tab
- Releasing the front panel allows easier access to the trim ring.
- When reattaching the trim ring, point the side with the notched tab down.
- Insert the supplied extraction keys into both sides of the unit until they click into place.
- Pull the unit out of the dashboard.
To secure the front panel
The front panel can be secured with the supplied screw.
![]()
Installing the microphone
(Only for DEH-X6800BT/X6810BT/X4800BT/ X4810BT)
The microphone should be placed directly in front of the driver at a suitable distance to pick up their voice clearly.
![]()
It is extremely dangerous to allow the microphone lead to become wound around the steering column or shift lever.
Be sure to install the microphone in such a way that it will not obstruct driving. It is recommended to use the clamps (sold separately) to arrange the lead.
To install on the sun visor
- Fit the microphone lead into the groove.
- Microphone lead
- Groove

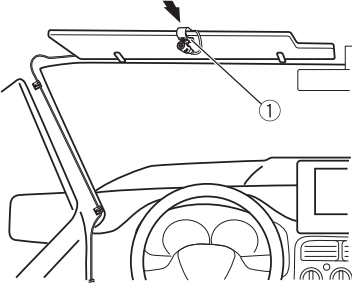

- Install the microphone clip on the sun visor.
Lowering the sun visor reduces the voice recognition rate.
![Pioneer - DEH-X6800BT - Install the microphone clip on the sun visor Install the microphone clip on the sun visor]()
- Microphone clip
To install on the steering column
- Slide the microphone base to detach it from the microphone clip.
- Microphone
- Microphone clip
- Microphone base
- Install the microphone on the rear side of the steering column.
- Double-sided tape
Troubleshooting
The display automatically returns to the normal display.
- No operations have been made for about 30 seconds.
The repeat play range changes unexpectedly.
- Depending on the repeat play range, the selected range may change when another folder or track is being selected or during fast forwarding/reversing.
- Select the repeat play range again.
A subfolder is not played back.
- Subfolders cannot be played when [FLD] (folder repeat) is selected.
- Select another repeat play range.
The sound is intermittent.
- You are using a device, such as a cellular phone, that may cause audible interference.
- Move electrical devices that may be causing the interference away from the unit.
The sound from the Bluetooth audio source is not played back.
- There is a call in progress on a Bluetooth-connected cellular phone.
- The sound will be played back when the call is terminated.
- A Bluetooth-connected cellular phone is currently being operated.
- Stop using the cellular phone.
- The connection between the unit and the cellular phone is not established correctly after a call made by a Bluetooth-connected cellular phone.
- Make a Bluetooth connection between the unit and the cellular phone again.
Error messages
Common
AMP ERROR
- This unit fails to operate or the speaker
- The protective circuit is activated.
- Check the speaker connection.
- Turn the ignition switch OFF and back to ON again. If the message remains, contact your dealer or an authorized Pioneer Service Station for assistance.
NO XXXX (NO TITLE, for example)
- There is no embedded text information.
- Switch the display or play another track/file.
CD player
ERROR-07, 11, 12, 17, 30
- The disc is dirty.
- The disc is scratched.
ERROR-07, 10, 11, 12, 15, 17, 30, A0
- There is an electrical or mechanical error.
- Turn the ignition switch OFF and back to ON, or switch to a different source, then back to the CD player.
ERROR-15
- The inserted disc is blank.
ERROR-23
- Sometimes there is a delay between the start of playback and when you start to hear any sound.
- Wait until the message disappears and you hear sound.
NO AUDIO
- The inserted disc does not contain any playable files.
SKIPPED
- The inserted disc contains DRM protected files.
- The protected files are skipped.
PROTECT
- All the files on the inserted disc are embedded with DRM.
USB device/iPod
- Sometimes there is a delay between the start of playback and when you start to hear any sound.
- Wait until the message disappears and you hear sound.
NO AUDIO
- There are no songs.
- Transfer the audio files to the USB device and connect.
- The connected USB device has security enabled.
- Follow the USB device instructions to disable the security.
SKIPPED
- The connected USB device contains DRM protected files.
- The protected files are skipped.
PROTECT
- All the files on the connected USB device are embedded with DRM.
N/A USB
- The connected USB device is not supported by this unit.
- Disconnect your device and replace it with a compatible USB device.
HUB ERROR
- The USB device connected via a USB hub is not supported by this unit.
- Connect the USB device directly to this unit using a USB cable.
CHECK USB
- The USB connector or USB cable has short-circuited.
- Check that the USB connector or USB cable is not caught in something or damaged.
- The connected USB device consumes more than maximum allowable current.
- Disconnect the USB device and do not use it. Turn the ignition switch OFF and back to ACC or ON. Connect only compliant USB devices.
- The iPod operates correctly but does not charge.
- Make sure the connection cable for the iPod has not shorted out (e.g., not caught in metal objects). After checking, turn the ignition switch OFF and back to ON, or disconnect the iPod and reconnect.
ERROR-19
- Communication failed.
- Perform one of the following operations, then return to the USB source.
- Turn the ignition switch OFF and back to ON.
- Disconnect the USB device.
- Change to a different source.
- iPod failure.
- Disconnect the cable from the iPod. Once the iPod's main menu is displayed, reconnect the iPod and reset it.
ERROR-23
- USB device was not formatted properly.
- Format the USB device with FAT12, FAT16 or FAT32.
ERROR-16
- The iPod firmware version is old
- iPod failure.
- Disconnect the cable from the iPod. Once the iPod's main menu is displayed, reconnect the iPod and reset it.
STOP
- There are no songs in the current list.
- Select a list that contains songs.
NOT FOUND
- No related songs.
- Transfer songs to the iPod.
Bluetooth device
ERROR-10
- The power failed for the Bluetooth module of the unit.
- Turn the ignition switch OFF and back to ACC or ON.
Pandora
ERROR-19
- Communication failed.
- Disconnect the cable from the device. Once the device's main menu is displayed, reconnect the device and reset it.
START UP APP
- The Pandora application has not started running yet.
- Start up the Pandora application.
INOPERABLE
- The operation was disabled.
- Run the same command for another track.
TRY LATER
- Unable to save thumb rating.
- Unable to save BookMark.
- Unable to add station.
MAINTENANCE
- Pandora system is undergoing maintenance.
SKIP LIMIT
- Due to music licensing restrictions, Pandora limits the total number of skips per hour.
- Wait until Pandora allows you to skip again.
UPDATE APP
- This version of the Pandora application is not supported.
- Connect a device that has a compatible version of the Pandora application installed.
LOGIN ERROR
- Your Pandora account is not logged in.
- Disconnect the cable from the device, and log in to your Pandora account. Then reconnect the device.
CHECK DEVICE
- Device error message displayed in the Pandora application.
- Check the connected device.
PLEASE CREATE A STATION ON THE PHONE
- No station found.
- Create a station in the Pandora application on your connected device.
SELECT STN
NO BT DEVICE GO TO BT MENU TO REGISTER
- No Bluetooth device found.
- Connect the unit and the device via Bluetooth.
CONN. FAILED PRESS BAND KEY TO RETRY
- Bluetooth connection failed.
- Press BAND/
or BAND/
to make a connection again.
CHECK APP PRESS BAND KEY TO RETRY
- Connection to the Pandora application failed.
- Press BAND/
or BAND/
to make a connection again.
DISCONNECTED PRESS BAND KEY TO RETRY
- Bluetooth connection lost.
- Press BAND/
or BAND/
to make a connection again.
STATION FULL
- A new station cannot be added.
- Delete an old station to open a spot for a new one.
CAN.T DELETE
- The station could not be deleted.
- Run the same command for another station.
NO NETWORK
- The connected device is out of area.
- Connect the device to a network.
NO SERVICE IN THIS COUNTRY
- The connected device is out of area.
- Connect the device to a network.
STN DELETED
- The operation was disabled.
- Run the same command for another station.
Apps
- No Bluetooth device found.
- Connect the unit and the device via Bluetooth.
CONN. FAILED PRESS BAND KEY TO RETRY
- Bluetooth connection failed.
- Press BAND/
or BAND/
to make a connection again.
DISCONNECTED PRESS BAND KEY TO RETRY
- Bluetooth connection failed.
- Press BAND/
or BAND/
to make a connection again.
CHECK APP
- Connection to the application failed.
- Follow the instructions that appear on the screen.
START UP APP
- The application has not started running yet.
- Operate the mobile device to start up the application.
SiriusXM Satellite Radio (Only for DEH-X3800S)
CHECK ANTENNA
- The antenna cable may be either disconnected or damaged.
- Check the antenna connection or replace if damaged.
CHECK TUNER
- The radio is having difficulty communicating with the SiriusXM Connect Vehicle Tuner. The tuner may be disconnected or damaged.
- Verify that the SiriusXM Connect Vehicle Tuner cable is securely connected to the radio.
NO SIGNAL
- The SiriusXM Connect Vehicle Tuner is having difficulty receiving the SiriusXM satellite signal.
- Move your vehicle outdoors with a clear view of the southern sky.
- Make sure that the SiriusXM magnetic mount antenna is mounted on a metal surface on the outside the vehicle.
- Move the SiriusXM antenna away from any obstructions.
SUBSCRIPTION UPDATED
- This unit has detected a change in your SiriusXM subscription status.
- Press any key to clear the message.
CH UNAVAIL
- The channel that you have requested is not available.
- Check the SiriusXM channel lineup.
CHAN UNSUB
- The channel that you have requested is not included in your SiriusXM subscription package.
- Check the content of your SiriusXM subscription package.
CH LOCKED
- The channel has been locked by the Parental Control function.
- Set [LOCKED CH] to [OFF] or [CLEAR ALL] to [YES] in the FUNCTION settings.
NO TUNEMIX CH
- There is only one music in the band.
- Select a band with two or more channels.
- Add more music channels to the current band.
Handling guidelines
Discs and player
- Use only discs that feature either of the following two logos.
- Use 12-cm discs.
- Use only conventional, fully circular discs.
- The following types of discs cannot be used with this unit:
- Dual Discs
- 8-cm discs: Attempts to use such discs with an adaptor may cause the unit to malfunction.
- Oddly shaped discs
- Discs other than CDs
- Damaged discs, including discs that are cracked, chipped or warped
- CD-R/RW discs that have not been finalized
- Do not write on or apply chemicals to the surface of the discs.
- To clean a CD, wipe the disc with a soft cloth outward from the center.
- Condensation may temporarily impair the player's performance. Let it rest for about one hour to adjust to a warmer temperature. Also, wipe any damp discs off with a soft cloth.
- When using discs that can be printed on label surfaces, check the instructions and the warnings of the discs. Depending on the discs, inserting and ejecting may not be possible. Using such discs may result in damage to this equipment.
- Do not attach commercially available labels or other materials to the discs.
- The discs may warp making the disc unplayable.
- The labels may come off during playback and prevent ejection of the discs, which may result in damage to the equipment.
USB storage device
- Connections via USB hubs are not supported.
- Firmly secure the USB storage device before driving. Do not let the USB storage device fall onto the floor, where it may become jammed under the brake or accelerator pedal.
- Depending on the USB storage device, the following problems may occur.
- Operations may vary.
- The storage device may not be recognized.
- Files may not be played back properly.
- The device may cause audible interference when you are listening to the radio.
iPod
- Do not leave the iPod in places with high temperatures.
- Firmly secure the iPod when driving. Do not let the iPod fall onto the floor, where it may become jammed under the brake or accelerator pedal.
- The settings of the iPod such as the equalizer and repeat play are changed automatically when the iPod is connected to the unit. Once the iPod is disconnected, those settings will return to the original settings.
- Incompatible text saved on the iPod will not be displayed by the unit.
Compressed audio compatibility
- Only the first 32 characters can be displayed as a file name (including the file extension) or a folder name.
- The unit may not work properly depending on the application used to encode WMA files.
- There may be a slight delay at the start of the playback of audio files embedded with image data, or audio files stored on a USB device with numerous folder hierarchies.
![]()
- Pioneer cannot guarantee compatibility with all USB mass storage devices, and assumes no responsibility for any loss of data on media players, smartphones, or other devices while using this product.
- Do not leave discs or a USB storage device in any place that is subject to high temperatures.
WMA files
File extension | .wma |
Bit rate | 48 kbps to 320 kbps (CBR), 48 kbps to 384 kbps (VBR) |
Sampling frequency | 32 kHz, 44.1 kHz, 48 kHz |
Windows Media™ Audio Professional, Lossless, Voice/DRM Stream/Stream with video | Not compatible |
MP3 files
File extension | .mp3 |
Bit rate | 8 kbps to 320 kbps (CBR), VBR |
Sampling frequency | 8 kHz to 48 kHz (32 kHz, 44.1 kHz, 48 kHz for emphasis) |
Compatible ID3 tag version | 1.0, 1.1, 2.2, 2.3, 2.4 (ID3 tag Version 2.x is given priority over Version 1.x.) |
M3u playlist | Not compatible |
MP3i (MP3 interactive), mp3 PRO | Not compatible |
WAV files
- WAV file formats cannot be connected via MTP.
File extension | .wav |
Quantization bits | 8 and 16 (LPCM), 4 (MSADPCM) |
Sampling frequency | 16 kHz to 48 kHz (LPCM), 22.05 kHz and 44.1 kHz (MS ADPCM) |
AAC files (DEH-X6800BT/ X6810BT/X4800BT/X4810BT only)
Compatible format | AAC encoded by iTunes |
File extension | .m4a |
Sampling frequency | 11.025 kHz to 48 kHz |
Transmission rate | 16 kbps to 320 kbps, VBR |
Apple Lossless | Not compatible |
AAC file bought from the iTunes Store (.m4p file extension) | Not compatible |
Disc
- Regardless of the length of the blank section between the songs from the original recording, compressed audio discs play with a short pause between songs.
Playable folder hierarchy | Up to eight tiers (A practical hierarchy is less than two tiers.) |
Playable folders | Up to 99 |
Playable files | Up to 999 |
File system | ISO 9660 Level 1 and 2, Romeo, Joliet |
Multi-session playback | Compatible |
Packet write data transfer | Not compatible |
USB device
- There may be a slight delay when starting playback of audio files on a USB storage device with numerous folder hierarchies.
Playable folder hierarchy | Up to eight tiers (A practical hierarchy is less than two tiers.) |
Playable folders | Up to 500 |
Playable files | Up to 15 000 |
Playback of copyright-protected files | Not compatible |
Partitioned USB device | Only the first partition can be played. |
iPod compatibility
This unit supports only the following iPod models. Supported iPod software versions are shown below. Older versions may not be supported.
Made for
- iPod touch (1st through 5th generation)
- iPod classic
- iPod with video
- iPod nano (1st through 7th generation)
- iPhone 6
- iPhone 6 Plus
- iPhone 5s
- iPhone 5c
- iPhone 5
- iPhone 4s
- iPhone 4
- iPhone 3GS
- iPhone 3G
- iPhone
- Operations may vary depending on the generation and/or software version of the iPod.
- Users of iPod with the Lightning Connector should use the Lightning to USB Cable (supplied with iPod).
- Users of iPod with the Dock Connector should use the CD-IU51. For details, consult your dealer.
- Refer to the iPod manuals for information about the file/format compatibility.
- Audiobook, Podcast: Compatible
![]()
Pioneer accepts no responsibility for data lost on the iPod, even if that data is lost while this unit is used.
Sequence of audio files
The user cannot assign folder numbers and specify playback sequences with this unit. Sequence of audio file depends on the connected device.
Note that the hidden files in a USB device cannot be played back.
Example of a hierarchy
![]()
01 to 05: Folder number
to
: Playback sequence
Specifications
General
Power source: 14.4 V DC (10.8 V to 15.1 V allowable)
Grounding system: Negative type
Maximum current consumption: 10.0 A
Dimensions (W × H × D):
DIN
Chassis: 178 mm × 50 mm × 165 mm (7 in. × 2 in. × 6-1/2 in.)
Nose: 188 mm × 58 mm × 17 mm (7-3/8 in. × 2-1/4 in. × 5/8 in.)
D
Chassis: 178 mm × 50 mm × 165 mm (7 in. × 2 in. × 6-1/2 in.)
Nose: 170 mm × 46 mm × 17 mm (6-3/4 in. × 1-3/4 in. × 5/8 in.) Weight: 1 kg (2.2 lbs)
Audio
Maximum power output:
- 50 W × 4 ch/4 Ω (for no subwoofer)
- 50 W × 2 ch/4 Ω + 70 W × 1 ch/2 Ω (for subwoofer)
Continuous power output:
22 W × 4 (50 Hz to 15 000 Hz, 5 %
THD, 4 Ω load, both channels driven)
Load impedance: 4 Ω (4 Ω to 8 Ω allowable)
Pre-out maximum output level: 2.0 V
Loudness contour: +10 dB (100 Hz), +6.5 dB (10 kHz) (volume: –30 dB)
Equalizer (5-Band Graphic Equalizer):
Frequency: 80 Hz/250 Hz/800 Hz/2.5 kHz/8 kHz
Equalization range: ±12 dB (2 dB step)
Subwoofer (mono):
Frequency: 50 Hz/63 Hz/80 Hz/100
Hz/125 Hz/160 Hz/200 Hz
Slope: –12 dB/oct, –24 dB/oct
Gain: +6 dB to –24 dB
Phase: Normal/Reverse
CD player
System: Compact disc audio system
Usable discs: Compact disc
Signal-to-noise ratio: 94 dB (1 kHz) (IHF-A network)
Number of channels: 2 (stereo)
MP3 decoding format: MPEG-1 & 2 Audio Layer 3
WMA decoding format: Ver. 7, 7.1, 8, 9, 10, 11, 12 (2 ch audio) (Windows Media Player)
AAC decoding format:
MPEG-4 AAC (iTunes encoded only) (Ver. 10.6 and earlier)
(DEH-X6800BT/X6810BT/X4800BT/ X4810BT)
WAV signal format: Linear PCM & MS ADPCM (Non-compressed)
USB
USB standard specification: USB 2.0 full speed
Maximum current supply: 1 A
USB Protocol:
MSC (Mass Storage Class)
MTP (Media Transfer Protocol)
AOA (Android Open Accessory) 2.0
File system: FAT12, FAT16, FAT32
MP3 decoding format: MPEG-1 & 2 Audio Layer 3
WMA decoding format: Ver. 7, 7.1, 8, 9, 10, 11, 12 (2 ch audio) (Windows Media Player)
AAC decoding format:
MPEG-4 AAC (iTunes encoded only) (Ver. 10.6 and earlier)
(DEH-X6800BT/X6810BT/X4800BT/ X4810BT)
WAV signal format: Linear PCM & MS ADPCM (Non-compressed)
FM tuner
Frequency range: 87.9 MHz to 107.9 MHz
Usable sensitivity: 11 dBf (1.0 μV/75 Ω, mono, S/N: 30 dB)
Signal-to-noise ratio: 72 dB (IHF-A network)
AM tuner
Frequency range: 530 kHz to 1 710 kHz
Usable sensitivity: 25 μV (S/N: 20 dB)
Signal-to-noise ratio: 62 dB (IHF-A network)
Bluetooth
(DEH-X6800BT/X6810BT/X4800BT/X4810BT)
Version: Bluetooth 3.0 certified
Output power: +4 dBm Maximum (Power class 2)
Frequency band(s): 2 400 MHz to 2 483.5 MHz
Bluetooth profiles:
GAP (Generic Access Profile)
SDAP (Service Discovery Application Profile)
OPP (Object Push Profile)
HFP (Hands Free Profile) 1.6
PBAP (Phone Book Access Profile)
A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio/Video Remote Control Profile) 1.5
SPP (Serial Port Profile) 1.1
CEA2006 Specifications
![]()
Power output: 14 W RMS × 4 Channels (4 Ω and <= 1% THD+N)
S/N ratio: 91 dBA (reference: 1 W into 4 Ω)
NOTE
Specifications and the design are subject to modifications without notice.
After-sales service for Pioneer products
Please contact the dealer, distributor from where you purchased this unit or the authorized PIONEER Service Station for after-sales service or any other information.
Please do not ship your unit to the companies at the addresses listed below for repair without contacting them in advance.
![]()
The serial number is located on the bottom of this unit. For your own security and convenience, be sure to record this number on the enclosed warranty card.
The Safety of Your Ears is in Your Hands
Get the most out of your equipment by playing it at a safe level — a level that lets the sound come through clearly without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing. Sound can be deceiving.
Over time, your hearing "comfort level" adapts to higher volumes of sound, so what sounds "normal" can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.
ESTABLISH A SAFE LEVEL:
- Set your volume control at a low setting.
- Slowly increase the sound until you can hear it comfortably and clearly, without distortion.
- Once you have established a comfortable sound level, set the dial and leave it there.
BE SURE TO OBSERVE THE FOLLOWING GUIDELINES:
- Do not turn up the volume so high that you can't hear what's around you.
- Use caution or temporarily discontinue use in potentially hazardous situations.
- Do not use headphones while operating a motorized vehicle; the use of headphones may create a traffic hazard and is illegal in many areas.
![]()
- Do not attempt to install or service this product by yourself. Installation or servicing of this product by persons without training and experience in electronic equipment and automotive accessories may be dangerous and could expose you to the risk of electric shock, injury or other hazards.
- Do not attempt to operate the unit while driving. Make sure to pull off the road and park your vehicle in a safe location before attempting to use the controls on the device.
- This product contains chemicals known to the State of California and other governmental entities to cause cancer and birth defects or other reproductive harm. Wash hands after handling.
![]()
USE OF CONTROL OR ADJUSTMENT OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
![]()
THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL INCREASE EYE HAZARD.
![]()
- Do not allow this unit to come into contact with moisture and/or liquids. Electrical shock could result.
Also, damage to this unit, smoke, and overheating could result from contact with liquids. - Always keep the volume low enough to hear outside sounds.
![]()
This product is a class 1 laser product classified under the Safety of laser products, IEC 60825-1:2007.
![]()
Documents / Resources
References
Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
Download Pioneer DEH-X6800BT, DEH-X6810BT, DEH-X4800BT - CD RDS Receiver Manual
Need help?
Do you have a question about the DEH-X6800BT and is the answer not in the manual?
Questions and answers
