Pioneer AVH-Z3200DAB, AVH-A3200DAB, AVH-Z2200BT Quick Start Guide

What's What

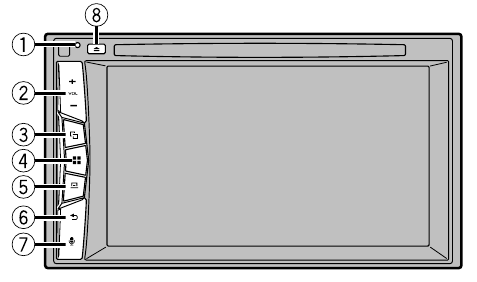

Overview

RESET Reset the microprocessor
VOL (+/-)

Switch between the Application screen and the AV operation screen

Switch to the camera view mode

Display the top menu screen

Power off

Display the menu bar

Mute or unmute

Display the top menu screen or back to previous screen

Turn off the display

Activate the voice recognition mode
Eject a disc

Selecting the clock

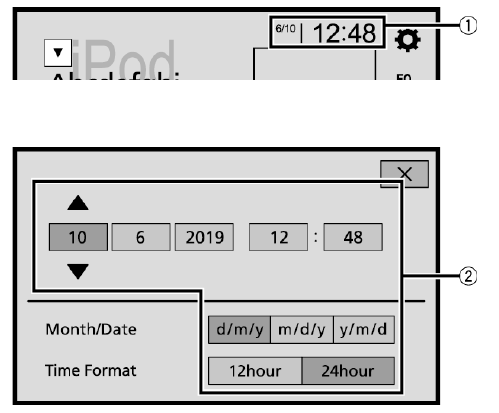

Selecting the clock

Switch to clock adjustment display
Adjust the clock

Selecting the source

Selecting the source - Mode 1

Display the AV source selection screen and select a source

Selecting the source - Mode 2

Display the source list and select a source

Tuner operation

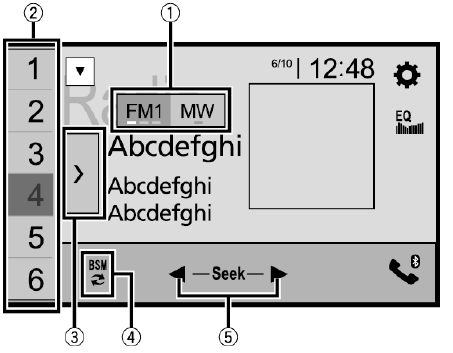

Tuner operation

Select a band

Recall the preset channel stored to a key from memory

Store the current broadcast frequency to a key

Display the preset channel list
Store the strongest broadcast frequencies

Tune into the next station

Start seek turning

Moving images operation

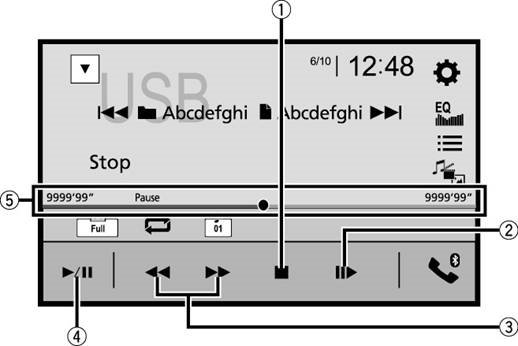

Moving images operation - Part 1

Stop playback
Move ahead one frame
Fast forwards and reverse
Pause and start playback
Change the playback point

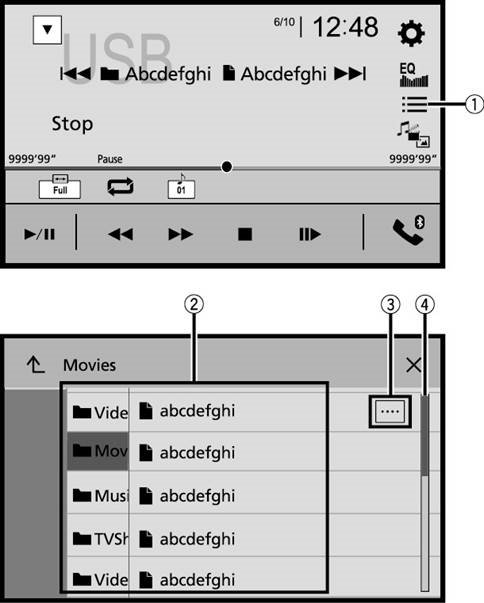

Moving images operation - Part 2

Display the playlist screen
Select a list title that you want to play
Scroll the list title or category name
Scroll the list

Audio operation

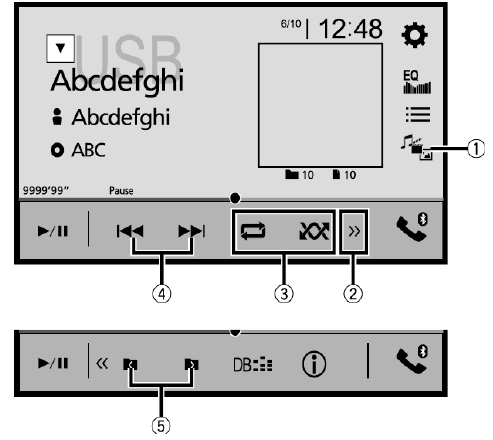

Audio operation

Switch between media file types
Display the hidden function bar
Set the function for playing audio
Skip files forwards or backwards
Select a folder

Bluetooth telephone operation

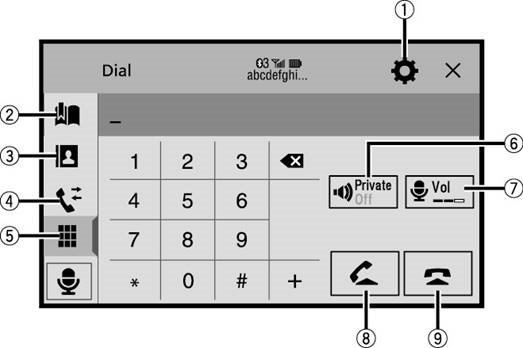

Bluetooth telephone operation

Display the Bluetooth connection menu
Display the preset dial screen
Switch to the phone book mode
Switch to the call history list
Enter the phone number directly
Turn private mode on and off
Adjust the listening volume
Accept an incoming call
End a call

This guide is intended to guide you through the basic functions of this unit.
For details, please refer to the Operation manual stored on the website. http://www.pioneer-car.eu

Declaration of Conformity with regard to the Radio Equipment Directive 2014/53/EU

Manufacturer:
Pioneer Corporation
28-8, Honkomagome 2-chome, Bunkyo-ku,
Tokyo 113-0021, JAPAN
EU Representative's & Importer:
Pioneer Europe NV
Haven 1087,Keetberglaan 1, 9120 Melsele, Belgium
ttp://www.pioneer-car.eu
