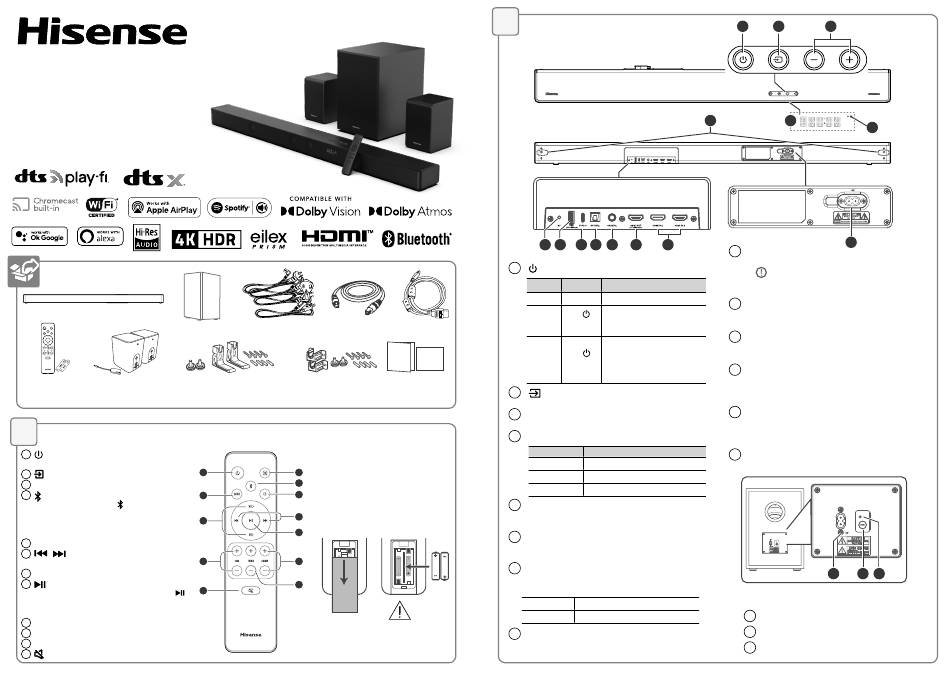

Hisense U5120GW+ Quick Start Manual

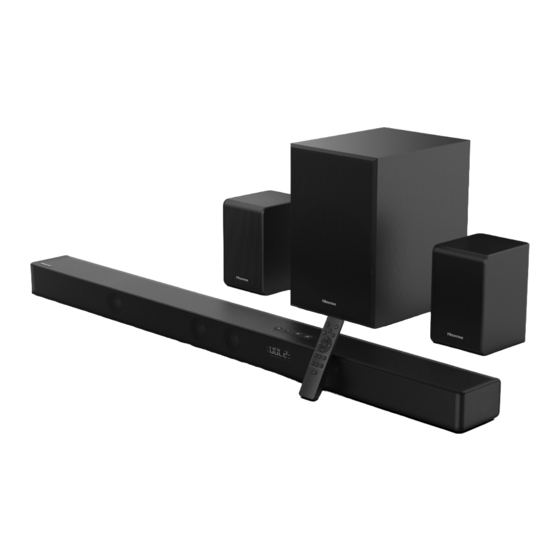

7.1.2CH Soundbar with Wireless Subwoofer
Model: U5120GW+
Quick Start Guide
What's in the Box
Main Unit
Wireless Subwoofer

Remote Control /

Rear speaker (x2) Wall Mounting Screws (x2) / Brackets (x2) /
AAA Batteries x 2 Dongle Bracket Screw (x4) / Wall Anchors (x4)
* Power cord quantity and plug type vary by regions.
1
Remote Control
1 Switch the unit between ON and
STANDBY mode.
2 Select The Play Function.
3 SURR
Adjust the surround ON/OFF.
4 (BT) Select the Bluetooth mode. Press
and hold the (BT) button to
activate the pairing function in
Bluetooth mode or disconnect the
existing paired Bluetooth device.
5 EQ Select a preset sound effect.
6 / Skip to previous/next track in BT /
USB mode.
7 VOL+/-
Increase/decrease the volume level.
8 Play/pause/resume playback in BT
/ USB mode. Press and hold the
button for 3s to enter setup menu.
Confirm a selection.
9 BASS+/- Adjust bass level.
10 TREBLE+/- Adjust treble level.
11 DIMMER+/- Adjust display brightness.
12 (MUTE) Mute or resume the sound.
OPTICAL Cable
AC power Cord *
x 4
Wall mounting kit
(for rear speaker)

Replace the Remote Control Battery

1 Press and slide the back cover to
open the battery compartment of the
remote control.
1 2
2 Insert two AAA size batteries.
4
Make sure the (+) and (–) ends of the
5
3 batteries match the (+) and (–) ends
indicated in the battery compartment.
3 Close the battery compartment cover.
6
7
8
9 11
10
12
- Do not mix old and new batteries;
- Do not mix alkaline, standard (Carbon-Zinc) or
rechargeable (Ni-Cd, Ni- MH, etc.) batteries.
2

Identifying the Parts

7 8
1
(ON/OFF) button
7
State Action
On
Semi
Press
Standby
once
HDMI Cable
Eco Press and
Standby
hold
5 seconds
User Manual /
Quick Start Guide
2
(SOURCE) button
Select the play function.
3
VOL+/VOL- buttons
Increase/decrease the volume level.
4
Wi-Fi LED indicator
LED State
Blink
Double blink
Constant on
5
Display Window / Remote Control Sensor
Show the current status.
Receive signal from the remote control.
6
Screws
Remove the screws then install the wall
mounting screws into the back of the unit.
7
PF (Wi-Fi Setup) button
• Trigger Wi-Fi setup for Play-Fi.
• Press and hold the button:
8 seconds
3 seconds
8
USB Socket
Insert the USB device to play music.
1
6
6
9 10 11 12 13
9
TYPE-C Socket
For the Dongle of wireless rear surround speaker.
8 9 10 11 12 13
Function
• Follow source state
10 OPTICAL Socket
• Wi-Fi is still on.
Use to connect to the OPTICAL OUT socket on an
• It still supports Play-Fi and
external device.
Airplay2.
11 COAXIAL Socket
• Wi-Fi is off.
Use to connect to the COAXIAL OUT socket on an
• The product enters the lower
external device.
power consumption mode.
• Restarting the system will
12 HDMI OUT (TV eARC/ARC) Socket
take a relatively longer time.
The port for connecting a TV. The port supports the
eARC/ARC HDMI feature, which allows the soundbar
to play audio that originates on the connected TV.
13
HDMI IN (1/2) Sockets
Two HDMI ports for connecting HDMI source devices, such
as a DVD player, Blu-ray Disc™ player, or gaming console.
Note that only one HDMI input is usable at a time.
Status
14 AC~ Socket
Wi-Fi Access Point (AP) mode
Connect to power supply.
Wi-Fi Protected Setup (WPS) mode
Connected / Paired successful
Wireless Subwoofer
Wi-Fi Access Point (AP) mode
1 AC~ Socket
Wi-Fi Protected Setup (WPS) mode
2 PAIR button
3 PAIR Indicator
2 3
1 2 3
5
4
5
4
14
14
The surround kit needs to be purchased
separately. This port can't be used to connect to
other Type C devices.
1 2 3
1 2 3
