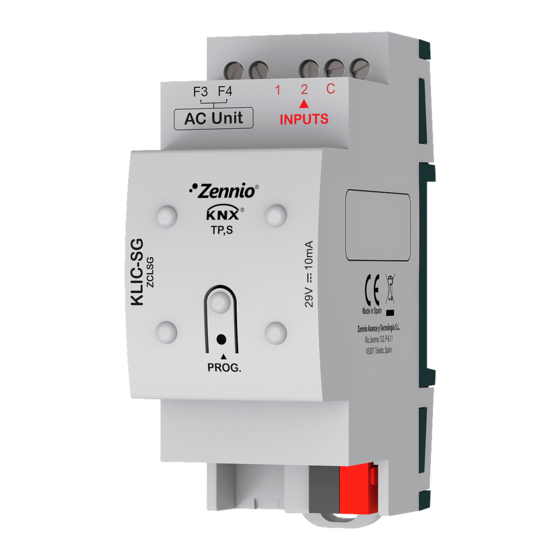

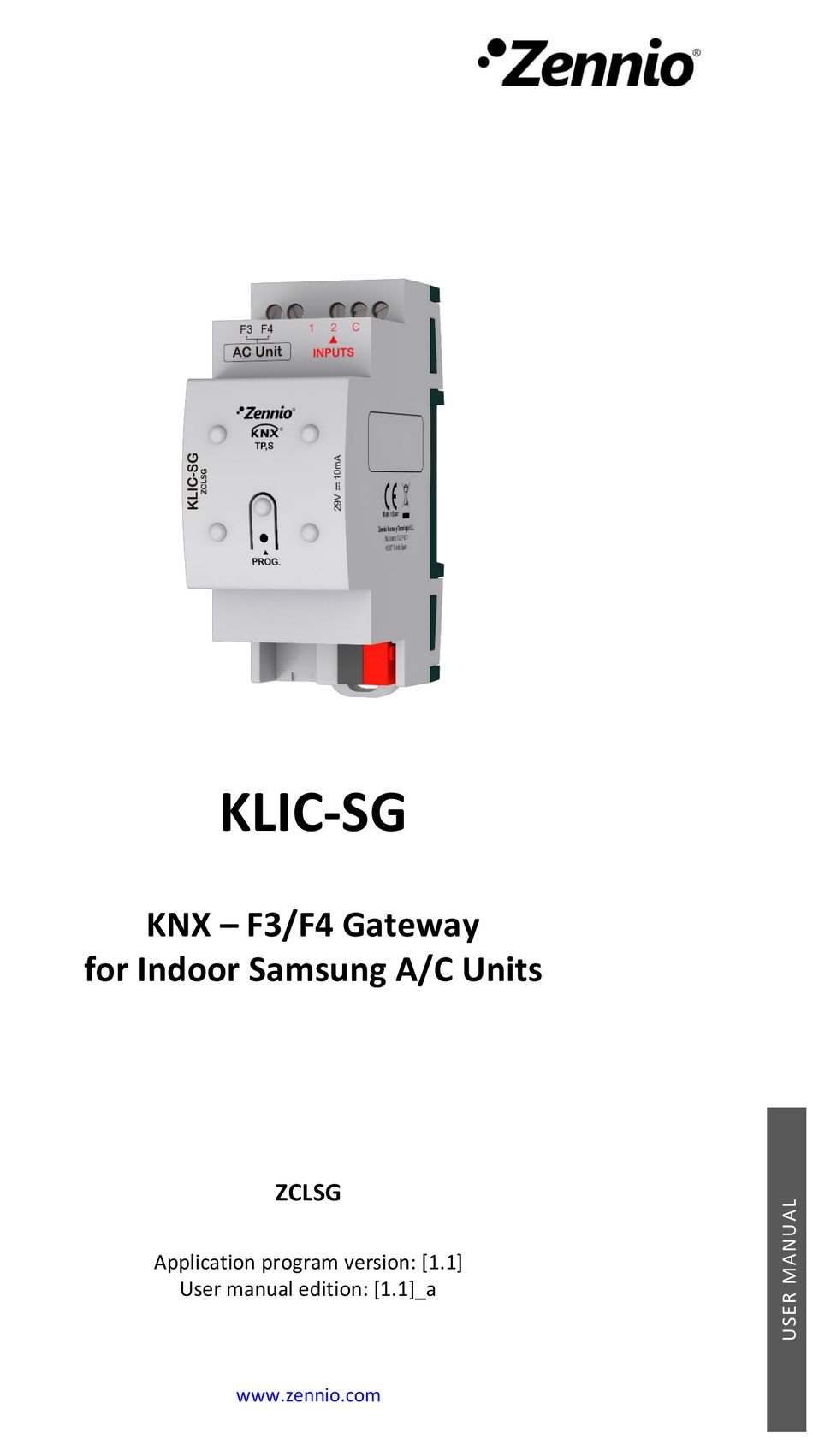

- Page 1 KLIC-SG KNX – F3/F4 Gateway for Indoor Samsung A/C Units ZCLSG Application program version: [1.1] User manual edition: [1.1]_a www.zennio.com...
-
Page 2: Table Of Contents
KLIC-SG CONTENTS Contents ........................... 2 Document Updates ........................3 Introduction ........................4 1.1 KLIC-SG ......................... 4 1.2 Installation ........................5 1.3 Start-Up and Power Loss ....................6 Configuration ........................7 2.1 General ........................7 2.2 A/C Gateway ......................10 2.2.1 Configuration ..................... -
Page 3: Document Updates
KLIC-SG DOCUMENT UPDATES Version Changes Page(s) Changes in the application program: Fan: step control. 20, 22 Flaps: horizontal and vertical. 21, 23, 25, 27 Ionizer. [1.1]_a Wind-free. Wireless remote control restriction. Suport for CST360 model. https://www.zennio.com Technical Support: https://support.zennio.com... -
Page 4: Introduction
KLIC-SG 1 INTRODUCTION 1.1 KLIC-SG KLIC-SG from Zennio is a gateway that enables full-duplex communication between the KNX home automation system and indoor range Samsung air-conditioning systems through the 2-wire connection provided by the latter. Because of this bidirectional communication, the air conditioning system can be controlled from the home automation system in the same manner as it is through its own controls. -
Page 5: Installation
F3/F4 Communication (3): 2-wire communication cable that will connect KLIC-SG to the A/C unit. The other end of the cable, therefore, is intended to be connected to the F3/F4 connector in the PCB board of the internal unit. -
Page 6: Start-Up And Power Loss
Figure 2. Connecting KLIC-SG to the F3/F4 bus. Important: KLIC-SG is not compatible with Samsung wired remote control. For detailed information about the technical features of KLIC-SG, as well as on security and installation procedures, please refer to the device Datasheet, bundled in the device packaging and also available at www.zennio.com. -
Page 7: Configuration
Inputs. Logic functions. A/C gateway. The latter entails all functions specific to KLIC-SG, i.e., all the functions related to interfacing with the A/C unit and to the management of the climate control system. ETS PARAMETRISATION After importing the corresponding database in ETS and adding the device into the topology of the desired project, the configuration process begins by entering the Parameters tab of the device. - Page 8 KLIC-SG : enables the “A/C Gateway” tab in the tree on the left. A/C Gateway [enabled] For more information, see section 2.2. Inputs [disabled/enabled]: enables or disables the “Inputs” tab in the tree on the left, depending on whether the device will or will not be connected any external accessories.
- Page 9 KLIC-SG “[AC] Mode” and “[AC] Mode (Status)”: allow setting the desired operation mode (either Automatic, Heating, Cooling, Fan or Dry) or reading the current mode, respectively. See section 2.2.1 for further options. “[AC] Fan: Percentage Control” and “[AC] Fan: Percentage Control (Status)”: allow establishing desired fan speed or reading the current fan...
-
Page 10: A/C Gateway
KLIC-SG allows controlling and monitoring an air-conditioning unit in the same way it would be through the wired remote control it is provided with. Through the KNX bus, KLIC-SG can be sent orders to control the following basic functions of the air conditioning unit: On/Off switch of the air-conditioning unit. - Page 11 These functionalities imply changes in the state of the A/C unit, which therefore notifies KLIC-SG periodically about the current state. When KLIC-SG is notified about a change, it updates the status objects and sends them to the KNX bus. In addition, KLIC-SG provides an error management function (see section 2.2.5), which allows sending messages to the KNX bus in case the A/C unit reports any errors.
- Page 12 KLIC-SG ETS PARAMETRISATION The Configuration window under A/C Gateway provides the following parameters: Figure 5. A/C Gateway. Configuration. OPERATION MODES Figure 6. A/C Gateway. Configuration. Operation modes. https://www.zennio.com Technical Support: https://support.zennio.com...
- Page 13 KLIC-SG KLIC-SG allows controlling the A/C unit operating mode through the following objects, available by default: “[AC] Mode”: 1-Byte object which allows selecting the A/C unit operation mode. There will be only taken in account values that are appropriated with some of available modes in Samsung units, which are represented in Table 1.
- Page 14 KLIC-SG Fan [disabled/enabled]: enables the “Fan” tab, for advanced configuration of the fan functions. See section 2.2.2. TEMPERATURE MEASURED BY THE A/C UNIT Figure 8. A/C Gateway. Configuration. Temperature measured by the A/C unit. Monitoring [disabled/enabled]: enables the “[AC] AC Unit Measured Temperature”...
- Page 15 If during 3 minutes, no temperature values are received, values of the internal probe will be recuperated again to execute temperature control, in the same way as it will be controlled if KLIC-SG was configured disabling this option. If a new external temperature value is received, the control will be executed again by using this external value.
- Page 16 KLIC-SG Figure 10. A/C Gateway. Configuration. Temperature setpoint. Once these limits are enabled, several objects to modify them at run time will be available. The values of this objects will be restricted to an interval which is defined by the absolute limits established by the A/C unit (16ºC to 30ºC).
- Page 17 Deactivate; 1 = Activate]: sets the polarity of the above object. Automatic Off Delay [1…60…3600] s: sets the time KLIC-SG waits before switching the A/C machine off. Any switch-off order received during the delay will abort the time count. This delay can be changed at run time by using the object “[AC] Automatic Off: Delay”.
- Page 18 Initial Configuration: allows setting the desired initial state that KLIC-SG will send the A/C unit after programming or restarting the device: [Default]: the initial state will be the last one KLIC-SG is aware of. [Custom]: see section 2.2.3.
- Page 19 KLIC-SG Seconds [disabled/enabled]: enables the 2-Byte object “[AC] Operating time (s)”. This object can be read and overwritten during executing time. Hours [disabled/enabled]: enables the 4-Byte object “[AC] Operating time (h)”. This object can be read and overwritten during executing time.
-
Page 20: Fan
Ionizer [disabled/enabled]: enables the object “[AC] Ionizer” y “[AC] Ionizer (Status)”, to activate the air purification mode. 2.2.2 FAN In the “Fan” tab, KLIC-SG allows advanced configuration of the fan functionality. The following features are displayed: 360 CST: allows configuration for 360 cassette unit, enabling custom objects and configurations for this type of IDU. - Page 21 / 4]: specifies the number of the fan levels distinguished by A/C unit. KLIC-SG allows the sending of fan speed orders to the A/C unit to switch the ventilation speed along the available levels. To that end, KLIC-SG provides a percentage control through the objects “[AC] Fan: percentage control”...
- Page 22 KLIC-SG Control Value Status Value Level sent to the A/C unit 0 (auto) 1-33% 1 (low) 34-66% 2 (medium) 67-100% 100% 3 (high) Table 3. Fan Speed for 3 levels of ventilation. Control Value Status Value Level sent to the A/C unit...
- Page 23 KLIC-SG will let activating/deactivating the automatic mode or reading the current status, respectively. Moreover, the polarity can be configured by parameter: Automatic Mode Object Polarity [0 = Automatic On; 1 = Automatic Off = Automatic Off; 1 = Automatic On]: sets the polarity of the above objects.
-
Page 24: Initial Configuration
A/C unit is switched off. 2.2.3 INITIAL CONFIGURATION The custom initial configuration allows setting the desired status that KLIC-SG will send the A/C unit after downloading or restarting the device. This status is defined in terms of on/off, mode, fan speed, air flow direction, flaps (horizontal and vertical) and temperature setpoint. - Page 25 A/C machine. The delay parametrized in initial configuration sending is approximate, due to it starts to be counted when the communication between KLIC-SG and A/C unit is confirmed. This option is only available if 360 CST is selected in the “Fan” tab.
-
Page 26: Scenes
2.2.4 SCENES The Scenes function allows defining a set of statuses (in terms of On/Off, mode, fan speed, etc.) that KLIC-SG will send to the A/C unit whenever it receives the corresponding scene values from the KNX bus. ETS PARAMETRISATION After enabling this function (see section 2.2.1), a new tab named Scenes will be... -
Page 27: Error Handling
Communication or internal errors: errors in the communication process between KLIC-SG and the A/C unit: Communication error: KLIC-SG is not able to establish communication with the A/C machine. This option is only available if 360 CST is selected in the “Fan” tab. - Page 28 0.5 seconds in green and stay off for other 3 seconds when wrong acknowledgement error is active. Errors in the A/C unit: errors reported by the A/C unit itself. KLIC-SG can notify the KNX bus about the reported error code, although referring to the specific documentation of the A/C machine is advisable in order to obtain further information.
- Page 29 KLIC-SG 2) Reset the A/C unit (IDU). 3) If wired control is available, check if it reports any error. 4) If internal communication error is still active, contact technical support. Errors in the A/C machine: “[AC] A/C Unit Error: Active Error”: 1-Bit object which indicate that there is an error in the A/C unit.
-
Page 30: Inputs
Temperature Probe, for the connection of a temperature sensor from Zennio. Motion Detector, for the connection of a motion detector from Zennio. 2.2.1 BINARY INPUT Please refer to the “Binary Inputs” user manual, available in the KLIC-SG product section, at the Zennio website (www.zennio.com). 2.2.2 TEMPERATURE PROBE Please refer to the “Temperature Probe”... -
Page 31: Logic Functions
KNX bus, and to send the results through other communication objects specifically enabled for this purpose. KLIC-SG can implement up to 10 different and independent functions, each of them entirely customisable and consisting in up to 4 consecutive operations each. -
Page 32: Annex I. Communication Objects
KLIC-SG ANNEX I. COMMUNICATION OBJECTS “Functional range” shows the values that, with independence of any other values permitted by the bus according to the object size, may be of any use or have a particular meaning because of the specifications or restrictions from both the KNX standard or the application program itself. - Page 33 KLIC-SG 0% = Auto; [0,4..25,1]% = S1; 1 Byte C - W - - DPT_Scaling 0% - 100% [AC] Fan: Percentage Control [25,5..50,2]% = S2; [50,6..75,3] % = S3; [75,5..100]% = S4 0% =Auto; [0,4...33.33] % = S1; 1 Byte...
- Page 34 KLIC-SG 1 Bit C R - T - DPT_Switch [AC] Automatic Off (Status) 0 = Activated; 1 = Deactivated 2 Bytes C - W - - DPT_TimePeriodSec 0 - 65535 [AC] Automatic Off: Delay [0...3600] s (0 = Disabled) -2147483648 -...
- Page 35 KLIC-SG 1 Byte C - - T - DPT_Value_1_Ucount 0 - 255 [ERV] Fan: Step 2 Bytes C - - T - DPT_Value_Humidity -12% - 12% [ERV] Outdoor Humidity 63, 67 2 Bytes C R - T - DPT_Value_Temp -273.00º - 670433.28º [Ix] Current Temperature...
- Page 36 KLIC-SG 1 Bit C - - T - DPT_Switch [Ix] [Short Press] Light On Sending of 1 (On) 1 Bit C - - T - DPT_Switch [Ix] [Short Press] Light Off Sending of 0 (Off) 1 Bit C - W T -...
- Page 37 KLIC-SG 0x8 (Stop) 0xD (Inc. by 100%) 0xF (Inc. by 1%) 0x0 (Stop) 0x1 (Dec. by 100%) 0x7 (Dec. by 1%) Long Pr. -> Brighter/Darker; 4 Bit C - - T - DPT_Control_Dimming [Ix] [Long Press] Brighter/Darker 0x8 (Stop) Release -> Stop 0xD (Inc.
- Page 38 KLIC-SG 4=Building Protection 1 Bit C R - T - DPT_Switch [Ix] Presence State (Binary) Binary Value 90, 119 1 Bit C R - T - DPT_Ack [Ix] Presence: Slave Output 1 = Motion Detected Binary Value to Trigger the...
- Page 39 KLIC-SG 207, 208, 209, 210, 211, -2147483648 - 4 Bytes C - W - - DPT_Value_4_Count [LF] (4-Byte) Data Entry x 4-Byte Data Entry 212, 213, 214 2147483647 1 Bit C R - T - DPT_Bool [LF] Function x - Result...
- Page 40 Join and send us your inquiries about Zennio devices: https://support.zennio.com/ Zennio Avance y Tecnología S.L. C/ Río Jarama, 132. Nave P-8.11 45007 Toledo (Spain). Tel. +34 925 232 002. www.zennio.com info@zennio.com...
