Draytek Vigor2135 Series Quick Start Manual page 13

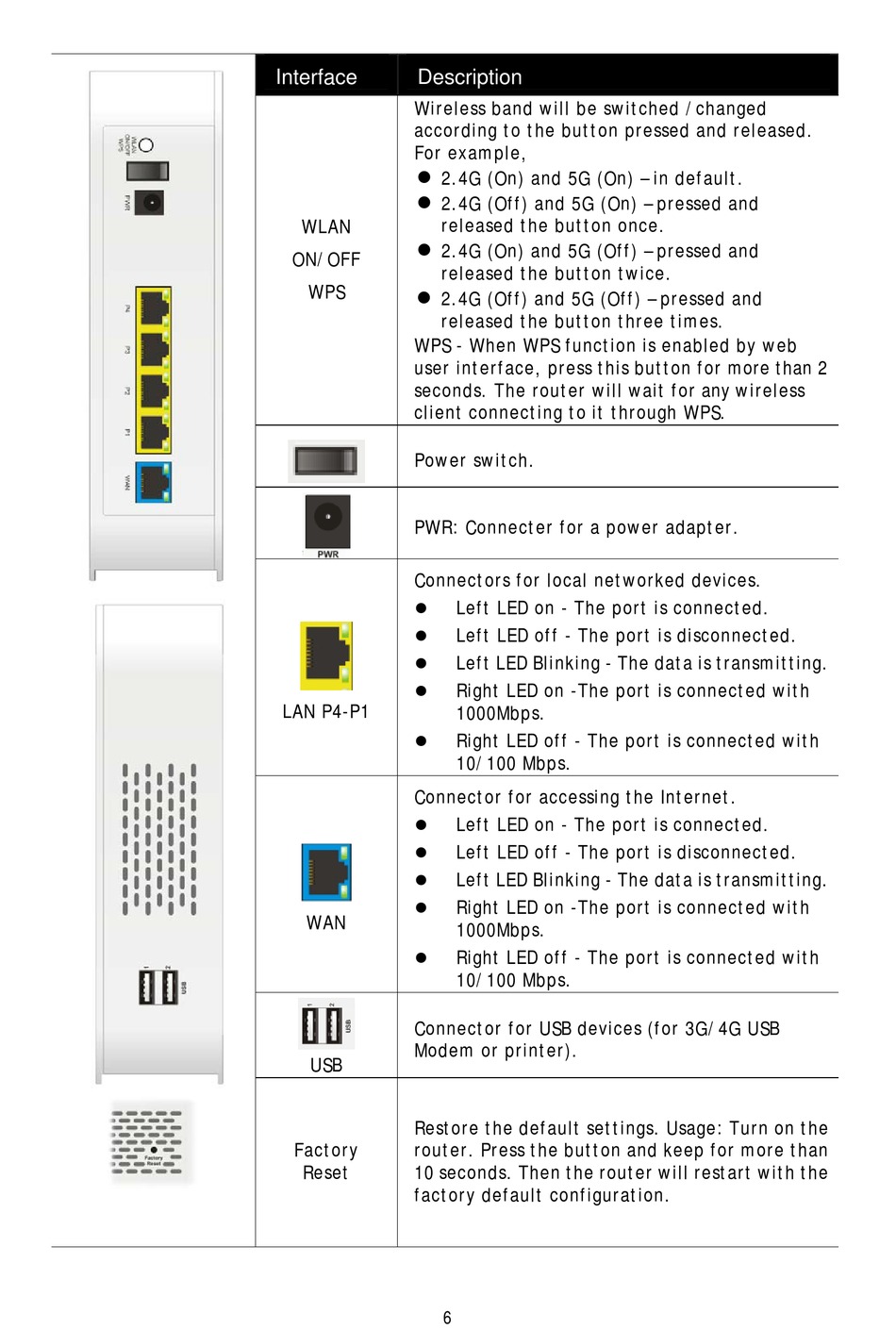

Interface Description
Wireless band will be switched /changed
according to the button pressed and released.
For example,

2.4G (On) and 5G (On) – in default.

2.4G (Off) and 5G (On) – pressed and
released the button once.
WLAN

2.4G (On) and 5G (Off) – pressed and
ON/OFF
released the button twice.
WPS

2.4G (Off) and 5G (Off) – pressed and
released the button three times.
WPS - When WPS function is enabled by web
user interface, press this button for more than 2
seconds. The router will wait for any wireless
client connecting to it through WPS.
Power switch.
PWR: Connecter for a power adapter.
Connectors for local networked devices.




LAN P4-P1

Connector for accessing the Internet.




WAN

Connector for USB devices (for 3G/4G USB
Modem or printer).
USB
Restore the default settings. Usage: Turn on the
Factory router. Press the button and keep for more than
Reset 10 seconds. Then the router will restart with the
factory default configuration.
6
Left LED on - The port is connected.
Left LED off - The port is disconnected.
Left LED Blinking - The data is transmitting.
Right LED on -The port is connected with
1000Mbps.
Right LED off - The port is connected with
10/100 Mbps.
Left LED on - The port is connected.
Left LED off - The port is disconnected.
Left LED Blinking - The data is transmitting.
Right LED on -The port is connected with
1000Mbps.
Right LED off - The port is connected with
10/100 Mbps.
