Summary of Contents for Power GXS7100iRD
- Page 1 PORTABLE GENERATOR Owner’s Manual GXS7100iRD DO NOT RETURN TO STORE! CALL US FIRST 855-888-3598 FOR SUPPORT Model# 3222003 REV01 Model: Serial: Date Purchased: SAVE THIS MANUAL FOR FUTURE REFERENCE P/N: 32082-04705-03...
-
Page 2: Table Of Contents
Table of Contents Introduction..........1 Low Idle Switch........23 Stopping the Engine......23 Safety............1 Low Oil Shutdown........24 General Safety Precautions....2 Do Not Overload Generator....24 Unpacking the Generator.......8 Changing Fuels........25 Parts Included........8 Parallel Operation.........25 Controls and Features......9 Set up and Operation......25 Control Panel Features......10 Maintenance And Storage....27 Remote Control Programming....12 Maintenance Schedule......27... -
Page 3: Introduction
INTRODUCTION Read This Manual Thoroughly The information in this manual is accurate based on products produced at the time of publication. The WARNING manufacturer reserves the right to make technical updates, corrections and product revisions at any Read and understand manual completely time without notice. -
Page 4: General Safety Precautions
Asphyxiation Electric Shock Fire Hazard Hazard Hazard Hot Surface. Explosion Moving Parts Do Not Touch the Surface. Hazard Hazard Burn Hazard Kickback Operator’s Manual GENERAL SAFETY PRECAUTIONS • Operate this product ONLY outside far away from windows, doors and vents to reduce the risk of Using a generator indoors CAN KILL YOU IN MINUTES. - Page 5 CORRECT USAGE Example location to reduce risk of carbon monoxide poisoning • ONLY use outside and downwind, far away from windows, doors and vents. • Direct exhaust away from occupied spaces. INCORRECT USAGE Do not operate in any of the following locations: •...
- Page 6 Propane/LPG (Liquid Petroleum Gas) WARNING • Propane/LPG is highly flammable and explosive. Starter cord kickback (rapid retraction) • LPG is heavier than air and can settle in low places will pull hand and arm toward engine while dissipating. faster than you can let go which could •...
- Page 7 • DO NOT tip the generator at angle which causes Water contact with a power source if not avoided, fuel to spill. will result in death or serious injury.
- Page 8 WARNING WARNING Starter and other rotating parts could entangle hands, hair, clothing, or accessories. Keep away from rotating parts, failure to do so could result in Exhaust heat/gases could ignite combustibles, death or serious injury. structures or damage fuel tank causing a fire, •...
- Page 9 WARNING Medical and Life Support Uses. • In case of emergency, call 911 immediately. • NEVER use this product to power life support devices or life support appliances. • NEVER use this product to power medical devices or medical appliances.
-
Page 10: Unpacking The Generator
UNPACKING THE GENERATOR • Open carton completly. Remove and verify carton content prior to assembly. Your generator ships with following items. • Call our customer service at 855-888-3598 with the unit model and serial number for any missing item. • Record model, serial number, and date of purchase on front cover of this munual for your own record. -
Page 11: Controls And Features
CONTROLS AND FEATURES 1 - Control Panel 6 - Maintenance Cover 2 - Telescopic Handle 7 - Support Leg 3 - Romote Holder 8 - Engine Oil Access Cover 4 - Fuel Cap 9 - Muffler/Spark Arrester 5 - Recoil Starter 10 - Wheel 11 - Propane Inlet Page 09... -
Page 12: Control Panel Features
See CO WATCH-GUARD section for more information. provide120 volt output up to 30 amps. 16. Starting Dial Switch: Used to start and stop the generator. NOTE: Total power drawn from all outlets must not exceed the nameplate rating. Page 10... - Page 13 AC outputs to protect theinverter. Press the overload reset button to restore the power without 3. Low Oil Indicator LED(Red): Illuminates when the stoppingthe engine.
-
Page 14: Remote Control Programming
REMOTE CONTROL PROGRAMMING Before the generator can be started , an initial start-up Press and hold the START button of the remote procedure must be performed so the generator and the control fob, the engine push button red light will remote control recognize each other. -
Page 15: Specifications
Maximum wattage and current are subject to and limited by such factors as fuel BTU content, ambient temperature, altitude, engine conditions, etc. Maximum power decreases about 3.5% for each 1,000 feet above sea level, and will also decrease about 1% for each 10°F(6°C) above 60°F( 16°C) ambient temperature. -
Page 16: Co Watch-Guard
CO WATCH-GUARD Carbon Monoxide (CO) Detection and Auto Shutoff System Your Generator is equipped with Carbon Monoxide (CO) WATCH-GUARD detect system for your protection and safety. This detecting and shutoff system monitors for the accumulation of poisonous CO gas around the generator produced by engine exhaust when the generator is running. - Page 17 2-Blinking Yellow Light provides notification that a CO WATCH-GUARD fault has occurred and no longer provides protection. The generator is shutoff automatically and the yellow light will blink for at least five minutes after shutoff. Call A-iPower Customer Service 855-888-3598 for repair. Do not use the generator until the sensor is working properly.
-
Page 18: Add Engine Oil
Add Engine Oil NOTICE We recommend using SAE 10W-30 APISJ oil for We consider the first 5 hours of run time to be the best performance. Other high-quality detergent oils break-in period for the unit. During the break in (APISJ or higher) are acceptable. Do not use special period stay at or below 50% of the running watt additives. -
Page 19: Add Fuel: Gasoline
Add Fuel: Gasoline WHEN ADDING GASOLINE • Only fill the gasoline tank outdoors in a DANGER well-ventilated area. • DO NOT overfill gasoline tank. Allow space for fuel expansion. • If gasoline spills, wipe spilled gasoline from the unit or wait until it evaporates before starting engine. Gasoline and gasoline vapor are highly flammable •... - Page 20 • Use only an approved LPG cylinder equipped with Propane/LPG is highly flammable and explosive. an OPD (overfilling prevention device) valve. Fire or explosion can cause severe burns or death. • DO NOT check for leaks with a lighted match or •...
-
Page 21: Fuel Sense
The connection must isolate the generator propane intake with gasoline intake. power from the utility power and comply with all applicable laws and electrical codes. Operation at High Altitude At altitudes over 5,000 feet(1524 meters), a minimum 85 octane gasoline is acceptable. -
Page 22: Operation
L5-30R and TT-30R will not output power when Install UL1449, CSA-listed, plug-in surge the Voltage Selector is in the “240V” position. The suppressors on the outlets feeding your sensitive 240V outlet such as L14-30R will not output power equipment. Page 20... -
Page 23: Select The Fuel Source (Gasoline)
5a. Remote start when the Voltage Selector Switch in in the “120V” Turn and hold the REMOTE START switch for 5 position. seconds until the engine start. WARNING Only change the Voltage Selector Switch with the generator OFF. DO NOT switch the voltage while the generator is running or powering appliances. -
Page 24: Connecting Electrical Loads
2. Fully open the Propane/LPG cylinder knob. WARNING Starter cord kickback (rapid retraction) will pull hand and arm toward engine faster than you can let go which could cause broken bones, fractures, bruises, or sprains resulting in serious injury. When starting engine, pull cord slowly until resistance is felt and then pull rapidly to avoid 3. -
Page 25: Low Idle Switch
The generator will detect loads as they are applied and increase engine speed (RPM). To run the generator at maximum power and speed (RPM), push the LOW IDLE Switch to the OFF position. 3. Turn the starting dial switch to “OFF”... -
Page 26: Low Oil Shutdown
4. Turn cylinder valve to the OFF position. Do Not Overload Generator Overloading a generator in excess of its rated wattage capacity can result in damage to the generator and to connected electrical devices. To prolong the life of your generator and attached devices, follow these steps to add electrical load: 1. -
Page 27: Parallel Operation
Propane Cylinder Valve OR having an insuffi- cient remaining level of propane in the cylinder will immediately replace propane intake with gasoline intake. Parallel Operation (2 x GXS7100iRD Models) 1.Disconnect all electrical loads from the generator. WARNING Fire and electrocution hazard. Never connect or disconnect the parallel cord leads when a generator is running. - Page 28 4. The parallel operation outlets allow you to connect two AIPOWER generators to increase the total available electrical power. The AIPOWER Parallel Operation Kit can be purchased. Follow the instructions included with your parallel operation kit for proper installation and operation.
-
Page 29: Maintenance And Storage
MAINTENANCE AND STORAGE MAINTENANCE SCHEDULE NOTE: Maintenance should be performed more frequently Regular Maintenance will improve the performance when generator is used in dusty areas. and extend the life of your generator. Follow When generator has exceeded the maximum figures maintenance schedule intervals whichever occurs specified in the table, maintenance should still be first according to use. -
Page 30: Change Engine Oil
Recommended Engine Oil Type CAUTION 1 0W-3 0 1. With the help of another person, place the generator 5 W-3 0 1 0W-4 0 on an elevated platform, such as a table or work bench. 5 W-3 0 Full Synthetic 2. -
Page 31: Battery Replacement
5. Apply a layer of engine lubricant on the filter CAUTION element and squeeze it out. Battery posts, terminals contain lead and lead 6. Reinstall the filter element into the air cleaner compounds. Wash hands after handling. unit. 7. Reinstall the air filter cover plate (C). 1. -
Page 32: Valve Clearance
in. (0.7-0.8 mm). To widen gap, if necessary, 2. Loosen the bolt (A) to remove the flange pressing carefully bend the ground (top) electrode. To plate (B) and the spark arrester(C). lessen gap, gently tap ground electrode on a hard 3. -
Page 33: Long Term Storage
Short Term Storage DRAINING THE FLOAT BOWL Fill the tank with fresh gasoline and add gasoline 1. Turn the starting dial switch to the OFF position. stabilizer. Drain the carburetor float bowl. 2. Remote the maintenance cover. 1 - Add a properly formulated FUEL STABILIZER to 3. -
Page 34: Trouble Shooting
19. Fully open LPG cylinder knob / propane/LPG supply valve. 19. LPG cylinder knob / propane supply valve is not open. Engine lacks power. 1. Load is too high. 1. Reduce load. 2. Dirty air filter. 2. Replace air filter. -
Page 35: Parts Diagram And Parts List
PARTS DIAGRAM AND PARTS LIST PARTS DIAGRAM AND PARTS LIST GXS7100iRD GXS7100iRD PARTS DIAGRAM Page 33... -
Page 36: Parts List
Parts List Part Number Description Qty. Part Number Description Qty. 20260-06182-00 Engine assy. 34032-00298-00 Bushing 33089-00409-00 Engine mounting plate 20134-00330-00 Wheel assy. 33089-00410-00 Engine mounting plate 30136-00074-00 Fuel tank gasket 30101-00574-00 Hex flange bolt M10*25 30101-00398-00 Hex flange bolt M6*12 34024-00077-00 Metal wire clip 34040-00785-00... - Page 37 Parts List Part Number Description Qty. Part Number Description Qty. 34024-00062-00 Clamp 70006-00337-00 Battery charger 34038-00026-00 Carbon canister 30125-00023-00 Hex flange nut M8 30101-00398-00 Hex flange bolt M6*12 33624-00255-00 Support bracket 33624-00256-00 Support bracket 30101-00398-00 Hex flange bolt M6*12 30117-00011-00 Screw 34024-00077-00 Metal wire clip...
-
Page 38: Circuit Diagram
Circuit Diagram Page 36... -
Page 39: Warranty
WARRANTY LIMITED WARRANTY “Consumer Use” - residential household use by a retail consumer KEEP YOUR RECEIPT. Proof of purchase will be “Commercial Use” - all other use - commercial , required to substantiate any warranty claim. business, industrial, or rental purpose WHAT IS COVERED: A-iPower Corp. - Page 40 other force majeure events beyond the control of the manufacturer. Warranty limits and Implications and Consequential Damages A-iPower is not obligated to cover any loss of time, use of product, freight cost, or any other incidental or consequential claim from the use of this product. This warranty is in Lieu of all other warranties, express or implied.
- Page 41 Fontana, CA 92337 USA Phone: 855-888-3598 support@a-ipower.com www.a-ipower.com...
- Page 42 A-iPOWER WARRANTY REGISTRATION FORM Register your product by emailing this form to support@a-ipower.com or register on-line at: www.a-ipower.com. Registering your product is important , it provides the following protections: 1. You have record of product purchased 2. Customer Service can Better serve you for Warranty related issues Customer Information: Product Information: Name: _________________________...
- Page 43 Fontana, CA 92337 USA Phone: 855-888-3598 support@a-ipower.com www.a-ipower.com...
Need help?
Do you have a question about the GXS7100iRD and is the answer not in the manual?
Questions and answers

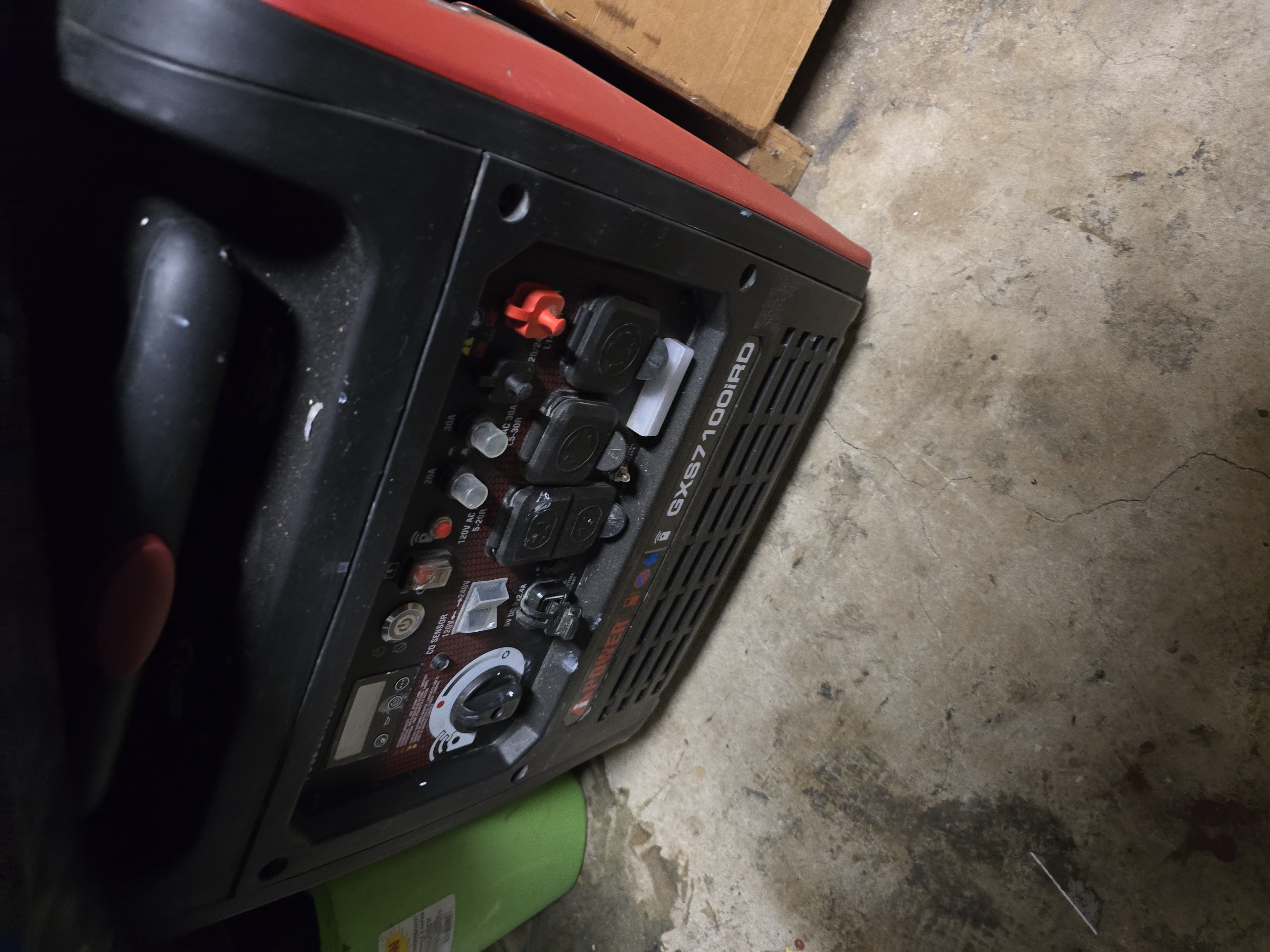

My new unit will not even turn over.
