Assembly Instructions
Model: TXC23
Seat assembly
__(1) Seat assembly
__(1) Back assembly
__(2) Sideframes
__(1) Top back rail
__(1) Seat support
__(1) Seat cushion
__(1) Back cushion
__(1) Hardware pack
TOOLS NEEDED
4mm HEX TOOL: INCLUDED
Qty.
Description
12
A - 3" Chair screw

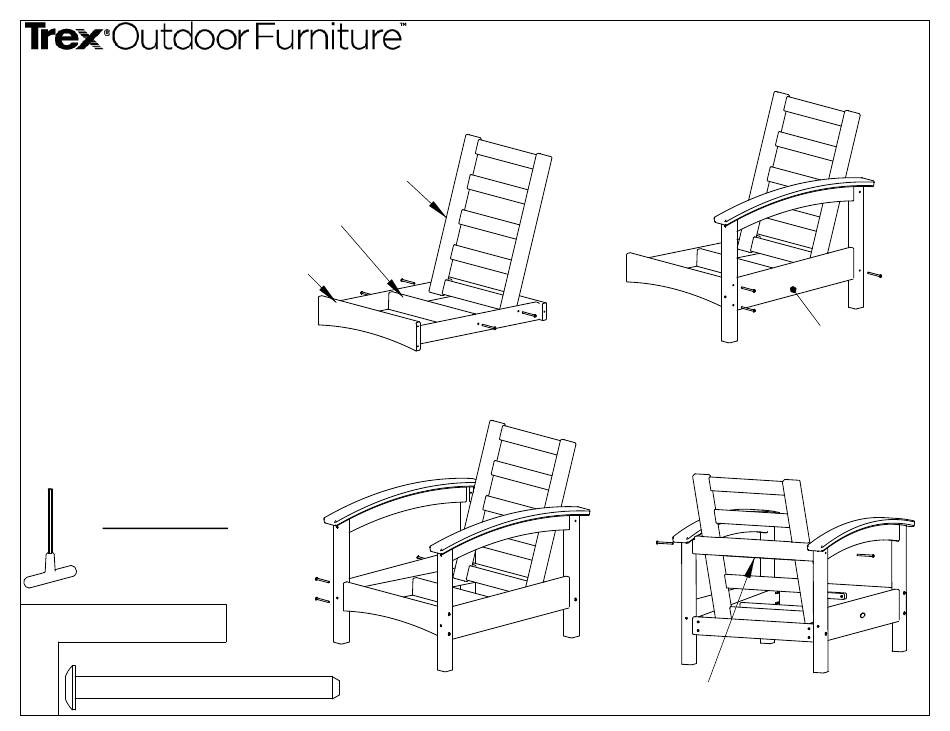

Step 1
- Attach seat support to seat assembly
using (2) 3" chair screws
- Attach back assembly to seat assembly
using (2) 3" chair screws
Back assembly
Seat support
Step 3
Repeat Step 2 on other side.
Step 2
Lay the seat assembly on its side.
Attach sideframe using (3) 3" chair screws
Step 4
- Attach top back rail to sideframes
using (2) 3" chair screws
- Insert seat and back cushions
Top back rail
Sideframe
