  • Page 1 4K IP VIDEO DECODER NVD-40...

  • Page 2: Table Of Contents

    DISPOSAL ....................6 PRODUCT OVERVIEW .................. 7 ......................7 EATURES FRONT PANEL ..................... 8 REAR PANEL ....................9 HOW TO FIND THE NVD-40 ON AN IP NETWORK ........11 NVD-40 IP F ........11 OW TO USE THE INDER TILITY OFTWARE NVD-40 LOGIN USING A WEB BROWSER ...........
  • Page 3 Further advice on the content of this manual or on the product can be obtained by contacting your local Datavideo Office or...

  • Page 4: Fcc Compliance Statement

    7. This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company.

  • Page 5: Warranty

    Warranty Standard Warranty  Datavideo equipment are guaranteed against any manufacturing defects for one year from the date of purchase.  The original purchase invoice or other documentary evidence should be supplied at the time of any request for repair under warranty.

  • Page 6: Three Year Warranty

    Camera module, PCIe Card are covered for 1 year.  The three-year warranty must be registered on Datavideo's official website or with your local Datavideo office or one of its authorized distributors within 30 days of purchase. Disposal For EU Customers only - WEEE Marking...

  • Page 7: Product Overview

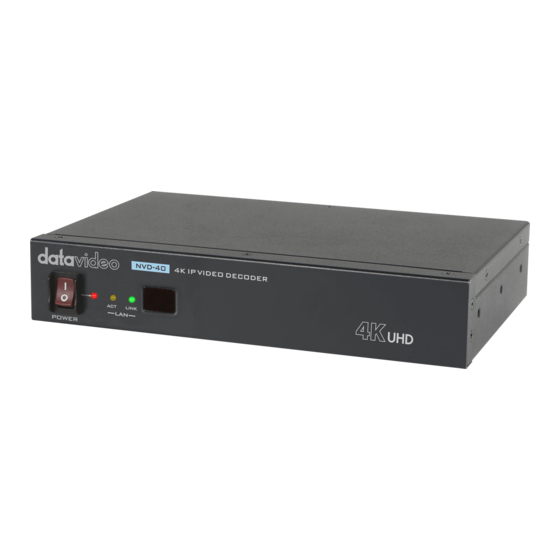

    IP Video Decoder NVD-40 Product Overview The Datavideo NVD-40 is a wired IP video decoder with HDMI, Composite and analogue audio outputs. The NVD-40 decodes all common protocols including SRT, RTSP, RTMP, UDP, TCP, HTTP, HLS and MPEG-TS and can output SD/HD video at resolutions up to 1080p60.

  • Page 8: Front Panel

    Power On/Off Switch Switches the power On / Off Power LED: The red power LED indicates that the NVD-40 has an active power supply. LAN Status LED ACT LED: The flashing yellow ACT LED indicates LAN activity (data upload and download).

  • Page 9: Rear Panel

    IP Video Decoder NVD-40 Rear Panel AUDIO OUT (RCA) RCA stereo for a line level analogue audio. HDMI OUT HDMI digital signal output connector CVBS OUT (BNC) Composite video output Ethernet Port (RJ-45) 10/100M base Ethernet Network interface DC In Socket Connect the supplied 12V PSU to this socket.
  • Page 10 IP Video Decoder NVD-40 Reset Button Press and hold for at least 5 seconds to reset the device to its factory default settings (including the password). Functions currently under development.

  • Page 11: How To Find The Nvd-40 On An Ip Network

    When the utility scans the LAN that the computer is connected to, it displays the current IP address for any NVD-40 units found on this local IP network. Double clicking on the device listed will automatically open your computer’s default web browser and navigate to the login page of the NVD-40.

  • Page 12: Nvd-40 Login Using A Web Browser

    NVD-40 NVD-40 Login using a Web Browser Type the numbers of the IP address for the NVD-40 into the search bar of the browser. Remember to include the dots in between the numbers. When entered you will then be asked to login to the NVD-40.

  • Page 13: Nvd-40 Web Browser Home Page

    IP Video Decoder NVD-40 NVD-40 Web Browser Home Page Once we have logged into the NVD-40 we are presented with the Home page. Settings option When clicked, the Settings option tab will open a new page. There are five sections of settings which can be looked at. These are: Audio Setup, Display Setup, Network Setup, Live Stream Set Up, Cloud and Account Setup, STB Mode, CEC Control and Plugins.

  • Page 14: Settings > Display Setup

    NVD-40 Settings > Display Setup By default the NVD-40 will output video over the digital HDMI port at a resolution of 2160P 50 fps and RGB colourspace. Please note: The set resolution is only applied when the stream is decoding, the device will output your monitor’s preferred resolution as it boots.

  • Page 15: Settings > Network Setup

    IP Video Decoder NVD-40 Rotate / Flip Provides the option to rotate or flip (mirror) the video output, default is off. Settings > Network Setup...
  • Page 16 By default the NVD-40 will obtain its IP address automatically from a DHCP server. If you intend to connect the NVD-40 directly to a PC or network without a DCHP server then you should assign a manually set IP address by selecting ‘Static Configuration’.

  • Page 17: Settings > Live Stream Setup

    Selecting the RTMP Server (Internal) mode automatically generates an RTMP URL and a stream key which should be entered into the corresponding fields on Datavideo NVS devices or any other video streaming encoders. The RTMP playback URL can be used to distribute the stream to multiple other decoders, the number of concurrent RTMP clients is limited only by the 100Mbps ethernet port.
  • Page 18 Only displayed if an RTSP stream is being used, the transport protocol can be manually specified. SRT Latency Only displayed if an SRT stream is being used. Secure Reliable Transport (SRT) achieves high-quality, low latency streaming across unreliable Internet connections via UDP packets. If packets are lost in transit to the NVD-40, a...

  • Page 19: Decoding Video From The Nvs-33/34/35/40 Encoders

    Decoding video from the NVS-33/34/35/40 encoders To decode video from the NVS the NVD-40 must be on the same local network (Ethernet/WiFi) or be able to access the NVS stream over the internet. When the NVS is in RTSP TCP/UDP mode Simply copy the RTSP URL from the ‘Live’...

  • Page 20: Decoding Other Stream Types

    Replace 9710 with the port number of the pushed stream. Decoding from a video sharing website First you must set the decoder mode to ‘Video Sharing’, then simply copy the URL from your web browser into the ‘Stream URL’ field on the NVD-40. For example: https://www.youtube.com/watch?v=y60wDzZt8yg...

  • Page 21: Settings > Account Setup

    IP Video Decoder NVD-40 Settings > Account Setup The NVD-40 has one admin user account and password. This account is used to keep the NVD-40 secure and gives access to the streaming settings. Default user name = admin Default password = 000000 [Zero six times] This section describes how to change the default username and password shown above to something new which is more secure.

  • Page 22: Settings > Stb Mode

    Cloud. When enabled, the NVD-40 will connect to the DVS-200 or dv Cloud server and download a list of available live and VOD channels, these channels will be displayed on the HDMI output. Channels can be selected using the supplied IR remote control.

  • Page 23: Rmc-12 Ir Remote

    Once connected you will see the on screen channel list on the HDMI output. RMC-12 IR Remote The NVD-40 is supplied with the RMC-12 IR control. Its key definitions are as follows: Vol + - Increases volume (only active when playing back) Vol - - Decreases volume (only active when playing back) CH List –...

  • Page 24: Settings > Cec Control

    This menu option allows remote users to turn the attached HDMI display on or off where the attached monitor supports this feature. Note: The CEC feature needs to be enabled in the attached monitor settings as well as on the NVD-40.

  • Page 25: Settings > Plugins

    Video Sharing & HLS mode, this function should only be used if you are instructed to do so by a Datavideo support representative. Settings > Cloud Cloud mode allows the NVD-40 to be connected to dv Cloud (https://www.dvcloud.tv) and offers the following features: ...

  • Page 26: Control Via Dv Cloud

    NVD-40 Next select the dv Cloud server you wish to connect to and optionally give the decoder a name (for example “NVD-40”). If you do not set a device name, the decoder’s serial number NVD-40-1000000032022281 will be used. Click ‘Save Changes’, the NVD-40 should now be connected to dv cloud.

  • Page 27: Link To A Live Channel On Dv Cloud

    IP Video Decoder NVD-40 You will see the NVD-40 listed as shown below. Click the decoder’s name to access its settings remotely. Link to a live channel on dv Cloud For help with setting up your encoder with dv Cloud, please see the separate...
  • Page 28 Select the ‘Hardware Decoders’ tab under ‘Add your streaming destinations’ NVD-40 Select the check box next to the decoder you wish to link and then save the settings. You will see the NVD-40 is now linked to the channel NVS-40 on the ‘Decoders’ page.
  • Page 29 IP Video Decoder NVD-40 You can monitor the decoders status from the ‘Stats’ page.

  • Page 30: Automatic Firmware Updates

    IP Video Decoder NVD-40 Automatic Firmware Updates The NVD-40 features an automatic update system to avoid the need for the user to have to manually install firmware upgrades. The NVD-40 will automatically check for updates whenever it is connected to the internet.

  • Page 31: Datavideo Nvd-40 Socket Commands

    IP Video Decoder NVD-40 Datavideo NVD-40 Socket Commands Using third party applications, users can easily connect to the NVD-40 using Telnet. To establish a connection with the NVD-40 simply open a Telnet connection to the NVD units IP address on port 23.

  • Page 32: Port Forwarding On Your Firewall / Router

    IP Video Decoder NVD-40 Port Forwarding on your firewall / router So that an NVS-33/34/35/40 video stream can be seen on the internet (beyond the default gateway), certain network related ‘ports’ should be opened on your router or firewall. Your local network administrator or I.T. support should be able to help you with this.

  • Page 33: Dimensions

    IP Video Decoder NVD-40 Dimensions Unit: mm...

  • Page 34: Specifications

    IP Video Decoder NVD-40 Specifications Interface RJ-45 Female (10/100M Ethernet) x 1 Audio/Video Input DHCP/Static IP HDMI 2.0 x 1 (Digital) Video Output Composite x 1 (Analogue) RCA (L/R) x 2 Audio Output HDMI embedded audio Indicator Power LED x 1, LAN LED x 2 (Active, Connection)
  • Page 35 IP Video Decoder NVD-40 General Web browser UI for configuration and control Control TCP/IP Socket commands Update Automatic firmware upgrade Operating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature -20°C to 60°C (-4°F to 140°F) Humidity 10% to 80% (non-condensing) Power Consumption 12V / 7.2W...

  • Page 36: Service & Support

    IP Video Decoder NVD-40 Service & Support https://www.datavideo.com/product/NVD-40 Aug-23.2022 Ver.: E1 Datavideo Technologies Co., Ltd. All rights reserved 2020...
