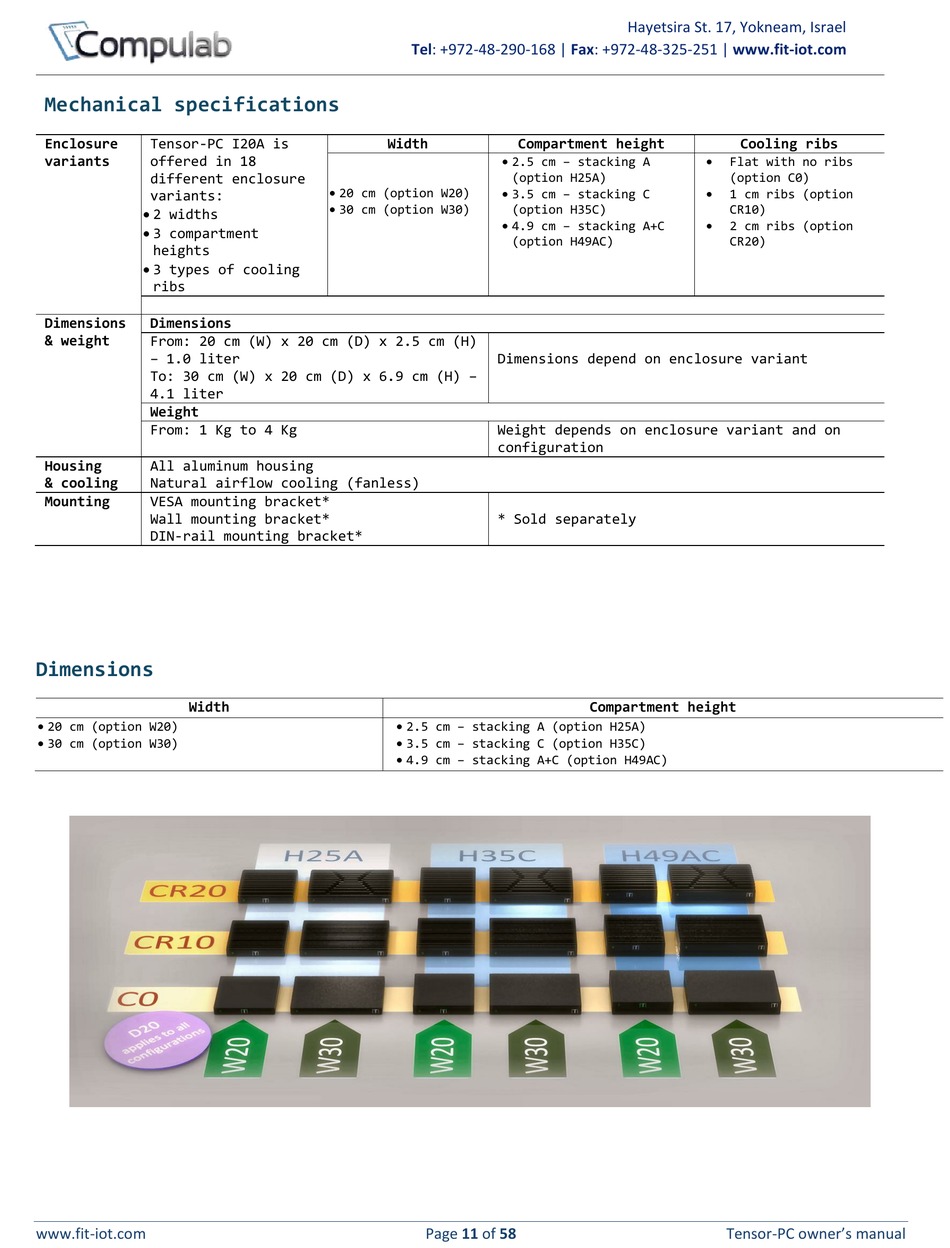

Mechanical specifications
Enclosure
Tensor-PC I20A is
variants
offered in 18
different enclosure
variants:
2 widths
3 compartment
heights
3 types of cooling
ribs
Dimensions
Dimensions
& weight
From: 20 cm (W) x 20 cm (D) x 2.5 cm (H)
– 1.0 liter
To: 30 cm (W) x 20 cm (D) x 6.9 cm (H) –
4.1 liter
Weight
From: 1 Kg to 4 Kg
Housing
All aluminum housing
& cooling
Natural airflow cooling (fanless)
Mounting
VESA mounting bracket*
Wall mounting bracket*
DIN-rail mounting bracket*
Dimensions
Width
20 cm (option W20)
30 cm (option W30)
www.fit-iot.com
Tel: +972-48-290-168 | Fax: +972-48-325-251 | www.fit-iot.com
Width
2.5 cm – stacking A
20 cm (option W20)
3.5 cm – stacking C
30 cm (option W30)
4.9 cm – stacking A+C
Dimensions depend on enclosure variant
Weight depends on enclosure variant and on
configuration
* Sold separately
2.5 cm – stacking A (option H25A)
3.5 cm – stacking C (option H35C)
4.9 cm – stacking A+C (option H49AC)
Page 11 of 58
Hayetsira St. 17, Yokneam, Israel
Compartment height
(option H25A)
(option H35C)
(option H49AC)
Compartment height
Cooling ribs
Flat with no ribs
(option C0)
1 cm ribs (option
CR10)
2 cm ribs (option
CR20)
Tensor-PC owner's manual
