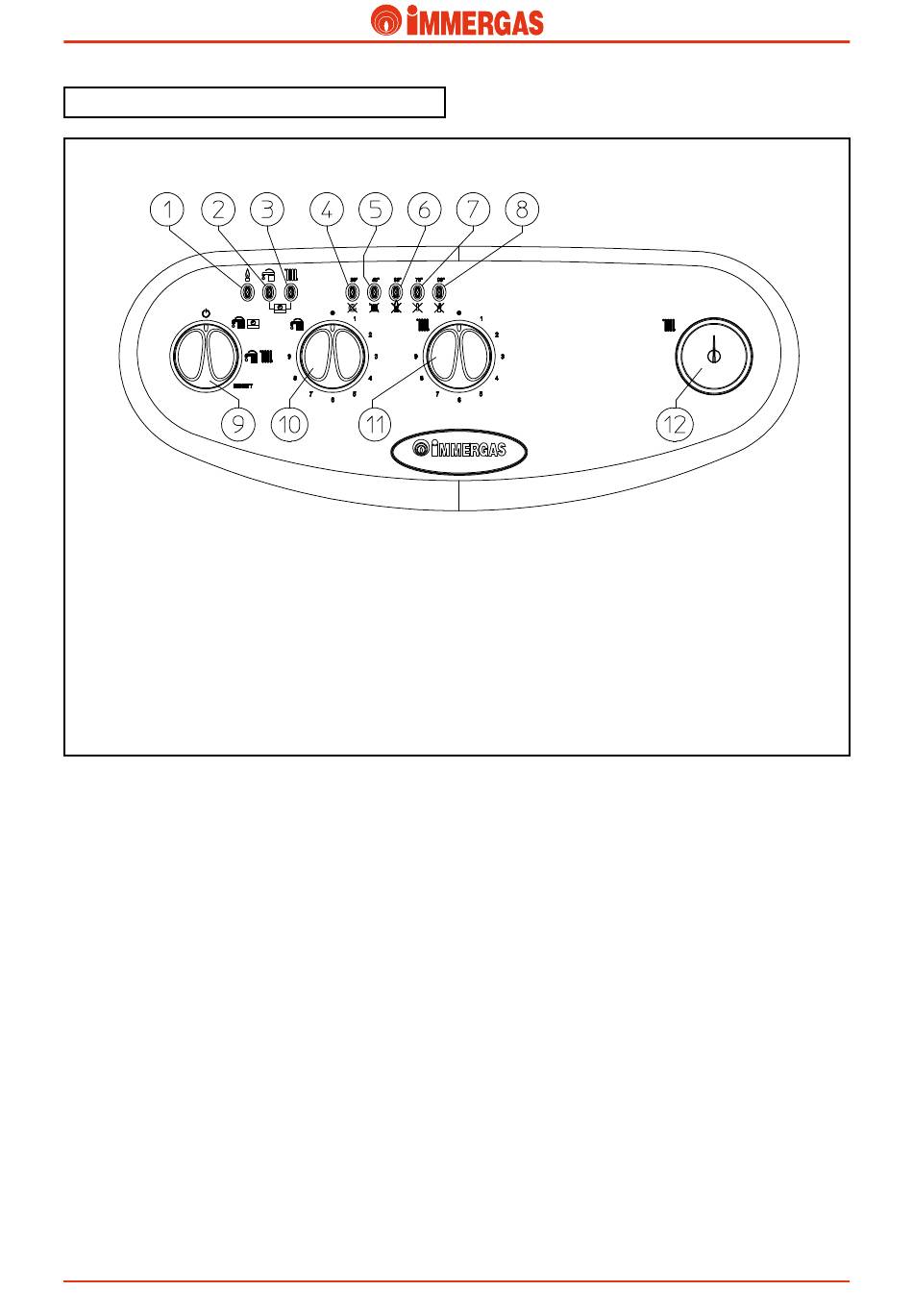

Control panel.

Key:
1 - Burner operating LED
2 - DHW function LED
3 - Central Heating function LED
4 - Temperature LED - Insufficient circulation malfunction
5 - Temperature LED - Flow probe malfunction
6 - Temperature LED - No ignition malfunction
7 - Temperature LED - Overheating malfunction
STZkW ed 10/07
Technical Documentation
8 - Temperature LED - Flue pressure switch malfunction
9 - DHW Stand-by / Remote control Selector - DHW and
Heating - Reset
10 - DHW temperature selector
11 - Heating temperature selector
12 - Boiler manometer
