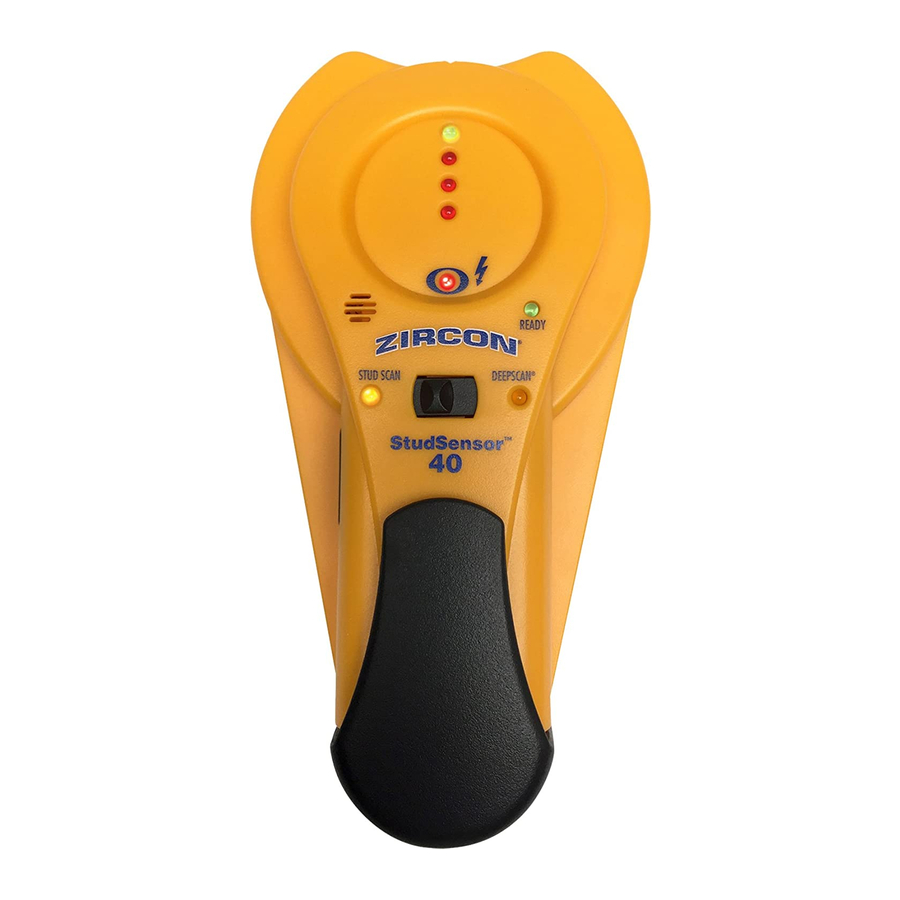

Zircon StudSensor 40 - Stud Finder With WireWarning Detection Manual

INTRODUCTION

The StudSensor^™ 40 features two scanning modes:

• STUD SCAN: Locates the edges of wood and metal studs up to ³⁄₄ in. (19 mm) deep
• DEEPSCAN^®: Locates the edges of wood and metal studs up to 1¹⁄₂ in. (38 mm) deep

WireWarning^® detection automatically detects and alerts the user to live AC wires in STUD SCAN and DEEPSCAN^® modes. When AC voltage is detected, the AC WireWarning^® detection light will come on.

Note: This product is intended only for use with an optimum voltage range of 110–127 V.

INSTALLING THE BATTERY

NOTE: DO NOT LOOSEN OR REMOVE SCREW ON THE BACK OF THE UNIT.

Squeeze sides of clip to help release clip end.

Slide a brand new 9V alkaline battery into compartment, terminal side first, matching (+) and (–) terminals from battery to case.

Replace the clip.

OPERATING TIPS

For optimum scanning results:

• Hold the tool straight up and down, parallel to the studs, and do not rotate the tool.
• Keep tool flat against the wall and do not rock, tilt, or press hard when slowly sliding across the surface being scanned.
• Avoid placing your other hand, or any other part of your body, on the surface being scanned.
• Depending on the proximity of electrical wiring or pipes to the wall surface, the scanner may detect them in the same manner as studs. Caution should always be used when nailing, cutting, or drilling in walls, floors, and ceilings that may contain these items.
• To avoid surprises, remember that studs or joists are normally spaced 16 in. (41 cm) or 24 in. (61 cm) apart and are 1¹⁄ ₂ in. (38 mm) in width. Anything closer together or a different width may not be a stud, joist, or firebreak.
  If you're receiving erratic scanning results, it may be a result of humidity, moisture within the wall cavity or drywall, or recently applied paint or wallpaper that hasn't fully dried. While the moisture may not always be visible, it will interfere with the tool's sensors. Please allow a few days for the wall to dry out.

Do not rely exclusively on the detector to locate items behind the scanned surface. Use other information sources to help locate items before penetrating the surface. Such additional sources include construction plans, visible points of entry of pipes and wiring into walls, such as in a basement, and in standard 16 and 24 in. (41 and 61 cm) stud spacing practices.

Always turn off the power when working near electrical wires.

WORKING WITH DIFFERENT MATERIALS
StudSensor™ 40 is for use on dry interior walls only. StudSensor™ 40 can scan effectively through most sheet materials, including:

• Bare wood flooring (in DEEPSCAN^® mode)
• Linoleum on wood base
• Gypsum drywall over plywood sheathing
• Wallpapered walls (if dry)
• Textured ceilings if uniform thickness (place a thin piece of cardboard on ceiling and scan over it to avoid damage to texturing)

StudSensor™ 40 is not designed to scan materials such as:

• Ceramic floor tile
• Carpeting and padding
• Wallpaper with metallic fibers
• Freshly painted walls that are still damp (may take one week or longer to dry after application)
• Lath and plaster walls
• Foil covered insulation board
• Glass or any other dense material
• Concrete

Note: Sensing depth and accuracy can vary due to moisture, content of materials, wall texture, and paint.

SELECTING THE MODE

Move selector switch to the desired mode:
STUD SCAN for finding wood or metal studs or DEEPSCAN^® for finding studs behind walls more than ³⁄₄ in. (19 mm) thick.
Tool will remain off if Power Button is not depressed.

FINDING A STUD

Always scan for studs with the tool placed flat against the wall. Move the mode switch to STUD SCAN, place the tool flat against the wall, then press and hold the Power Button. Wait for beep to confirm calibration has completed before moving tool.

Continue to hold in the Power Button then slowly slide unit horizontally across the wall, left or right. As you begin to approach a stud, the red LED segments will begin to turn on.

When the top green LED is first lit, the SpotLite^® beam shines, and a steady tone sounds, you have located the edge of the stud. Mark this spot.

Without releasing the Power Button, continue scanning beyond the marked spot until some segments of the LEDs turn off. Slide unit in reverse direction to locate other edge of stud.

Mark this second spot. The middle of stud is centered between the two marks.

WIREWARNING^® DETECTION

WireWarning^® detection works continuously in STUD SCAN and DEEPSCAN^® modes. When live AC voltage is detected, the WireWarning^® light comes on. If scanning begins over a live AC wire, the WireWarning^® indicator will flash continuously. Use extreme caution in these circumstances or whenever live AC is present.

Electrical field locators may not detect live AC wires if wires are more than 2 in. (51 mm) from the scanned surface in concrete, encased in conduit, present behind a plywood shear wall or metallic wall covering, or if moisture is present in the environment or scanned surface.

DO NOT ASSUME THERE ARE NO LIVE ELECTRICAL WIRES IN THE WALL. DO NOT TAKE ACTIONS THAT COULD BE DANGEROUS IF THE WALL CONTAINS A LIVE ELECTRICAL WIRE. ALWAYS TURN OFF THE ELECTRICAL POWER, GAS, AND WATER SUPPLIES BEFORE PENETRATING A SURFACE. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN ELECTRIC SHOCK, FIRE, AND/OR SERIOUS INJURY OR PROPERTY DAMAGE.

Always turn off the power when working near electrical wires.

HELPFUL HINTS

FCC Part 15 Class B Registration Warning
This device complies with Part 15 of FCC Rules. Operations subject to thhe following two conditions:

1. this device may not cause harmful interference, and
2. this device must accept any interference received, i including interference that may cause undesired operation.

DeepScan, SpotLite, StudSensor, WireWarning, and Zircon are registered tradememarks or trademarks of Zircon Corporation.

Visit www.zircon.com/support for the most currennt instructions.

LIMITED 1 YEAR WARRANTY
Zircon Corporation, ("Zircon") warrants this product to be free from defects in materials and workmanship for one years from the date of purchase. Any in-warranty defective product returned to Zircon*, freight prepaid with proof of purchase date and $5.00 to cover postage and handling, will be repaired or replaced at Zircon's option.
This warranty is limited to the electronic circuitry and original case of the product and specifically excludes damage caused by abuse, unreasonable use
or neglect. This warranty is in lieu of all other warranties, express or implied, and no other representations or claims of any nature shall bind or obligate Zircon. Any implied warranties applicable to this product are limited to the one year period following its purchase.
IN NO EVENT WILL ZIRCON BE LIABLE FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM POSSESSION, USE OR MALFUNCTION OF THIS PRODUCT.
In accordance with government regulations, you are advised that:

1. some states do not allow limitations on how long an implied warranty lasts and/or the exclusion or limitation of incidental or consequential damages, so the above limitations and/or exclusions may not apply to you, and further
2. this warranty gives you specific legal rights and you may also have other rights which vary from state to state.

Return product freight prepaid with proof of purchase date (dated sales receipt) and $5.00 to cover postage and handling, to:
Zircon Corporation
*Attn: Returns Department
1580 Dell Avenue
Campbell, CA 95008-6992 USA
Be sure to include your name and return address. Out of warranty service and repair, where proof of purchase is not provided, shall be returned with
repairs charged C.O.D. Allow 4 to 6 weeks for delivery.
Customer Service, 1-800-245-9265 or 1-408-963-4550
Monday–Friday, 8:00 a.m. to 5:00 p.m. PDT
