Draper 56405 Manual

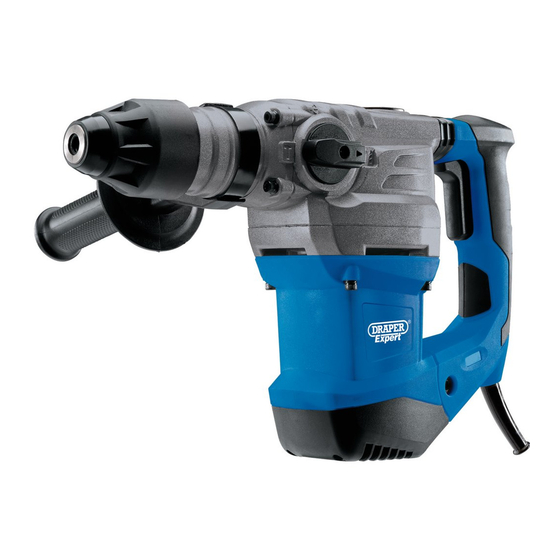

230v 5.2kg sds+ rotary hammer drill
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

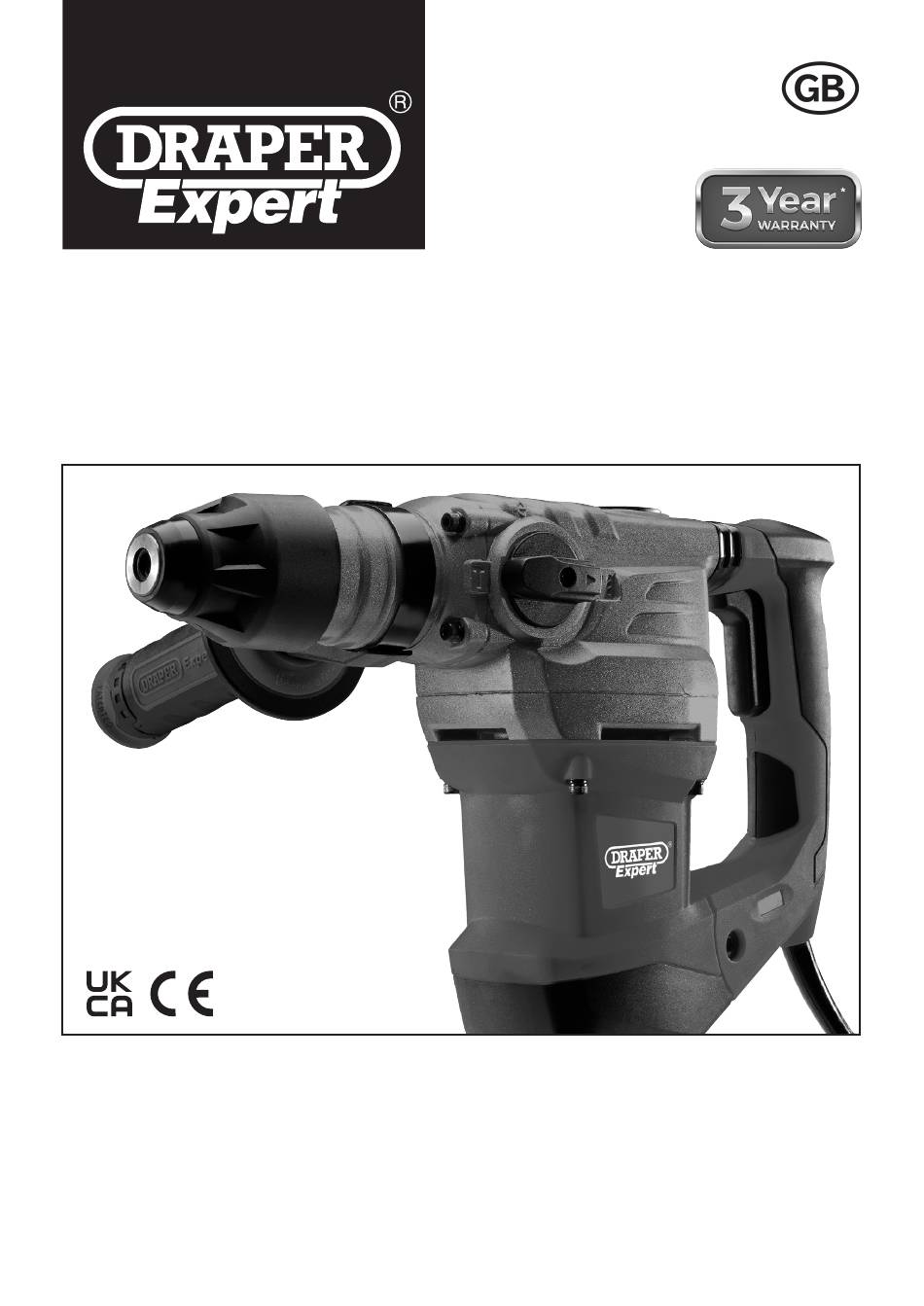

230V 5.2KG
SDS + ROTARY
HAMMER DRILL
56405
These instructions accompanying the product are the original instructions. This document is part of the product, keep
it for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed,
and contains all the necessary information to ensure its correct and safe use. By following all the general safety
instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the
product itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 56405 and is the answer not in the manual?

Questions and answers

Related Manuals for Draper 56405

Summary of Contents for Draper 56405

  • Page 1 All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.

  • Page 2: 13.1 Explanation Of Symbols Title Page 1.1 Introduction

    Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact.

  • Page 3: Table Of Contents

    13. EXPLANATION OF SYMBOLS CONTENTS 13.1 EXPLANATION OF SYMBOLS TITLE PAGE INTRODUCTION ......................2 REVISION HISTORY ...................... 2 Class II construction UNDERSTANDING THIS MANUAL ................2 Read the instruction manual. (Double insulated). COPYRIGHT NOTICE..................... 2 CONTENTS CONTENTS........................3 WEEE – WARRANTY Waste Electrical &...

  • Page 4: Warranty

    Draper warranty repair agent. Draper Tools Limited takes pride in the quality of its products and the services offered to our valued customers. As a result we offer a free, 3 year extended warranty for this product.

  • Page 5: Introduction

    For impact drilling/chiselling into brick, concrete and stone as well as for drilling in wood, metal and plastic. A full range of accessories are available from Draper Tools. This product is intended for trade use and has the quality and features to meet and exceed the expectations of the most demanding user.

  • Page 6: Health And Safety Information

    HEALTH AND SAFETY INFORMATION 5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE When using any type of power tool there are steps that should be taken to make sure that you, as the user, remain safe. Common sense and a respect for the tool will help reduce the risk of injury. Read the instruction manual fully.

  • Page 7: Additional Safety Instructions For Hammer Drills

    ● Wear appropriate ear protection. Exposure to noise can lead to hearing loss. Although technically possible, Draper Tools do not recommend the use of this machine for drilling into wood, metal or plastic. This machine is designed for drilling through brick, concrete and is ●...

  • Page 8: Residual Risk

    HEALTH AND SAFETY INFORMATION 5.3 RESIDUAL RISK Important note: Although the safety instructions and operating manuals for our tools contain extensive instructions of safe working with power tools, every power tool involves a certain residual risk which can not be completely excluded by safety mechanisms. Power tools must therefore always be operated with caution! 5.4 CONNECTION TO THE POWER SUPPLY Caution: Risk of electric shock.

  • Page 9: Technical Description

    TECHNICAL DESCRIPTION 6.1 IDENTIFICATION (1) SDS+ chuck. (2) Gearbox access cover. (3) On/Off trigger switch. (4) Hand grip. (5) Rotary/hammer selector. (6) Plug and cable. (7) Drilling/chiselling selector. (8) Auxiliary handle. - 9 -...

  • Page 10: Unpacking And Checking

    Lay the contents out and check them against the parts shown below. If any part is damaged or missing; please contact the Draper Help Line (the telephone number appears on the Title page) and do not attempt to use the product.

  • Page 11: Preparing The Drill

    PREPARING THE DRILL Note: Remove the plug from the socket before carrying out adjustment, servicing or maintenance. 8.1 AUXILIARY HANDLE – FIG.1 Warning! Use auxiliary handle supplied with the tool. Loss of control can cause personal injury. When fitting the auxiliary handle (8): –...

  • Page 12: Basic Hammer Drill Operations

    BASIC HAMMER DRILL OPERATIONS Warning! Prior to beginning any drilling, carefully (7.1) check the surface for the presence of electric cable, gas or water pipes and other dangerous or damaging contents. If unsure do not proceed. Note: Remove the plug from the socket before carrying out adjustment, servicing or maintenance.

  • Page 13: Hammer Drilling

    BASIC HAMMER DRILL OPERATIONS 9.3 HAMMER DRILLING – FIGS.6 – 7 – Rotate the drilling/chiselling selector (7) to the hammer and drill setting. – Switch the rotary/hammer selector (5) to the drill and hammer setting. This combination of settings is recommended for drilling holes in concrete and masonry.

  • Page 14: Chiselling (Rotational)

    BASIC HAMMER DRILL OPERATIONS 9.5 CHISELLING (ROTATIONAL) – FIGS.10 – 11 – Rotate the drilling/chiselling selector (7) to the rotational chisel selection setting. – Switch the rotary/hammer selector (5) to the drill and hammer setting. With this combination of settings hammer action will be in operation and also free rotation of the chisel accessory.

  • Page 15: Sds+ System

    9.9 DRILLING WOOD, PLASTIC OR METAL Although technically possible, Draper Tools do not recommend the use of this machine for drilling into wood, metal or plastic. This machine is designed for drilling through brick, concrete and is engineered to do so.

  • Page 16: Maintenance And Troubleshooting

    10. MAINTENANCE AND TROUBLESHOOTING 10.1 GEARBOX MAINTENANCE – FIG.15 Note: Remove the plug from the socket before carrying out adjustment, servicing or maintenance. (12) – Before each use remove the gearbox access cover (2) to ensure there is sufficient grease. –...

  • Page 17: Optional Accessories

    11. OPTIONAL ACCESSORIES 11.1 OPTIONAL ACCESSORIES A full range of accessories are available from Draper Tools. Please visit our website for details: www.drapertools.com - 17 -...

  • Page 18: Disposal

    12. DISPOSAL 12.1 DISPOSAL – At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. – Contact your local authority for details of collection schemes in your area. In all circumstances: ●...

  • Page 19: Waste Electrical

    13. EXPLANATION OF SYMBOLS 13.1 EXPLANATION OF SYMBOLS Class II construction Read the instruction manual. (Double insulated). WEEE – Waste Electrical & Wear face mask and safety Electronic Equipment. glasses. Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish.
  • Page 20 ©Published by Draper Tools Limited. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
