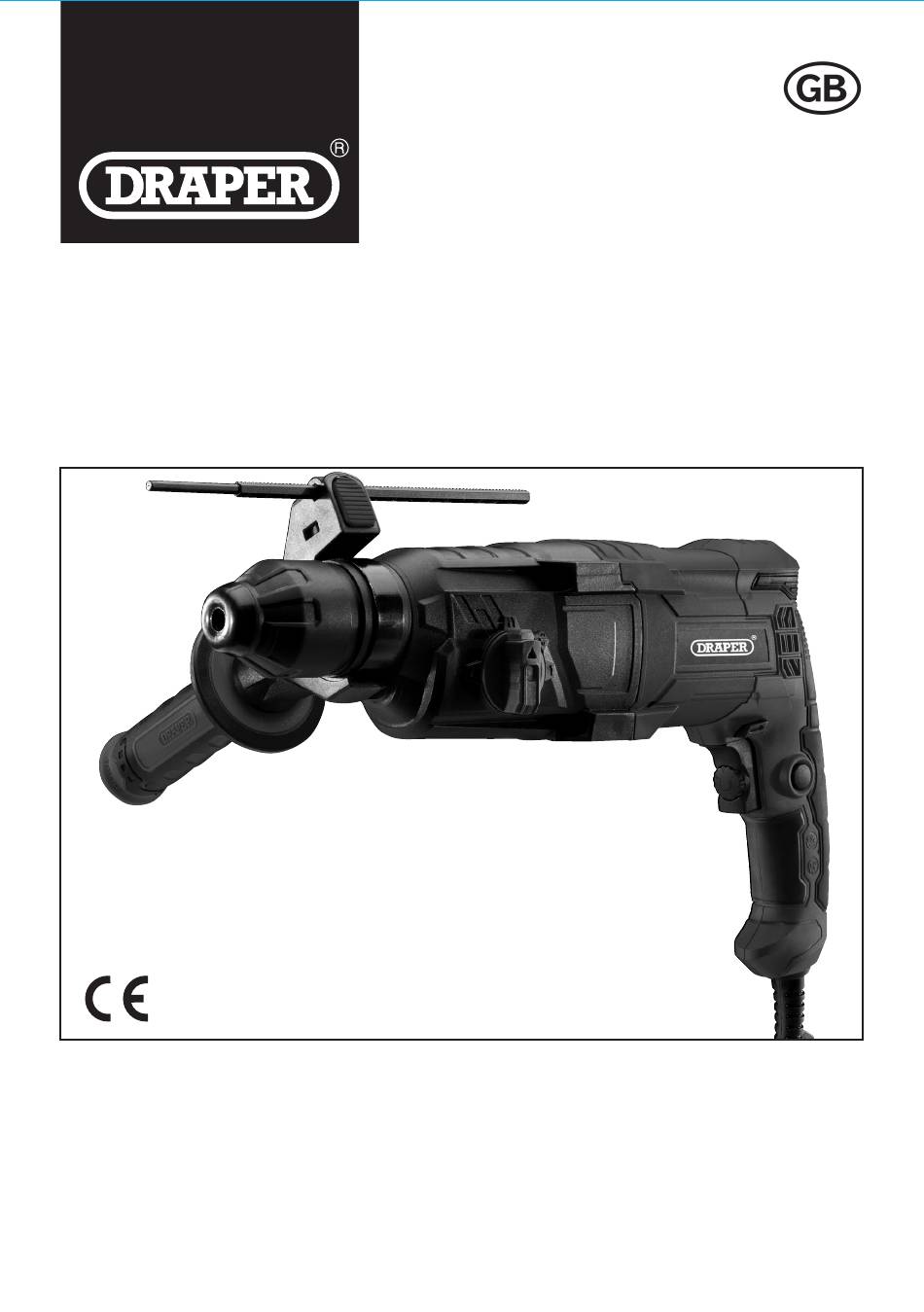

230V 3.4KG
SDS + ROTARY
HAMMER DRILL
56382
These instructions accompanying the product are the original instructions. This document is part of the product,
keep it for the life of the product passing it on to any subsequent holder of the product. Read all these
instructions before assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been
designed, and contains all the necessary information to ensure its correct and safe use. By following all the
general safety instructions contained in this manual, it will ensure both product and operator safety, together
with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper
Tools policy of continuous improvement determines the right to make modifications without prior warning.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 56382 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Draper 56382

Summary of Contents for Draper 56382

  • Page 1 AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.

  • Page 2: Title Page 1.1 Introduction

    Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact.

  • Page 3: Table Of Contents

    CONTENTS TITLE PAGE INTRODUCTION ......................2 REVISION HISTORY ..................... 2 UNDERSTANDING THIS MANUAL ................2 COPYRIGHT NOTICE..................... 2 CONTENTS CONTENTS........................3 WARRANTY WARRANTY ........................4 INTRODUCTION SCOPE ........................... 5 SPECIFICATION ......................5 HANDLING & STORAGE ....................5 HEALTH & SAFETY INFORMATION GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE ........

  • Page 4: Warranty

    This warranty applies in lieu of any other warranty expressed or implied and variations of its terms are not authorised. Your Draper warranty is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the warranty period.

  • Page 5: Introduction

    As part of our core range, this product is suitable for enthusiasts and tradespeople alike. Any application other than that it was intended for, is considered misuse. 4.2 SPECIFICATION Stock no..........................56382 Part no........................SDSHD1050D Rated voltage ........................ 230V~50Hz Rated input ..........................

  • Page 6: Health & Safety Information

    HEALTH AND SAFETY INFORMATION 5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE When using any type of power tool there are steps that should be taken to make sure that you, as the user, remain safe. Common sense and a respect for the tool will help reduce the risk of injury. Read the instruction manual fully.

  • Page 7: Additional Safety Instructions For Hammer Drills

    HEALTH AND SAFETY INFORMATION Remove and check setting tools. Some machinery requires the use of additional tools or keys to set, load or adjust the power tool. Before starting the power tool always check to make certain they have been removed and are safely away from the machine. Prevent unintentional starting.

  • Page 8: Residual Risk

    HEALTH AND SAFETY INFORMATION 5.3 RESIDUAL RISK Important note: Although the safety instructions and operating manuals for our tools contain extensive instructions of safe working with power tools, every power tool involves a certain residual risk which can not be completely excluded by safety mechanisms. Power tools must therefore always be operated with caution! 5.4 CONNECTION TO THE POWER SUPPLY Caution: Risk of electric shock.

  • Page 9: Technical Description

    TECHNICAL DESCRIPTION 6.1 IDENTIFICATION SDS+ chuck. 4 Function selector. Rotation selector. Soft grip. ON/OFF trigger switch. Trigger switch locking button. Power cable. - 9 -...

  • Page 10: Unpacking & Checking

    Lay the contents out and check them against the parts shown below. If any part is damaged or missing, please contact the Draper Help Line (the telephone number appears on the Title page) and do not attempt to use the product.

  • Page 11: Preparing The Drill

    PREPARING THE DRILL Note: Remove the plug from the socket before carrying out adjustment, servicing or maintenance. 8.1 AUXILIARY HANDLE – FIGS. 1 & 2 Warning! Use auxiliary handle supplied with the tool. Loss of control can cause personal injury. When fitting the auxiliary handle –...

  • Page 12: Basic Hammer Drill Operations

    BASIC HAMMER DRILL OPERATIONS Warning! Prior to beginning any drilling, carefully check the surface for the presence of electric cable, gas or water pipes and other dangerous or damaging contents. If unsure do not proceed. Note: Remove the plug from the socket before carrying out adjustment, servicing or maintenance.

  • Page 13: Trigger Switch

    9.9 DRILLING WOOD, PLASTIC OR METAL Although technically possible, Draper Tools do not recommend the use of this machine for drilling into wood, metal or plastic. This machine is designed for drilling through brick, concrete and is engineered to do so.

  • Page 14: Maintenance And Troubleshooting

    10. MAINTENANCE AND TROUBLESHOOTING 10.1 MAINTENANCE The hammer drill does not require any special maintenance. Regularly clean/vacuum the ventilation slots. Use only a mild cleaner and a damp cloth to clean the tool. 10.2 TROUBLESHOOTING Note: Remove the plug from the socket before carrying out adjustment, servicing or maintenance. Problem Possible Cause Remedy...

  • Page 15: Optional Accessories

    11. OPTIONAL ACCESSORIES 11.1 OPTIONAL ACCESSORIES A full range of accessories are available from Draper Tools. Please visit our website for details: www.drapertools.com - 15 -...

  • Page 16: Disposal

    12. DISPOSAL 12.1 DISPOSAL – At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. – Contact your local authority for details of collection schemes in your area. In all circumstances: ●...

  • Page 17: Explanation Of Symbols

    13. EXPLANATION OF SYMBOLS 13.1 EXPLANATION OF SYMBOLS Class II construction Read the instruction manual. (Double insulated). WEEE – Waste Electrical & Wear face mask and safety Electronic Equipment. glasses. Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish.
  • Page 18 NOTES - 18 -...
  • Page 19 NOTES - 19 -...
  • Page 20 ©Published by Draper Tools Limited. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
