INSTRUCTION MANUAL • MANUEL D'INSTRUCTIONS
SLD03TVBBL

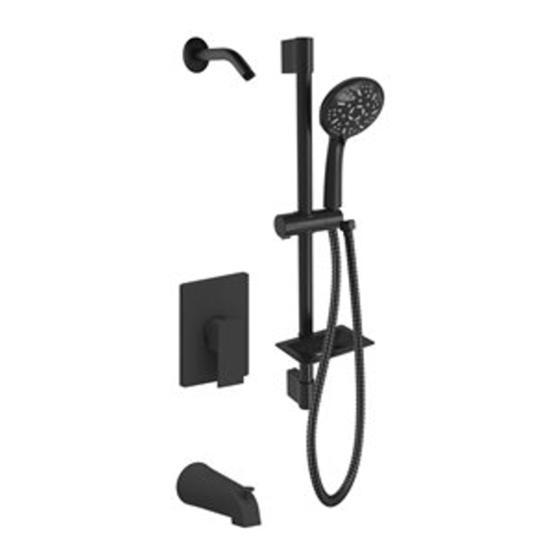

Adjustable shower post system • Système de barre murale réglable
Store/Magasin
1 2
3 4
1 844 666-0155
DO NOT RETURN THIS PRODUCT TO STORE, CONTACT US. We're there if you need help.
NE RETOURNEZ PAS CE PRODUIT AU MAGASIN, CONTACTEZ-NOUS.
Nous sommes là si vous avez besoin d'aide.
1 844 666-0155 • question@dimex360.com
2022-01
Advertisement
Table of Contents
Related Manuals for Akuaplus SLD03TVBBL
Summary of Contents for Akuaplus SLD03TVBBL
- Page 1 INSTRUCTION MANUAL • MANUEL D’INSTRUCTIONS SLD03TVBBL Adjustable shower post system • Système de barre murale réglable Store/Magasin 1 844 666-0155 DO NOT RETURN THIS PRODUCT TO STORE, CONTACT US. We’re there if you need help. NE RETOURNEZ PAS CE PRODUIT AU MAGASIN, CONTACTEZ-NOUS.
- Page 2 We recommend that you hire a professional plumber to install and repair this product. Refer to the regulations stipulated in the Canadian Plumb- ing Code and inquire about your municipality’s requirements before proceeding to the installation. The Canadian Plumbing Code requires the installation of a water-hammer arrester to dampen water hammer in pipes.
- Page 3 1 Stainless steel shower rail Barre en acier inoxydable 2 Hand shower Douchette 3a Top wall bracket Attache murale supérieure 3b Bottom wall bracket Attache murale inférieure 4 Finishing cap Capuchon de finition 5 Hand shower holder Support à douchette 6a Soap dish Porte savon 6b Soap dish holder...
- Page 4 Suggested installation/Installation suggéré Use of copper pipe for installing the valve on the bathtub spout IS MANDATORY. Pipes and fittings with PEX Ceiling/Plafond type, may cause flow restriction and backflow to the shower. We will not be held responsible for any damages 5”...
- Page 5 La protection contre les coups de bélier est nécessaire. Ne découpez pas plus grand que le gabarit. Protection against water hammer is necessary. Do not cut larger than the template. The valve must be installed in order to have the cut guide even with the ceramic. If you remove the cut guide keep the Not included plastic protection on parts #5 and #10...
- Page 6 You can also shut off the water from the hot water shutoff valves and the cold water on either side of the valve. Vous pouvez aussi fermer l’eau à partir des soupapes d’arrêt de l’eau chaude et de l’eau l’eau froide qui se trouve de chaque côté...
- Page 7 OPEN/OUVERT THIGHTEN/SERREZ...
- Page 8 Any warranty bxecomes void if the product was used in a non-recommended way or has been est invalide si le produit a été utilisé de façon non recommandée ou s’il a fait l’objet de négligence. akuaplus® n’est abused.
