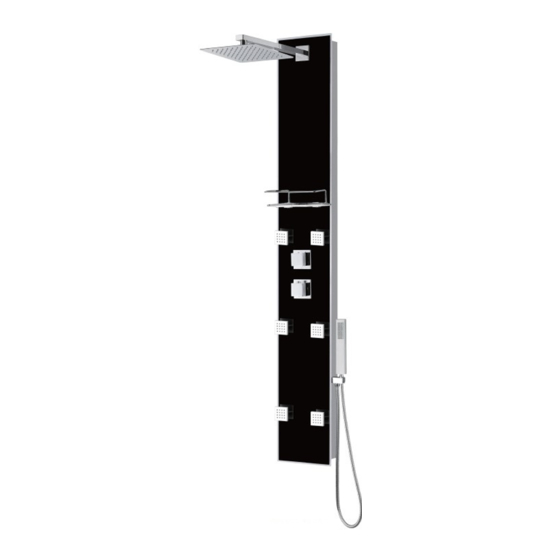

ZARA
Thermostatic
shower panel
User Manual
Colonne de douche
Thermostatique
Guide de l'utilisateur
DO NOT RETURN THIS PRODUCT TO STORE, CONTACT US. We're there if you need help
NE RETOURNEZ PAS CE PRODUIT AU MAGASIN, CONTACTEZ-NOUS.
Nous sommes à vos côtés si vous avez besoin d'aide
1 844 666-0155 • question@dimex360.com
1 844 666-0155
ANTICALCAIRE
NON-CLOGGING
Store/Magasin
1 2
3 4
Model/Modèle
SPM 9662BL
Model/Modèle
SPM 9662WT
2019-06
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Akuaplus ZARA SPM 9662BL
Summary of Contents for Akuaplus ZARA SPM 9662BL

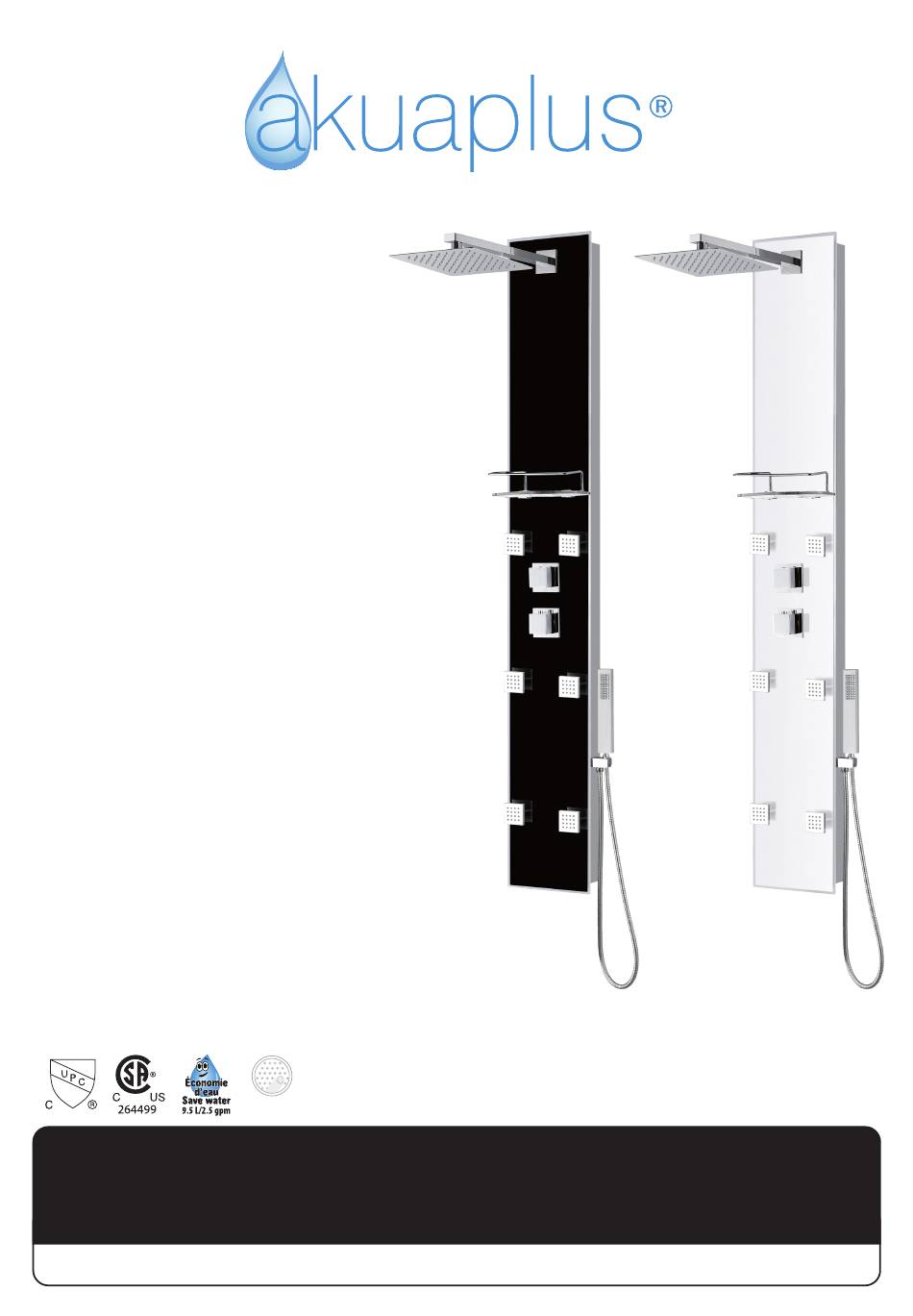

- Page 1 ZARA Thermostatic shower panel Store/Magasin User Manual Colonne de douche 1 844 666-0155 Thermostatique Guide de l’utilisateur Model/Modèle Model/Modèle SPM 9662BL SPM 9662WT ANTICALCAIRE NON-CLOGGING DO NOT RETURN THIS PRODUCT TO STORE, CONTACT US. We’re there if you need help NE RETOURNEZ PAS CE PRODUIT AU MAGASIN, CONTACTEZ-NOUS.
-
Page 2: Technical Data
été utilisé de façon non recommandée ou s’il a fait l’objet de négligence. akuaplus®... - Page 3 8a 8a 8a 26 27...
- Page 4 Parts list/Liste de pièces N°/No. Description N°/No. Description 1 Tempered glass panel Panneau de verre trempé 23c Chrome finish locknut Contre-écrou fini chromé 2 Painted aluminum body Corps en aluminium peint 23 Chrome finish locknut Contre-écrou fini chromé 3 Shower arm in brass Brass douche en laiton 24 Cartridges body Corps des cartouches...
- Page 5 Recommended preparation of your wall / Préparation recommandé de votre mur 2x6 in. Piece of wood reinforcement Pièce de renforcement fait de 2x6 po Not included Non inclus 1/2” NPT You will need to reinforce your wall with 2 x 6 inches pieces of wood as shown (2), to do this, place the shower panel against the wall at the desired height (1) to measure and mark the position of the top bracket for the 2 x 6 (A), bottom bracket position for the 2 x 6 (C), and the 2 x 6 position of the 90˚drop ear elbow (B).
- Page 6 Place and mark the upper shower panel bracket (F), measure the distance between the both shower panel brackets (H) in order to place and mark at the right position the support of the bottom (G). Placez et marquez le support de /- 32 po/in.
- Page 8 Put on one washer provided (A). Apply teflon tape to the nipples. Install the 90 connectors firmly on the nipples and add ¼ turn with a wrench. Connect the hoses to the shower panel making sure they are not twisted. Install the shower panel on the wall brackets.
- Page 9 Water temperature adjustment Réglage de la température You may need to calibrate the water temperature, this is possible at this stage. In order to obtain the desired temperature, turn to the left for warmer water and to the right for cooler water. Put the handle back in place. Il se peut que vous ayez à...
-
Page 10: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM PROBABLE CAUSE SOLUTION Invert the hot and cold water supplies: The cold water supply Wrong connection of the hot and cold water supplies should connect to the cold or blue side of the valve Hot or cold water only The water supply hose are twisted Replace hose A check valve does not work properly...
