SARAH
User Manual
Guide de l'utilisateur

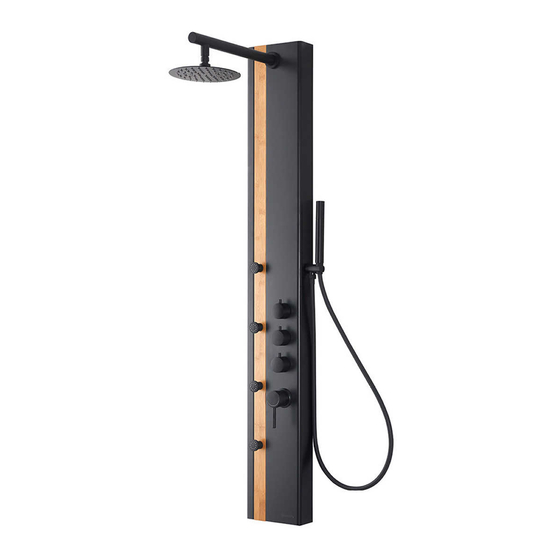

Pressure Balance
Shower Panel
Colonne de douche
à pression balancée
If your water pressure allows it, you can activate
hand shower, shower head and body spray simultaneously
Si votre pression d'eau le permet, vous pouvez activer
douchette, pomme de douche et jet de corps simultanément
Model/Modèle : SPB 9442BL
ANTICALCAIRE
NON-CLOGGING
DO NOT RETURN THIS PRODUCT TO STORE, CONTACT US - Monday to Friday, 9 a.m. to 4:30 p.m. EST. We're there if you need help.
For assistance with product assembly, to report damaged or missing parts, or for any other information about this product, please call our toll-free number.
NE RETOURNEZ PAS CE PRODUIT AU MAGASIN, CONTACTEZ-NOUS - Du lundi au vendredi, 9 h à 16 h 30 HNE.
Nous sommes là si vous avez besoin d'aide. Pour obtenir de l'aide pour l'assemblage de votre produit, pour signaler des pièces endommagées,
manquantes, ou pour toute autre information concernant ce produit, veuillez composer notre numéro sans frais.
1 844 666-0155 • question@dimex360.com
2020-06
Advertisement
Table of Contents
Related Manuals for Akuaplus SARAH SPB 9442BL
Summary of Contents for Akuaplus SARAH SPB 9442BL
- Page 1 SARAH User Manual Guide de l’utilisateur Pressure Balance Shower Panel Colonne de douche à pression balancée If your water pressure allows it, you can activate hand shower, shower head and body spray simultaneously Si votre pression d’eau le permet, vous pouvez activer douchette, pomme de douche et jet de corps simultanément Model/Modèle : SPB 9442BL ANTICALCAIRE...
- Page 2 été utilisé de façon non recommandée ou s’il a fait l’objet de négligence. akuaplus®...
- Page 3 3b 3c 6a 6b 7a 7a #8 KK58 #14 HJ40 58 mm 80 mm 1 Shower panel Colonne de douche 13 Locknut Contre-écrou 2 Bamboo Bambou 14 Pressure balance cartridge Cartouche à pression équilibrée 3 Shower arm in brass Bras de douche en laiton 15 Finishing flange Bride de finition 3a Flange...
-
Page 4: Technical Data
396 mm 254 mm Recommended 10” Recommandé 200 mm Technical data Données techniques Maximum operating pressure............... 125psi Pression de fonctionnement maximale ............125psi Reccomended pressure ................50~80psi Pression recommandée ................. 50~80psi Test pressure: ..................20psi, 125psi Pression d’essai ................20psi, 125psi Reccomended hot water temperature ............ - Page 5 Recommended preparation of your wall / Préparation recommandée de votre mur Reinforcement piece Pièce de renforcement Not included Non inclus 1/2” NPT You will need to reinforce your wall with 2 x 6 inches pieces of wood as shown (2). To do this, place the shower panel against the wall at the desired height (1) to measure and mark the position of the top bracket for the 2 x 6 (A), the bottom bracket position for the 2 x 6 (C), and the 2 x 6 position of the 90˚drop ear elbow (B).
- Page 6 Place and mark the upper shower panel bracket (F), measure the distance between both shower panel brackets (H) in order to place and mark the support of the bottom (G) at the right position. Placez et marquez le support de la colonne de douche du haut (F), mesurez la distance entre les deux supports de la colonne (H) afin de placer et marquer à...
- Page 8 Put on the impurity filter washer (A). Apply teflon (B) tape to the pipe nipples. Install the 90° connectors firmly on the pipe nipples and tighten with ¼ turn with an adjustable wrench. Connect the hoses to the shower panel while making sure they are not twisted. Install the shower panel on the wall brackets. It is recommended not to apply silicone seal around the panel.
-
Page 9: Cartridge Maintenance
Reverse this process when putting the cartridges in place. Effectuez le processus inverse pour remettre les cartouches en place. Cartridge maintenance Entretien de la cartouche If a cartridge does not work properly, you will need Si une cartouche ne fonctionne pas correctement, il to clean it in a solution of half vinegar and half hot vous faudra la nettoyer dans une solution à... -
Page 10: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM PROBABLE CAUSE SOLUTION Cold water and hot water are Bad connection of hot and cold water supplies Invert the hot and cold water supplies tube reversed Check whether the filter washers, the non-return valve or the Complete or partial blockage of the hot water supply cartridges are free of any impurities Your water heater does not give you hot enough water You can increase the temperature of your water heater...
