NAARA

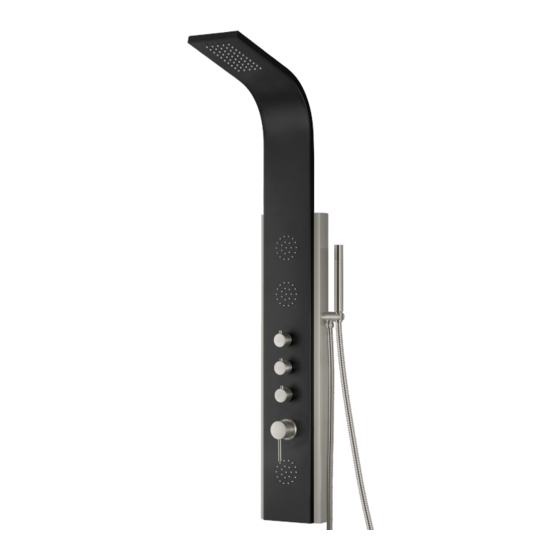

Shower panel
User Manual
Colonne de douche
Guide de l'utilisateur
DO NOT RETURN THIS PRODUCT TO STORE, CONTACT US. We're there if you need help
NE RETOURNEZ PAS CE PRODUIT AU MAGASIN, CONTACTEZ-NOUS.
Nous sommes à vos côtés si vous avez besoin d'aide
1 844 666-0155 • question@dimex360.com
1 844 666-0155
ANTICALCAIRE
NON-CLOGGING
Store/Magasin
1 2
3 4
Model/Modèle : SPB 9882
2019-08
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Akuaplus NAARA SPB 9882
Summary of Contents for Akuaplus NAARA SPB 9882
- Page 1 NAARA Shower panel User Manual Store/Magasin Colonne de douche Guide de l’utilisateur 1 844 666-0155 Model/Modèle : SPB 9882 ANTICALCAIRE NON-CLOGGING DO NOT RETURN THIS PRODUCT TO STORE, CONTACT US. We’re there if you need help NE RETOURNEZ PAS CE PRODUIT AU MAGASIN, CONTACTEZ-NOUS. Nous sommes à...
-
Page 2: Technical Data
été utilisé de façon non recommandée ou s’il a fait l’objet de négligence. akuaplus®... - Page 3 HJ-40 KK-64 64mm 80mm...
- Page 4 Parts list/Liste de pièces N°/No. Description N°/No. Description 1 Shower panel Colonne de douche 20 Trim cap Garniture d’écrou 2 ABS shower head Pomme de douche en ABS 21 Locknut Contre-écrou 3 Hose clamp Collier de serrage 22 Balance pressure cartridge Cartouche à...
- Page 5 Recommended preparation of your wall / Préparation recommandé de votre mur 2x6 in. Piece of wood reinforcement Pièce de renforcement fait de 2x6 po Not included Non inclus 1/2” NPT You will need to reinforce your wall with 2 x 6 inches pieces of wood as shown (2), to do this, place the shower panel against the wall at the desired height (1) to measure and mark the position of the top bracket for the 2 x 6 (A), bottom bracket position for the 2 x 6 (C), and the 2 x 6 position of the 90˚drop ear elbow (B).
- Page 6 Place and mark the upper shower panel bracket (F), measure the distance between the both shower panel brackets (H) in order to place and mark at the right position the support of the bottom (G). Placez et marquez le support de la colonne de douche du haut (F), mesurez la distance entre les deux supports de la colonne (H) afin...
- Page 7 Turn on the faucet and leave the water running for at least one minute to evacuate the air and dirt trapped in the pipes. Ouvrez le robinet pendant au moins une minute afin d’évacuer l’air et les impuretés emprisonnés dans la tuyauterie.
- Page 8 Put on one washers provided (A+B). Apply Teflon tape to the nipples (C). Install the 90° connectors firmly on the nipples and add ¼ turn with a wrench. Connect the hoses to the shower panel making sure they are not twisted. Install the shower panel on the wall brackets. It is recommended not to apply silicone seal around the panel.
- Page 9 Reverse this process when putting the cartridges in place. Effectuez le processus inverse pour remettre les cartouches en place. You may need to clean your cartridges if they accumulate limescale. Brush them under running water with a toothbrush, let them soak for a minimum of eight hours in undiluted white vinegar, brush again and rinse under running water.
-
Page 10: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM PROBABLE CAUSE SOLUTION Cold water and hot water are Bad connection of hot and cold water supplies Invert the hot and cold water supplies tube reversed Water supply close Open water supply The water supply hose are twisted Replace hose Hot or cold water only There is dirt in the pipes or in the valve...
