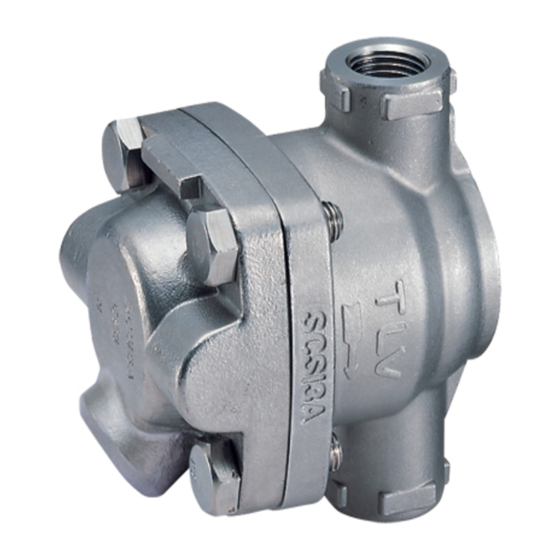

- Page 1 172-65393MA-03 (SS1VG) 4 August 2015 ISO 9001/ ISO 14001 Manufacturer Kakogawa, Japan is approved by LRQA LTD. to ISO 9001/14001 Free Float Drain Trap SS1VG-M / SS1VG-R Copyright © 2015 by TLV CO., LTD. All rights reserved...
-
Page 2: Table Of Contents
Under no circumstances will TLV CO., LTD. be liable for consequential economic loss damage or consequential damage to property or persons caused by explosions, poisoning or other accidents due to use with hazardous fluids. -
Page 3: Safety Considerations
• The three types of cautionary items above are very important for safety: be sure to observe all of them as they relate to installation, use, maintenance, and repair. Furthermore, TLV accepts no responsibility for any accidents or damage occurring as a result of failure to observe these precautions. - Page 4 CAUTION Take measures to prevent people from coming into direct contact with product outlets. Failure to do so may result in burns or other injury from the discharge of fluids. When disassembling or removing the product, wait until the internal pressure equals atmospheric pressure and the surface of the product has cooled to room temperature.
-
Page 5: Checking The Piping
Checking the Piping When used with toxic, flammable or otherwise hazardous fluids, manage properly and take appropriate safety measures for the hazardous fluids DANGER in use.Failure to do so may result in serious injury and/or severe damage to property caused by blockage or fluid leakage. Use only under conditions in which no water hammer will occur. -
Page 6: Specifications
There is a chance of air/gas leak if the condensate load falls below this rate. Please refer to the chart below. Model SS1VG-M Minimum Required Condensate Load 0.5 kg/h (1 lb/h) 172-65393MA-03 (SS1VG) 4 Aug 2015... -
Page 7: Configuration
Configuration SS1VG-M (with metal valve seat) No. Name 1 Body 2 Cover 3 Float 4 Valve Seat (Orifice) 5 Valve Seat (Orifice) Gasket 6 Screen 7 Cover Gasket 8 Cover Bolt 9 Nameplate 10 Flange 11 Screw 12 Spring Washer... -
Page 8: Installation
Installation Install properly and DO NOT use this product outside the recommended operating pressure, temperature and other specification ranges. CAUTION Improper use may result in such hazards as damage to the product or malfunctions which may lead to serious accidents. Local regulations may restrict the use of this product to below the conditions quoted. -
Page 9: The Need For A Pressure-Balancing Line
The Need for a Pressure-balancing Line In principle, drain traps automatically and continuously discharge condensate that flows in. However, air or gas caught in the piping or trap body may obstruct condensate flow. This phenomenon is called “air binding”. Air binding occurs more often in piping with long horizontal lengths, smaller diameters or multiple bends. -
Page 10: Maintenance
Maintenance Take measures to prevent people from coming into direct contact with product outlets. Failure to do so may result in burns or other injury from CAUTION the discharge of fluids. Be sure to use only the recommended components when repairing the product, and NEVER attempt to modify the product in any way. -
Page 11: Disassembly / Reassembly
Disassembly / Reassembly NEVER apply direct heat to the float. The float may explode due to increased internal pressure, causing accidents leading to serious injury WARNING or damage to property and equipment. When disassembling or removing the product, wait until the internal pressure equals atmospheric pressure and the surface of the product CAUTION has cooled to room temperature. - Page 12 Table of Tightening Torques Torque Distance Across Flats Part (lbf·ft) (in) N⋅m Cover Bolt (33) Valve Seat (11) Screw (0.22) (1 N⋅m ≈ 10 kg⋅cm) NOTE: - Coat all threaded portions and valve seat gasket with anti-seize. - If drawings or other special documentation were supplied for the product, any torque given there takes precedence over values shown here.
-
Page 13: Troubleshooting
Air binding has occurred (horizontal Use only vertical inlet piping if inlet piping was used) possible, otherwise install a pressure-balancing line Consult TLV The specific gravity of the fluid is not suitable for this product Rust and scale have built-up around the Clean parts... -
Page 14: Product Warranty
One year following product delivery. 2. Warranty Coverage TLV CO., LTD. warrants this product to the original purchaser to be free from defective materials and workmanship. Under this warranty, the product will be repaired or replaced at our option, without charge for parts or labor.
