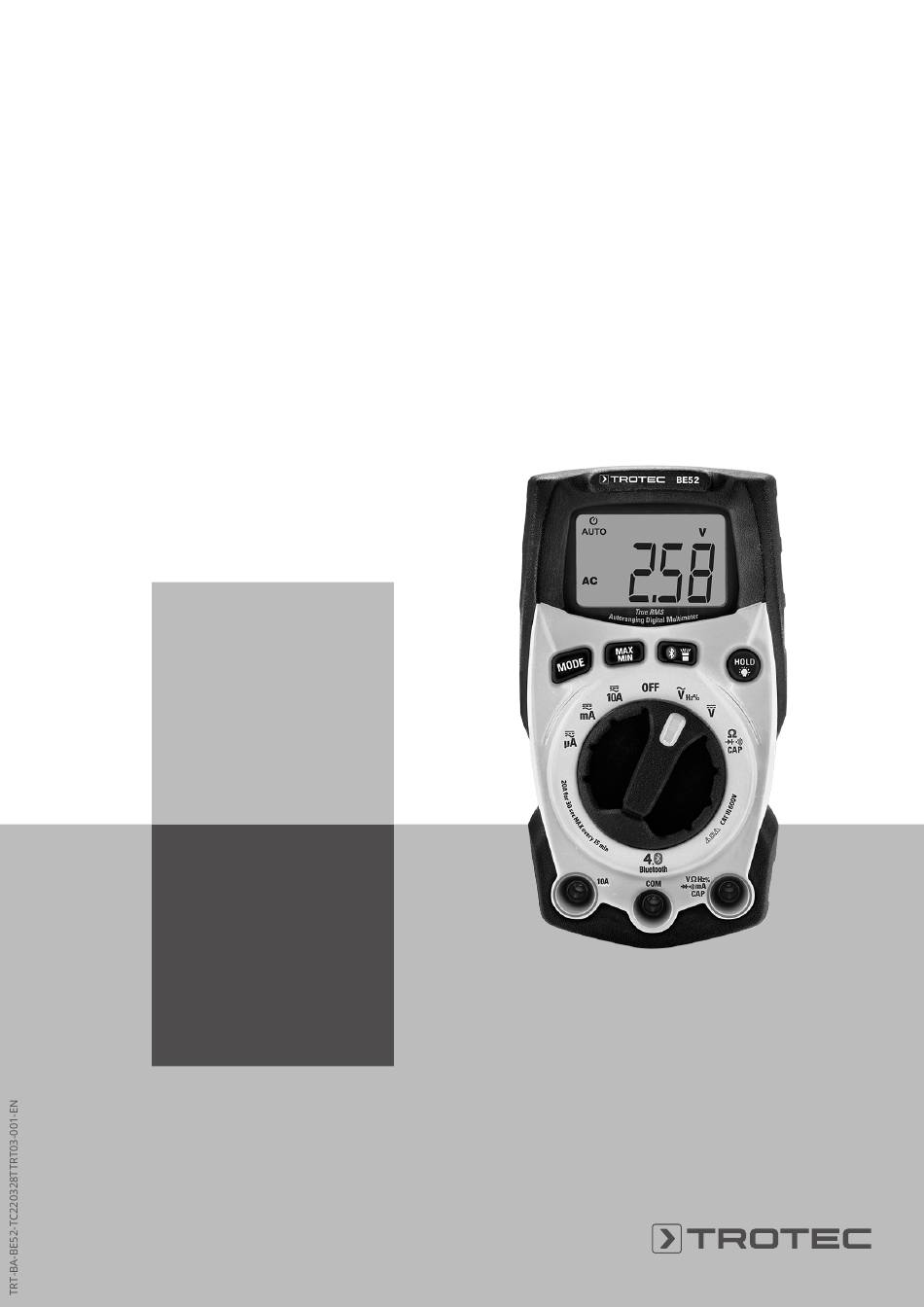

  • Page 1 BE52 OPERATING MANUAL DIGITAL TRUE RMS MULTIMETER...

  • Page 2: Table Of Contents

    • Protect the device from permanent direct sunlight. • Do not remove any safety signs, stickers or labels from the device. Keep all safety signs, stickers and labels in legible condition. • Do not open the device. digital true RMS multimeter BE52...
  • Page 3 To use the device for its intended use, only use accessories and can lead to death! spare parts which have been approved by Trotec. • If you think batteries might have been swallowed or otherwise entered the body, seek medical attention...
  • Page 4 Warning of electrical voltage Work on the electrical components must only be carried out by an authorised specialist company! Warning Risk of suffocation! Do not leave the packaging lying around. Children may use it as a dangerous toy. digital true RMS multimeter BE52...

  • Page 5: Information About The Device

    • Calling the maximum and minimum value appliances, printers, The integrated Bluetooth function makes it possible to connect laboratory the device to a terminal device via the Trotec MultiMeasure equipment, Mobile app. telephone system The measurement results can be displayed and saved on the...
  • Page 6 Diode test / continuity measurement Capacitance measurement: 0.01 nF to 4000 μF Direct and alternating current: µA up to 6000 µA Designation Direct and alternating current: LC display up to 400 mA button Direct and alternating current: up to 10 A digital true RMS multimeter BE52...
  • Page 7 15 minutes of non-use (Ω) + 4 digits) Safety This measuring device is designed for 4.000 kΩ 0.001 kΩ ± (1.5 % indoor use and complies with + 5 digits) overvoltage category CAT III (600 V). 40.00 kΩ 0.01 kΩ 400.0 kΩ 0.1 kΩ 4.000 MΩ 0.001 MΩ 40.00 MΩ 0.01 MΩ ± (3.5% + 5 digits) digital true RMS multimeter BE52...

  • Page 8: Transport And Storage

    • protected from dust and direct sunlight • the storage temperature complies with the values specified in the Technical data • Remove the batteries from the device. 4. Close the battery compartment and retighten the screw. digital true RMS multimeter BE52...
  • Page 9 If the resistance measuring range, the continuity testing range or the diode test was selected and the measuring input is open, the OL indication (exceedance of the measuring range) will be displayed. digital true RMS multimeter BE52...
  • Page 10 ð The measured value will be indicated on the display. • Deactivating the maximum/minimum value indication: Press for 1 second Example: • Setting the range (decimal places): press for a long time. Then press briefly to adapt the decimal places. digital true RMS multimeter BE52...
  • Page 11 400 mA, switch the measuring circuit back off. Plug the red measuring tip into the VΩ measuring socket and select a measuring range in the mA range. Switch the measuring circuit back on. digital true RMS multimeter BE52...
  • Page 12 V/Ω measuring socket (5) and the plug of the black measuring tip into the COM measuring socket (6). 3. Connect the measuring tips to the measuring object. ð Depending on the selection with the MODE button (15), the frequency or the duty cycle is shown. digital true RMS multimeter BE52...

  • Page 13: Multimeasure Mobile App

    ð The device exits the auto-range function and enables manual setting. 2. Repeatedly press the MAX/MIN/R button (16) briefly until Install the Trotec MultiMeasure Mobile app on the terminal the desired setting of the decimal places is displayed. device you want to use in combination with the device.
  • Page 14 3. Start the Trotec MultiMeasure Mobile app on the terminal After several measurements have been carried out, the lowest device. value, highest value, average value and current value are ð A list of active and available sensors will be displayed.
  • Page 15 You can press this flashing symbol or the free area below the measurement value display to open the context menu to stop recording. You can choose from saving or discarding the record after stopping recording. digital true RMS multimeter BE52...
  • Page 16 You can create a new customer set or import an the measured values. existing contact from the phone book of the terminal • Colour scaling: device. Allows you to adjust the colour display of the measured values. digital true RMS multimeter BE52...

  • Page 17: Maintenance And Repair

    Repair Note Do not modify the device or install any spare parts. For repairs Only replace fuses of the same type! or device testing, contact the manufacturer. digital true RMS multimeter BE52...

  • Page 18: Errors And Faults

    Errors and faults Declaration of conformity The device has been checked for proper functioning several We – Trotec GmbH – declare in sole responsibility that the times during production. If malfunctions occur nonetheless, product designated below was developed, constructed and check the device according to the following list.
  • Page 19 Trotec GmbH Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
