  • Page 1 SEULEMENT UTILISER SOUS UNE ALTITUDE DE 2000 METRES +44 (0)1306 712820 No user serviceable parts inside Il n'y a pas de pièces réparables par l'utilisateur à l’intérieur www.funktion-one.com Refer servicing to qualified personnel Prière de se référer à un personnel de maintenance qualifié...

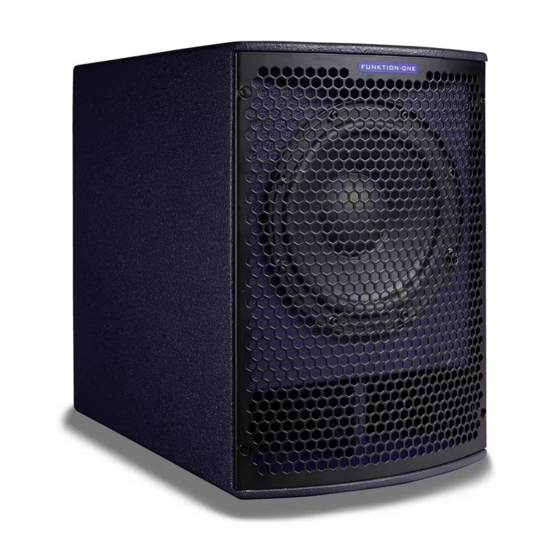

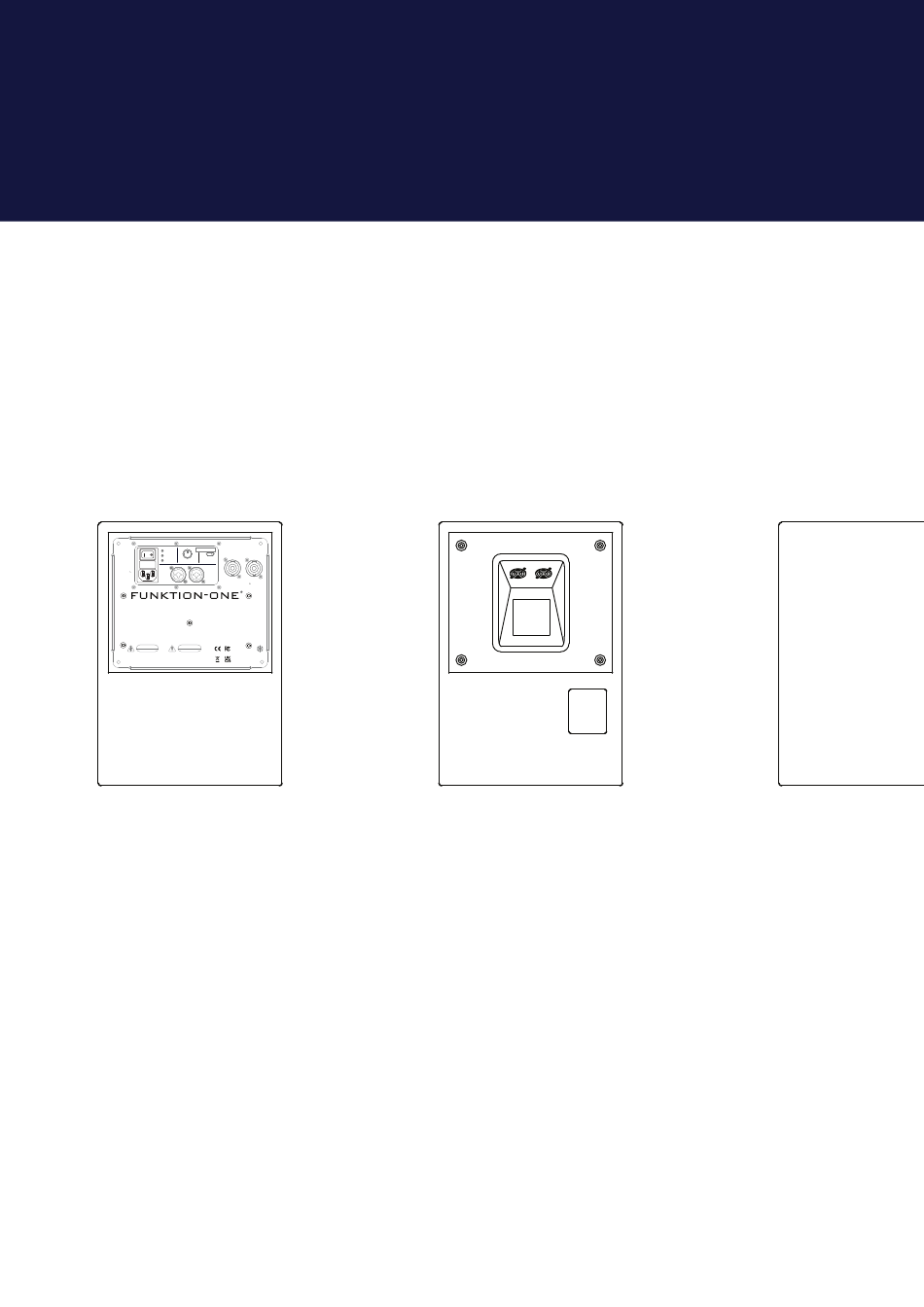

  • Page 2 S B8A/ S B10A U S e r U i d e...
  • Page 3 Keep this guide in a safe place so it’s available for future reference. This guide is subject to change without notice. We recommend you check the Funktion-One website for the latest version of this document. Funktion-One Research Limited Hoyle, Horsham Road, Beare Green,...

  • Page 4: Table Of Contents

    9.1 Position tuning 1.10 Declaration of conformity 9.2 Using the polarity switch 9.3 Room acoustics 2 Warranty 2.1 Funktion-One limited warranty 10 Hardware 2.2 Obtaining service 10.1 Fitting the F5 wall mount bracket 10.2 F5 microphone stand mounting 3 Introduction 10.3 Fitting the F5 yoke...

  • Page 5: Safety And Regulations

    In the unlikely event that that produce heat. you need to dispose of your Funktion-One product, all of our products are marked Protect the power cord from being walked on or pinched particularly at power with the WEEE symbol;...

  • Page 6: Electrical Considerations

    No user serviceable parts inside. Refer servicing to qualified personnel. The triangle with the lightning bolt is used to alert the The SB8A/SB10A is a Class I appliance and MUST be connected with a three- user to risk of electric shock.

  • Page 7: Declaration Of Conformity

    1.10 Declaration of conformity This declaration applies to the self powered loudspeakers This declaration applies to the self powered loudspeakers manufactured by Funktion-One research Ltd. listed below: manufactured by Funktion-One research Ltd. listed below: SB8A SB8A SB10A SB10A In accordance with the following In accordance with the following Low Voltage Directive 2014/35/EU.

  • Page 8: Warranty

    2.2 Obtaining service If your Funktion-One product require service contact your local distributor to raise a claim, a distributor list can be found at www.funktion-one.com. Should it not be possible to resolve your issue remotely you may have to send your product to a service centre.

  • Page 9: Introduction

    This user guide includes the information you will need to configure the system correctly, ensuring you enjoy its full sonic capabilities. You are now a member of the global Funktion-One family. We hope this sound system brings you many years of listening enjoyment.

  • Page 10: Unboxing

    S e r U i d e 3.3 Unboxing The SB8A and SB10A pack contains almost everything you need to get going. You should find the following hardware within the system packaging: 1 x SB8A or SB10A subwoofer ** 2 x F5 or 2 x F81 loudspeaker **...

  • Page 11: Specifications

    SPECIFICATIONS 4.1 Loudspeakers SB8A SB10A 480mm 393mm (1’-6 7/8’’’’) (1’-3 1/12’’’’) 440mm 274mm 510mm 330mm (1’-5 5/16’’’’) (10 13/16’’’’) (1’-8 1/16’’’’) (1’ 1’’) Sensitivity (1W at 1m) 96dB at 2.8V 98dB at 2.8V Nominal impedance 8Ω 8Ω Power (AES) 250W 300W Frequency response ±3dB...

  • Page 12: A1 Amplifier

    4.2 A1 amplifier Channels LF output power (8Ω) 300W Satellite output power (8Ω) 2 x 75W Frequency response (LF) SB8A: 50-150Hz / SB10A: 40-140Hz Frequency response (Satellites) SB8A: 150-20kHz / SB10A: 140Hz-20kHz THD+N(%) 0.005% - 0.5% Input impedance (Balanced XLR) 22kΩ...

  • Page 13: Operation

    OPERATION 5.1 Amplifier front panel The SB8 amplifier has been carefully designed to meet Funktion-One’s exacting standards of audio fidelity and reliability. The shock mounted module houses an analogue signal processing board with active crossover and limiter, a three channel pulse width modulation (Class D) amplifier and universal switch mode power supply.

  • Page 14: Startup Sequence

    RISK OF ELECTRIC SHOCK RISQUE DE CHOC ELECTRIQUE INPUT INPUT OT OPEN **Replace fuse once, if the second fuse blows contact your local Funktion-One dealer for service. DO NOT OPEN NE PAS ENLEVER DO NOT OPEN NE PAS ENLEVER Made in England by...

  • Page 15: Connections

    CONNECTIONS 6.1 Input connections This section explains how to choose the correct cable type for using your audio source with the SB8A/SB10A system. 6.2 Balanced & unbalanced interconnections Audio connections come in two main types: balanced and unbalanced. Professional equipment is typically balanced and domestic equipment is typically unbalanced.

  • Page 16: Identifying The Correct Cable

    S B8A/ S B10A U S e r U i d e 6.4 Identifying the correct cable SOURCE OUTPUT CABLE REQUIRED AMPLIFIER INPUT XLR - Balanced Balanced XLR XLR - Balanced FEMALE MALE Signal + Signal + 1=Ground/Shield 1=Ground/Shield Signal - 2-CONDUCTOR SHIELDED CABLE Signal - 2=Signal +...

  • Page 17: Output Connections

    The outputs can supply up to 150W into 4Ω and are actively high passed at 140-150Hz. 6.6 Recommended loudspeakers Both the SB8A and SB10A can power the F5, F55, F81 or F101 but for a balanced sound we recommend the following systems: SB8A –...

  • Page 18: Connectors

    U i d e 6.8 Connectors The SB8A/SB10A’s outputs use the robust and safe Neutrik Speakon connector. The NL4 is a 4-pin connector, but only two pins are in use. Both NL4 and NL2 cable connectors will mate with the NL4 socket on the SB8A/SB10A.

  • Page 19: Connecting Your System

    Il n'y a pas de pièces réparables par l'utilisateur à l’intérieur No user serviceable parts inside Il n'y a pas de pièces réparables par l'utilisateur à l’intérieur www.funktion-one.com www.funktion-one.com Refer servicing to qualified personnel Prière de se référer à un personnel de maintenance qualifié...

  • Page 20: F5 Amplifier Load

    S B8A/ S B10A U S e r U i d e 6.1 1 F5 amplifier load 4 per channel 5.6 per channel 8 per channel 16 per channel Do not exceed these limits! Risk of overheating/damage! 6.12 F81 amplifier load 4 per channel 8 per channel Do not exceed these limits! Risk of overheating/damage!

  • Page 21: Analogue Signal Processing

    ANALOGUE SIGNAL PROCESSING 7.1 Signal path The SB8A/SB10A input board performs a number of important functions that are useful to understand. Unlike most active/powered speakers, the SB8A/SB10A is 100% analogue, with no DSP or digital conversion. This block diagram shows the internal signal path of the SB8A/SB10A.

  • Page 22: Setup

    S B8A/ S B10A U S e r U i d e SETUP 8.1 Loudspeaker placement To enjoy the full dimension available from stereo choose a listening position midway between the satellites and in front of them so that the angle from the satellites to the listening position is around 90° or greater as illustrated below.

  • Page 23: Installed Vertical Aiming

    SETUP 8.2 Installed vertical aiming When considering your satellites position take into consideration the required coverage area and the average listening position. Avoid aiming your satellites over the audience’s heads as this will increase negative room effects causing poor impact and intelligibility, your audience will enjoy far better sound quality with the satellites aiming towards them.

  • Page 24: Installed Horizontal Aiming

    S B8A/ S B10A U S e r U i d e 8.3 Installed horizontal aiming Avoid aiming your satellites straight into a room, this can increase side wall effects causing coverage gaps between the loudspeakers and poor stereo imaging.

  • Page 25: Timing Optimisation

    TIMING OPTIMISATION 9.1 Position tuning With any multi-way loudspeaker system for maximum accuracy and listening pleasure it’s very important to have the different frequency bands synchronised in time. At the crossover frequency it is even more critical where more than one speaker is reproducing the same frequency range. Bad timing can give a hole in the frequency response due to energy cancellation (out of phase) or good timing can give mutual reinforcement and a seamless join between the mid bass and low mid frequencies (in phase) as illustrated in the following diagrams.

  • Page 26: Using The Polarity Switch

    S B8A/ S B10A U S e r U i d e 9.2 Using the polarity switch to assist phase alignment Whilst playing music with a defined kick drum and percussive bassline, switch the bass polarity to negative. If the mid bass gets weaker in level and impact, switch the polarity back to positive. If the mid bass gets stronger with the polarity set to negative, leave it that way.

  • Page 27: Room Acoustics

    9.3 Room acoustics A typical home environment will have hard reflective walls and ceiling which will add a degree of confusion to all sources of audio in the room. This is often mitigated by carpet, curtains and soft furnishings in general. Sound treatment is usually based on absorbent materials such as curtains or dedicated sound panels.

  • Page 28: Hardware

    S B8A/ S B10A U S e r U i d e HARDWARE 10.1 Fitting the F5 wall mount bracket 1. Remove the two M6 bracket screws from the F5 enclosure. 2. Orientate the bracket as shown in the image below, using the two M6 screws fix the bracket assembly to the F5 enclosure, torque the screws to 5.1nm.

  • Page 29: F5 Microphone Stand Mounting

    HARDWARE 10.2 F5 microphone stand mounting The 3/8’’ mounting point allows the F5 to be mounted to a microphone stand, simply insert the thread into the insert and rotate the stand boom clockwise to secure (Check the stands SWL capacity). The 30°...

  • Page 30: Fitting The F5 Yoke

    S B8A/ S B10A U S e r U i d e 10.3 Fitting the F5 yoke 1. Remove the two M6 yoke bolts from the F5 enclosure. Orientate the yoke as shown and slide it into position over the cabinet 2.

  • Page 31: Fitting F5 The Yoke Continued

    HARDWARE 10.4 Fitting F5 the yoke continued... 1. Stand mounted configuration. 2. Ceiling mount configuration.

  • Page 32: Fitting The F81 Wall Mount Bracket

    S B8A/ S B10A U S e r U i d e 10.5 Fitting the F81 wall mount bracket 1. Remove the two M6 bracket screws from the F81 enclosure. 2. Orientate the bracket as shown in the image below, using the two M6 bolts supplied with the bracket fix the assembly to the F81 enclosure, torque the screws to 5.1nm.

  • Page 33: Fitting The F81 Yoke

    HARDWARE 10.6 Fitting the F81 yoke 1. Remove the two M6 yoke bolts from the F81 enclosure. Orientate the yoke as shown and slide it into position over the cabinet 2. Orientate the yoke as shown in the image below, using the two M6 bolts, split washers and washers fix the yoke assembly to the F81 enclosure, tighten until the cabinet is firmly fixed in the desired position.

  • Page 34: Fitting The F81 Yoke Continued

    S B8A/ S B10A U S e r U i d e 10.7 Fitting the F81 yoke continued... 1. Ceiling mounted yoke configuration. 2. Stand mounted yoke configuration.

  • Page 35: F81 Stand Mounting

    HARDWARE 10.8 F81 stand mounting 1. Fit the F81 yoke to the stand top adaptor using the M10 bolt supplied. Orientate the yoke as shown in the image below, using the two M6 bolts, split washers and washers fix the yoke assembly to the F81 enclosure, tighten until the cabinet is firmly fixed in the desired position.

  • Page 36: 1 Appendix

    Typically this functions by leaving the quieter tracks alone, and turning down the loud tracks. Whilst this is a good idea in principle, when playing music from a phone into the SB8A/SB10A, you may find the maximum output is limited as a result of the volume normalisation. This is because the input sensitivity of the SB8A/SB10A has been chosen for maximum compatibility with the widest range of sources.

  • Page 37: Room Modes

    1 1.2 Room modes Even if you’re not familiar with the terminology, you may have noticed room modes before, when the bass is very loud in one part of the room, and almost non-existent in another part of the room. This because the waves reflect from the walls and produce standing waves or resonances, or commonly, modes.

  • Page 38: Sound Waves

    S B8A/ S B10A U S e r U i d e 1 1.3 Sound Waves Sound waves are modulation of air pressure. The metric unit of pressure is a Pascal, a force of one newton over an area of one meter squared. The dynamic range of audible sound is extremely large, from 0.00002 Pascals (the threshold of hearing) to 20 Pascals (threshold of pain).

  • Page 39: Useful Db Increments

    1 1.4 Useful dB Increments 1 dB – smallest audible change in level for an average listener 3 dB – doubling of power 6dB – doubling of sound pressure or voltage 10dB – doubling of perceived level, 20 times the pressure or voltage 40dB –...

  • Page 40: Recommended Further Reading

    S B8A/ S B10A U S e r U i d e 1 1.5 Recommended further reading “Friendly” introductions to acoustics: • Why you hear what you hear by Eric Heller • Acoustics and Psychoacoustics by Jamie Angus and David Howard Room acoustics: •...
