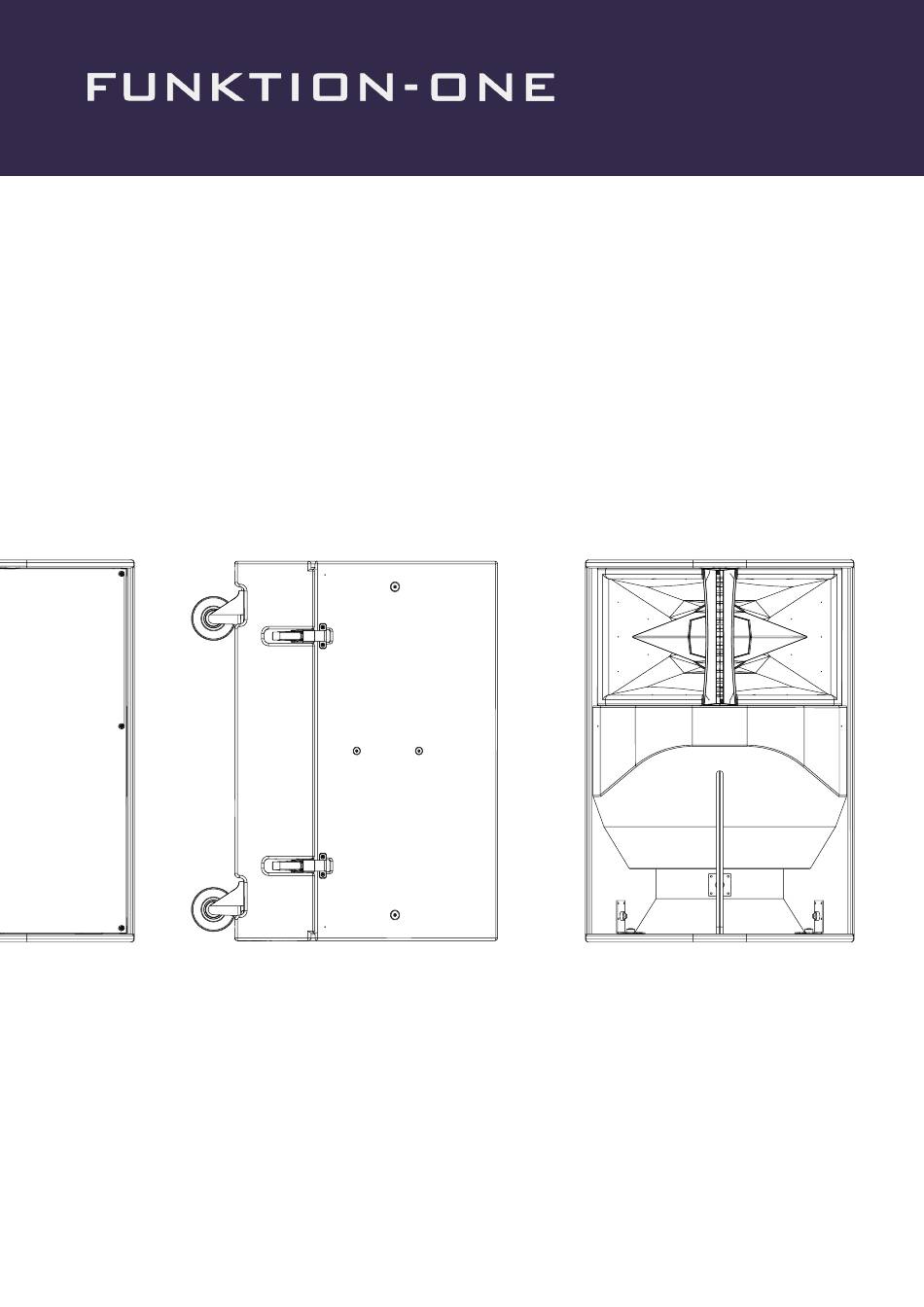

- Page 1 UIDE...
- Page 2 Evo X User Guide Version 1.0 © Funktion-One-Research Limited 2021 Keep this guide in a safe place so it’ s available for future reference. This guide is subject to change without notice. We recommend that you regularly check the Funktion-One website for the latest version of this document.
-
Page 3: Table Of Contents
1.2 WEEE Directive............ 3 7.2 Paintwork/Coatings........12 1.3 Volume Warning..........3 1.4 Safety Symbols........... 3 1.5 Declaration of Conformity ......4 Warranty 2.1 Funktion-One Limited Warranty ..5 2.2 Obtaining Service ........... 5 Introduction 3.1 Welcome..............6 3.2 On Delivery ............6 Specifications 4.1 Driver Specification ......... -
Page 4: Important Safety Instructions
Funktion- One Research Ltd. or your local distributor. 1.3 Volume Warning The Evo X is capable of producing high sound levels that can damage your hearing over time. Care should be taken to manage your noise exposure levels. -
Page 5: Declaration Of Conformity
UIDE 1.5 Declaration of Conformity This declaration applies to passive loudspeakers This declaration applies to the passive loudspeakers manufactured by Funktion-One Research Ltd. listed below: manufactured by Funktion-One Research Ltd. listed below: Evo X Evo X In accordance with the following In accordance with the following Low Voltage Directive 2014/35/EU. -
Page 6: Warranty
2.2 Obtaining Service If your Funktion-One product requires service, contact your local distributor to raise a claim. A list of distributors can be found at www.funktion-one.com. Should it not be possible to resolve your issue remotely, you may have to send your product to a service centre. -
Page 7: Introduction

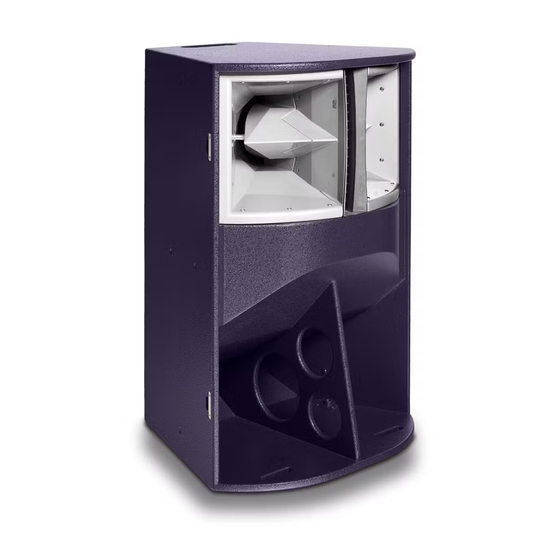

Evo X is a three-way, full range loudspeaker with wide horizontal dispersion and narrow vertical dispersion. Evo X should be used either one per side in stereo, or one per corner in a four-point system. This user guide includes the information you will need to configure the system correctly, ensuring that you enjoy its full sonic capabilities. -
Page 8: Directivity Map
Vertical +120° +60° 0° ° -120° -180° 100Hz 1 0 k H z 1 k H z 4.4 Dimensions Technical drawings with detailed dimensions can be found at https:/ /funktion-one.com/product/evo-x 40° 604mm 540mm [1'-11 13/16"] [1'-9 1/4"] 859mm [2'-9 13/16"]... -
Page 9: Accessories
UIDE CCESSORIES 5.1 Accessories Install Squaring Brackets to cabinet using M8 fixings provided with Fix Yoke to Squaring Brackets using M10 fixings provided with kit, with nitrile Yoke with Squaring washer between Brackets (for flying) Yoke and Bracket Install Grille brackets to inside corners using M5 fixings provided with kit... -
Page 10: Ground Stacking
A guide to the Funktion-One ground stacking system can be found at https:/ /funktion- one.com/support Evo X uses the same ground stacking concept as other Funktion-One ‘E’ and ‘T’ products, however, it requires its own ‘GSM ClaspLD’ (Long Double) to allow tilting over the curved front edge of the cabinet. -
Page 11: Setup And Operation
Evo X is not an arrayable loudspeaker. Only one should be used per side (or per corner in four-point configurations). 6.3 Positioning - Horizontal/Pan Angle The correct pan angle will provide excellent coverage, as well as a strong stereo image across a large area of the audience. -
Page 12: Positioning - Height & Tilt Angle
UIDE 6.4 Positioning - Height & Tilt Angle In most situations, Evo X should be positioned with the MF/HF waveguide just above head height, with the cabinet tilted downwards slightly, focusing the sound on the audience. Sometimes, when the audience are close to the speakers, it may be beneficial to install the cabinets ‘upside down’... -
Page 13: General Maintenance
Evo X in optimum condition. 7.2 Paintwork/Coatings Due to the nature of their purpose, Evo X cabinets can get dirty and sustain bumps and scratches during transport, setup and de-rig. Keep your cabinets clean with warm soapy water and a sponge or microfibre cloth.
