Shadow-Caster SCM-SLB-CC Operation

S C M - S L B - C C S C M - S L B - C C
FULL-COLOR BRACKET MOUNT SPREADER LIGHT FULL-COLOR BRACKET MOUNT SPREADER LIGHT
MODEL #S: SCM-SLB-CC-BK
OPERATION
• When power is applied to the light, the brightness slowly ramps up to
full power over approximately 3 seconds
• Toggle power during ramp up to set brightness
• Subsequent power toggles will go from white, blue, red, green, aqua,
blue-violet, magenta, yellow, purple, orange, green, yellow, back to white
• To reset the light, turn off for 10 seconds
• If Shadow-NET™ is present this will override power toggle control
functions
INSTALLATION
• Find a suitable location with sufficient clearance for 1/4-20 mounting
bolt and routing waterproof cable.

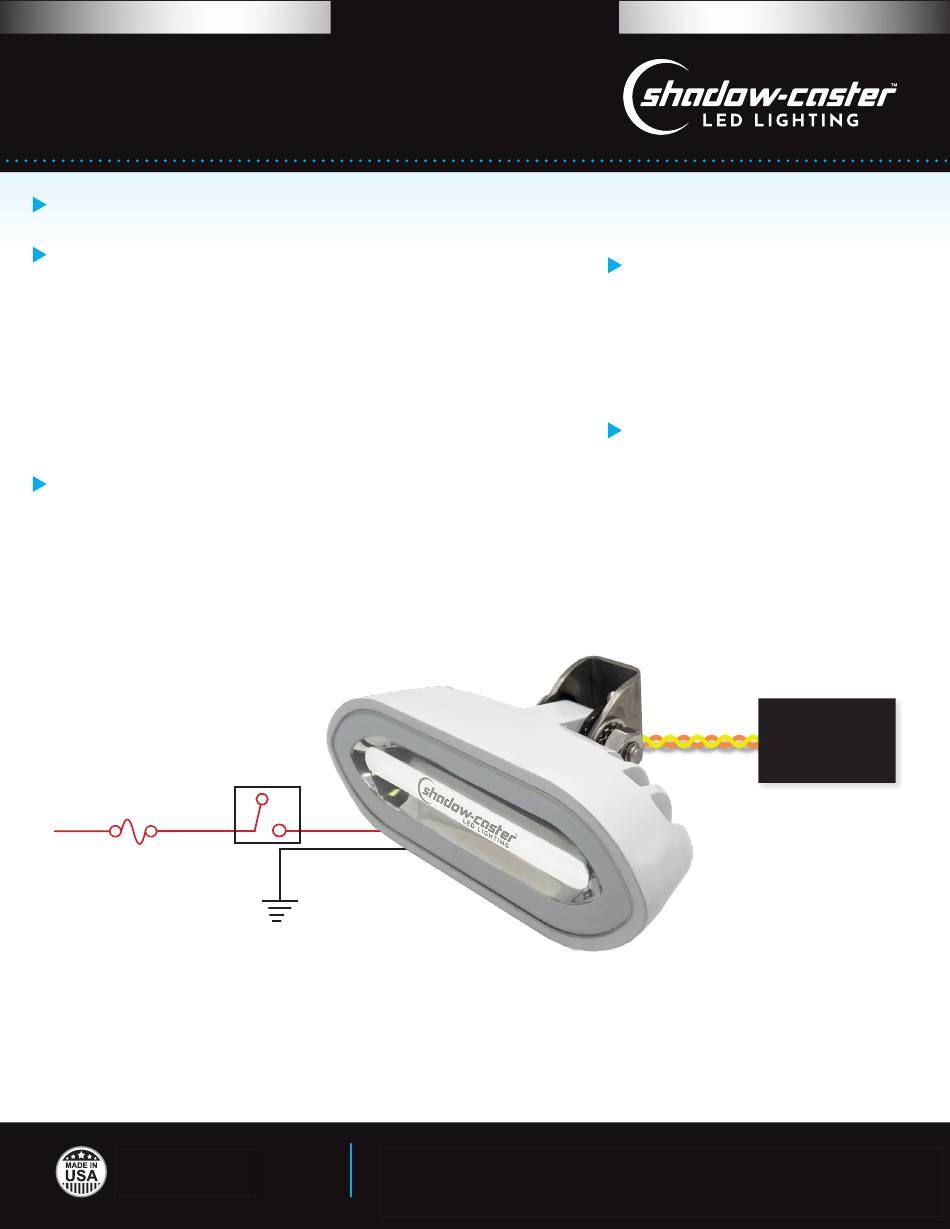

• Connect power and ground. Connect optional Shadow-NET™ wires if
Shadow-Caster™ controller is present.
10-30V
FUSE
Note: No switch required when using Shadow-NET™
Designed & Manufactured Designed & Manufactured
in Clearwater, FL in Clearwater, FL
© 2022 Shadow-Caster © 2022 Shadow-Caster
™
P R O D U C T P R O D U C T
• SCM-SLB-CC-WH
SWITCH NOT
NECESSARY WHEN USING
SHADOW-NET CONTROL
GROUND
Shadow-Caster Shadow-Caster
p: +1 727.474.2877 p:
LEDs. All Right Reserved. LEDs. All Right Reserved.
I N S T R U C T I O N S I N S T R U C T I O N S
LED Lighting | 2060 Calumet Street | Clearwater, FL 33765 LED Lighting | 2060 Calumet Street | Clearwater, FL 33765
™ ™
+1 727.474.2877 e: e: info@shadow-caster.com info@shadow-caster.com w:
SPECIFICATIONS
• Power consumption: 2 Amps at
12V, 1 Amp at 24 Volts
• 10-30V DC input
• IP67 (waterproof)
• Durable glass window
CLEANING INSTRUCTIONS
• Clean with soap and water with
a soft towel or sponge
Optional
Shadow-NET™
Controller
