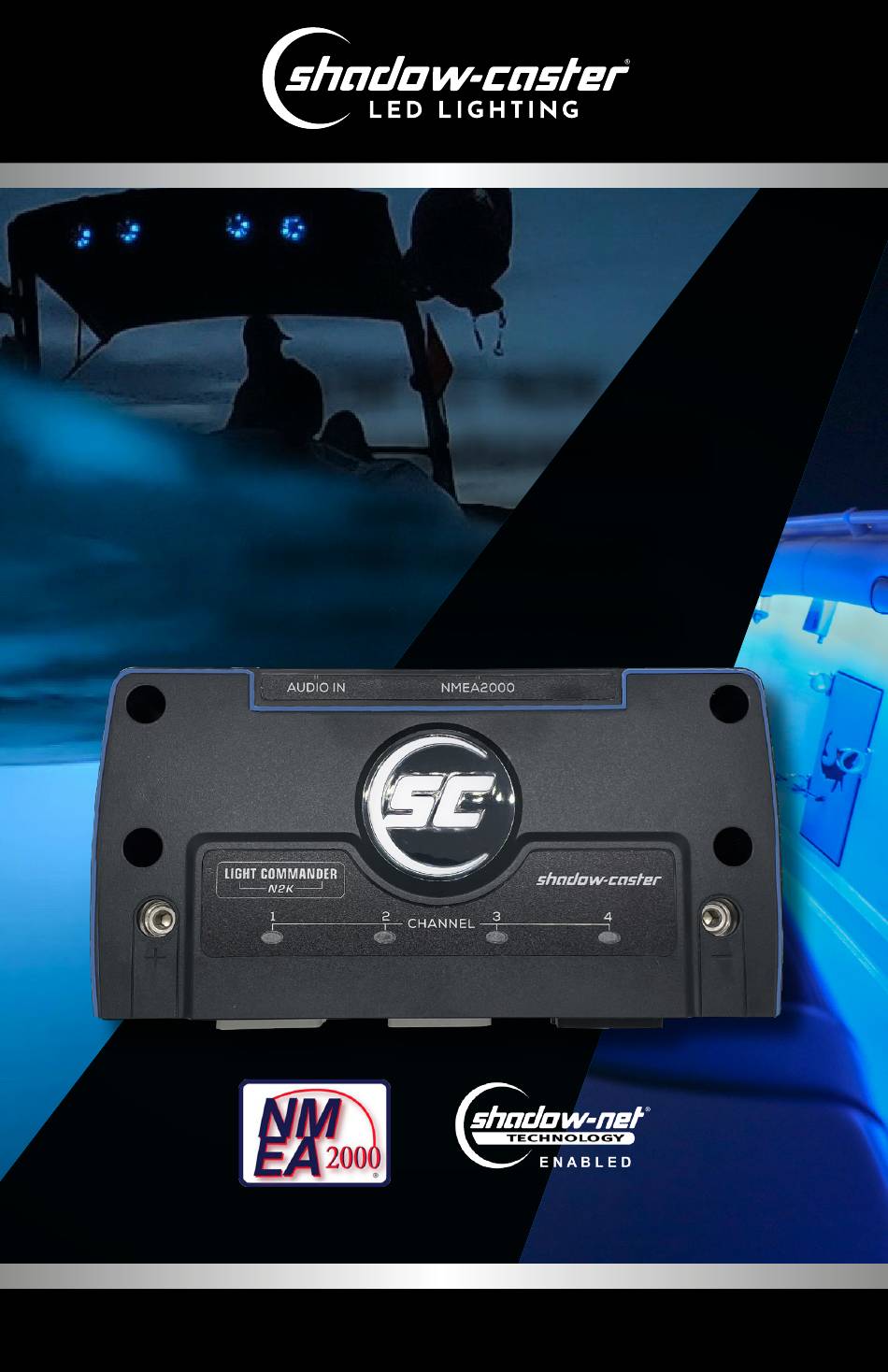

- Page 1 SCM-LC-N2K LIGHT COMMANDER NMEA 2000 LIGHTING CONTROLLER INSTALLATION & OPERATION MANUAL W W W . S H A D O W - C A S T E R . C O M...
-
Page 2: Table Of Contents
SCM-LC-N2K LIGHT COMMANDER OPERATION MANUAL TABLE OF CONTENTS SCM-LC-N2K BOX CONTENTS ............................SCM-LC OVERVIEW ................................ SCM-LC-N2K FEATURES ............................... SCM-LC-N2K TYPICAL WIRING DIAGRAM ........................DEUTSCH CONNECTORS FOR LIGHTING AND SWITCH INPUTS................. INSTALLATION ................................ADDING ADDITIONAL REMOTES AND MULTI-FUNCTION DISPLAYS ................SHADOW-NET DEVICES ............................... -
Page 3: Scm-Lc-N2K Box Contents
SCM-LC-PLUS Offers an additional Wifi and Ethernet interface along with an NMEA 2000 interface for network connections to Garmin, Simrad, Lowrance, Raymarine and Furuno. This operation manual covers the SCM-LC-N2K NMEA 2000 model. Designed & Manufactured in Clearwater, FL © 2021 Shadow-Caster LED Lighting, All Rights Reserved ®... -
Page 4: Scm-Lc-N2K Typical Wiring Diagram
SCM-LC-N2K LIGHT COMMANDER OPERATION MANUAL SCM-LC-N2K TYPICAL WIRING DIAGRAM Multi-Function Display CAN bus Backbone 3.5mm Female Audio Jack SCM-LC -N2K Light Commander Connector 1 Connector 2 Connector 3 Optional Push Button Switches Note: For Connector 1-3 Up to 6 switches can be connected to control pin configurations RGB(W) Zones 1-6. -
Page 5: Deutsch Connectors For Lighting And Switch Inputs
SCM-LC-N2K LIGHT COMMANDER OPERATION MANUAL DEUTSCH CONNECTORS FOR LIGHTING AND SWITCH INPUTS CONNECTOR 1 CONNECTOR 2 CONNECTOR 3 Mating connector Mating connector Mating connector DT06-12SA “A Key” DT06-12SA “A Key” DT06-12SB “B Key” (BACK VIEW) (BACK VIEW) (BACK VIEW) Connector 1 Pinouts... -
Page 6: Installation
1-6 backlit logo to indicate a fault condition. supported by the controller. The SCM-LC-N2K Light Commander will work in 12V or The SCM-LC-N2K Light Commander will support 15 24V systems. Please note that 12V or 24 compatible... -
Page 7: Adding Additional Remotes And Multi-Function Displays
As soon as a command is given to the Female Audio Cables & Splitters SCM-LC-N2K Light Commander to go to a color, these Jack Input attached devices will receive a message to go to the corresponding color and brightness. -
Page 8: Basic Operations For Simrad Nmea 2000 Lighting Interface Configuring Zones
SCM-LC-N2K LIGHT COMMANDER OPERATION MANUAL BASIC OPERATIONS FOR SIMRAD NMEA 2000 LIGHTING INTERFACE ZONE CONTROL Zone names can be customized Zone color indicates current zone color or function Press to slide out lighting interface Select between zones or scene selection... - Page 9 SCM-LC-N2K LIGHT COMMANDER OPERATION MANUAL BRIGHTNESS ADJUSTMENT SCREEN Adjust brightness Brightness Lighting effects Color selection SINGLE COLOR ADJUSTMENT SCREEN Adjust color and hue DYNAMIC LIGHTING EFFECTS SCREEN Dynamic function selection Designed & Manufactured in Clearwater, FL © 2021 Shadow-Caster LED Lighting, All Rights Reserved...
- Page 10 SCM-LC-N2K LIGHT COMMANDER OPERATION MANUAL ZONE CONFIGURATION & LIGHT ASSIGNMENT SCREENS Zone configuration and light assignment Zone light assignment Shadow-Caster LED Lighting | 2060 Calumet Street. | Clearwater, FL 33765 ® 1+ 727.474.2877 info@shadow-caster.com shadow-caster.com...
-
Page 11: Troubleshooting
SCM-LC-N2K LIGHT COMMANDER OPERATION MANUAL TROUBLESHOOTING MUSIC SYNC NOT WORKING SHADOW-NET LIGHTS WILL OCCASIONALLY ® LOCK UP AND STOP RECEIVING MESSAGES Verify that an appropriate 3.5mm stereo jack is being used and that there is a usable signal. This indicates that there is a noise issue on the Shadow-NET communication lines. - Page 12 FEB22 Shadow-Caster LED Lighting 2060 Calumet Street. Clearwater, FL 33765 Designed & Manufactured ® in Clearwater, FL 1+ 727.474.2877 info@shadow-caster.com shadow-caster.com © 2021 Shadow-Caster LED Lighting, All Rights Reserved ®...
